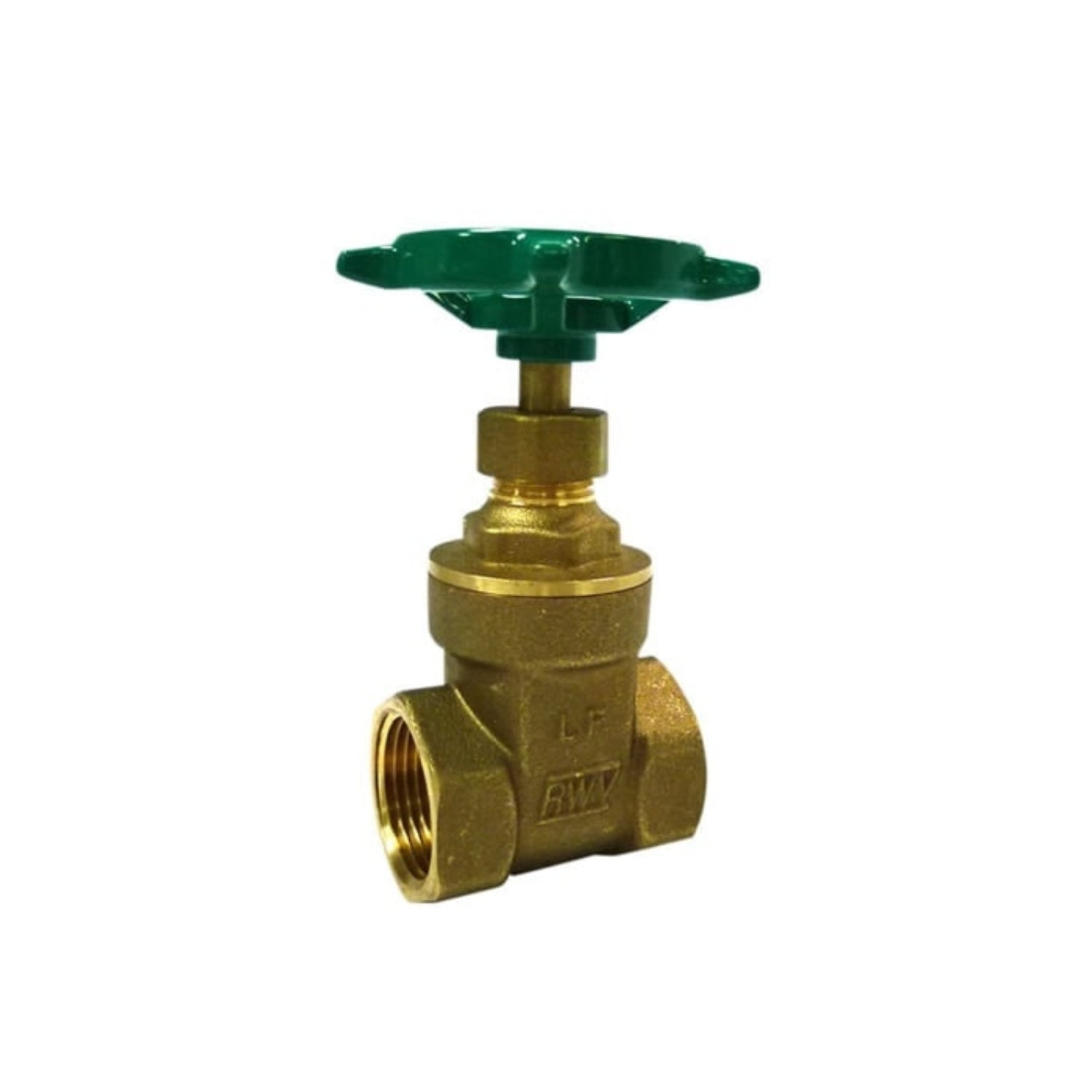

267AB LF Brass Gate Valve
The 267AB LF Brass Gate Valve delivers precision flow control in residential, commercial, and industrial plumbing systems. Constructed from lead-free brass and certified to NSF/ANSI 61 & 372, this valve meets rigorous safety standards for potable water applications. Its robust design ensures leak-free operation under high-pressure conditions, making it ideal for water, oil, and gas systems.
Key Features
✅ Lead-Free & Certified Safe
- Compliant with AB1953 and NSF/ANSI 61 & 372 for drinking water safety.
- Lead-free brass body ensures eco-friendly, health-conscious performance.
✅ Industrial-Grade Durability
- 200# WOG Rating: Built to withstand water, oil, and gas under high pressure.
- Solid Wedge Disc: Ensures a tight seal and resists wear for long-term reliability.
- Non-Rising Stem: Compact design saves space and simplifies installation.
✅ Premium Functional Design
- Screw-In Bonnet: Easy maintenance and secure, leak-resistant sealing.
- FNPT x FNPT Threaded Ends (ASME B1.20.1-NPT): Ensures compatibility with standard NPT fittings.

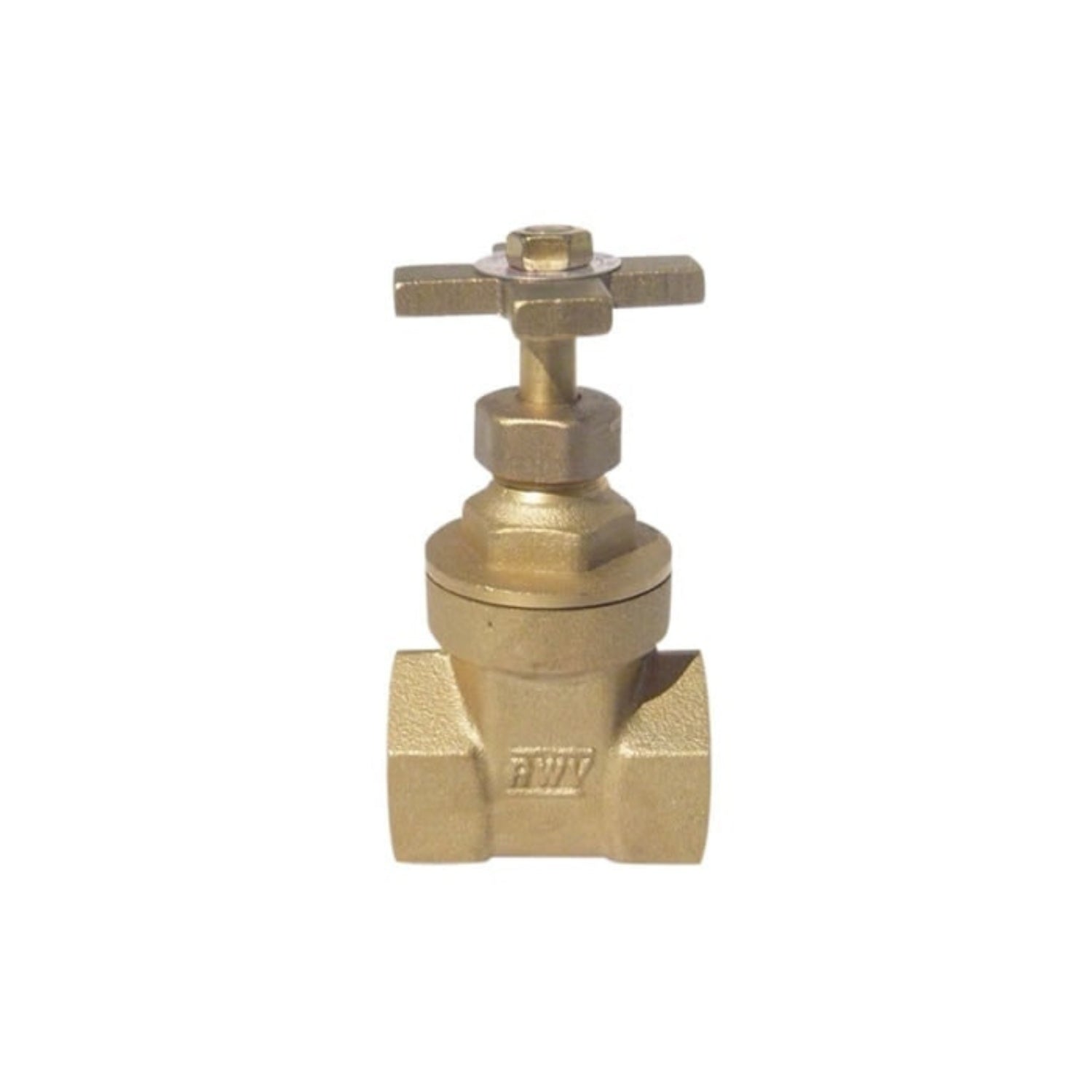

- Cross Handle Available: Optional ergonomic handle for enhanced control.
Technical Specifications
- Material: Lead-Free Brass (Body, Bonnet, Stem, Disc)
- End Connections: FNPT x FNPT (ASME B1.20.1-NPT)
- Pressure Rating: 200 PSI WOG
- Certifications: AB1953, NSF/ANSI 61 & 372
- Standards: ASME B1.20.1-NPT
Ideal For
- Potable water systems (residential/commercial)
- Industrial oil and gas pipelines
- HVAC and fire suppression systems
- Municipal infrastructure projects
Why Choose This Valve?
The 267AB LF combines safety, durability, and ease of use, making it a top choice for contractors and engineers prioritizing compliance and performance. Its certifications and lead-free construction guarantee adherence to the strictest health and safety standards, while the threaded ends and screw-in bonnet ensure hassle-free installation.
Order Now – Upgrade your systems with a valve trusted by professionals for reliability and safety!
Dimension, Weight
| Size | T | D [in] | H [in] | L [in] | Wt. [lb] |
|---|---|---|---|---|---|
| ½" | ½"-14 NPT | 1.78 | 2.75 | 1.67 | 0.46 |
| ¾" | ¾"-14 NPT | 1.78 | 3.18 | 1.77 | 0.62 |
| 1" | 1"-11.5 NPT | 2.05 | 3.50 | 2.03 | 0.84 |
| ¼" | ¼"-11.5 NPT | 2.38 | 4.35 | 2.25 | 1.44 |
| ½" | ½"-11.5 NPT | 2.38 | 4.75 | 2.37 | 1.74 |
| 2" | 2"-11.5 NPT | 3.12 | 5.60 | 2.60 | 2.70 |
| Pressure/Temperature Rating | |
|---|---|
| 200# WOG | max. at 212 °F |
Material
| Part | Material | Specification | |
|---|---|---|---|
| 1 | Body | Lead Free Brass | ASTM B927 C28500 |
| 2 | Bonnet | Lead Free Brass | ASTM B927 C28500 |
| 3 | Stem | Lead Free Brass | ASTM B927 C28500 |
| 4 | Disc | Lead Free Brass | ASTM B927 C28500 |
| 5 | Lock nut | Lead Free Brass | ASTM B927 C28500 |
| 6 | Grand nut | Brass | ASTM B124 |
| 7 | Gland | Brass | ASTM B124 |
| 8 | Packing | PTFE | - |
| 9 | Handwheel | Aluminum | - |
| 10 | Nut | Steel | A36 |
| 11 | Tag | Aluminum | - |
| 12 | Gasket | PTFE | - |
