Weld-End Transition Fitting | IPS | SDR 9 | 255 PSI

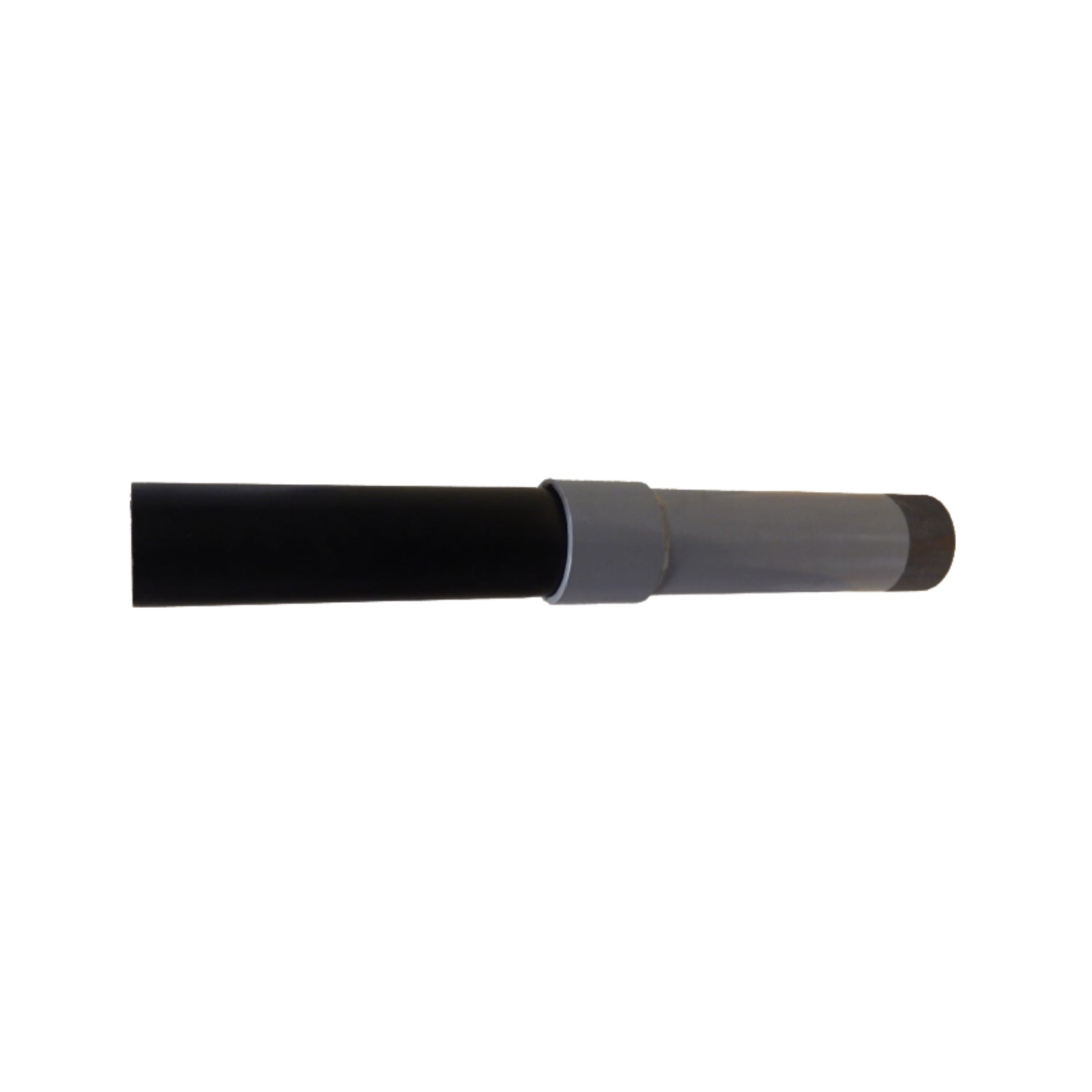

The IntegriFuse Heavy-Duty Weld-End Transition Fitting is a premium solution for joining HDPE piping systems to steel pipelines in demanding industrial and municipal applications. Constructed with ASTM A106/A53 Schedule 40 carbon steel and high-performance HDPE, this transition fitting features a fully epoxy-coated interior and exterior for superior corrosion protection and durability.
Designed for high-pressure systems, the SDR 9 configuration is rated for 255 PSI (MAOP @ 73.4°F), delivering a rugged and leak-resistant connection. The internally machined and beveled groove ensures full pressure performance, while maintaining unobstructed HDPE coverage throughout the transition collar—creating a piggable seal and pipe restraint rating suitable for thermal stress conditions in active pipelines.
This fitting meets or exceeds ASTM D2513 Category 3 mechanical joint requirements (not for use in natural gas distribution) and is manufactured to comply with ASTM D3261, ASTM F1598, ASTM F1599, ANSI/AWWA C901 & C906, NSF/ANSI 61, and NSF/ANSI 372. It is fusion-compatible with PE3408, PE4710, and PE100 resins and can be used with pipes and fittings manufactured to ASTM D2513, D3035, and F-714 specifications.
Key Features:
- Heavy-duty weld-end design with epoxy-coated ASTM A106/A53 Schedule 40 carbon steel
- SDR 9 rated for 255 PSI (MAOP @ 73.4°F) — ideal for high-pressure systems
- Internally beveled groove for maximum joint strength and a piggable, sealed transition
- Complete HDPE coverage through the transition collar for full corrosion protection
- Fusion-compatible with all PE3408/PE4710/PE100 HDPE pipe and fittings
Compliant With:
- ASTM D2513, D3261, F1598, F1599, D3035, F-714
- ANSI/AWWA C901 & C906
- NSF/ANSI 61 and 372 (where applicable)
Applications Include:
- Oil & gas production and saltwater disposal
- Municipal water distribution and wastewater systems
- Mining, landfill, and industrial process piping
- Dredging, irrigation, geothermal, and telecom conduit systems
Note: This fitting is not rated for use in natural gas distribution applications.
Weld-End Transitions
SDR 9 (standard dimension ratio)
255 PSI (MAOP @ 73.4o F)
| Nominal Size | Transition Collar | X Exposed HDPE Length | Y Steel Collar Length | D HDPE Pipe OD | d HDPE Pipe ID | Z Steel Collar Width | Z1 Uncoated Weld Zone | Weight (lbs.) | Item Code |
|---|---|---|---|---|---|---|---|---|---|
| 2” IPS | Epoxy | 15.52 | 13.76 | 2.375 | 1.943 | 3.00 | 2.0 | 7.9 | 400720 |
| 3” IPS | Epoxy | 15.23 | 17.84 | 3.500 | 2.864 | 4.03 | 2.0 | 13.9 | 400723 |
| 4” IPS | Epoxy | 15.12 | 17.92 | 4.500 | 3.682 | 5.28 | 2.0 | 23.3 | 400726 |
| 6” IPS | Epoxy | 13.05 | 17.88 | 6.625 | 5.421 | 7.08 | 2.0 | 47.5 | 400729 |
| 8” IPS | Epoxy | 11.72 | 22.82 | 8.625 | 7.057 | 9.81 | 2.0 | 94.6 | 400732 |
