HDPE Water/Sewer Pressure Pipe | PE4710 | AWWA C906 | DR 13.5 | 40' Stick | IPS

JM Eagle’s HDPE pipe rated for 160 PSI (DR 13.5) delivers long-lasting, zero-leak performance for municipal water systems, force mains, and industrial pressure applications. Manufactured from PE4710 resin and certified to AWWA C906 standards, this 40-foot IPS stick pipe offers corrosion-proof durability and superior flow efficiency.

Key Features & Benefits

✅ 160 PSI Pressure Rating

• DR 13.5 wall thickness for enhanced strength and reliability
• Butt-fused joints deliver 100% leak-free pipeline systems

✅ PE4710 Resin Durability

• 100-year design life – Florida DOT-verified
• Corrosion and abrasion resistant – ideal for aggressive soils and sewer environments
• Flexible under stress – resists seismic movement and freeze/thaw cycles

✅ Contractor-Friendly Installation

• 40' sticks reduce joints by 60% vs. 20' ductile iron pipe
• Lightweight – 50% lighter than metal alternatives, installs without heavy equipment
• Color-coded stripes (blue = potable, green = sewer, purple = reclaimed)

✅ Optimized Flow Characteristics

• C=150 and Manning’s n=0.009 for efficient hydraulic performance
• Ultra-smooth bore minimizes friction loss and scaling

Technical Specifications

• Size Range (IPS): 4" to 48" (some sizes N/A)
• Pressure Rating: DR 13.5 (160 PSI)
• Standards: AWWA C906, ASTM F714/D3035/D3350, NSF 61/14
• Material: PPI TR-4 PE4710 (Cell Class 445574 C/E)
• Length: 40' straight (50' available by request)

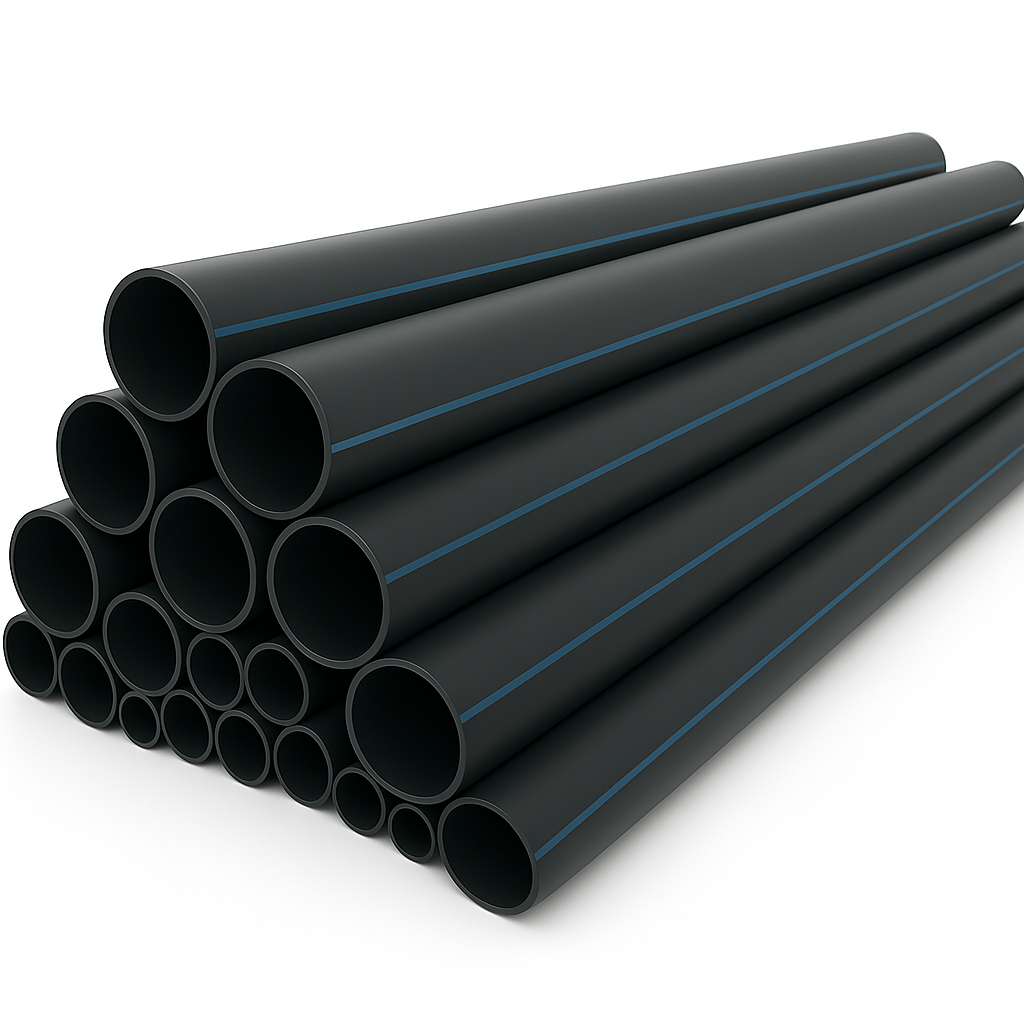

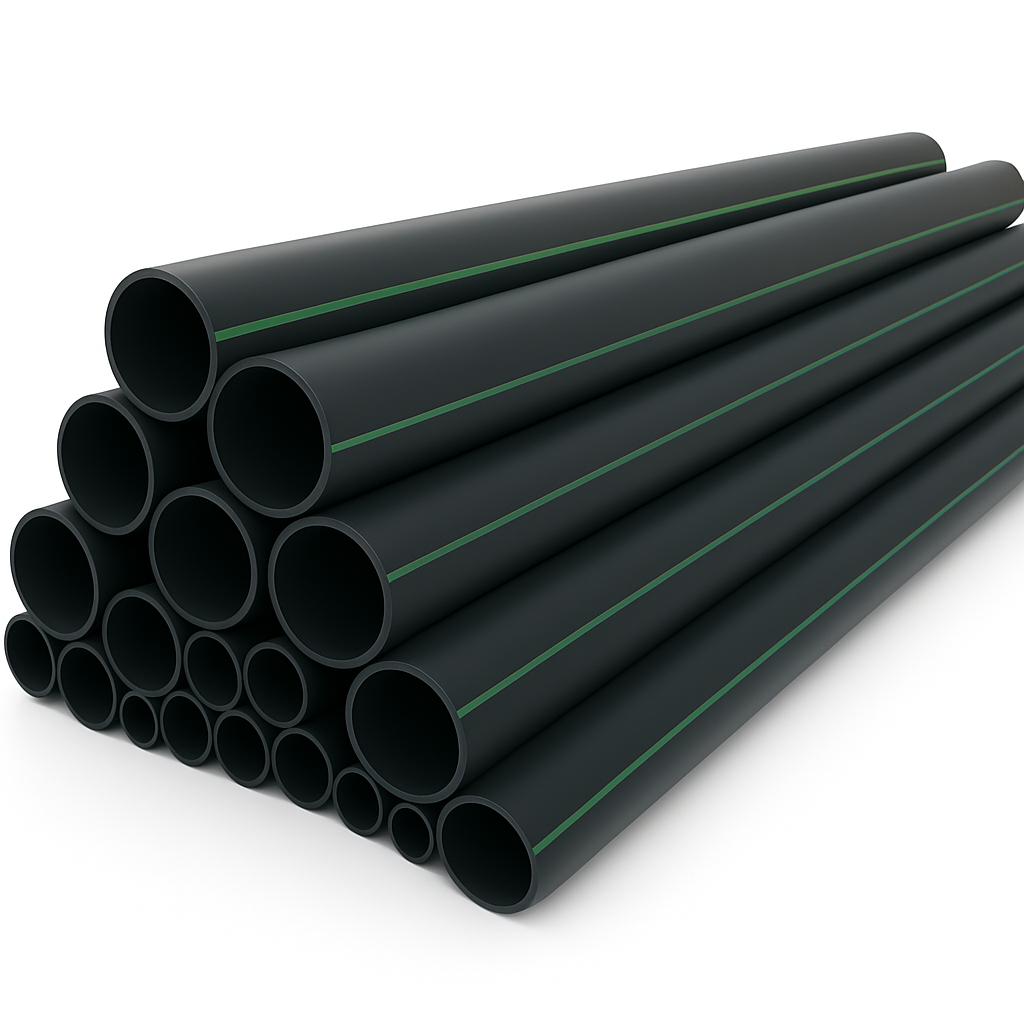

• STANDARD COLORS: Black with blue stripe, Black with green stripe, Black with purple stripe
• SPECIAL ORDER COLORS: Solid Blue, Solid Grey

Why Choose JM Eagle HDPE?

• FM Approved for fire protection systems
• Up to $12,000/mile savings vs. ductile iron (labor and lifecycle)
• 5-year warranty on materials and manufacturing

Includes: JM Eagle HDPE Installation Guide

Choose DR 13.5 HDPE for strong, cost-effective, and long-term water infrastructure.

HDPE IRON PIPE SIZE (IPS) PRESSURE PIPE

DR 13.5 (160 PSI)
