HDPE Water/Sewer Pressure Pipe | PE4710 | AWWA C906 | DR 21 | 40' Stick | IPS

JM Eagle’s HDPE pipe rated for 100 PSI (DR 21) delivers long-lasting, leak-free performance in municipal water systems, sewer force mains, and industrial installations. Manufactured from PE4710 resin and certified to AWWA C906 standards, this 40-foot IPS stick pipe resists corrosion, cracking, and seismic forces with a proven 100-year design life.

Key Features & Benefits

✅ 100 PSI Pressure Rating

• DR 21 wall thickness ideal for low-to-mid pressure systems
• Butt-fused joints create seamless, 100% leak-free pipelines

✅ Durable PE4710 Resin Construction

• 100-year service life – verified by Florida DOT
• Corrosion-proof and abrasion-resistant – no rust, pitting, or scaling
• Earthquake-resistant flexibility – handles soil shifts and ground movement

✅ Efficient Installation

• 40' stick lengths reduce joints by up to 60%
• 50% lighter than ductile iron – requires less equipment
• Color-coded stripes: Blue = potable, Green = sewer, Purple = reclaimed

✅ Hydraulic Performance

• Hazen-Williams C=150 and Manning n=0.009 for high flow and energy efficiency
• Resists slow crack growth and rapid crack propagation

Technical Specifications

• Size Range (IPS): 4" to 63"
• Pressure Rating: DR 21 (100 PSI)
• Standards: AWWA C906, ASTM F714/D3035/D3350, NSF 61/14
• Material: PPI TR-4 PE4710 (Cell Class 445574 C/E)
• Length: 40' straight (50' available by request)

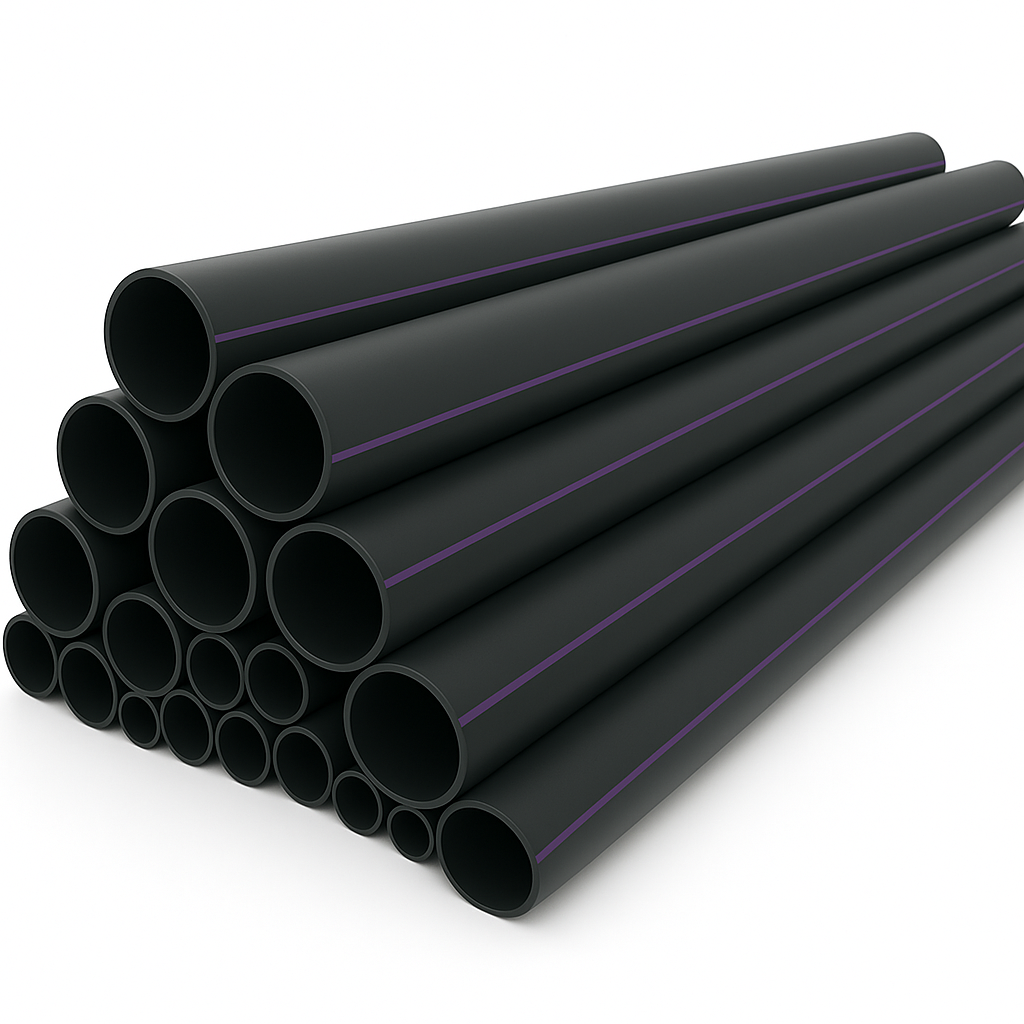

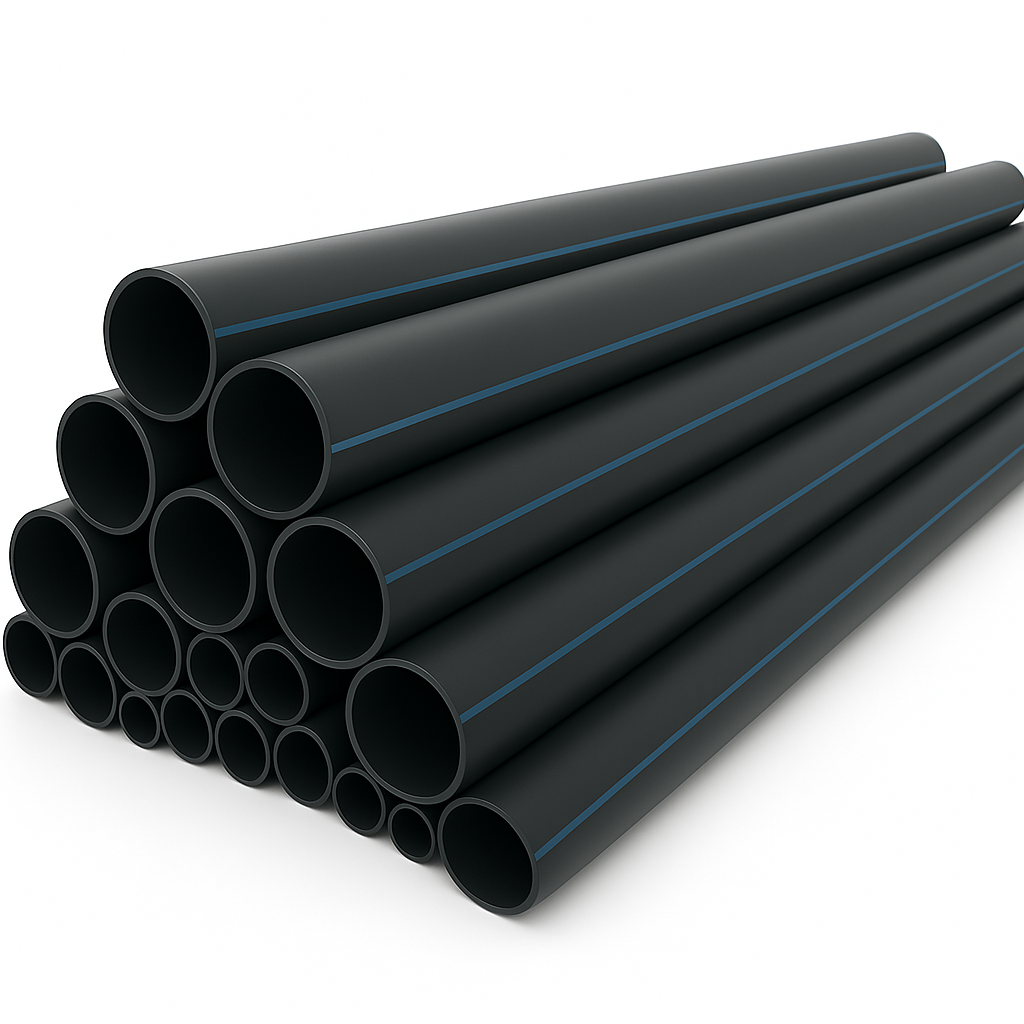

• STANDARD COLORS: Black with blue stripe, Black with green stripe, Black with purple stripe
• SPECIAL ORDER COLORS: Solid Blue, Solid Grey

Why Choose JM Eagle HDPE?

• $12,000+/mile savings vs. ductile iron (labor and lifetime maintenance)
• 1–2 day installation for most projects
• Zero maintenance – no corrosion or internal buildup

Includes: JM Eagle HDPE Installation Guide

Choose DR 21 HDPE for lightweight, corrosion-resistant piping that lasts for generations.

HDPE IRON PIPE SIZE (IPS) PRESSURE PIPE

DR 21 (100 PSI)
