600 lb Water Blocking Tracer Wire | 19 AWG | Trace-Safe TST600
600 lb Water Blocking Tracer Wire: Product Overview

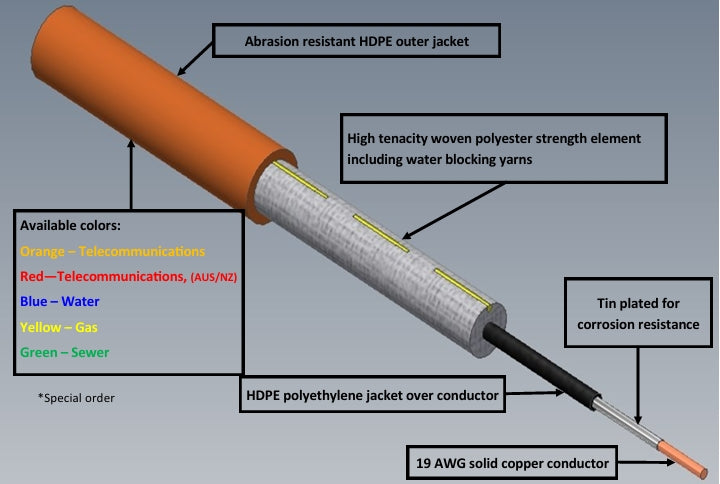

Trace-Safe Trench (TST600 series) is a reinforced, water-blocking detectable wire for locating buried plastic gas, water and sewer pipe and all-dielectric fiber optic cable. A 19 AWG tin-coated copper conductor sits inside two HDPE jackets with a woven polyester and water-blocking yarn core, giving 610 lb nominal break strength in a lightweight, flexible wire that lays easily in the trench. The smaller gauge conductor gives precise low-frequency locates, and the reduced voltage-carrying capacity makes it a safer choice in lightning-prone areas.
Key Features
- Water Blocking: Water-blocking yarns swell on contact with moisture and keep water away from the conductor. Passes the 3 meter water head test.
- 610 lb Break Strength: Reinforced polyester core with low elongation and no spring back for worker safety.
- Double HDPE Jacket: Resists abrasion, impact and soil stress, and is fungus resistant.
- Color Coded by Utility: Orange for telecom, yellow for gas, blue for water and green for sewer.
- Sequential Footage Markings: Printed along the jacket for quick length measurement.
- Locator Compatible: Works with standard locating equipment across a wide frequency range.
- No-Strip Connections: Compatible with the Trace-Safe TST600 universal connector system, no jacket stripping required.
Technical Specifications
| Specification | TST600 Series |
|---|---|
| Conductor | 19 AWG tin-coated solid copper, 0.0356" (0.90 mm) nominal |
| Conductor DC Resistance | 8.015 ohms per 1,000 ft |
| Conductor Tensile Strength | 38,500 psi nominal |
| Inner Jacket | HDPE, 0.006" (0.154 mm) nominal, black |
| Reinforcement Core | Woven high-tenacity polyester with water-blocking polyester yarns |
| Outer Jacket | HDPE, 0.025" (0.635 mm) nominal, color coded by utility |
| Overall Diameter | 0.145" (3.68 mm) nominal |
| Break Strength | 610 lb (277 kg) nominal |
| Crush Strength | 222 lb (100 kg) nominal |
| Voltage Rating | 600 V per UL 1581, meets CE standards |
| Dielectric Constant | 2.29 @ 1 MHz |
| Water Blocking | Passes 3 meter water head test |
| Markings | Sequential footage markings |
| Packaging | Recyclable plastic reels |
Available Colors and Lengths
| Item # | Model | Color | Length | Reel (Flange x Width) | Wt. (lb) | Reels / Skid |
|---|---|---|---|---|---|---|
| TELECOMMUNICATIONS | ||||||
| 61859 | TST600W | Orange | 1,000 ft | 12" x 10.25" | 12 | 36 |
| 62360 | TST600W | Orange | 5,000 ft | 12" x 16.25" | 56 | 18 |
| 66900 | TST600W | Orange | 10,000 ft | Contact us | Contact us | Contact us |
| GAS | ||||||
| 61873 | TST601W | Yellow | 1,000 ft | 12" x 10.25" | 12 | 36 |
| 61875 | TST601W | Yellow | 2,500 ft | 12" x 10.25" | 27 | 36 |
| 62361 | TST601W | Yellow | 5,000 ft | 12" x 16.25" | 56 | 18 |
| WATER | ||||||
| 62244 | TST602W | Blue | 1,000 ft | 12" x 10.25" | 12 | 36 |
| 62246 | TST602W | Blue | 2,500 ft | 12" x 10.25" | 27 | 36 |
| 62362 | TST602W | Blue | 5,000 ft | 12" x 16.25" | 56 | 18 |
| SEWER | ||||||
| 62358 | TST603W | Green | 1,000 ft | 12" x 10.25" | 12 | 36 |
| 62357 | TST603W | Green | 2,500 ft | 12" x 10.25" | 27 | 36 |
| 62356 | TST603W | Green | 5,000 ft | 12" x 16.25" | 56 | 18 |
Specifications per the NEPTCO Trace-Safe TST600 technical data sheet. Detectable wire is for locating buried utilities only, not for pulling, lifting or tying. Need a length not shown? Request a quote or call (815) 337-8845.
