400 D.Drill® Directional Drilling Swivels | HDD Pulling Tools
$367.55
Unit price
/
Select Option
Each
Lead Time:

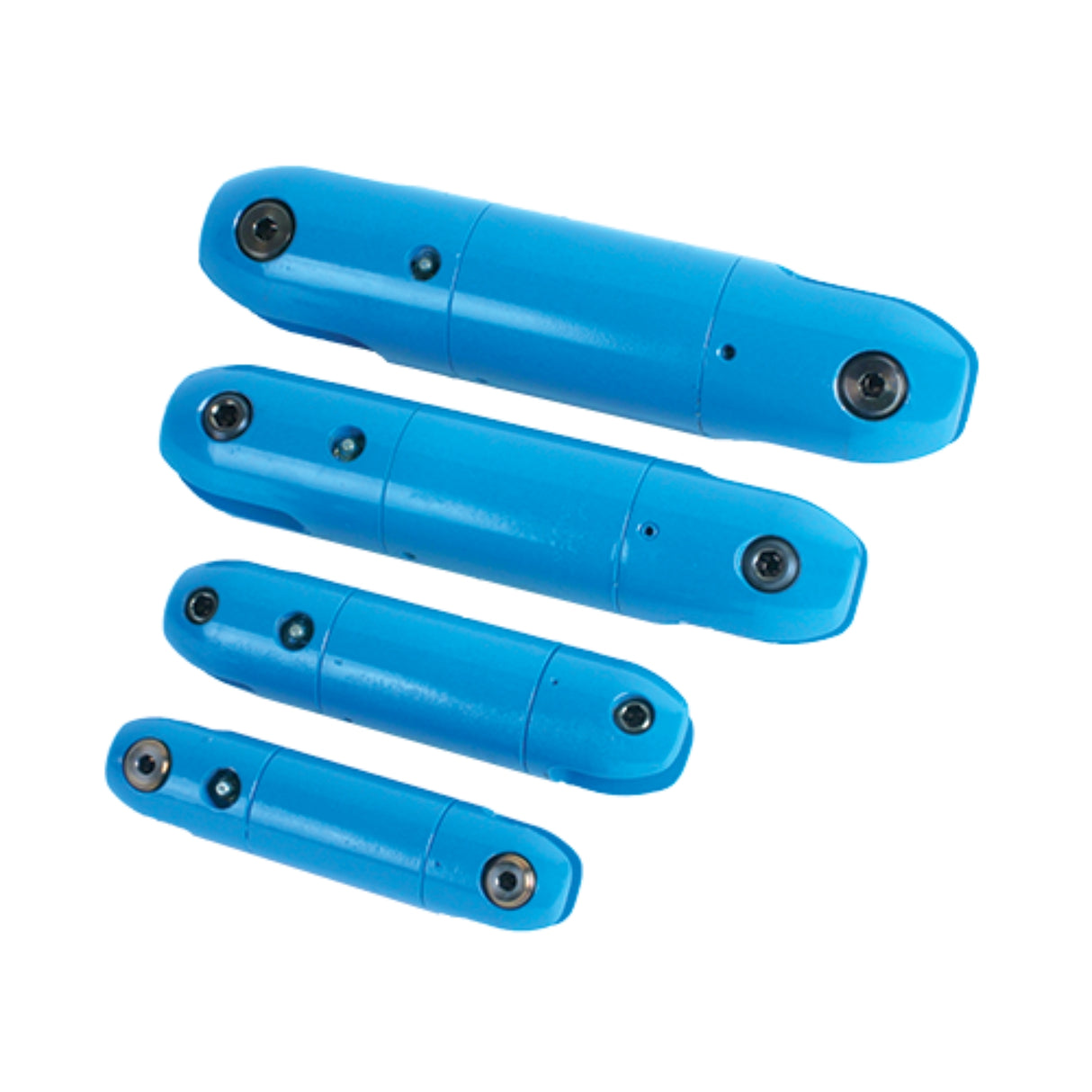

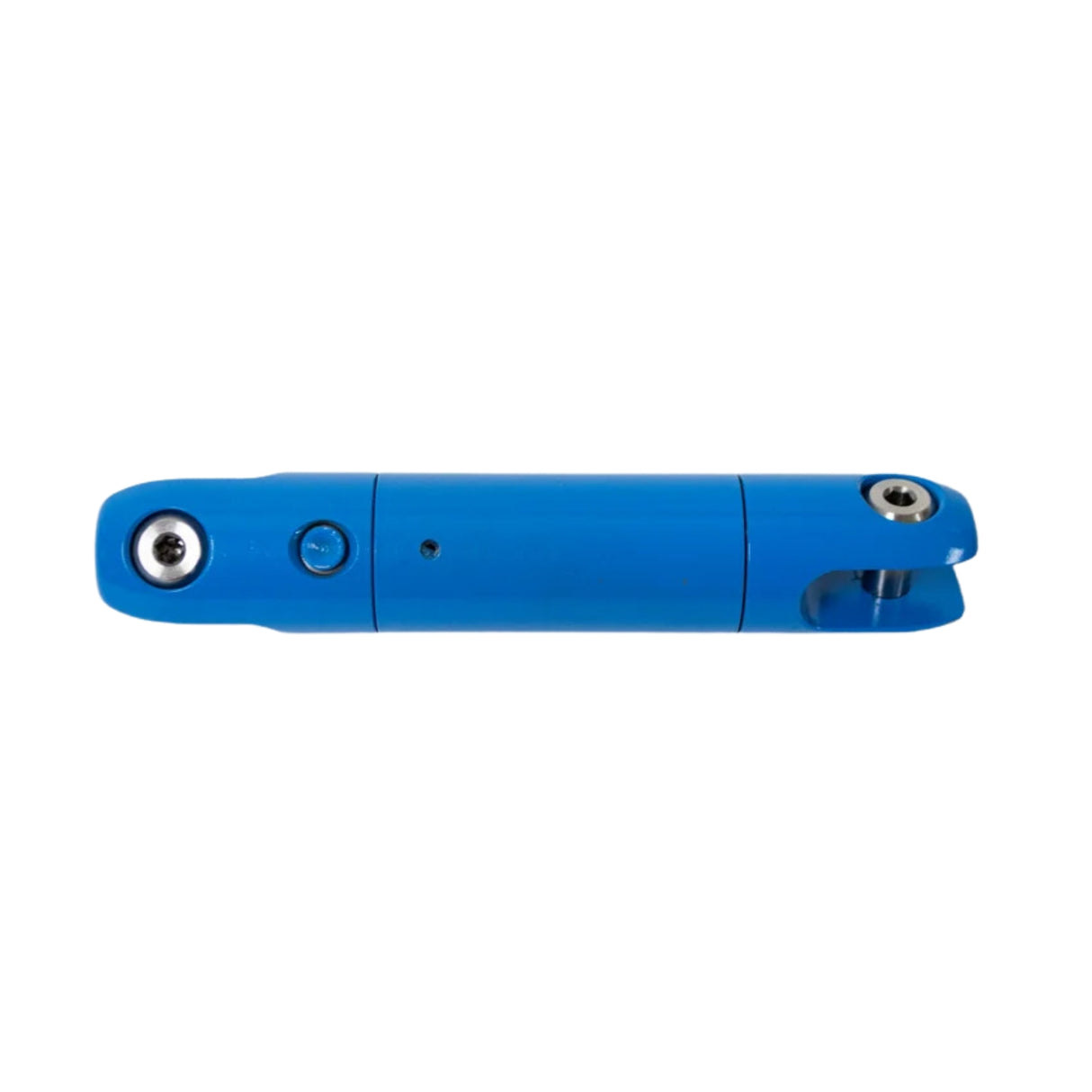

400 D.Drill® Directional Drilling Swivels | HDD Pulling | Greasable, Double-Sealed Design — Product Overview
400 D.Drill® Directional Drilling Swivels are designed specifically for directional drilling applications. They help prevent rotational torque from boring equipment from interfering with the cable or conduit being pulled.
These swivels are greasable and double sealed to help keep contaminants out during drilling operations. Condux requires the use of a calcium-based lubricant only, as other lubricants may react adversely with bentonite products.
After each use, the swivel should be greased to help purge contaminants that may have penetrated past the seals while boring.
Key Features
- Directional Drilling Use: Designed specifically for directional drilling and underground cable installation.
- Torque Isolation: Helps prevent boring-equipment rotational torque from interfering with the cable or conduit being pulled.
- Greasable Design: Designed for regular greasing after use to help purge contaminants.
- Double Sealed: Helps keep contaminants out during drilling operations.
- Lubrication Requirement: Use calcium-based lubricant only.
- 90-Day Warranty: Covered by the vendor's stated 90-day warranty.
Documentation
Ordering Information

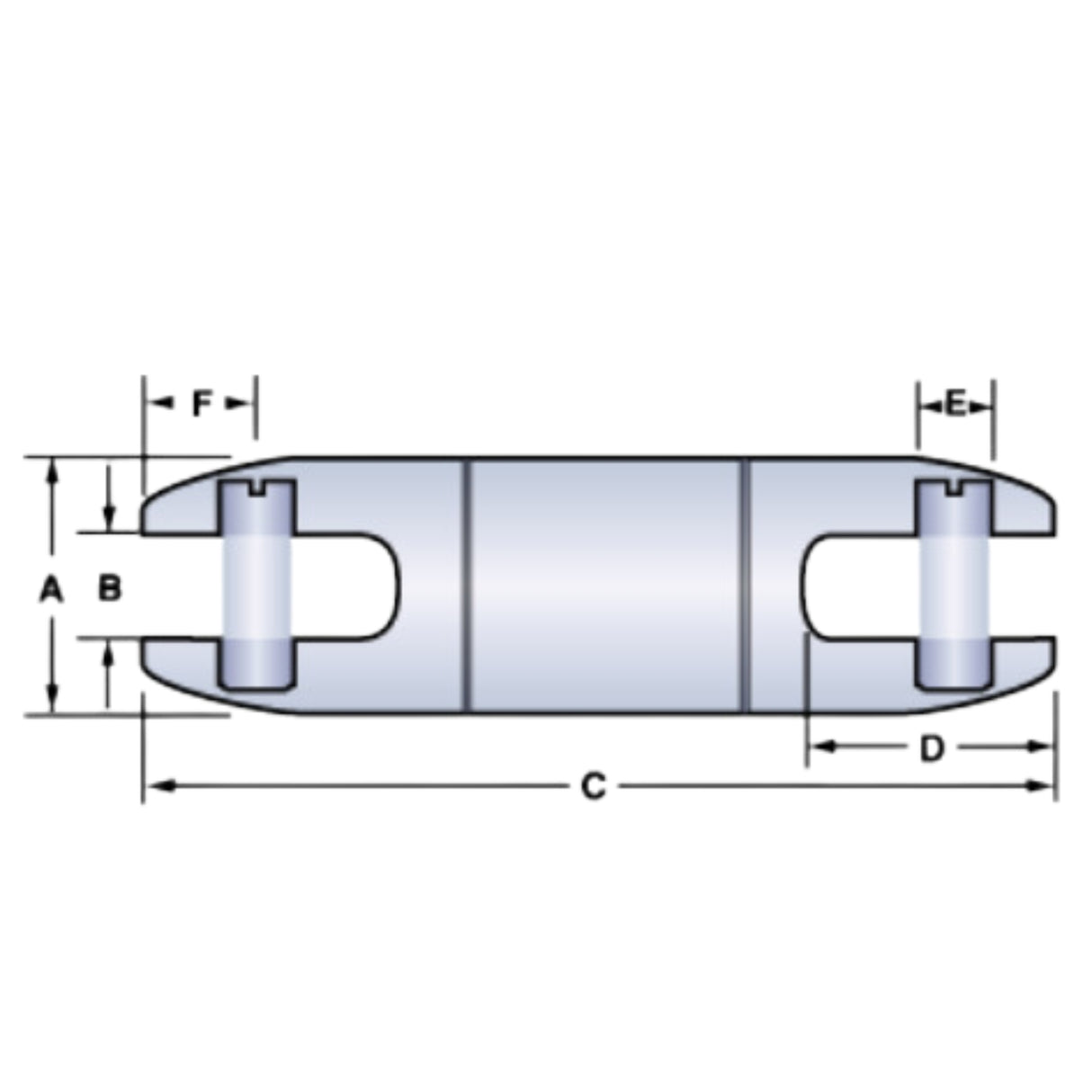

| Part Number | Tension (lbs) | Compression (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) |
|---|---|---|---|---|---|---|---|---|
| 08190408 | 1,800 | 595 | .875" | 0.38 | 4.83 | 1.03 | 0.31 | 0.53 |
| 08190412 | 4,000 | 1,300 | 1.25" | 0.56 | 6.57 | 1.34 | 0.37 | 0.59 |
| 08190416 | 8,500 | 2,800 | 1.625" | 0.61 | 7.22 | 1.59 | 0.56 | 0.78 |
| 08190421 | 10,000 | 3,300 | 2" | 0.75 | 8.29 | 1.77 | 0.63 | 0.71 |
| 08190426 | 20,000 | 6,600 | 2-1/2" | 1.00 | 11.44 | 2.79 | 0.88 | 1.23 |
| 08190431 | 30,000 | 10,000 | 3" | 1.31 | 13.27 | 3.56 | 1.13 | 1.37 |
Caution: For directional drilling and underground cable installation only. Use calcium-based lubricant only, and grease the swivel after each use.
