90° Stainless Steel EMT Elbow | Type 316L | Polished Brite Finish | Calbrite
$2,004.26
Unit price
/
Select Option
90° Stainless Steel EMT Elbow | Type 316L | Polished Brite Finish | Calbrite

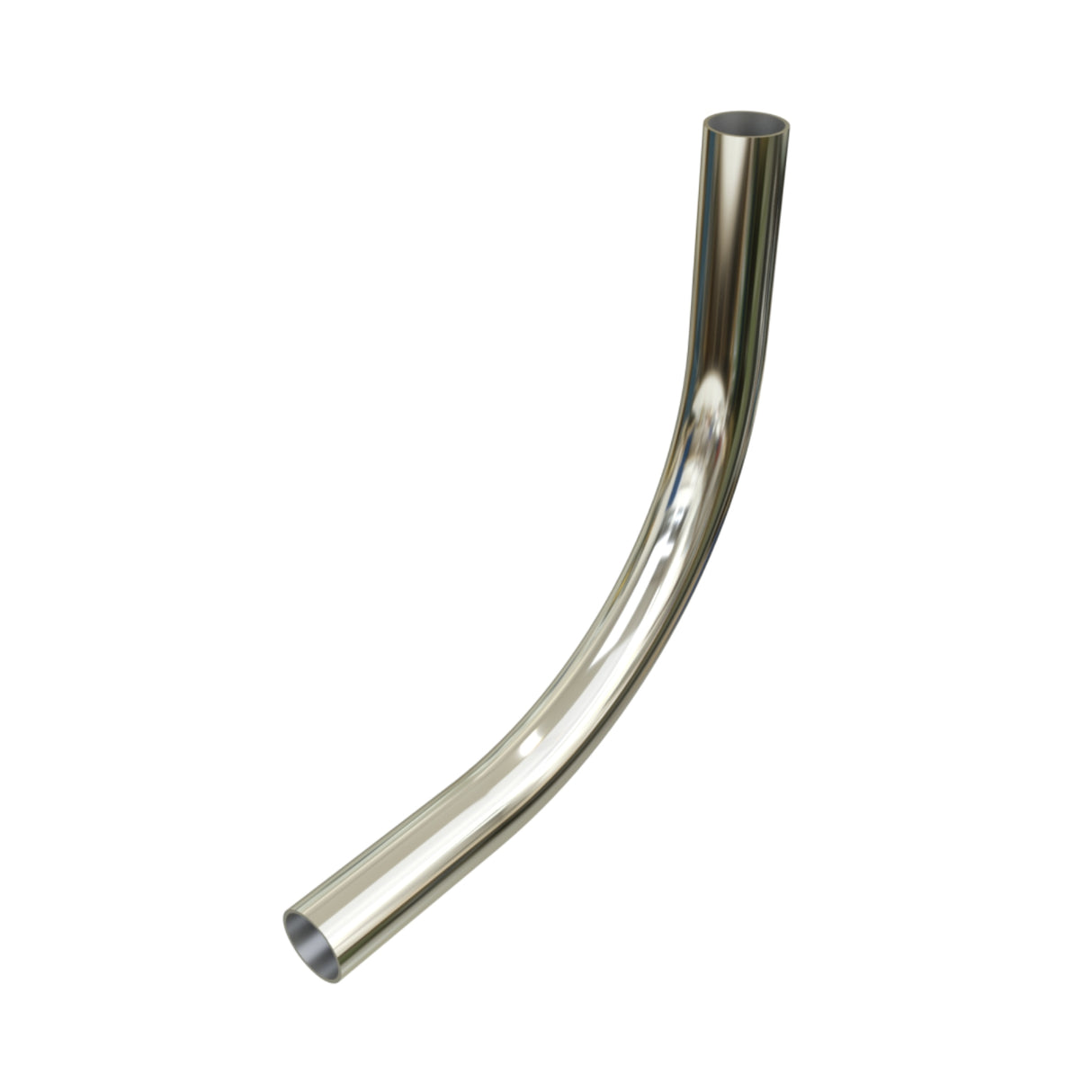

Calbrite 90° Stainless Steel EMT Elbows (Type 316L) are engineered to deliver superior performance and corrosion resistance in demanding environments. Made from 316L stainless steel, they provide long-term durability and hygiene for food processing, pharmaceutical, marine, and industrial applications.
The brite polished finish enhances both appearance and resistance to pitting or chemical attack, ensuring the elbow remains durable and professional-looking even in harsh conditions. Lightweight construction allows for easier handling and reduced freight costs, making it a practical yet high-performance choice for sanitary or outdoor conduit systems.
Key Features & Benefits
- High-Performance 316L Stainless Steel – Provides outstanding resistance to corrosion, chemicals, and moisture for long-term reliability.
- Sleek Brite Polished Finish – Adds a clean, professional appearance while improving protection against rust and wear.
- Lightweight and Efficient – Reduces handling effort, labor time, and shipping expenses without compromising strength.
- Economically Priced – Combines exceptional performance and cost-efficiency for industrial and commercial installations.
Applications
- Food & Beverage Processing Facilities – Meets sanitary requirements with easy-to-clean polished surfaces.
- Pharmaceutical and Chemical Plants – Maintains integrity under exposure to moisture and corrosive elements.
- Outdoor and Marine Installations – Resistant to salt, humidity, and extreme weather.
Ordering Information

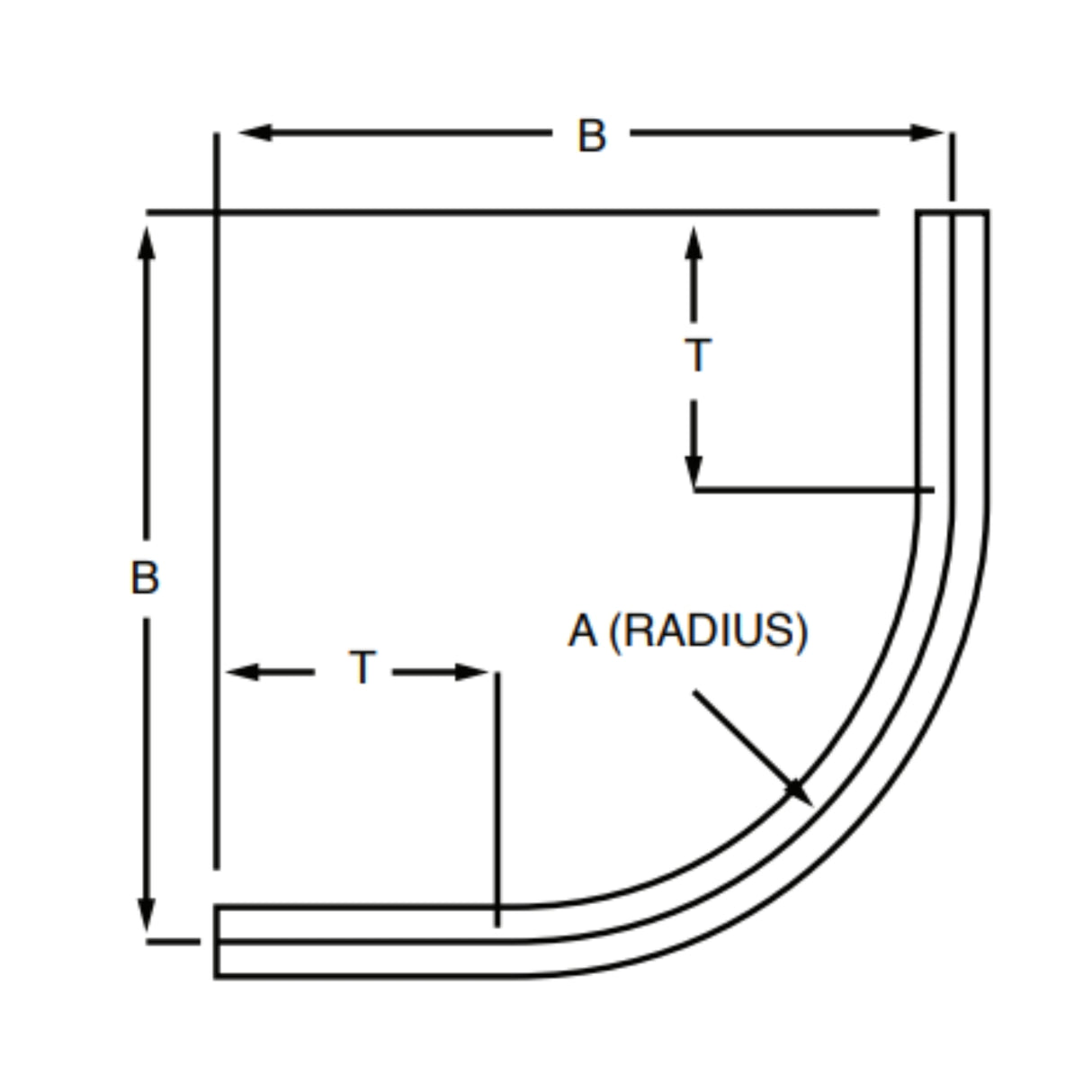

| Catalog Number | Trade Size (in) | Outside Diameter (in) | Wall Thickness (in) | Angle (°) | Bend Radius (in) | Weight (lb each) | Package Qty | Package Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| S20590EL00 | ½ | 0.710 | 0.065 | 90 | 4.0 | 0.32 | 1 | 0.32 |
| S20790EL00 | ¾ | 0.920 | 0.060 | 90 | 4.5 | 0.44 | 1 | 0.44 |
| S21090EL00 | 1 | 1.160 | 0.080 | 90 | 5.8 | 0.88 | 1 | 0.88 |
| S21290EL00 | 1¼ | 1.510 | 0.080 | 90 | 7.3 | 1.52 | 1 | 1.52 |
| S21590EL00 | 1½ | 1.740 | 0.085 | 90 | 8.3 | 2.08 | 1 | 2.08 |
| S22090EL00 | 2 | 2.200 | 0.100 | 90 | 9.5 | 4.69 | 1 | 4.69 |
| S22590EL00 | 2½ | 2.880 | 0.085 | 90 | 10.5 | 5.52 | 1 | 5.52 |
| S23090EL00 | 3 | 3.500 | 0.085 | 90 | 13.0 | 9.00 | 1 | 9.00 |
| S24090EL00 | 4 | 4.500 | 0.085 | 90 | 16.0 | 11.82 | 1 | 11.82 |
Standards & Certifications
- UL 797A: File Number E315441
- NEC Compliant: Meets ANSI/NFPA 70 Electrical Code requirements
- NSF/ANSI Certified: Approved for sanitary and food-grade applications
- PROP65 Warning: Use ventilation when cutting or welding to avoid exposure to metal dust or fumes
