Adjustable Manhole Adapter | 12,000 lb
$1,252.30
Unit price
/
Select Option
Each
Lead Time:
Adjustable Manhole Adapter | 12,000 lb — Product Overview

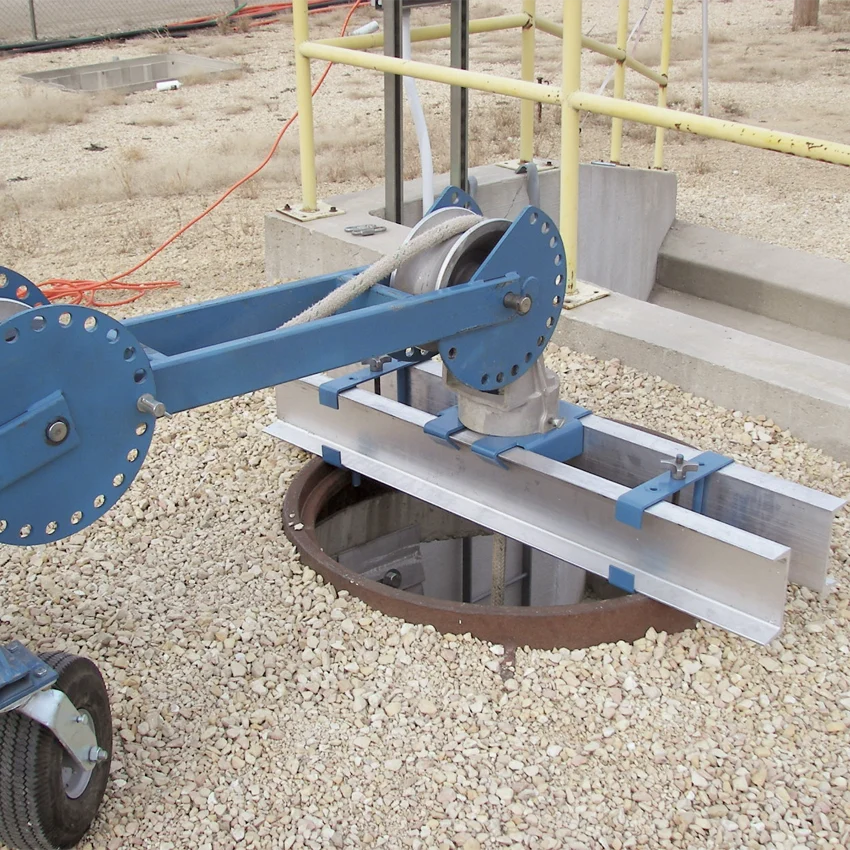

The Condux Adjustable Manhole Adapter is designed for use with CableGlider Cable Pullers to position a cable puller above a manhole. Its aluminum frame provides an adjustable platform for manhole cable pulling operations.
The platform fits manholes from 18″ (457 mm) to 46″ (1,168 mm). Condux specifies a maximum strength rating of 12,000 lb (53,379 N). The adapter comes standard with a 4″ plate; a separate 6″ plate is required when using a 6″ retaining fork.
Key Features
- CableGlider Compatibility: Designed for use with CableGlider Cable Pullers.
- Adjustable Manhole Fit: Fits manholes from 18″ to 46″ (457–1,168 mm).
- Aluminum Frame: Positions a cable puller above a manhole.
- 12,000 lb Rating: Maximum strength rating of 12,000 lb (53,379 N).
- Plate Options: Supplied with a 4″ plate; the 6″ plate is required when using a 6″ retaining fork.
Ordering Information
| Part Number | Description |
|---|---|
| 08674750 | Adjustable Manhole Adapter, comes standard with a 4″ plate |
| 08674752 | 6″ Plate, required when using a 6″ retaining fork |
Selection note: Select the adapter or the 6″ plate accessory using the corresponding part number above. The 6″ plate option is not the complete adapter.
