RED-WHITE VALVE CORP.  |  SKU: 30077805  |  MPN: 260A 3/8

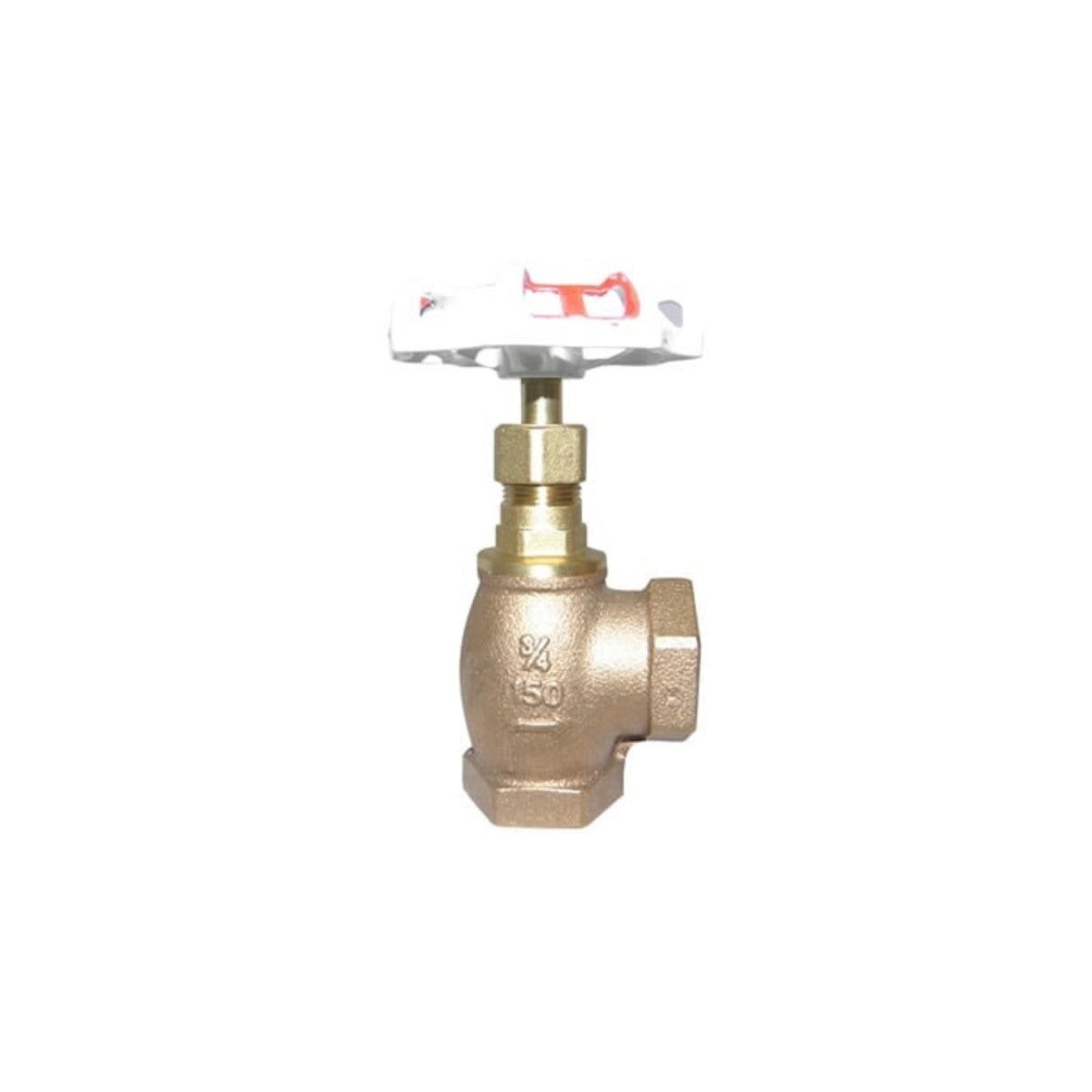

Bronze Angle Globe Valve | 260A Series | Threaded Ends

$55.10
  • Durable Bronze Construction — Cast bronze body and bonnet (B62-C83600) ensure long service life and corrosion resistance.
  • Threaded FNPT Ends — Easy to install and maintain for both new and retrofit piping systems.
  • Swivel Type Disc — Provides smooth operation and reduced wear over time.
  • Wide Flow Range — Cv values from 2.5 to 166 deliver consistent control across all sizes (3/8″–3″).
  • MSS-SP-80 Compliant — Meets industrial valve standards for safety, reliability, and performance.
📄 Download Spec Sheet

Bronze Angle Globe Valve | 260A Series | Threaded Ends

Red-White Valve 260A Series is a durable bronze threaded angle globe valve designed for precise flow control in steam, gas, and water systems. Built to MSS-SP-80 standards, this valve features a rugged bronze body, a swivel-type disc, and a secure inserted bonnet for long-term reliability in industrial and commercial applications.

Key Features & Benefits

  • Pressure Rating: 150# WSP / 300# WOG for dependable service across steam, oil, and gas systems.
  • Premium Bronze Construction: Body and bonnet made from B62-C83600 cast bronze for superior corrosion resistance and strength.
  • Swivel Type Disc: Reduces wear, ensuring smooth and consistent shutoff performance.
  • Threaded Ends: FNPT design simplifies installation, disassembly, and maintenance.
  • Inserted Bonnet: Provides a secure seal and reliable long-term service life.
  • MSS-SP-80 Compliant: Meets industry standards for performance and quality assurance.

Applications

  • Steam, gas, and water control systems
  • Industrial and mechanical piping installations
  • Boiler rooms and heating systems
  • Commercial plumbing and HVAC lines

Specifications

  • Sizes: 3/8″ – 3″
  • Flow Coefficient (Cv): 2.5 – 166 (varies by size)
  • Body Material: Cast Bronze (B62-C83600)
  • Stem Material: Brass DR Alloy
  • Disc Material: Cast Bronze (2″–3″ sizes) / Brass (smaller sizes)
  • Packing: Plastic Graphite (T#2996NA)

Dimensions, Weights & Valve Data

Size 3/8″ 1/2″ 3/4″ 1″ 1-1/4″ 1-1/2″ 2″ 2-1/2″ 3″
D 2.17 2.48 2.76 3.15 3.54 3.94 4.33 4.92 6.30
d1 0.47 0.59 0.79 0.98 1.26 1.58 1.97 2.56 3.15
d (NPT) 0.375 0.5 0.75 1.0 1.25 1.5 2.0 2.5 3.0
H 2.76 3.03 3.80 4.25 5.20 5.75 6.61 7.72 8.54
L 0.98 1.08 1.28 1.50 1.73 1.95 2.32 2.85 3.33
S 0.95 1.10 1.38 1.61 1.97 2.24 2.76 3.47 4.09
Cv 2.5 4 7.5 13 23 34 55 97 166
Weight (lb) 0.7 0.9 1.6 2.1 3.2 4.6 7.1 12.3 18.3

Materials & Specifications

Item Description Material Specification
1 Body Cast Bronze B62-C83600
2 Bonnet Cast Bronze B62-C83600
2 Bonnet (3/8″ only) Brass B283-C37700
3 Stem Brass DR Alloy
4 Disc Cast Bronze (2–3″) B62-C83600
4 Disc (small sizes) Brass DR Alloy
5 Lock Nut Brass B16-C36000
6 Packing Nut Brass B16-C36000 / B283-C37700
7 Gland Brass B124-C37700
8 Gland Packing Plastic Graphite T#2996NA
9 Handwheel Aluminum Alloy / Zinc Alloy (3/8″ only) B85-SC114A / B86-AG40A
11 Wheel Nut Steel A36
12 Name Plate Aluminum B209
