Digital Pressure Manometer | T650RWV Series | Bluetooth Differential Sensor | IP65 Housing
$5,600.88
Unit price
/
Select Option
Digital Pressure Manometer | T650RWV Series | Bluetooth Differential Sensor | IP65 Housing

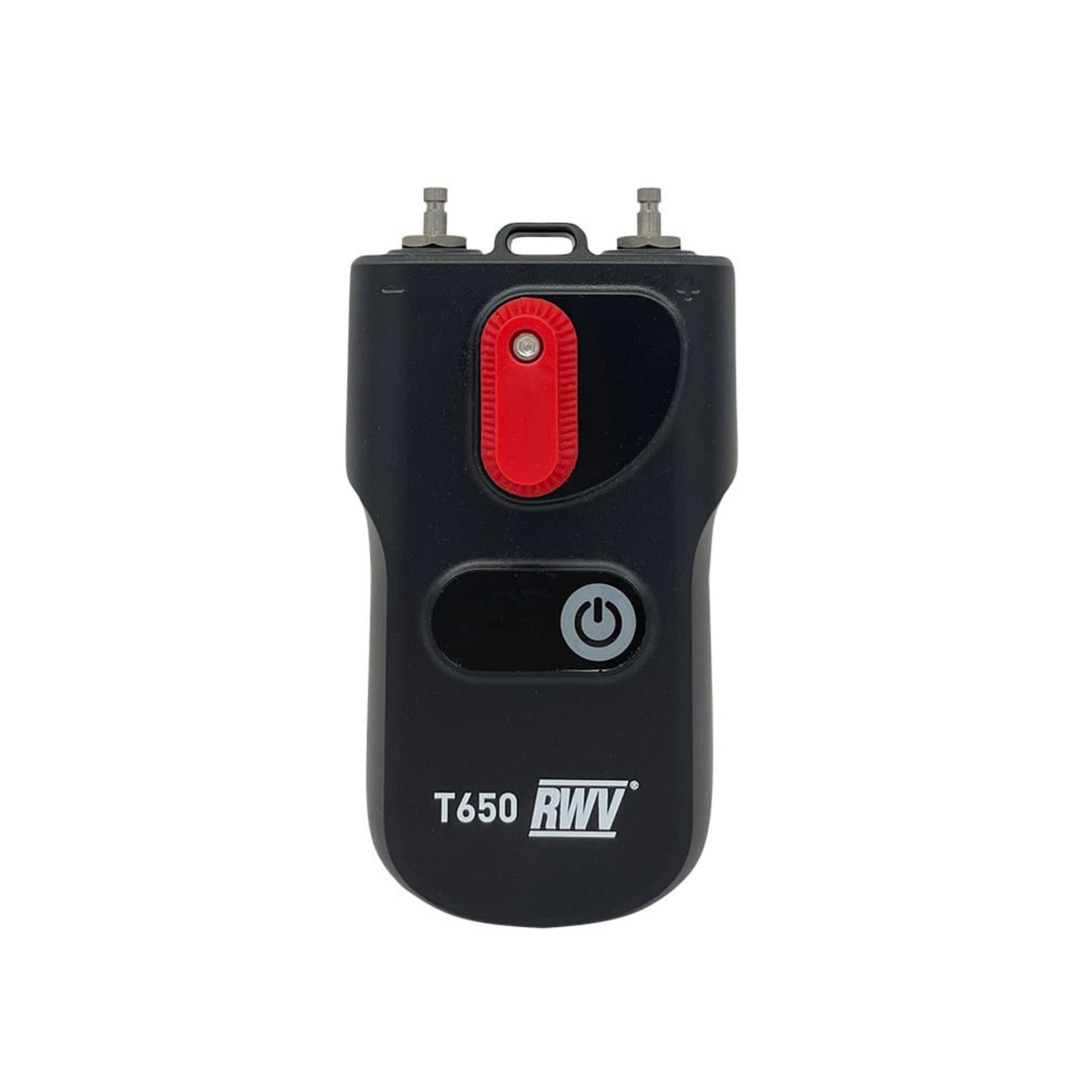

T650RWV Series Digital Differential Pressure Manometers are advanced hydronic balancing instruments engineered for precise measurement of differential pressure and flow in water-based systems. Combining a 24-bit pressure sensor with Bluetooth Low Energy 5.0 connectivity, this device provides accurate, real-time GPM readings directly through a smartphone or tablet app.
Ideal for HVAC commissioning, hydronic balancing, and plumbing diagnostics, the T650RWV delivers professional-grade performance in a portable, rugged IP65-rated design. Simply connect the hoses, open the app, and instantly view system flow and differential pressure — no manual calculations required.
Key Features & Benefits
- Real-Time GPM Measurement — Displays actual flow rate using built-in Cv value database and integrated 24-bit pressure differential sensor.
- Bluetooth 5.0 Wireless Connection — Pairs easily with iOS and Android devices for live readings, data logging, and export.
- Auto Valve Detection — Identify valves by image or model number from an internal database; supports both standard and variable orifice valves.
- Data Logging & Storage — Internal memory saves up to 2,000 records, which can be exported via email for project reporting.
- Durable & Portable — IP65-rated housing ensures resistance to dust and splashing water; supplied with tubing kit and carrying case.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Pressure Range | 145 psi / 1,000 kPa |
| Maximum Overpressure | 120% of nominal range |
| Accuracy (Linearity & Hysteresis) | ±0.15% of NR |
| Temperature Error | ±0.25% of NR |
| Media Temperature | 20–200 °F (−5–90 °C) |
| Operating Temperature | 20–120 °F (−5–50 °C) |
| Storage Temperature | 40–120 °F (+5–50 °C) |
| Power Supply | AAA or NiMH rechargeable batteries |
| Power Consumption | 20 mA (Bluetooth mode) |
| Memory Capacity | Up to 2,000 records |
| Valve Database Capacity | Unlimited manufacturers / models |
| Ingress Protection Rating | IP65 |
| Calibration Validity | 24 months |
| Dimensions (W × H × D) | 5.51 × 2.95 × 1.85 in (140 × 75 × 47 mm) |
| Weight | 0.92 lb (440 g) |
| Wireless Data Transfer | Bluetooth Low Energy 5.0 |

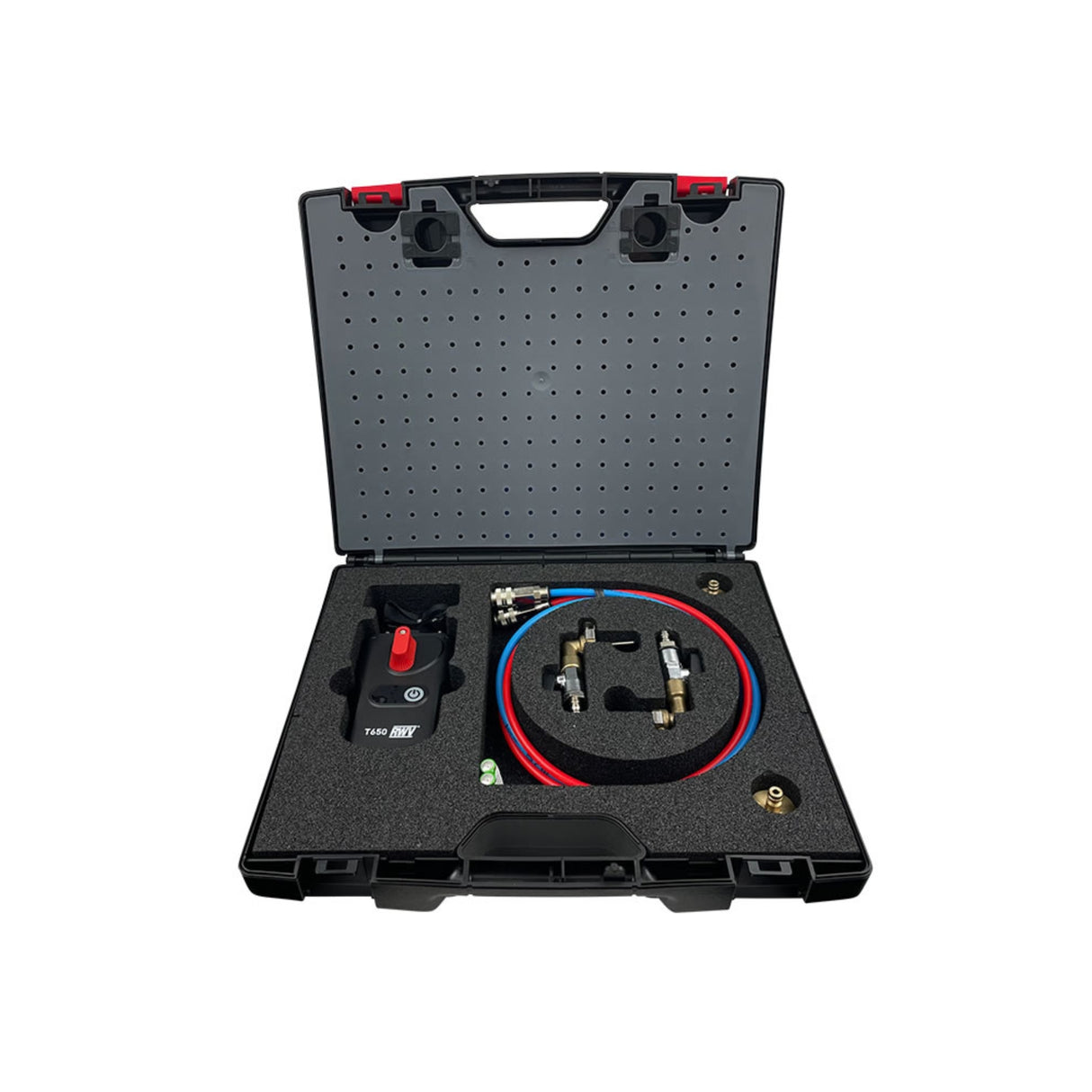

What’s Included
- T650RWV Digital Manometer
- Pressure tubing kit

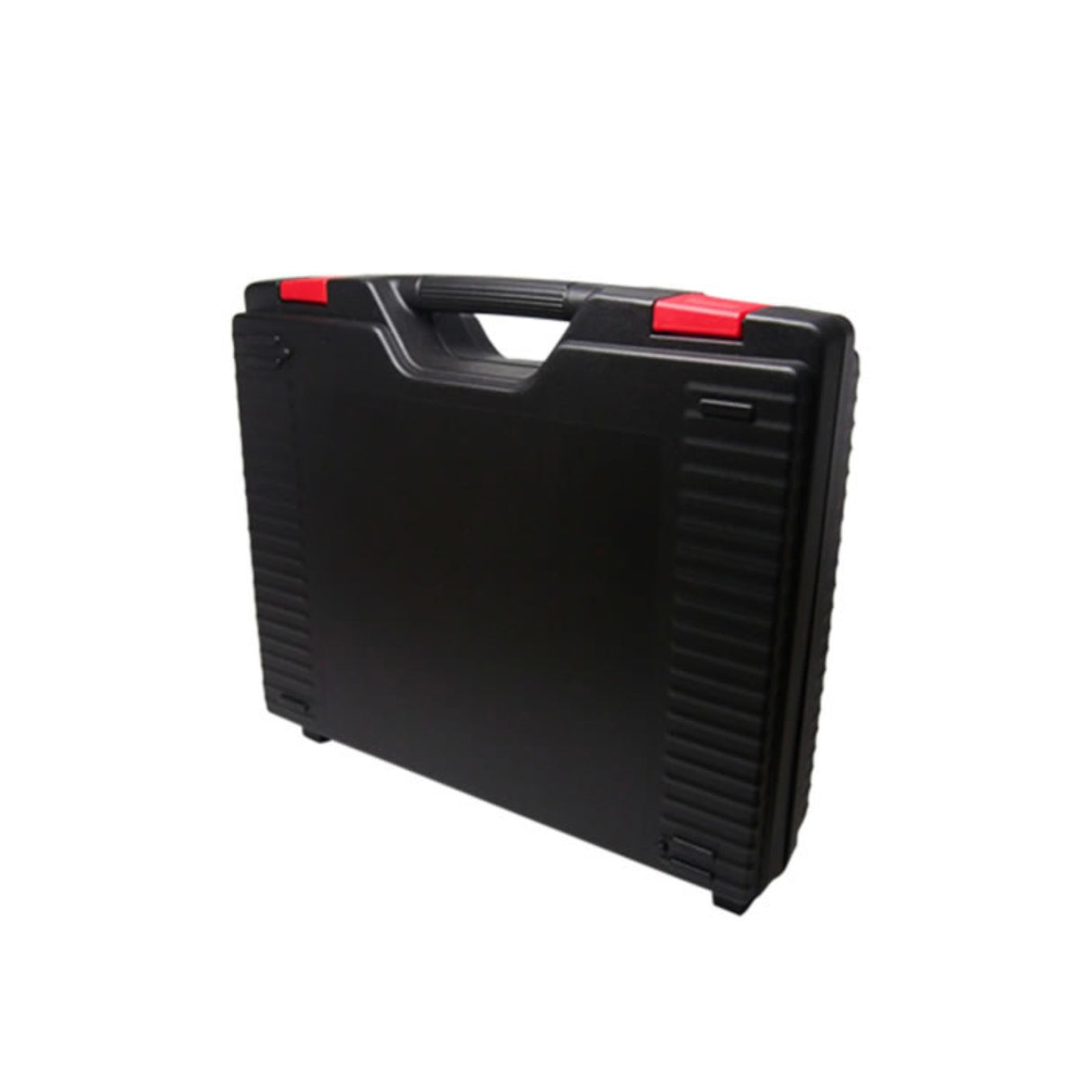

- Protective carrying case
- Quick-start guide
Applications
- Hydronic balancing and flow verification
- HVAC commissioning and diagnostics
- Pressure testing and differential monitoring
- Residential and commercial hydronic systems
