Flexible Leader | Duct Rod Guide
$63.00
Unit price
/
Select Option
Each
Lead Time:

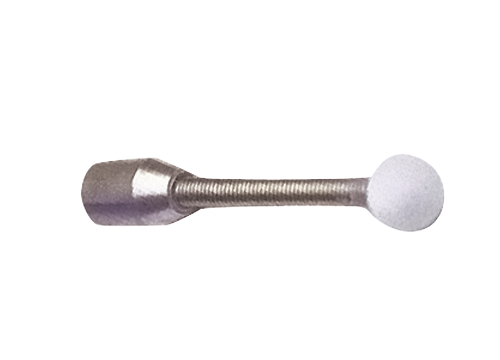

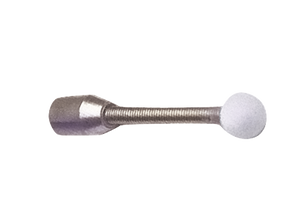

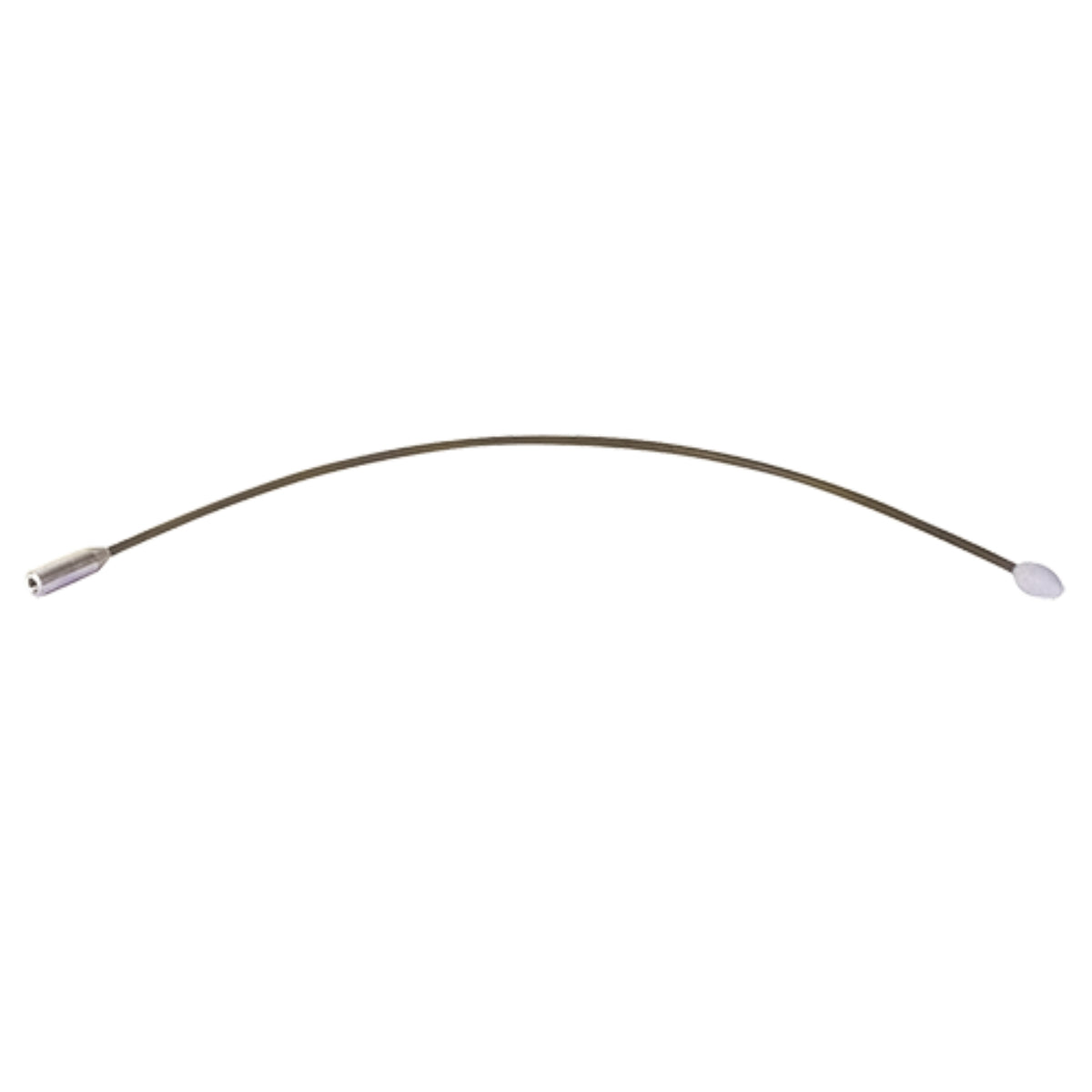

Flexible Leader | Duct Rod Guide — Product Overview
The Flexible Leader helps guide a duct rod around bends, sweeps and duct misalignments.
Select the appropriate part number by matching your duct rod diameter and USC thread to the ordering table below.
Key Features
- Duct Rod Guidance – Helps guide the duct rod around bends, sweeps and duct misalignments.
- Rod Size Options – Available for 3/16″, 1/4″, 5/16″, 7/16″ and 1/2″ rod diameters.
- Thread Selection – Options include #12-24, 5/16-18 and 3/8-16 USC threads, depending on rod size.
Ordering Information
| Part Number | Rod Diameter (in) | Rod Diameter (mm) | USC Thread |
|---|---|---|---|
| 08033423 | 3/16 | 5 | #12-24 |
| 08033443 | 1/4 | 6 | 5/16-18 |
| 08037538 | 5/16, 7/16 and 1/2 | 8, 11 and 13 | 3/8-16 |
Selection note: Match both rod diameter and thread before ordering. Millimetre values are the rounded sizes listed in the Condux catalog.
