Remote Hydraulic Cutting Head | 20 Ton Super Cutter | SP-32
$2,492.25
Unit price
/
Select Option
Remote Hydraulic Cutting Head | 20 Ton Super Cutter | SP-32 — Product Overview

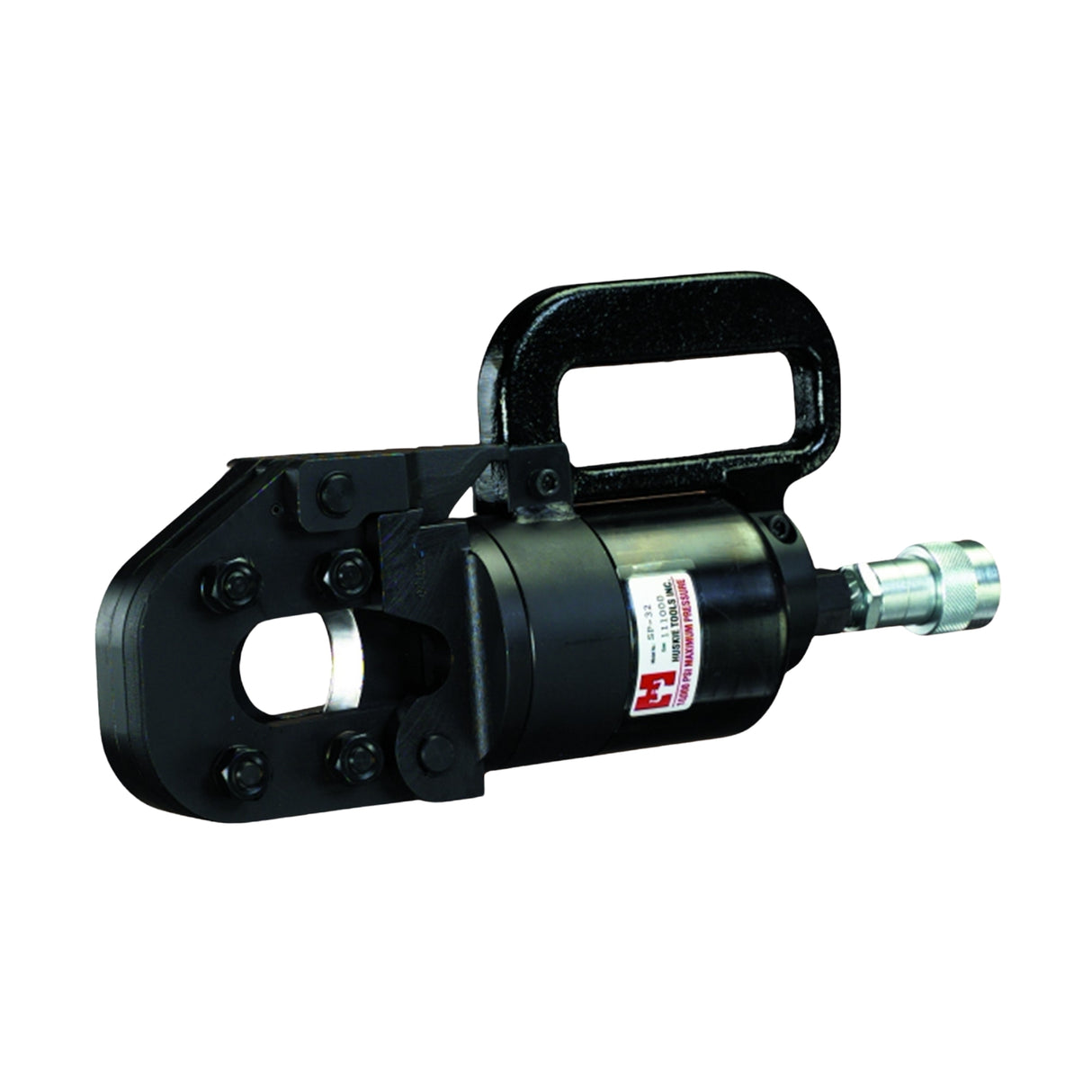

The SP-32 Super Cutter from Huskie Tools is a heavy-duty remote hydraulic cutting head built for demanding jobs. Designed to cut where others fail, the SP-32 delivers 20 tons of cutting force and connects to any standard 10,000 psi hydraulic pump. Its flip-top latch and adjustable material clamping system allow for fast, safe, and clean cuts on a wide range of materials.
Compact and rugged, the SP-32 is engineered to handle soft steel bolts, rebar, copper and aluminum wire, ACSR, and even wire rope up to 1-1/4" in diameter. The cutting blades are easily replaceable, and each unit comes supplied in a sturdy metal case for protection and portability on the job site.
Key Features
- 20-Ton Output: Powerful force for cutting large-diameter and tough materials
- Flip-Top Latch: Easy material insertion and setup in the field
- Adjustable Clamping System: Secures material for cleaner, safer cuts
- Replaceable Blades: Cutting Blade (32C-06H) and Anvil Blade (32C-04H) sold separately
- Hydraulic Compatible: Connects to 10,000 psi systems via 3/8” screw-type male coupler
- Includes Metal Case: Durable case protects tool during transport and storage
Specifications
| Specification | Details |
|---|---|
| Output | 20 Ton |
| Weight | 21 lbs. |
| Length | 14” |
| Jaw Opening | 1.25” |
| Hydraulic Pressure | 10,000 psi |
Cutting Capacities
| Material | Max Size |
|---|---|
| Soft Steel Bolts | 1-1/4” (32mm) |
| Standard Guy Wire | 7/8” (22mm) |
| Rebar, Ground & Anchor Rod | 1” (26mm) |
| Copper & Aluminum Wire | 1-1/4” (32mm) |
| Wire Rope | 1-1/4” (32mm) |
| ACSR | 1-1/4” (32mm) |
| Comm. Cable, Chain, Lead Sheath | Do Not Cut |
Accessories
| Accessory | Part Number |
|---|---|
| Cutting Blade | 32C-06H |
| Anvil Blade | 32C-04H |
Documentation
Compare SP-32 vs SP-32CC1
| Feature | SP-32 | SP-32CC1 |
|---|---|---|
| Output Force | 20 Ton | 24 Ton |
| Jaw Opening | 1.25” | 1.25” |
| Weight | 21 lbs. | 26 lbs. |
| Cutting Capacity | Up to 1-1/4” soft steel, Cu/Al wire, ACSR, wire rope | Up to 1” ground rods, rebar, chain, bolts |
| Flip-Top Latch | ✔️ | ✔️ |
| Adjustable Clamping System | ✔️ | Heavy-duty version |
| Blade Type | Replaceable | Cutting: 32C-06H, Anvil: 32C-04H | Replaceable | Cutting: 32C-06H, Anvil: 32C-04H |
| Hydraulic Pressure | 10,000 psi | 10,000 psi |
| Includes | Tool, metal carrying case | Tool, metal carrying case |
| Best For | Utility & industrial cutting (standard duty) | Heavy-duty field cutting (larger rods & bolts) |
