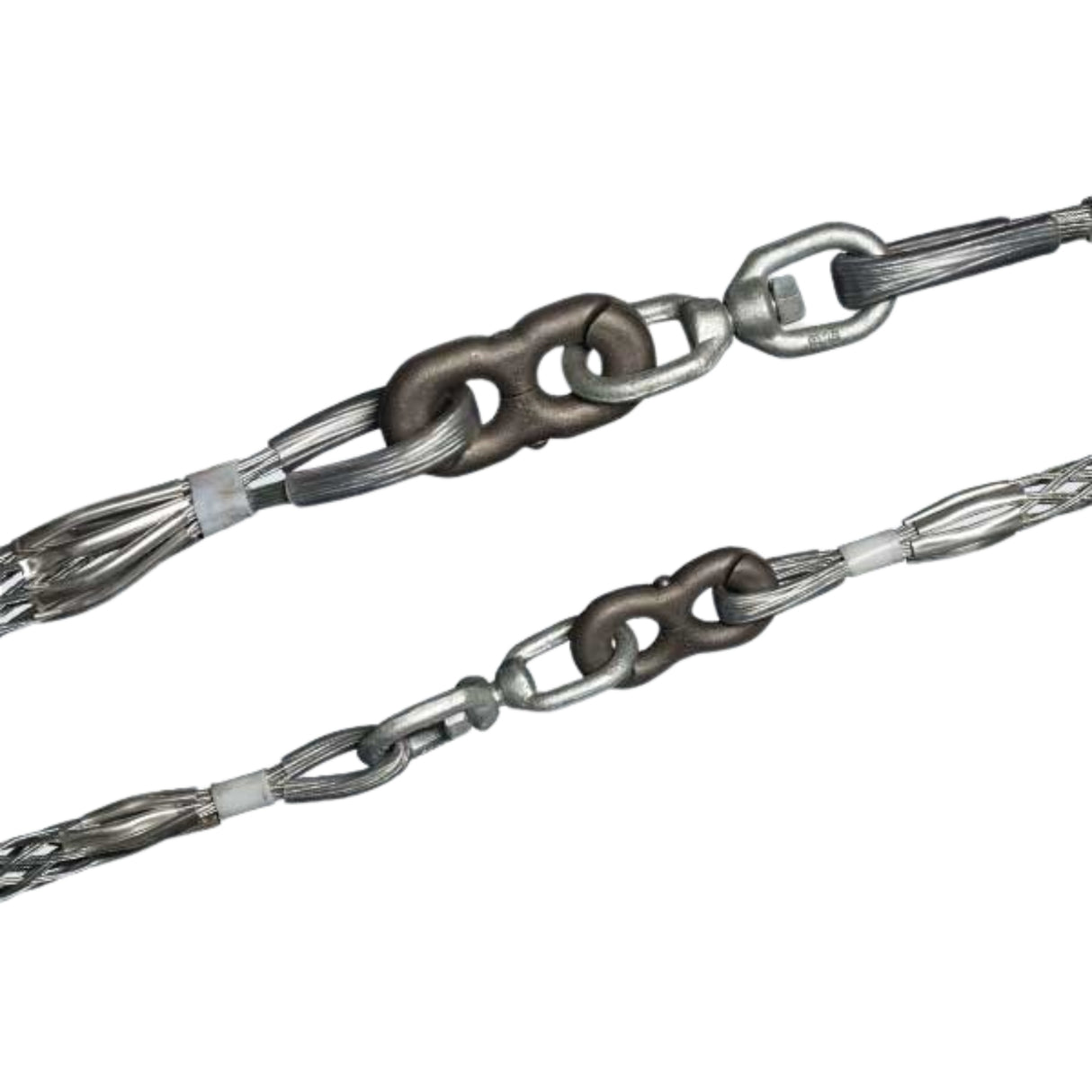

Splicing Grips - Rotating Swivel Link
The Slingco Rotating Swivel Link Grips are designed for use in drilling and rigging systems and are ideal for stringing replacement wire and cable. These grips provide a practical solution when using the existing cable as a pull wire to string a replacement, ensuring smooth and efficient cable handling. While not recommended for overhead stringing applications, these versatile grips can be used in various settings where precision and ease of installation are critical.
The link opens for easy installation and adjustment, making it convenient to work with different cable sizes. These grips are also available with differently sized grips on each side, providing flexibility for your specific project requirements. Constructed from galvanized steel, they offer excellent durability and reliability for tough environments.
Features and Benefits:
- Suitable for Drilling and Rigging Systems: Ideal for use in demanding equipment setups, offering secure and reliable cable handling.
- Easy Installation and Adjustment: The link opens to allow for quick setup, ensuring a seamless installation process.
- Versatile Grip Sizes: Can be equipped with different sized grips on each side, making them adaptable for various cable types.
- Durable Galvanized Steel Construction: Built to withstand tough conditions, providing long-lasting performance.
| Slingco Part No. | Range | Ø A Length | B Length | C Length | D Length | E Length | F Length | Approx. Break Load | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | kg | lb | |
| ZCS3493 | 6 - 13 | 0.25 - 0.50 | 9.5 | 0.37 | 2,542 | 100.0 | 1,127 | 44.3 | 288 | 11.3 | 22 | 0.87 | 32 | 1.25 | 1,089 | 2,400 |
| ZCS3494 | 13 - 25 | 0.50 - 1.00 | 19 | 0.75 | 2,621 | 103.2 | 1,160 | 45.7 | 301 | 11.8 | 35 | 1.38 | 32 | 1.25 | 1,599 | 3,526 |
| ZCS3495 | 25 - 38 | 1.00 - 1.50 | 32 | 1.25 | 2,654 | 104.5 | 1,160 | 45.7 | 334 | 13.1 | 41 | 1.61 | 41 | 1.61 | 2,300 | 5,070 |
| ZCS3496 | 38 - 51 | 1.50 - 2.00 | 44.5 | 1.75 | 2,673 | 105.2 | 1,160 | 45.7 | 353 | 13.9 | 41 | 1.61 | 51 | 2.00 | 3,629 | 8,000 |
| ZCS3497 | 51 - 70 | 2.00 - 2.75 | 60.5 | 2.38 | 2,673 | 105.2 | 1,160 | 45.7 | 353 | 13.9 | 41 | 1.61 | 51 | 2.00 | 4,537 | 10,000 |
| ZCS3498 | 70 - 90 | 2.75 - 3.50 | 80 | 3.15 | 2,673 | 105.2 | 1,160 | 45.7 | 353 | 13.9 | 41 | 1.61 | 51 | 2.00 | 4,537 | 10,000 |
| ZCS3499 | 89 - 108 | 3.50 - 4.25 | 98.5 | 3.87 | 2,753 | 108.4 | 1,200 | 45.7 | 353 | 13.9 | 41 | 1.61 | 51 | 2.00 | 4,537 | 10,000 |
