821 Champion Pulling Swivels | Underground & Overhead Cable
821 Champion Pulling Swivels | Underground & Overhead Cable — Product Overview

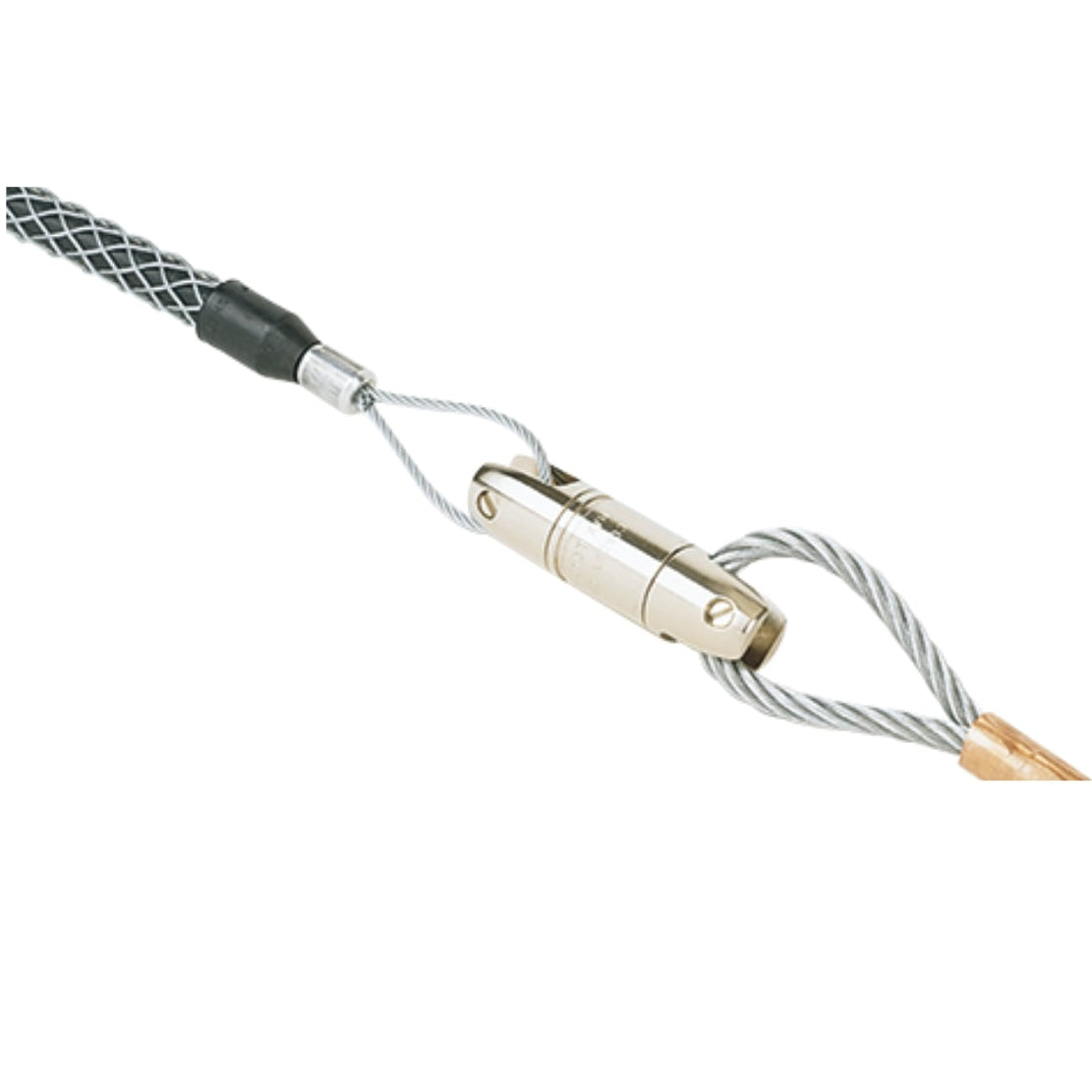

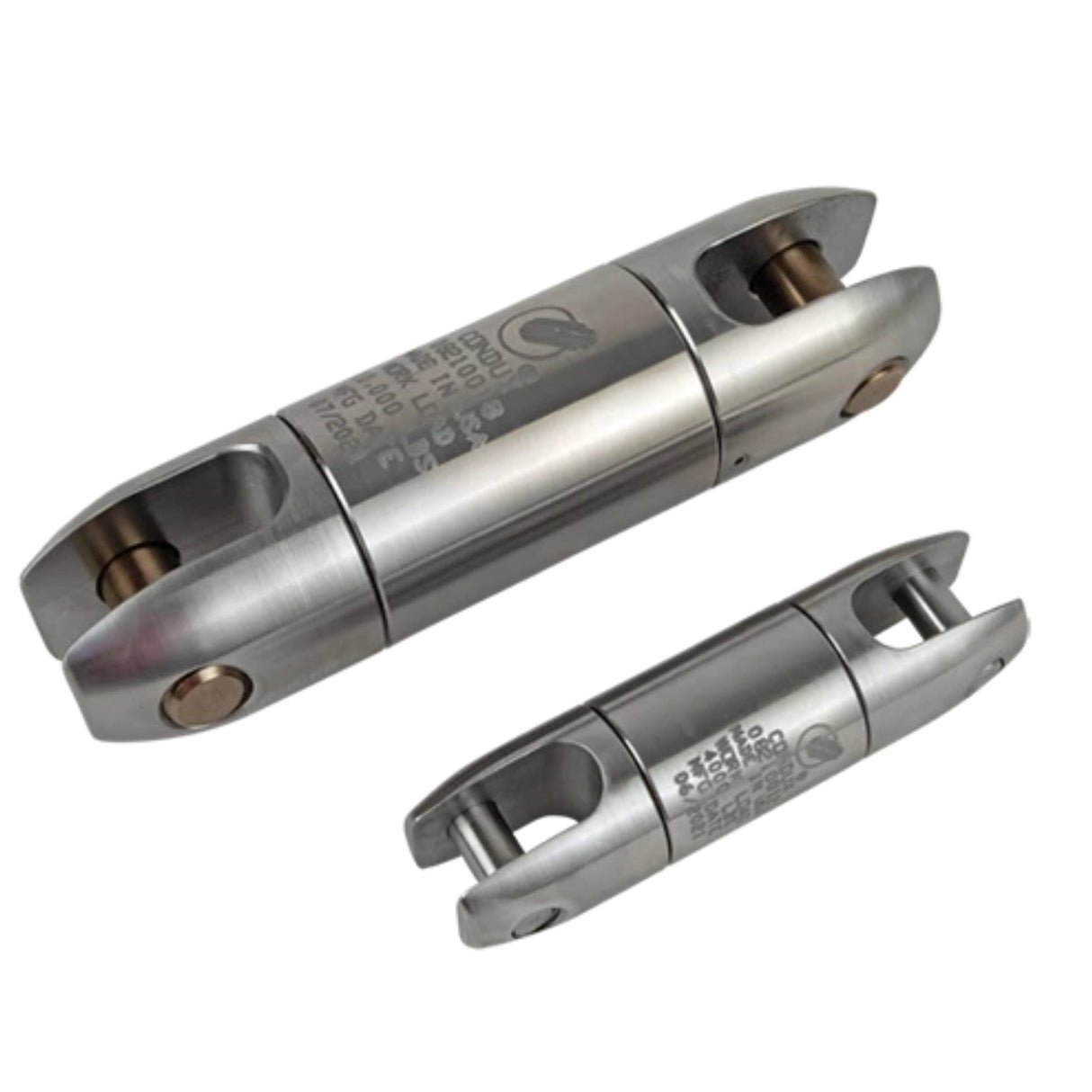

821 Champion Pulling Swivels are engineered for dependable pulling performance in both underground and overhead cable installations. Constructed from precision-machined stainless steel, these swivels provide smooth rotation under load while preventing torque transfer to the cable. Designed to meet common dimensional specifications, they deliver long-term reliability across a wide range of utility stringing applications.
Each swivel includes a replaceable clevis pin for simplified service and extended tool life. Models are available in 3:1 and 5:1 safety factors to match the requirements of the pulling operation. These swivels are intended for straight pulling and are not designed for use with bullwheels or sheaves.
Key Features & Benefits
- Precision Stainless Steel Construction – High-strength, corrosion-resistant body delivers consistent pulling performance.
- Underground & Overhead Rated – Built to handle a wide range of cable installations across utility, telecom, and electrical applications.
- Replaceable Clevis Pin – Allows easy maintenance and prolongs swivel usability.
- Available Safety Factors – Offered in 3:1 and 5:1 ratings to meet varying project requirements.
- Pulling-Only Design – Not intended for use with sheaves or bullwheels.
Ordering Information

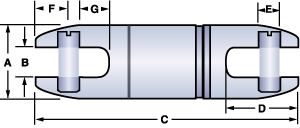

| Part Number | Underground Working Load (lbs) | Aerial Working Load (N) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) |
|---|---|---|---|---|---|---|---|---|---|
| 8210007 | 1,800 | 8,006 | 7/8 | 0.31 | 3.09 | 0.84 | 0.31 | 0.38 | 0.305 |
| 8210012 | 4,000 | 17,792 | 1-1/4 | 0.59 | 4.52 | 1.22 | 0.38 | 0.44 | 0.41 |
| 8210014 | 7,500 | 33,360 | 1-7/16 | 0.59 | 5.13 | 1.41 | 0.44 | 0.59 | 0.60 |
| 8210018 | 10,000 | 44,480 | 1-7/8 | 0.75 | 7.06 | 1.88 | 0.63 | 0.81 | 0.755 |
Swivel Compatibility Chart
Use this chart to identify compatible pulling eyes, connectors, and harnesses for each swivel size.
| Swivel Part Number | Swivel Size (in) | Pulling Eye Size Range | Fixed Head / Inverted Eye Options | Connector Compatibility |
|---|---|---|---|---|
| 08210007 | 7/8 | No. 1/0 AWG – 250 kcmil | 08947010, 08947012, 08945014 | All |
| 08210012 | 1-1/4 | 350 kcmil – 1,000 kcmil | 08947010, 08947012, 08945014 | All |
| 08210018 | 1-7/8 | 350 kcmil – 1,000 kcmil | All | All |
Built for professional linework and utility construction, 821 Champion Pulling Swivels deliver the strength, rotation, and reliability required for safe and consistent cable pulling operations.
