Clevis Head Innerduct Pulling Eye | Slotted Clevis Pin Design
Clevis Head Innerduct Pulling Eye | Slotted Clevis Pin Design — Product Overview

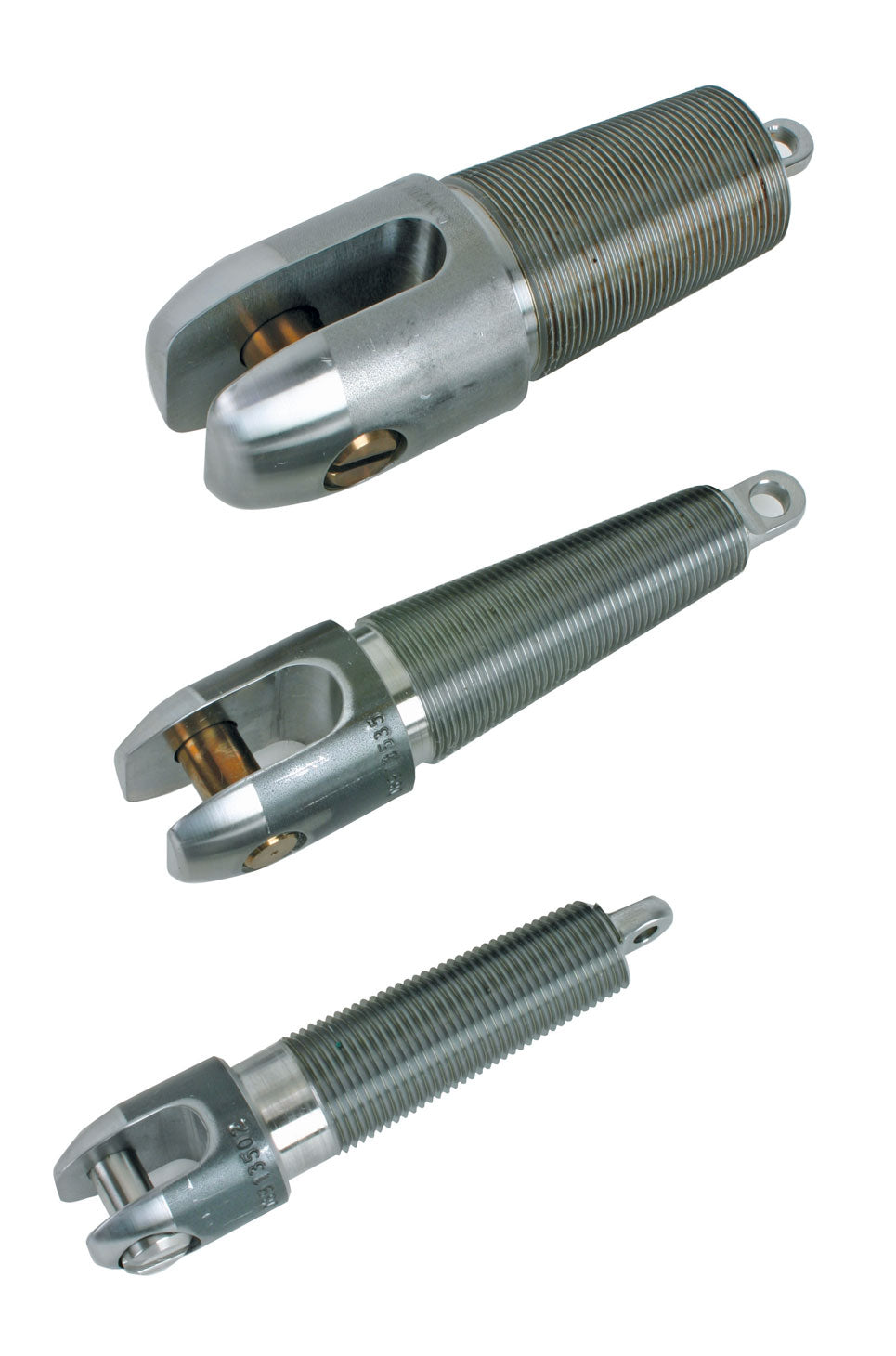

Clevis Head Innerduct Pulling Eyes provide a durable, high-strength solution for attaching pulling harnesses to innerduct during heavy-duty cable installations. Designed for seamless compatibility with Condux pulling harnesses, each pulling eye features precision-tapered threads that match standard innerduct pulling eyes, ensuring quick, secure connection and efficient operation in the field.
The slotted head with clevis pin design allows for direct attachment to pulling harness leg ends, creating a reliable link capable of handling extreme pulling tension. When properly sized and installed, these pulling eyes maintain their hold even under loads that exceed the maximum ratings recommended by innerduct manufacturers.
Key Features
- High-Strength Design – Built to endure extreme pulling forces for reliable performance in demanding installations.
- Easy Integration – Tapered threads ensure straightforward compatibility with Condux multiple pulling harnesses.
- Secure Connection – Slotted head with clevis pin provides a stable, load-bearing link during heavy-duty pulls.
- Custom Fit – Determine proper sizing by measuring the innerduct’s inside diameter (I.D.) for precise fit and performance.
Upgrade your innerduct pulling setup with the Clevis Head Innerduct Pulling Eye for maximum strength, safety, and efficiency on every job.
Ordering Information

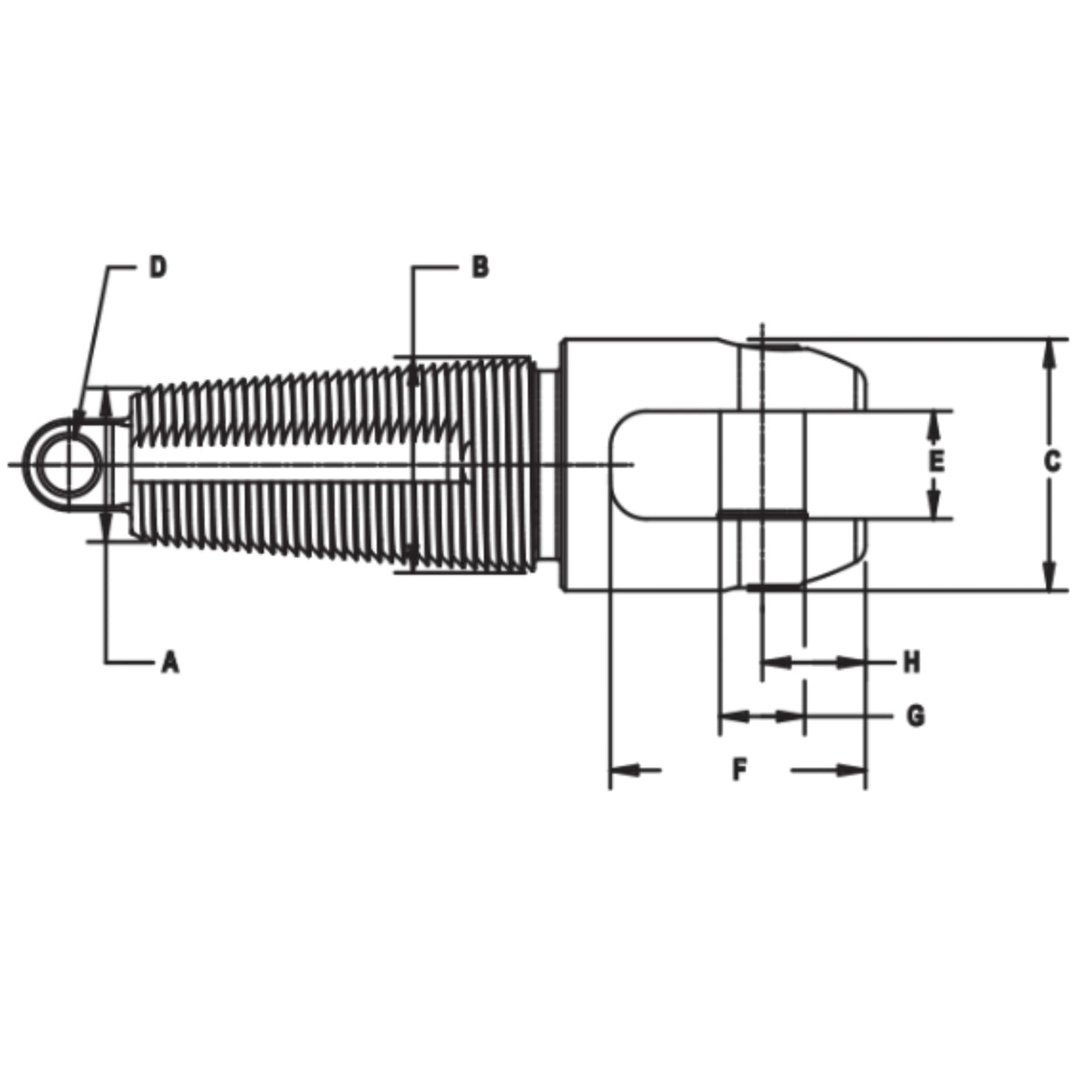

| Part Number | Nominal Size (in / mm) | Innerduct I.D. Range (in / mm) | Max O.D. (in / mm) | Hole Dia. (in / mm) | Slot Width (in / mm) | Slot Depth (in / mm) | Pin Dia. (in / mm) | Pin Center (in / mm) |
|---|---|---|---|---|---|---|---|---|
| 08914310* | 0.75 / 19 | 0.71 – 0.87 / 18–22 | 1.25 / 32 | 0.25 / 6 | 0.56 / 14 | 1.34 / 34 | 0.38 / 10 | 0.59 / 15 |
| 08914330* | 1.25 / 32 | 1.06 – 1.43 / 27–37 | 1.75 / 44 | 0.38 / 10 | 0.75 / 19 | 1.78 / 45 | 0.63 / 16 | 0.81 / 21 |
| 08914350* | 1.75 / 44 | 1.68 – 1.81 / 43–46 | 2.25 / 57 | 0.38 / 10 | 0.75 / 19 | 1.78 / 45 | 0.63 / 16 | 0.72 / 18 |
