Swivel Clevis | Rope to Swivel Connector | 10,000 lb | Stainless
$399.45
Unit price
/
Select Option
Swivel Clevis | Rope-to-Swivel Connector | 10,000 lb Load Rating | Stainless Steel
The Condux Rope to Swivel Clevis connects a swivel to rope up to 1″ (25 mm) in diameter. It is designed for use with 1¼″, 1⅜″, 1⅝″, and 2″ 808 Champion Swivels.
Precision-machined from stainless steel, the clevis has a rated load capacity of 10,000 lb (44,480 N). Replacement roller and pin components are also available for servicing the assembly.
Key Features

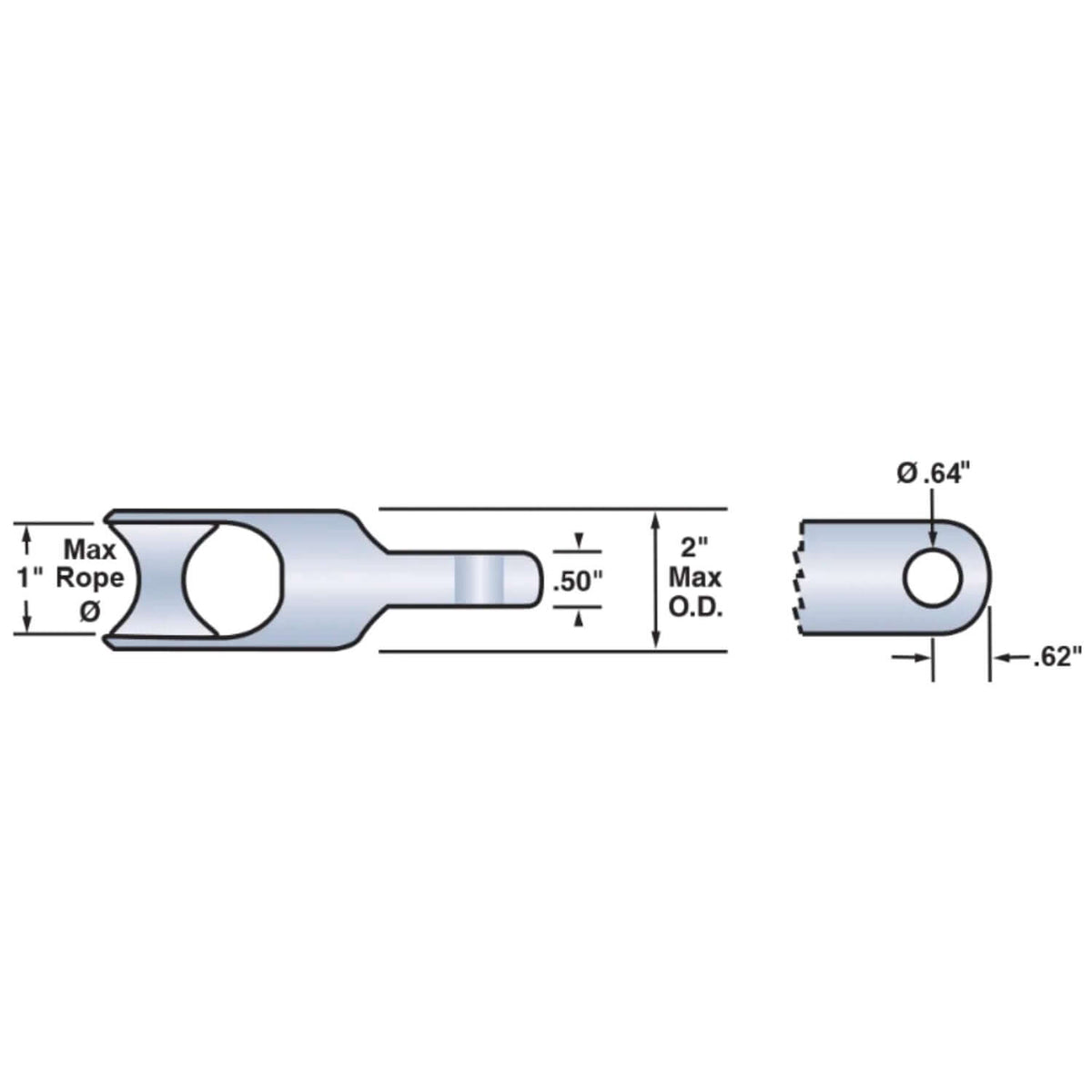

- Rope Capacity – Connects to rope up to 1″ (25 mm) in diameter.
- 808 Champion Swivel Compatibility – Designed for 1¼″, 1⅜″, 1⅝″, and 2″ swivel sizes.
- 10,000 lb Load Rating – Rated for loads up to 10,000 lb (44,480 N).
- Stainless Steel Construction – Precision-machined stainless steel construction.
- Replaceable Components – Replacement roller and pin are available separately.
Ordering Information
| Part Number | Swivel Size (in) | Swivel Size (mm) | Max O.D. (in) | Max O.D. (mm) | Load Rating (lb) | Load Rating (N) | Replacement Roller | Replacement Pin |
|---|---|---|---|---|---|---|---|---|
| 08091230 | 1¼–2 | 32–51 | 2 | 51 | 10,000 | 44,480 | 08091221 | 08091222 |
