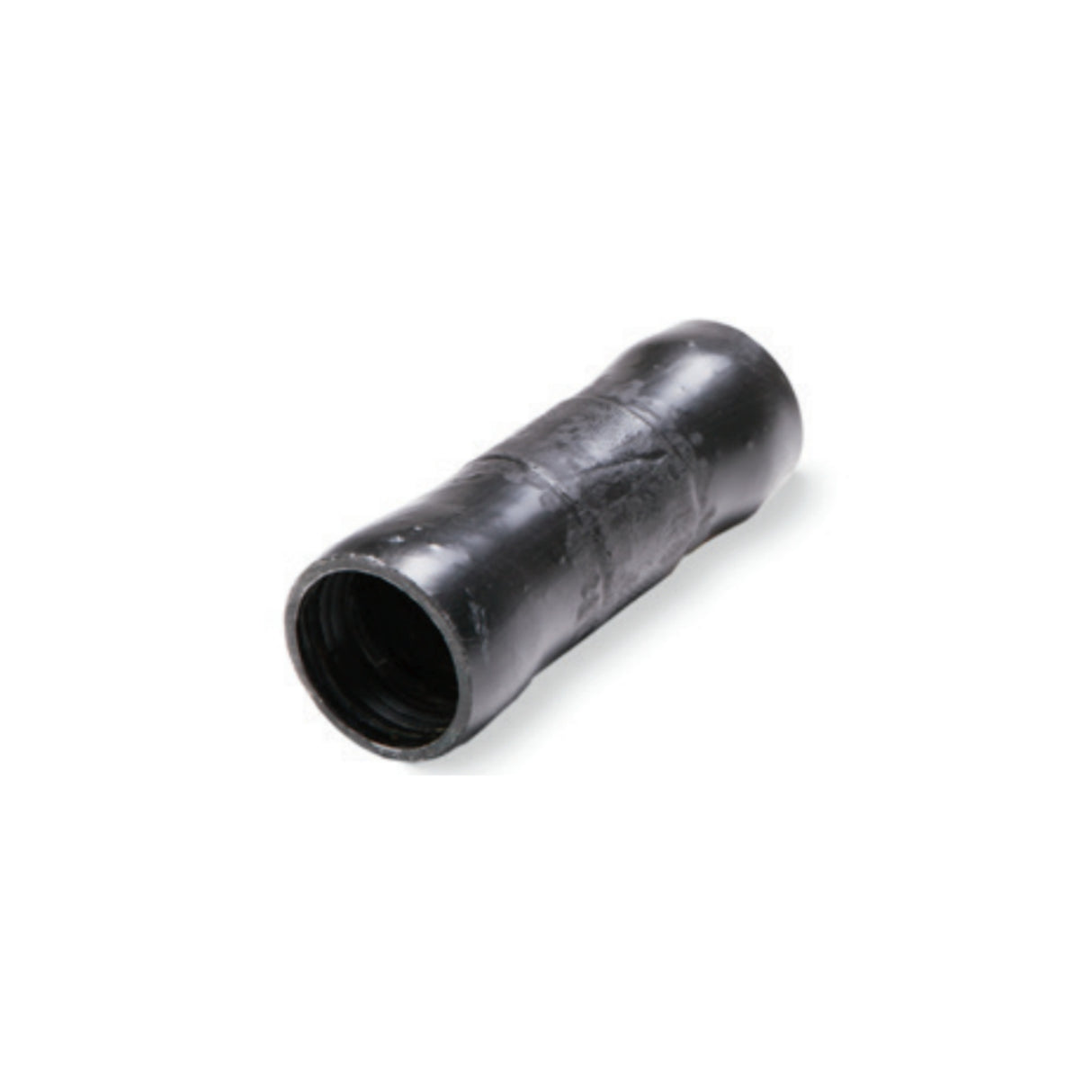

FIBERGLASS 5° DOUBLE BELL COUPLING WITH GASKET
The Fiberglass 5 Degree Double Bell Coupling with Gasket provides a quick, reliable solution for coupling and adapting pipes in above-ground installations. Designed for ease of use and versatility, this lightweight yet durable fitting ensures fast installation without compromising system integrity. Available in customizable configurations, including unique angles like 2.5 Degree, this coupling is perfect for industrial and commercial applications that require precision and adaptability. Contact Champion Fiberglass for custom angles and specifications to suit your project needs.
Key Product Features:
- Effortless Installation: Reduces time and labor with simplified connection, ensuring quick, secure fittings.
- Customizable Configurations: Available in tailored angles, sizes, wall thicknesses, and colors to fit specific project requirements.
- Versatile Compatibility: Supports both IPS (Iron Pipe Size) and ID (Inside Diameter) conduit systems for diverse applications.
- Durable Construction: Built with fiberglass for strength and longevity, providing a reliable and robust solution.
Available Wall Thickness Options:
- Standard Wall (SW): 0.070"
- Medium Wall (MW): 0.096"
- Heavy Wall (HW): 0.110"
- Extra Heavy Wall (XW): 0.250"
Customization Options:
- Standard colors: Black and Grey
- Custom colors available upon request
Certifications & Compliance:
- UL Listings: UL 2420 (below-ground) & UL 2515 (above-ground)
- ISO Certifications: ISO 9001:2015 (Quality), ISO 14001:2015 (Environmental), ISO 45001:2018 (Health & Safety)
Champion Fiberglass is your trusted partner for high-performance solutions, offering flexibility and reliability to meet the demands of modern installations. Contact us for expert consultation and customized product solutions.

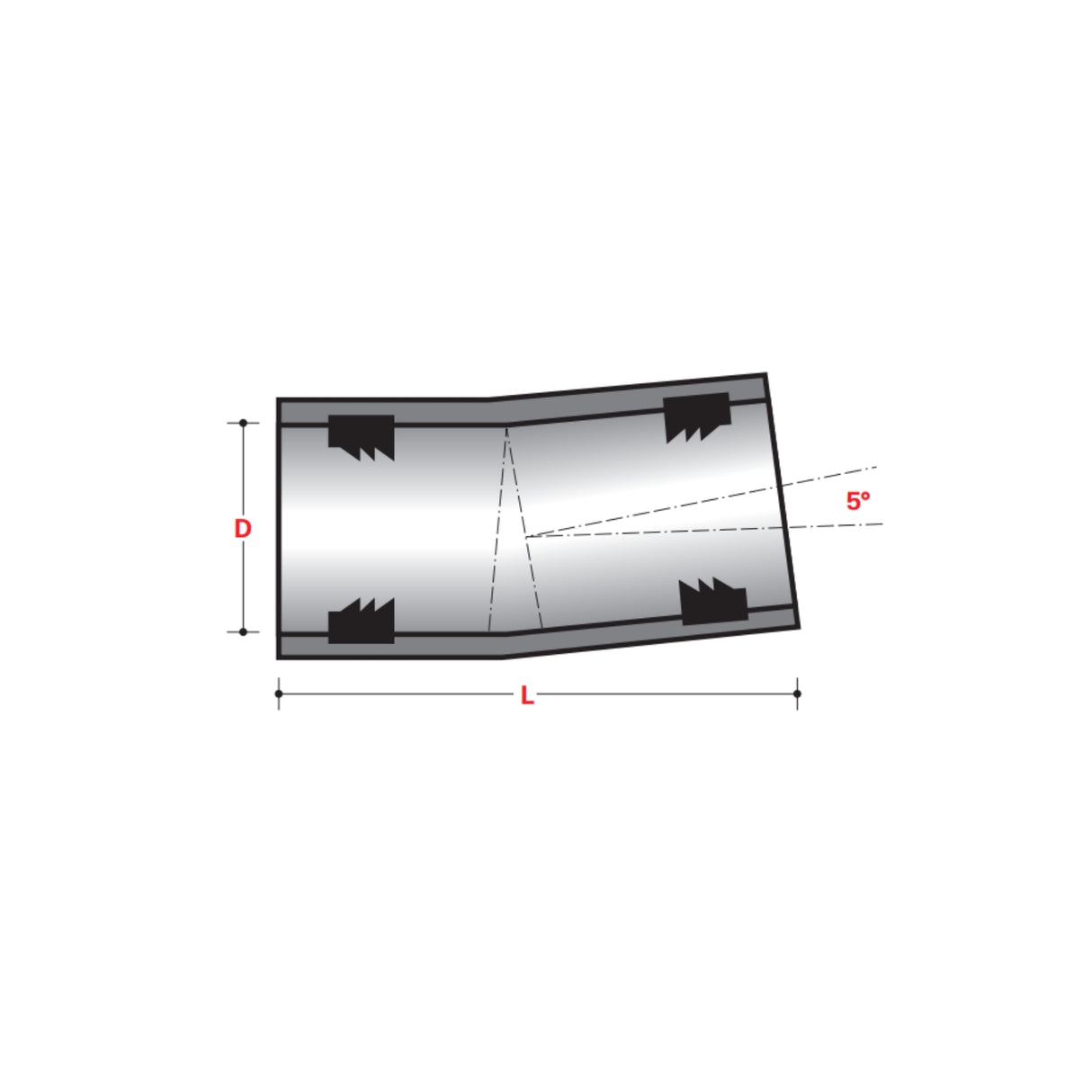

| Nominal Size | Type | IPS Item No ABOVE Ground | D (inches) | L (inches) | Weight (lbs) | Weight (kg) |
|---|---|---|---|---|---|---|
| 3/4" | SW | 07C-SW-44-G | 1.075" (27) | 8" (203) | 0.12 | (0.05) |
| 1" | SW | 10C-SW-44-G | 1.34" (34) | 8" (203) | 0.14 | (0.06) |
| 1-1/4" | SW | 12C-SW-44-G | 1.685" (42) | 8" (203) | 0.17 | (0.08) |
| 1-1/2" | SW | 15C-HW-44-G | 1.925" (49) | 8" (203) | 0.25 | (0.11) |
| 2" | SW | 20C-SW-44-G | 2.400" (61) | 8" (203) | 0.29 | (0.13) |
| 3" | SW | 30C-SW-44-G | 3.525" (89) | 8" (203) | 0.45 | (0.20) |
| 4" | SW | 40C-SW-44-G | 4.485" (114) | 9" (228) | 0.54 | (0.24) |
| 4" | HW | 40C-HW-44-G | 4.537" (115) | 9" (228) | 0.60 | (0.27) |
| 5" | SW | 50C-SW-44-G | 5.545" (141) | 10" (254) | 0.75 | (0.34) |
| 5" | MW | 50C-MW-44-G | 5.597" (142) | 10" (254) | 0.90 | (0.40) |
| 5" | HW | 50C-HW-44-G | 5.625" (143) | 10" (254) | 1.00 | (0.45) |
| 6" | SW | 60C-SW-44-G | 6.600" (168) | 10" (254) | 0.75 | (0.34) |
| 6" | MW | 60C-MW-44-G | 6.652" (169) | 10" (254) | 1.07 | (0.49) |
| 6" | HW | 60C-HW-44-G | 6.680" (170) | 10" (254) | 1.22 | (0.55) |
