CHAMPION FIBERGLASS  |  SKU: 30069058  |  MPN: 07C-SW-33

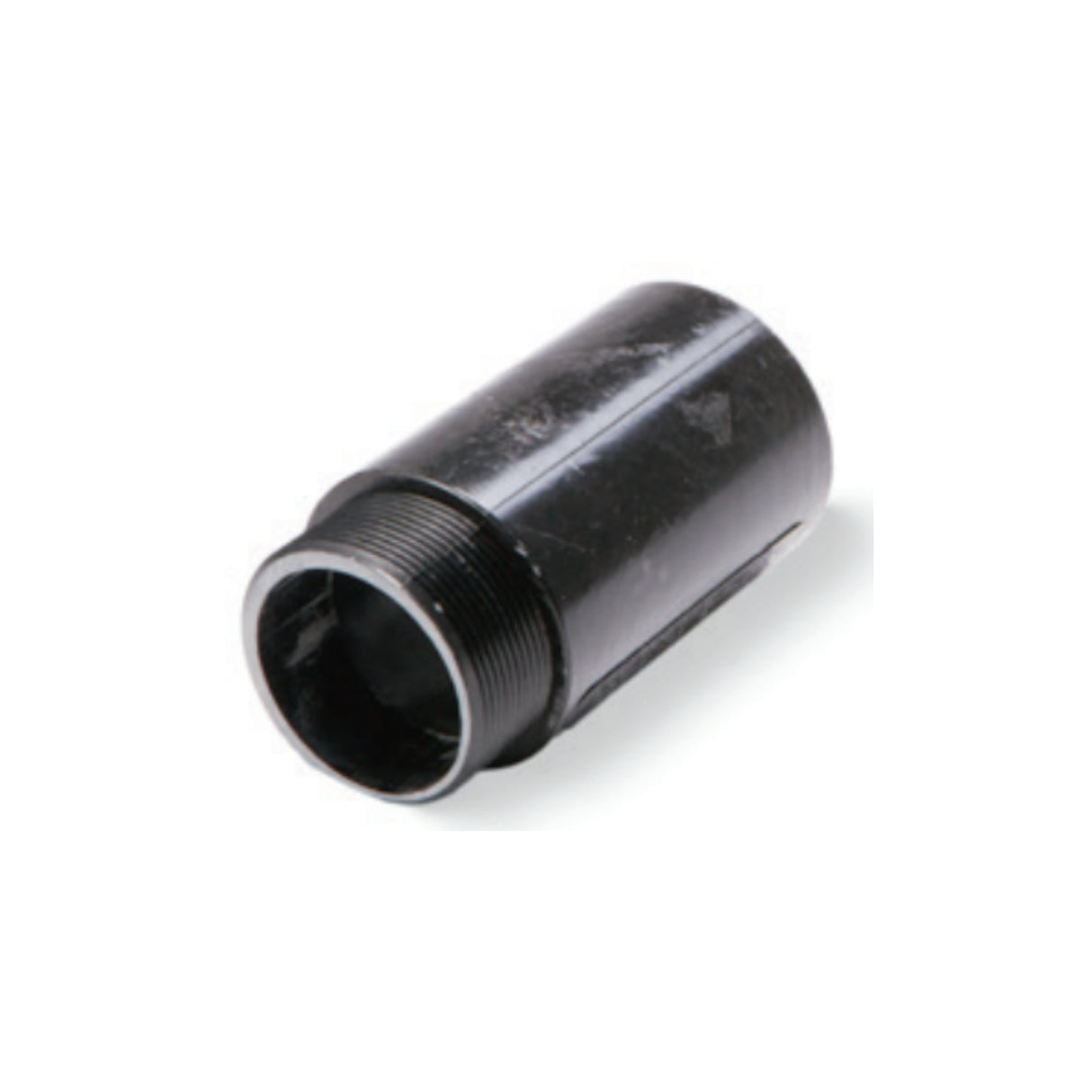

Fiberglass Male Adapter Fittings - Tapered Thread

$2,004.26
Size | Type
  • High-Quality Fiberglass Construction: Durable, lightweight, and corrosion-resistant for long-term reliability in below-ground installations.
  • Versatile Compatibility: Available for both IPS and ID applications, ensuring secure and precise connections.
  • Customizable Options: Choose from various wall thicknesses (SW, MW, HW, XW) and colors, including black, grey, or custom shades.
  • Certified Performance: Compliant with UL 2420, UL 2515, and ISO standards for quality, safety, and environmental responsibility.

Fiberglass Male Adapter Fittings - Tapered Thread — Product Overview

Champion Fiberglass Male Adapter Fittings with Tapered Threads are designed for exceptional performance and versatility in below-ground installations. Manufactured using high-quality fiberglass, these lightweight yet durable fittings enable quick and efficient installations, with customizable options to meet a variety of industrial and commercial application needs.

Product Highlights

Compatibility Options
Champion Fiberglass Male Adapter Fittings are available for both IPS (Iron Pipe Size) and ID (Inside Diameter) applications, ensuring a secure and precise fit for different setups.

Wall Thickness Options
Select the appropriate wall thickness to match your project’s requirements:

  • Standard Wall (SW): 0.070" for lighter applications.
  • Medium Wall (MW): 0.096" for moderate strength.
  • Heavy Wall (HW): 0.110" for enhanced durability.
  • Extra Heavy Wall (XW): 0.250" for maximum resilience in demanding environments.

Color Customization
Standard colors include black and grey, with additional custom color options available upon request to meet specific project or branding requirements.

Certifications & Compliance

Champion Fiberglass Male Adapter Fittings are certified to meet stringent industry standards, ensuring reliability and safety:

  • UL 2420 Listed: Approved for below-ground use, meeting rigorous safety standards.
  • UL 2515 Listed: Suitable for above-ground applications, enhancing versatility.
  • ISO 9001:2015 Certified: Ensures adherence to quality management practices.
  • ISO 14001:2015 Certified: Demonstrates commitment to environmental responsibility.
  • ISO 45001:2018 Certified: Aligns with occupational health and safety standards.

Designed with durability, adaptability, and compliance in mind, Champion Fiberglass Male Adapter Fittings deliver the strength and reliability required for a wide range of below-ground installations.

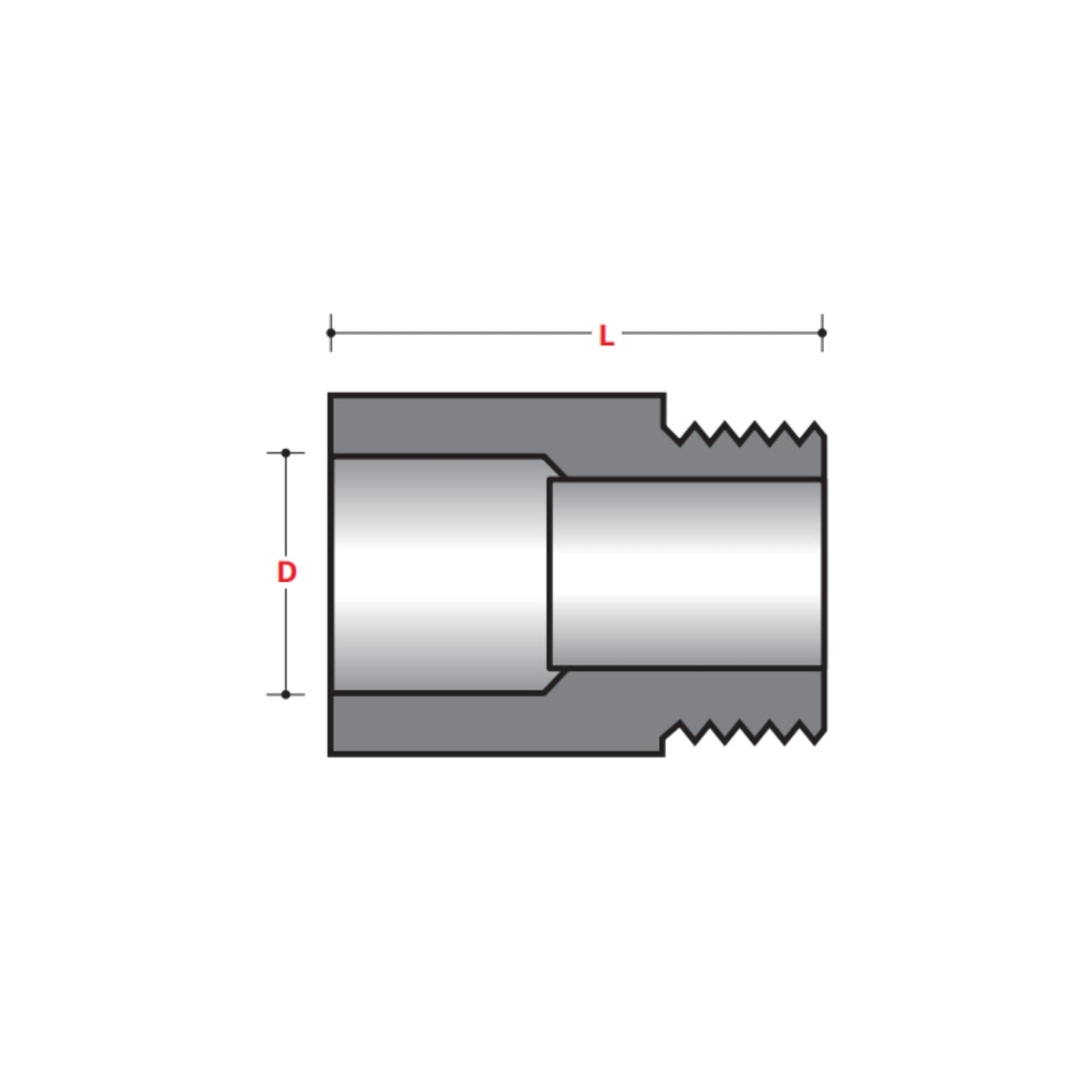

Nominal Size Type IPS Item No (ABOVE GROUND) D L Weight (LBS) Weight (KG)
3/4" SW 07C-SW-33 1.075" (27) 3" (76) 0.08 (0.04)
1" SW 10C-SW-33 1.34" (34) 3" (76) 0.08 (0.04)
1-1/4" SW 12C-SW-33 1.685" (42) 3" (76) 0.15 (0.07)
1-1/2" SW 15C-SW-33 1.925" (49) 3" (76) 0.18 (0.08)
2" SW 20C-SW-33 2.400" (61) 5" (127) 0.44 (0.20)
3" SW 30C-SW-33 3.525" (89) 5" (127) 0.64 (0.29)
4" SW 40C-SW-33 4.485" (114) 5" (127) 0.93 (0.42)
4" HW 40C-HW-33 4.537" (115) 5" (127) 0.97 (0.44)
5" SW 50C-SW-33 5.545" (141) 5" (127) 1.45 (0.66)
5" MW 50C-MW-33 5.597" (142) 5" (127) 1.30 (0.59)
5" HW 50C-HW-33 5.625" (143) 5" (127) 1.15 (0.52)
6" SW 60C-SW-33 6.600" (168) 5" (127) 2.00 (0.91)
6" MW 60C-MW-33 6.652" (169) 5" (127) 1.70 (0.77)
6" HW 60C-HW-33 6.680" (170) 5" (127) 1.40 (0.64)
