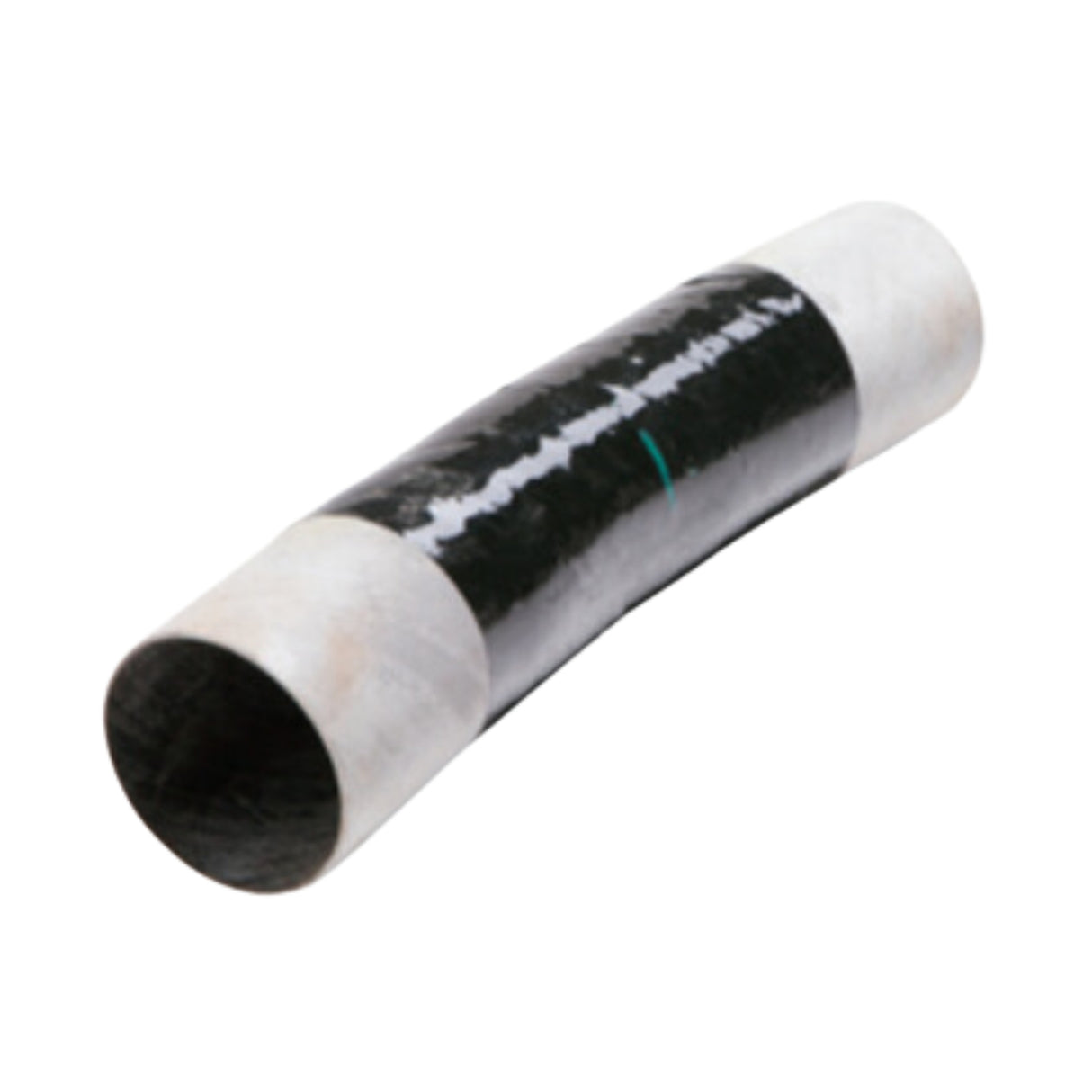

Fiberglass IPS 11-1/4° x 48" STANDARD RADIUS ELBOWS
Introducing our Fiberglass IPS 11-1/4° Degree x 48" Standard Radius Elbows, crafted for superior performance and efficiency. These fiberglass elbows are ideal for various utility applications, including fiber optic installations, electrical conduits, and other utility projects. Designed to navigate corners and changes in direction, they ensure smooth, hassle-free cable pulls, reducing friction and protecting sensitive cables throughout the installation process.
Key Features:
- Durable and Lightweight Construction: Made from high-quality fiberglass, these elbows are significantly lighter than traditional materials like galvanized steel, making installation faster and easier, especially for larger diameters.
- Enhanced Cable Protection: Featuring a low coefficient of friction and a unique single-circuit winding process, these fiberglass elbows prevent burn-through and ensure your cables remain safe and intact.
- Time-Efficient Installation: Their lightweight design reduces handling time, helping to lower labor costs and expedite project completion.
- Certified Quality Assurance: Manufactured in the USA, our elbows meet ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certification standards, ensuring you receive a high-quality, reliable product.
- Customizable Transition Options: These elbows offer flexible transition ends, including plain ends, couplings (fiberglass or PVC), male/female adapters (fiberglass or PVC), and PVC stubs for seamless integration into your conduit system.
Transition Options:
- Plain Ended: No couplings or adapters.
- Couplings: Available in fiberglass or PVC.
- Adapters: Male and/or female adapters in fiberglass or PVC.
- PVC Stubs: Additional transition option.
Ordering Information:
- Add “-1F” for one fiberglass coupling.
- Add “-2F” for two fiberglass couplings.
- Add “-1D” for one deep socket PVC coupling.
- Add “-2D” for two deep socket PVC couplings.
We offer larger-size bends and radii upon request to meet your specific project requirements. Choose the Fiberglass IPS 11-1/4° Degree x 48" Standard Radius Elbows for a reliable, efficient solution designed to provide enhanced performance and protection for your conduit installations.

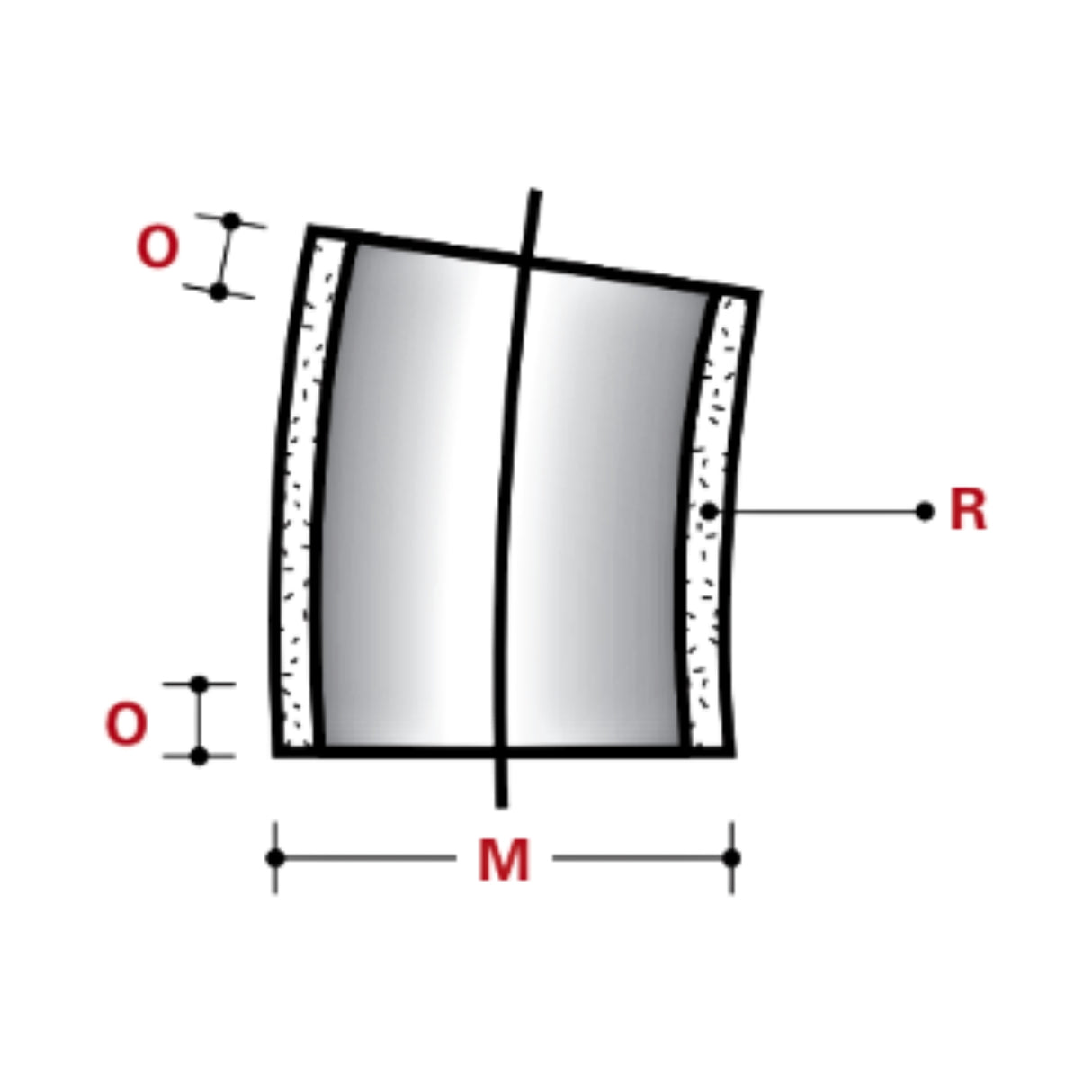

| Nominal Size | Type | IPS Item No ABOVE GROUND | M (in) | C-Tangent (min) | R-Radius (min) | Weight (lbs) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 3/4" | SW | 07C-SW-53-P | 1.05" (27) | 6" (152) | 48" (1,219) | 0.31 | (0.14) |
| 1" | SW | 10C-SW-53-P | 1.32" (33) | 6" (152) | 48" (1,219) | 0.35 | (0.16) |
| 1-1/4" | SW | 12C-SW-53-P | 1.66" (42) | 6" (152) | 48" (1,219) | 0.42 | (0.19) |
| 1-1/2" | SW | 15C-SW-53-P | 1.90" (48) | 6" (152) | 48" (1,219) | 0.61 | (0.28) |
| 2" | SW | 20C-SW-53-P | 2.37" (60) | 6" (152) | 48" (1,219) | 0.70 | (0.32) |
| 2-1/2" | SW | 25C-SW-53-P | 2.88" (73) | 6" (152) | 48" (1,219) | 0.84 | (0.38) |
| 3" | SW | 30C-SW-53-P | 3.50" (89) | 6" (152) | 48" (1,219) | 1.10 | (0.50) |
| 4" | SW | 40C-SW-53-P | 4.46" (113) | 6" (152) | 48" (1,219) | 1.32 | (0.60) |
| 4" | HW | 40C-HW-53-P | 4.51" (114) | 6" (152) | 48" (1,219) | 1.78 | (0.81) |
| 5" | SW | 50C-SW-53-P | 5.52" (140) | 6" (152) | 48" (1,219) | 1.65 | (0.75) |
| 5" | MW | 50C-MW-53-P | 5.57" (141) | 6" (152) | 48" (1,219) | 2.20 | (1.00) |
| 5" | HW | 50C-HW-53-P | 5.60" (142) | 6" (152) | 48" (1,219) | 2.38 | (1.08) |
| 6" | SW | 60C-SW-53-P | 6.58" (167) | 6" (152) | 60" (1,524) | 1.83 | (0.83) |
| 6" | MW | 60C-MW-53-P | 6.63" (168) | 6" (152) | 60" (1,524) | 2.60 | (1.18) |
| 6" | HW | 60C-HW-53-P | 6.66" (169) | 6" (152) | 60" (1,524) | 2.98 | (1.35) |
