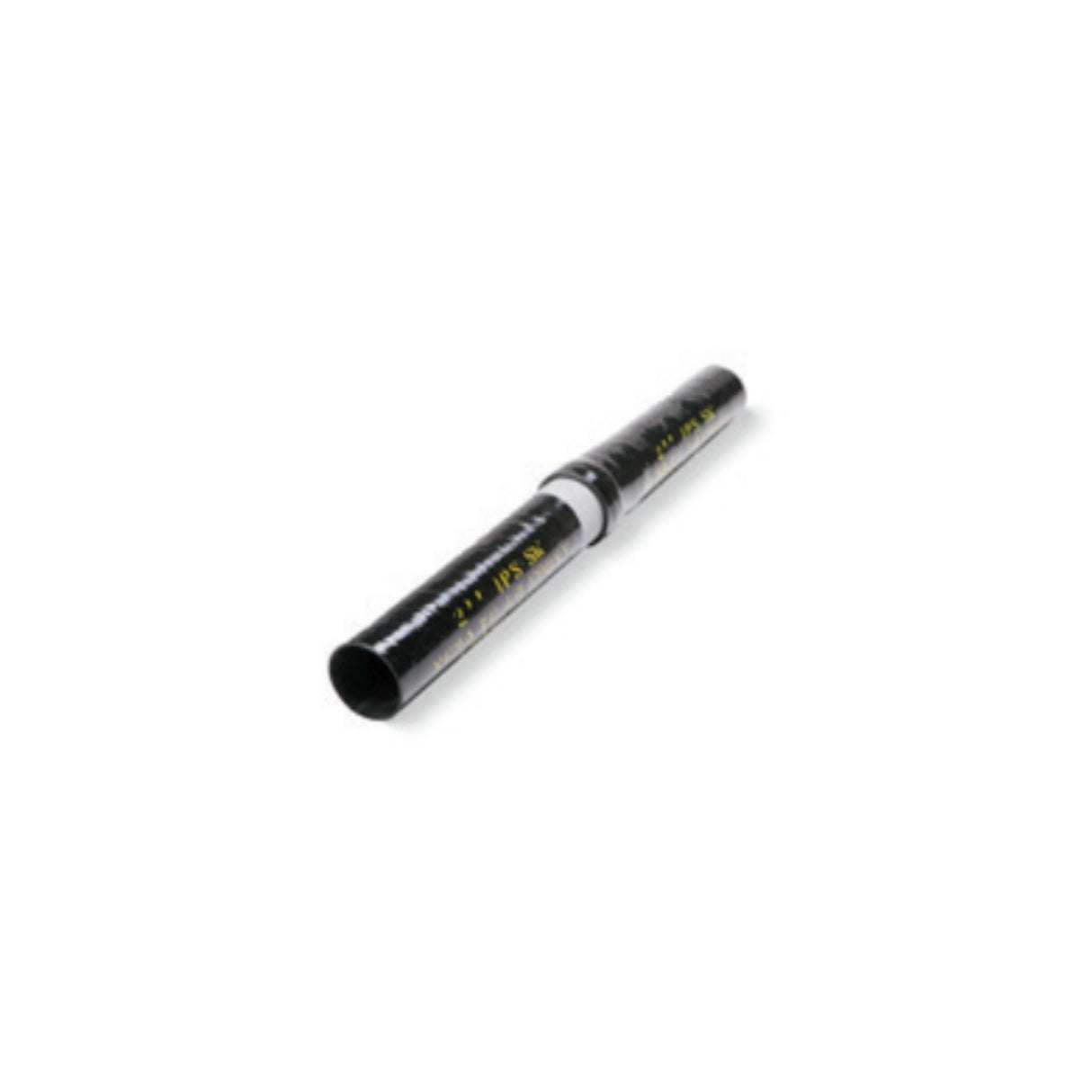

FIBERGLASS SW Type - Standard Wall Straight Gasket Joint Pipe
Our SW Type Standard Wall Straight Gasket Joint Pipes are built to deliver durability, flexibility, and reliable performance for above-ground applications. These fiberglass pipes are available in 10- or 20-foot straight lengths and multiple wall thickness options, providing tailored solutions for diverse project requirements.
Product Highlights:
-
Multiple Wall Thickness Options:
- SW (Standard Wall): 0.070" thickness for lighter applications
- MW (Medium Wall): 0.096" thickness for moderate strength
- HW (Heavy Wall): 0.110" thickness for added durability
- XW (Extra Heavy Wall): 0.250" thickness for maximum resilience in demanding settings
-
Designed for IPS (Iron Pipe Size):
Crafted to IPS standards for secure, compatible connections across various installations. -
Color & Customization Options:
Available in standard black and grey, with custom color options upon request to align with specific project or branding needs. -
Certifications & Compliance:
- UL 2515 Listed for above-ground applications
- UL 2420 Listed for below-ground use
- ISO 9001:2015 Certified for quality management
- ISO 14001:2015 Certified for environmental responsibility
- ISO 45001:2018 Certified for occupational health and safety
Our Fiberglass Straight Gasket Joint Pipes combine rigorous certifications, high durability, and customizable options, making them the ideal choice for industrial and commercial projects that demand reliability and adaptability. Backed by industry-leading standards, they ensure exceptional strength, performance, and safety for above-ground installations.

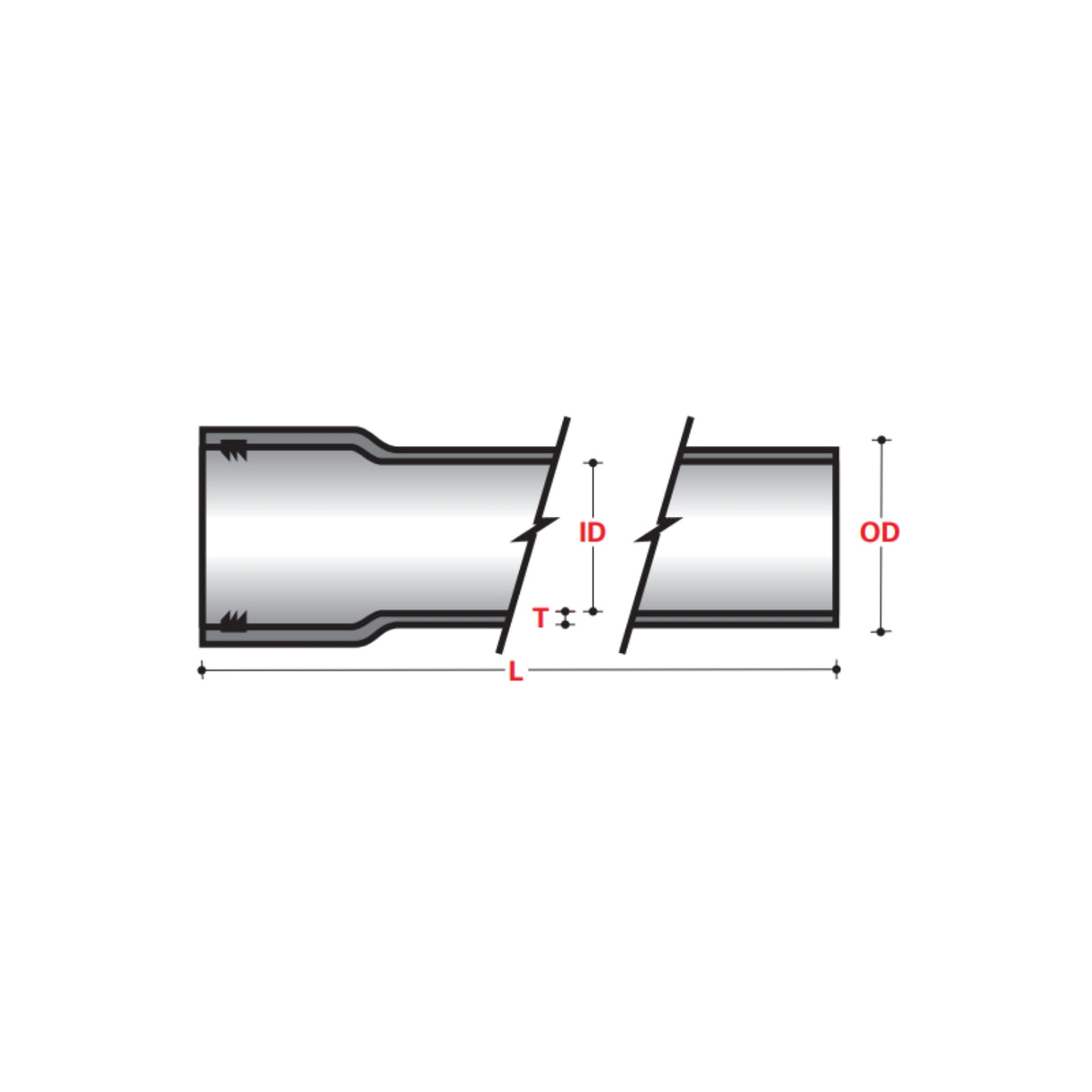

| Nominal Size | IPS Item No (ABOVE GROUND) | UL/CSA Listed | Outside Diameter (Average) | Outside Diameter (Tolerance) | Min. Inside Diameter | Nominal Wall Thickness (T) | Length (L) | Weight Lbs/Ft | Weight Kg/M |
|---|---|---|---|---|---|---|---|---|---|
| 3/4" (19) | 07C-SW-10-G | Yes | 1.050" (27) | +0.028" (0.7) / -0.018" (0.4) | 0.910" (23) | .070" (2) | 10 ft (3 m) | 0.17 | 0.25 |
| 1" (25) | 10C-SW-10-G | Yes | 1.315" (33) | +0.028" (0.7) / -0.018" (0.4) | 1.175" (30) | .070" (2) | 10 ft (3 m) | 0.19 | 0.28 |
| 1-1/4" (32) | 12C-SW-20-G | Yes | 1.660" (42) | +0.028" (0.7) / -0.018" (0.4) | 1.520" (39) | .070" (2) | 20 ft (6.1 m) | 0.23 | 0.34 |
| 1-1/2" (38) | 15C-SW-20-G | Yes | 1.900" (48) | +0.028" (0.7) / -0.018" (0.4) | 1.760" (45) | .070" (2) | 20 ft (6.1 m) | 0.33 | 0.49 |
