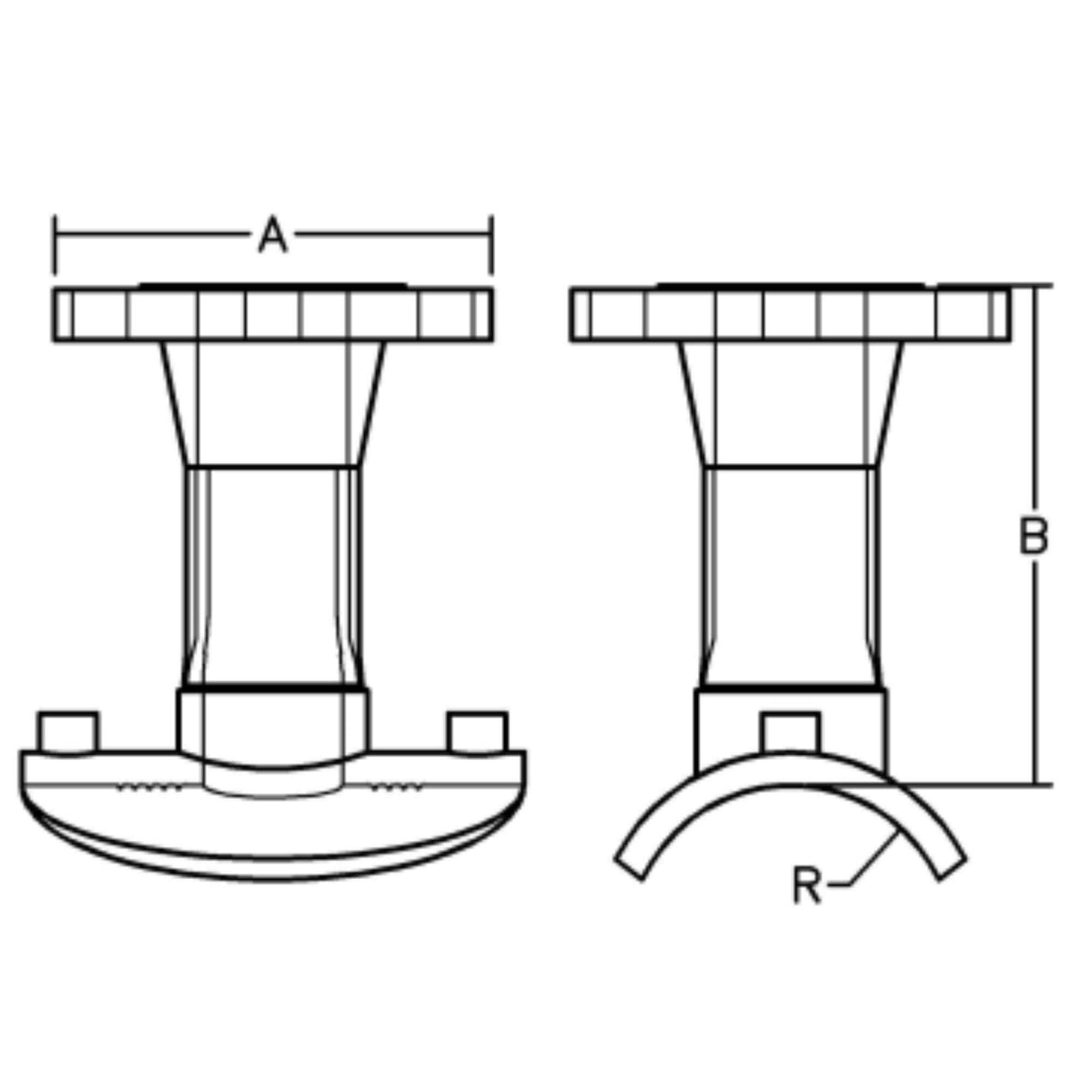

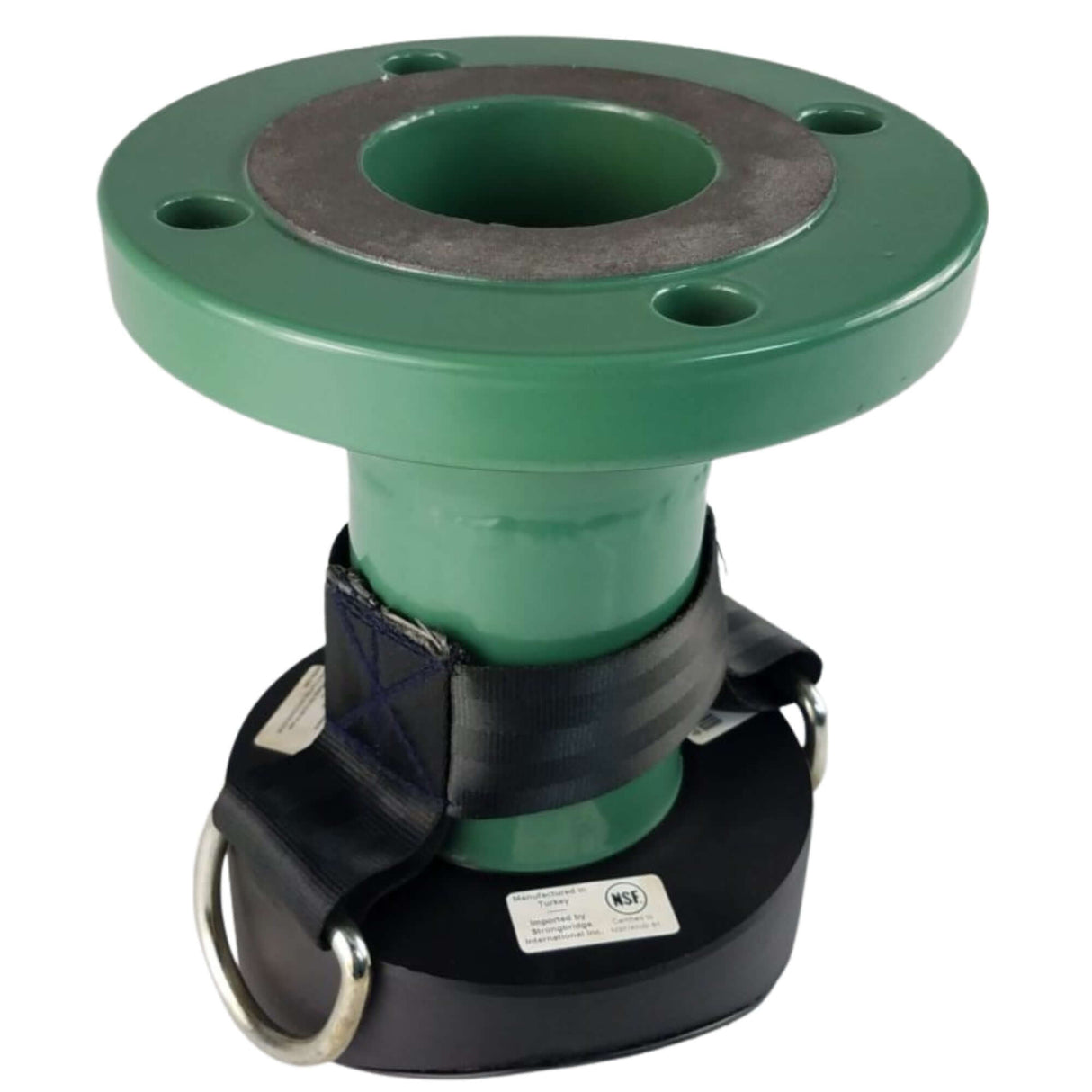

Series 573 Electrofusion Branch Saddle with Flange

Series 573 Electrofusion Branch Saddle with Flange — Product Overview

Engineered for seamless integration into industrial and municipal pipelines, the Series 573 Electrofusion Branch Saddle with Flange combines advanced hydraulic compression technology with ANSI B16.5-compliant flanges. Designed for sizes 1.25” to 18”, this fitting ensures a secure, leak-proof connection between HDPE pipes and flanged systems, even under extreme pressure fluctuations. Ideal for water distribution, fire protection, and chemical processing, it features a multi-level barbed design that strengthens under stress and meets ASTM, NSF, FM, and AWWA standards.

Key Features & Benefits

• ANSI B16.5 Flange Compliance: Available in 150#, 300#, and 600# pressure ratings for versatile system compatibility.
• Pressure-Activated Seal: Multi-level barbs expand under internal pressure, ensuring zero leaks during thermal shifts or static conditions.
• 50-Year Durability: Built with a 2:1 safety factor at 73.4°F, certified to ASTM 1598/1599 and ARRA requirements.
• Corrosion-Resistant Materials: Epoxy-coated carbon steel (IF 194T), 304/316 stainless steel, or ERW pipe options for harsh environments.

Technical Specifications

• Sizes: 1.25”–18” (ANSI B16.5 flanges).
• HDPE Pipe: ASTM D3350 (PE3408/PE4710), F714, D3035. Tensile strength: 3,200–3,500 psi; ESCR ≥5,000 hours (zero failures).
• Melt Index: ≤0.15 g/10 min (ASTM D1238).

Installation Guidelines

• Follow electrofusion manufacturer’s procedures for saddle installation on main pipes.
• Use tapered coupling to cold-press HDPE into multi-level barbs—no heat required.
• Pressure-test joints before backfilling; compact soil to prevent ground shifts.

Material & Compliance

• Flanged Fittings: Carbon Steel (A53/A106, epoxy-coated), 304/316 Stainless Steel (ASTM A249/A269), or ERW pipe (ASTM SA-312).
• HDPE: Density ≥0.955 g/cm³ (ASTM D1505), certified for NSF 61, UL 262, and FDA 175.300.
• Certifications: FM 1120/1130 (fire safety), AWWA C116-01/C213-01 (water systems).

Warranty: 1 year from installation completion date.

Optimize your pipeline’s reliability with Poly-Cam’s Series 573—engineered for precision, compliance, and decades of service. Contact us for certifications or technical support.
