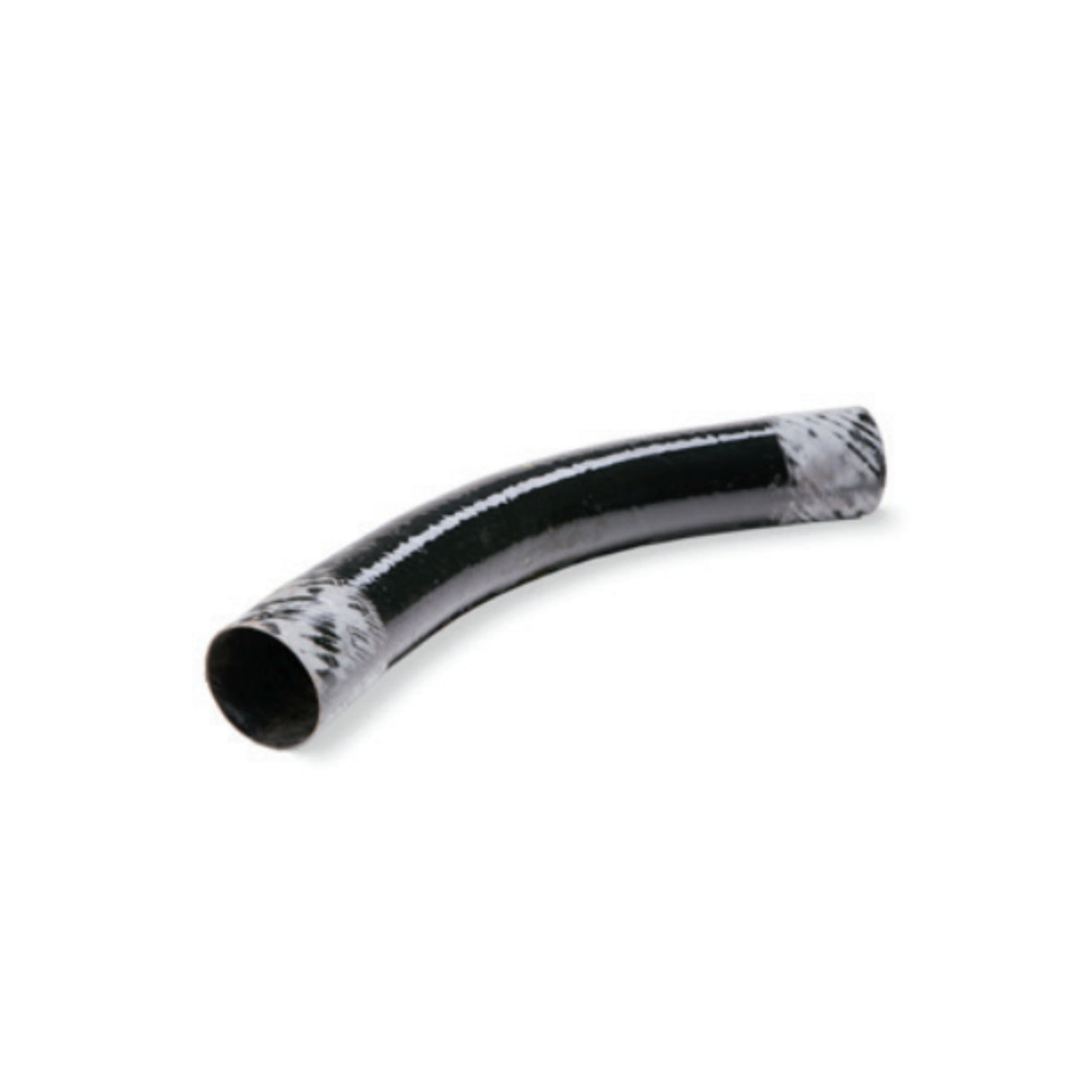

Fiberglass IPS 45° x 12" Standard Radius Elbows
$2,004.26
Unit price
/
Select Option
Fiberglass IPS 45° x 12" Standard Radius Elbows — Product Overview
Designed to meet the demanding needs of industrial applications, including utilities, data centers, and wastewater treatment plants, the Champion Fiberglass IPS 45° Degree x 12" Standard Radius Elbows offer outstanding durability, ease of installation, and superior cable protection. These fiberglass elbows are the preferred choice for electrical contractors and engineers looking for high-performance solutions.
Key Features:
- Burn-Through Protection: Engineered with a low coefficient of friction and a single-circuit winding process, these fiberglass elbows protect cables from burn-through during installation and operation.
- Effortless Installation: The lightweight fiberglass construction enables faster, more economical installations compared to traditional materials such as galvanized steel or PVC-coated conduit, as noted in NECA labor rates.
- ISO Certified: Manufactured in the USA and ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certified, ensuring adherence to the highest standards for quality, environmental, and safety compliance.
Availability & Accessories:
- Customizable Sizes: Available in a range of larger bends and radii upon request, offering flexibility to meet specific project requirements.
- Transition Fittings: Seamlessly integrate with GRC, PVC-coated, and other conduit materials with factory-fitted transition and termination fittings.
End Options:
- Plain Ends: No couplings or adapters, ideal for direct fittings.
- PVC or Fiberglass Couplings: Choose one or two couplings for easy connectivity.
- Adapters: Available in male/female PVC or fiberglass options for versatile connections.
- PVC Stubs: For direct transitions to PVC conduit systems.
Ordering Tips:
- Custom Couplings: Add “-1F” for one fiberglass coupling or “-2F” for two fiberglass couplings.
- Deep Socket PVC Couplings: Add “-1D” for one deep socket PVC coupling or “-2D” for two.
- Adapter Options: Contact Champion Fiberglass for custom male/female adapters or stubs.
Champion Fiberglass IPS 45° Degree x 12" Standard Radius Elbows provide a durable, adaptable, and easy-to-install solution for electrical and industrial conduit systems. Choose fiberglass for a reliable, high-performance alternative to traditional materials.

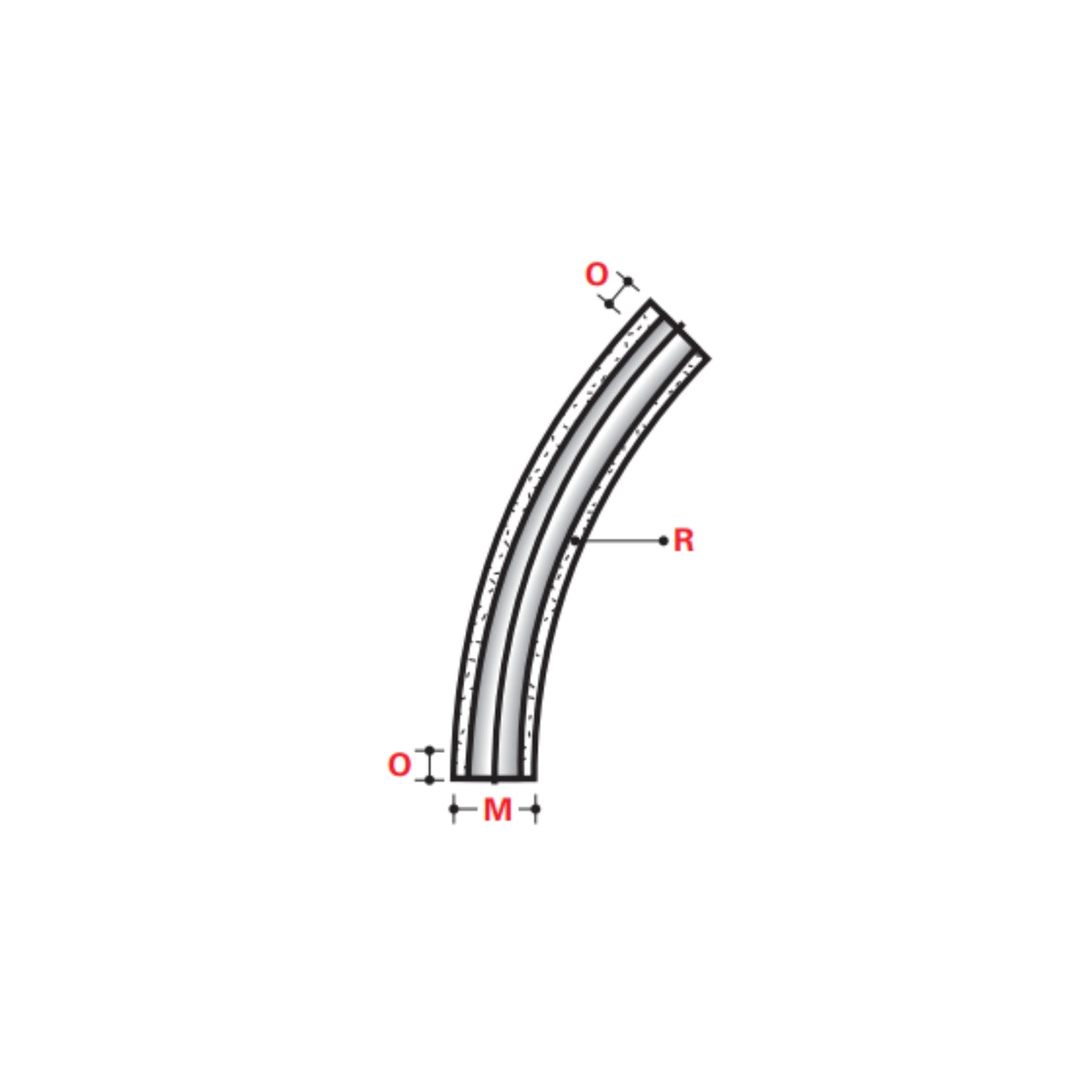

| Nominal Size | Type | IPS Item No (Above Ground) | M (in) | O-Tangent (Min) | R-Radius (Min) | Weight (Lbs/Kg) |
|---|---|---|---|---|---|---|
| 3/4" | SW | 07C-SW-80-P | 1.05" (27) | 6" (152) | 12" (305) | 0.30 (0.14) |
| 1" | SW | 10C-SW-80-P | 1.32" (33) | 6" (152) | 12" (305) | 0.33 (0.15) |
| 1-1/4" | SW | 12C-SW-80-P | 1.66" (42) | 6" (152) | 12" (305) | 0.40 (0.18) |
| 1-1/2" | SW | 15C-SW-80-P | 1.90" (48) | 6" (152) | 12" (305) | 0.58 (0.26) |
| 2" | SW | 20C-SW-80-P | 2.37" (60) | 6" (152) | 12" (305) | 0.67 (0.30) |
| 2-1/2" | SW | 25C-SW-80-P | 2.88" (73) | 6" (152) | 12" (305) | 0.81 (0.37) |
| 3" | SW | 30C-SW-80-P | 3.5" (89) | 6" (152) | 12" (305) | 1.07 (0.49) |
