ROBROY  |  SKU: 30088444  |  MPN: 876769

Galvanized Steel 90° Rigid Conduit (GRC) Elbows | Standard Radius

$2,004.26
Size
  • Galvanized Steel Construction – Helps resist corrosion and extend service life in a range of environments
  • Durable Steel Build – Designed for strength and reliable performance on demanding job sites
  • Smooth Raceway Interior – Supports easier wire pulling and consistent conduit routing
  • Thread Protection – End caps help protect threads during handling and installation
  • Standard Industry Design – Built for use in typical rigid conduit raceway applications

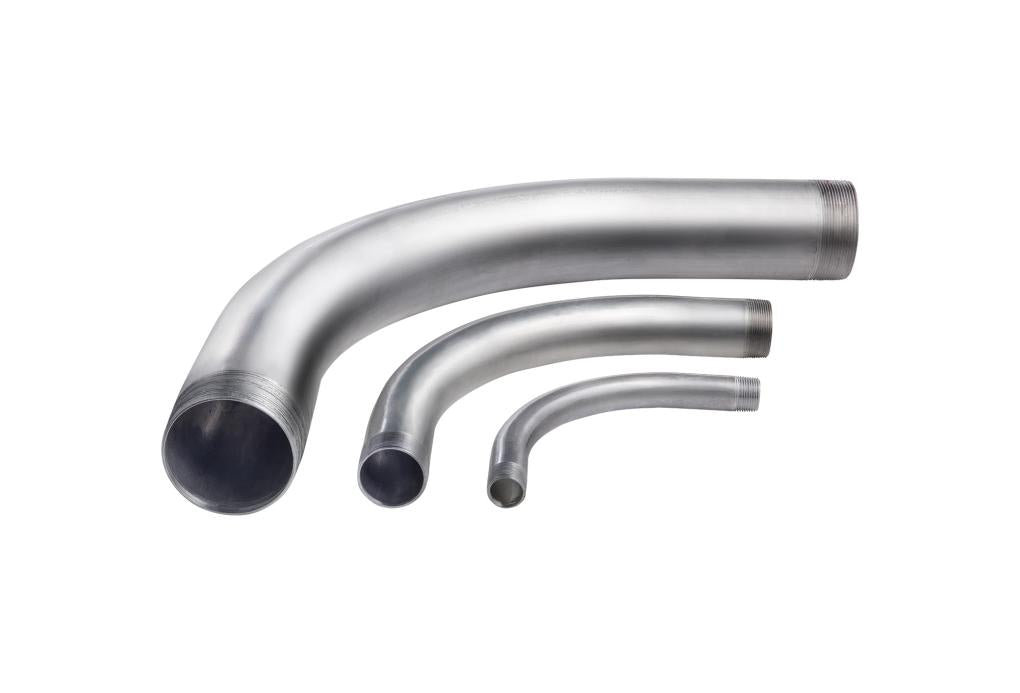

Galvanized Steel 90° Rigid Conduit (GRC) Elbows | Standard Radius

Galvanized Steel 90° Rigid Conduit (GRC) Elbows are designed to create smooth 90-degree bends between threaded lengths of rigid conduit in electrical raceway systems. Built from steel with a galvanized finish, these elbows help route conduit around turns while maintaining a durable, corrosion-resistant pathway for long-term indoor or outdoor use.

These elbows are well suited for commercial, industrial, utility, and infrastructure applications where strength, code compliance, and dependable performance matter. The curved design helps fit specific installation layouts and direction changes, while the threaded ends support secure connection to rigid conduit systems. Available in trade sizes from 1/2" to 6".

Key Features & Benefits

  • Galvanized Steel Construction – Built for strength, durability, and corrosion resistance in demanding installations.
  • 90° Elbow Design – Creates a smooth quarter bend for routing rigid conduit around corners and direction changes.
  • Threaded Ends – Designed for use with threaded rigid conduit systems for secure field installation.
  • Indoor or Outdoor Use – Suitable for a wide range of electrical raceway applications across jobsite conditions.
  • Code-Compliant Performance – Manufactured to meet applicable industry standards for rigid conduit systems.

Ordering Information

SKU Trade Size (in) Outside Diameter (in) Wall Thickness (in) Angle (°) Bend Radius (in) Weight (lb/ea)
  1/2 0.840 0.104 90 4.0 0.78
  3/4 1.050 0.107 90 4.5 1.11
  1 1.315 0.126 90 5.8 1.91
  1-1/4 1.660 0.133 90 7.3 3.10
  1-1/2 1.900 0.138 90 8.3 4.24
  2 2.375 0.146 90 9.5 6.58
  2-1/2 2.875 0.193 90 10.5 11.77
  3 3.500 0.205 90 13.0 18.50
  3-1/2 4.000 0.215 90 15.0 25.78
  4 4.500 0.225 90 16.0 32.16
  5 5.563 0.245 90 24.0 67.00
30088475 6 6.625 0.266 90 30.0 111.83
