Fiberglass IPS 45° x 36" Standard Radius Elbows
Fiberglass IPS 45° x 36" Standard Radius Elbows — Product Overview

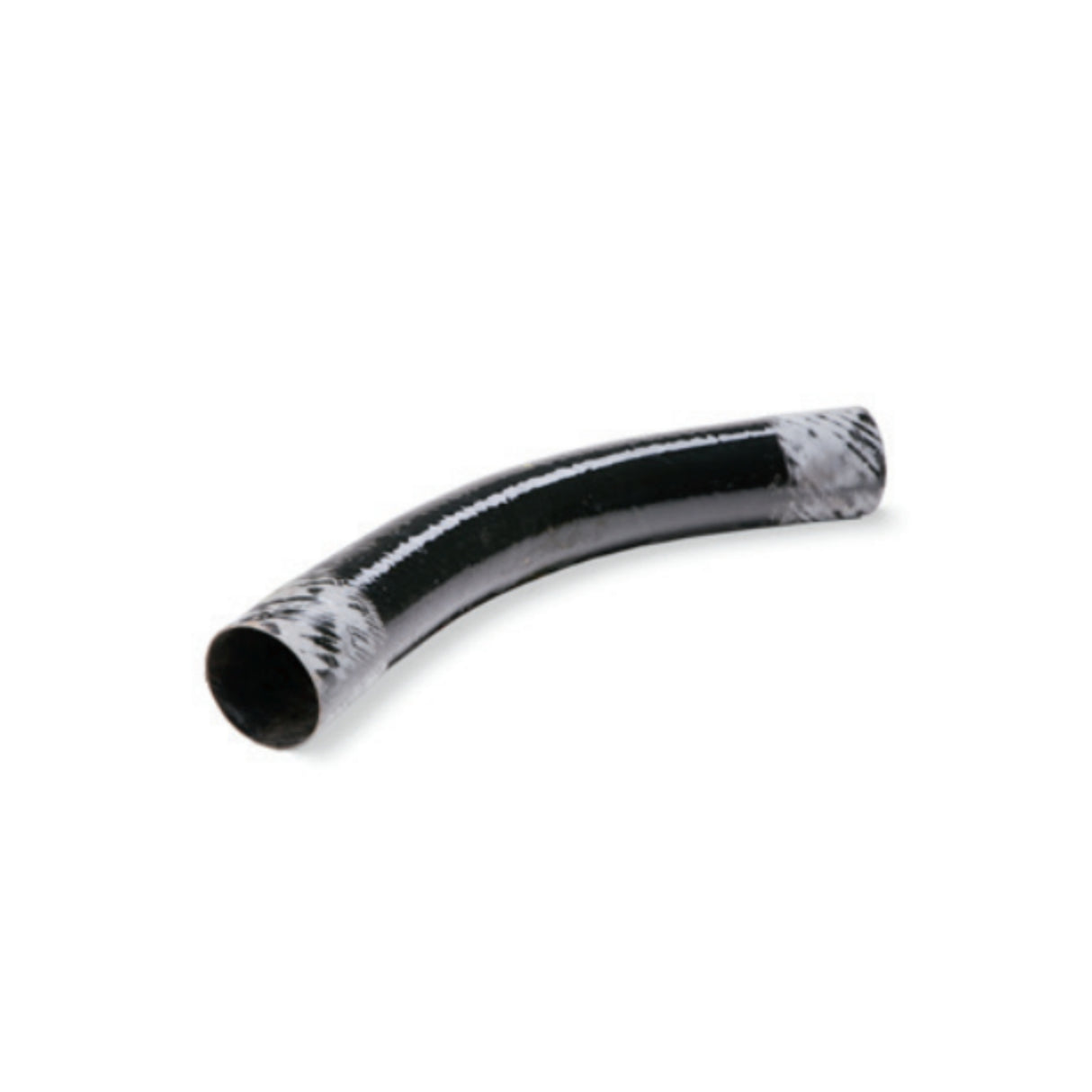

Transforming conduit solutions across industries such as utilities, data centers, and wastewater treatment facilities, the Champion Fiberglass IPS 45° Degree x 36" Standard Radius Elbows are designed for superior performance in electrical conduit sweeps. These fiberglass elbows deliver exceptional durability, ease of installation, and enhanced cable protection. With a low coefficient of friction and a single-circuit winding process, they safeguard cables from burn-through while offering a lightweight design that simplifies handling and reduces labor costs compared to galvanized steel or PVC-coated conduits.
Key Features:
- Effortless Installation: Comes with options for two deep socket PVC couplings, ensuring secure and easy connections with PVC glue.
- Superior Insulation: The non-conductive properties of fiberglass eliminate the need for grounding bushings or exothermic grounding, enhancing safety during cable faults.
- Cold-Weather Resilience: Designed to withstand temperatures as low as -60°F, ensuring reliability in extreme conditions.
- Cost-Effective Solution: Offers a budget-friendly alternative to traditional materials, providing great value without compromising on performance or quality.
Availability:
- Versatile Sizes: Available in sizes from 3/4" to 12" to suit a variety of project needs.
- Customizable Options: Choose from standard angles like 11¼°, 22½°, and 30°, or request larger radii for specialized applications.
- Flexible Installation: Suitable for both above-ground and below-ground installations.
- End Configurations: Available with plain ends for easy integration into fiberglass conduit systems.
Champion Fiberglass IPS 45° Degree x 36" Standard Radius Elbows are the trusted choice for critical infrastructure projects, offering lightweight durability, safety, and cost efficiency. Opt for Champion Fiberglass to ensure long-lasting performance and smooth installation in any environment.

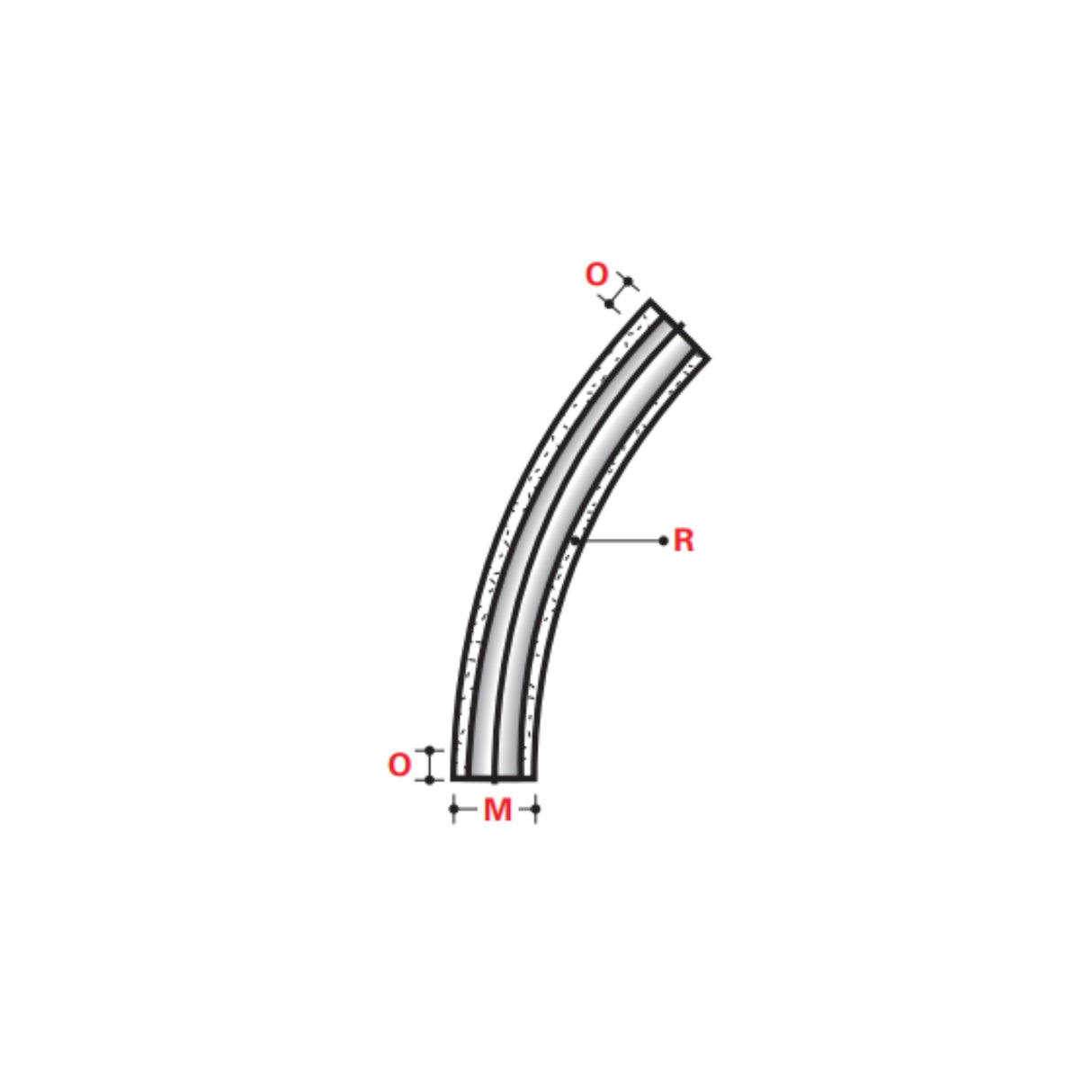

| Nominal Size | Type | IPS Item No (Above Ground) | M | O-Tangent (Min) | R-Radius (Min) | Weight (LBS) | Weight (KG) |
|---|---|---|---|---|---|---|---|
| 3/4" | SW | 07C-SW-82-P | 1.05” (27) | 6” (152) | 36” (914) | 0.57 | 0.26 |
| 1" | SW | 10C-SW-82-P | 1.32” (33) | 6” (152) | 36” (914) | 0.63 | 0.29 |
| 1-1/4" | SW | 12C-SW-82-P | 1.66” (42) | 6” (152) | 36” (914) | 0.77 | 0.35 |
| 1-1/2" | SW | 15C-SW-82-P | 1.90” (48) | 6” (152) | 36” (914) | 1.10 | 0.50 |
| 2" | SW | 20C-SW-82-P | 2.37” (60) | 6” (152) | 36” (914) | 1.27 | 0.58 |
| 2-1/2" | SW | 25C-SW-82-P | 2.88” (73) | 6” (152) | 36” (914) | 1.53 | 0.70 |
| 3" | SW | 30C-SW-82-P | 3.50” (89) | 6” (152) | 36” (914) | 2.00 | 0.91 |
| 4" | SW | 40C-SW-82-P | 4.46” (113) | 6” (152) | 36” (914) | 3.16 | 1.43 |
| 4" | HW | 40C-HW-82-P | 4.50” (114) | 6” (152) | 36” (914) | 3.23 | 1.47 |
| 5" | SW | 50C-SW-82-P | 5.52” (140) | 6” (152) | 36” (914) | 3.00 | 1.36 |
| 5" | MW | 50C-MW-82-P | 5.57” (141) | 6” (152) | 36” (914) | 4.00 | 1.81 |
| 5" | HW | 50C-HW-82-P | 5.60” (142) | 6” (152) | 36” (914) | 4.39 | 1.99 |
| 6" | SW | 60C-SW-82-P | 6.58” (167) | 6” (152) | 36” (914) | 3.33 | 1.51 |
| 6" | MW | 60C-MW-82-P | 6.63” (168) | 6” (152) | 36” (914) | 4.73 | 2.15 |
| 6" | HW | 60C-HW-82-P | 6.66” (169) | 6” (152) | 36” (914) | 5.43 | 2.46 |
