Portable 13 HP Hydraulic Power Pack | Variable Flow
$10,658.50
Unit price
/
Select Option

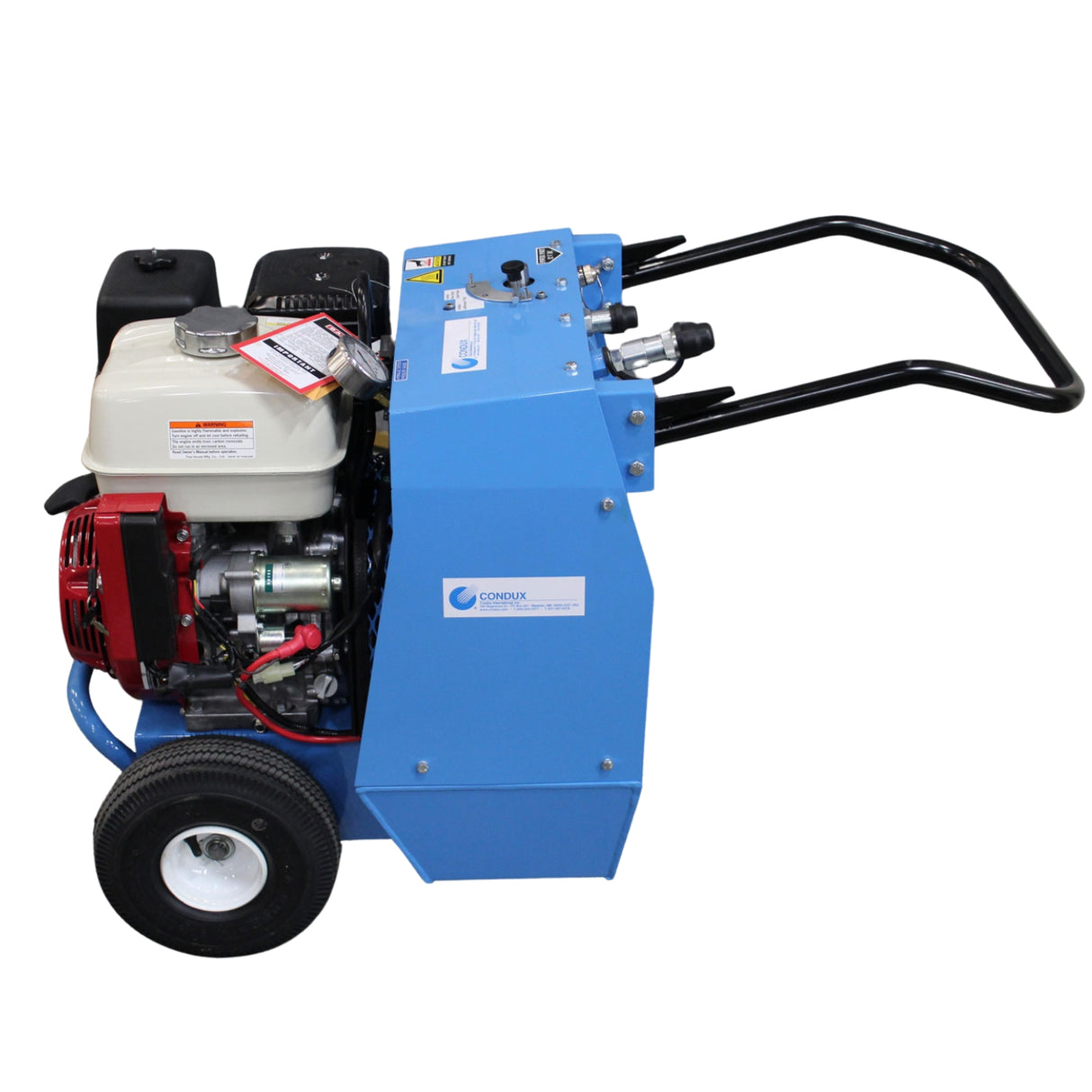

Portable 13 HP Hydraulic Power Pack | Variable Flow — Product Overview
Portable 13 HP Hydraulic Power Packs provide reliable hydraulic power for Condux fiber optic pullers, blowers, and other compatible field tools. Built around a proven Honda GX390 gasoline engine and designed as a two-wheel mobile unit, this power pack delivers consistent, adjustable hydraulic flow for demanding jobsite applications.
With air-to-oil cooling, 10-micron return line filtration, and a compact frame, this unit is engineered for dependable operation, easy maneuverability, and simple service access. Batteries and fluids are included and shipped separately for safety.
Key Features & Benefits
- Variable Flow Output – Adjustable hydraulic flow delivers smooth, controlled operation across multiple tool types.
- Honda GX390 Engine – Dependable 13 HP commercial-grade power for consistent field performance.
- Portable Two-Wheel Frame – Easy to maneuver on jobsites with a balanced, mobile design.
- Air-to-Oil Cooling – Maintains optimal hydraulic temperature during extended operation.
- 10-Micron Filtration – Protects system components and prolongs service intervals.
Ordering Information
| Part Number | Description |
|---|---|
| 08675702 | Portable 13 HP Variable Flow Hydraulic Power Pack |
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 08675702 / 08675702INTL |
| Hydraulic System | Open Center |
| Frame Type | Two-Wheel Mobile Unit |
| Length | 26.5″ (673 mm) |
| Width | 20″ (508 mm) |
| Height | 27.5″ (698 mm) |
| Weight (Dry) | 143 lbs (65 kg) |
| Filtration | 10 Micron Return Line Canister |
| Oil Cooler | Air-to-Oil |
| Engine | Gas, 13 HP Honda GX390 |
| Fuel Capacity | 1.6 gal (6.4 L) |
| Hydraulic Oil (Usable) | 5 gal (18.9 L) |
| Hydraulic Rated Flow | 6.8 / 5.9 GPM @ 1,800 PSI | 25.8 / 22.4 LPM @ 138 BAR |
| Relief Valve Pressure | 2,150 PSI (148 BAR) |
