Premium Capstans | Bayonet Style Shaft | Heavy-Duty Cable Pulling | 12″ - 62″ Diameters
Premium Capstans | Bayonet Style Shaft | Heavy-Duty Cable Pulling | 12″ - 62″ Diameters — Product Overview

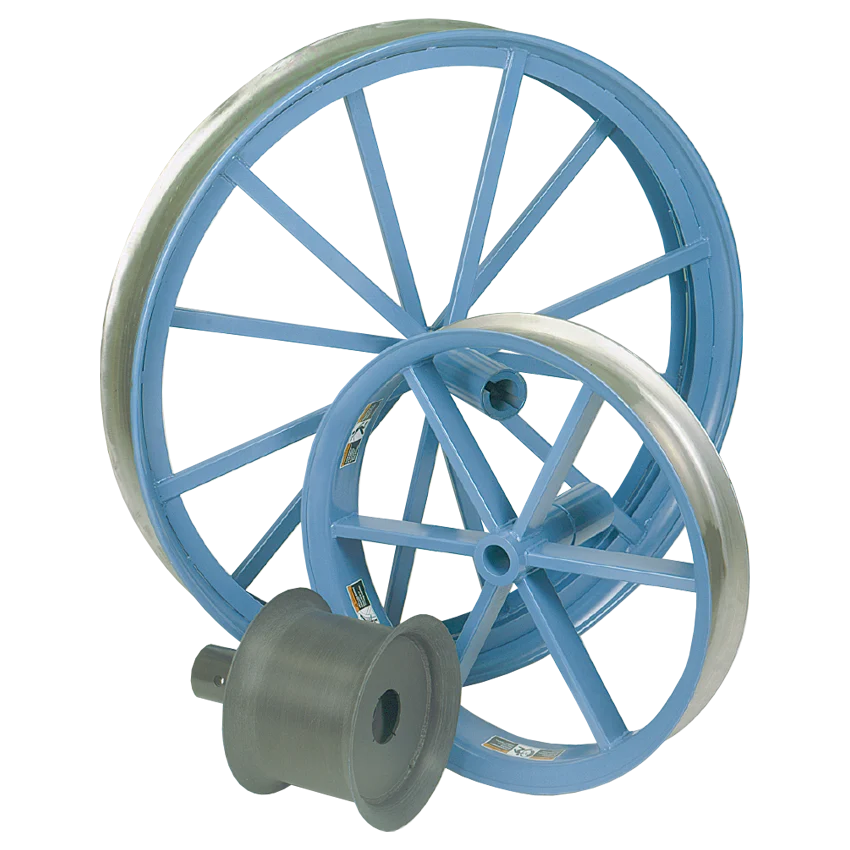

Premium Bayonet Style Capstans are built for high-performance cable pulling and winding applications. Featuring a standard 2-7/16″ bayonet style shaft, these capstans provide a secure, precise fit and smooth, efficient operation. Crafted for durability and strength, they deliver dependable performance under heavy loads in professional and industrial environments.
Available in multiple diameters from 12″ to 62″, each capstan is engineered from high-quality materials to handle demanding conditions while maintaining consistent pulling tension. Ideal for use with compatible pulling equipment, these capstans ensure stable, controlled operation for a wide range of cable installation tasks.
Key Features
- Standard Bayonet Fit – Designed for 2-7/16″ bayonet style shafts, providing a secure and accurate connection.
- Durable Construction – Engineered from heavy-duty materials to withstand continuous use and challenging jobsite environments.
- Optimized Performance – Enhances pulling efficiency and control across a wide variety of cable sizes.
- Wide Range of Sizes – Available from 12″ to 62″ diameters for maximum versatility in pulling applications.
- Reliable Load Ratings – Designed to support working loads up to 2,000 lbs. (8.9 kN).
Upgrade your pulling setup with Premium Bayonet Style Capstans—the durable, high-precision solution trusted for reliable performance in every pull.
Ordering Information
| Part Number | Diameter (in) | Diameter (mm) | Flat Width (in) | Flat Width (mm) | Max Cable O.D. (in) | Max Cable O.D. (mm) | Load Rating (lbs) | Load Rating (kN) |
|---|---|---|---|---|---|---|---|---|
| 08675213* | 12 | 305 | 9 | 229 | - | - | 2,000 | 8.9 |
| 08675230 | 30 | 762 | 4 | 102 | 0.75 | 19 | 1,000 | 4.4 |
| 08675430 | 30 | 762 | 8 | 203 | 0.75 | 19 | 600 | 2.7 |
| 08675436 | 42 | 1,067 | 8 | 203 | 1.05 | 27 | 600 | 2.7 |
| 08675220 | 50 | 1,270 | 8 | 203 | 1.25 | 32 | 600 | 2.7 |
| 08675275 | 62 | 1,575 | 8 | 203 | 1.55 | 39 | 600 | 2.7 |
