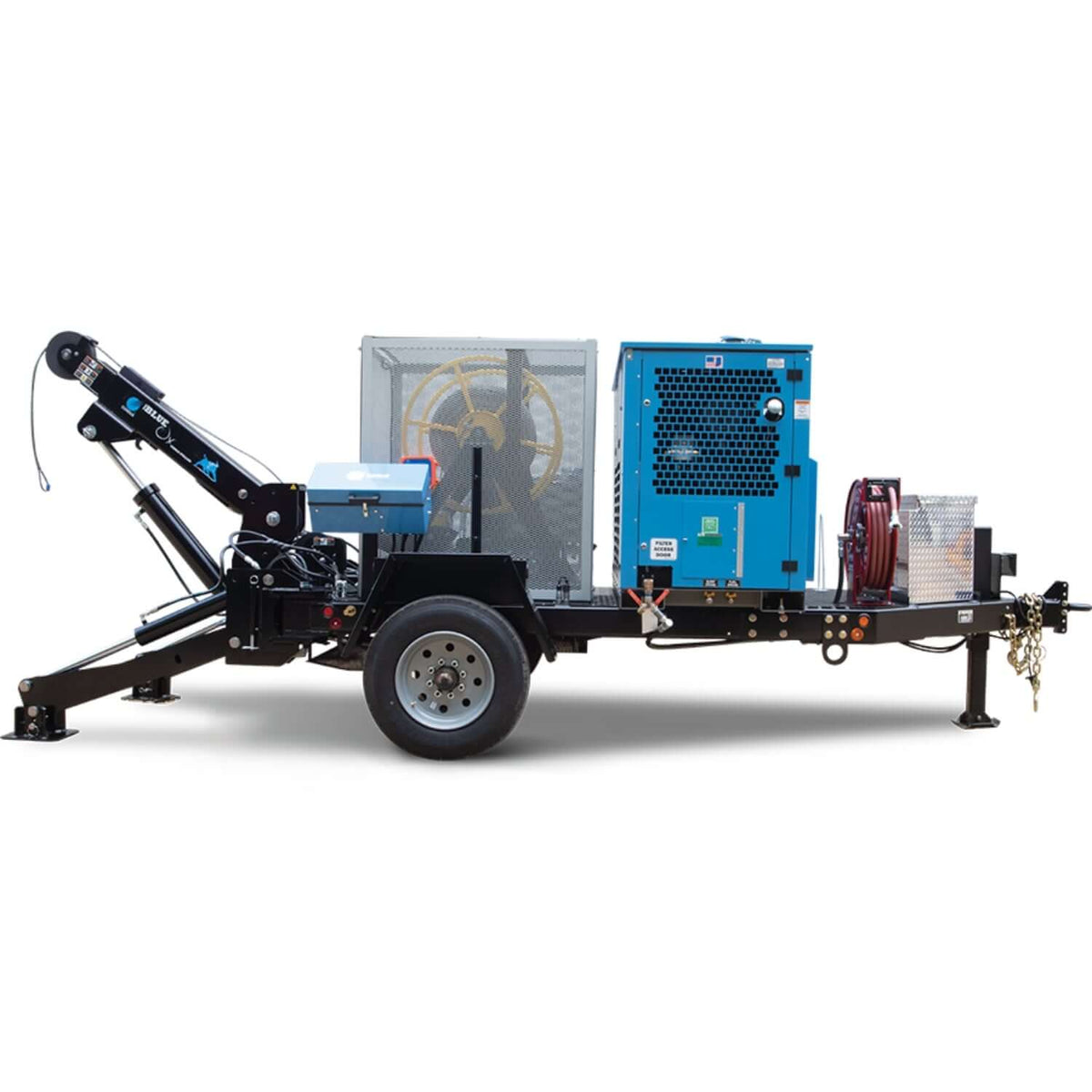

The Blue Ox™ Cable Puller | 8,500 lb | Hydraulic Boom
$2,004.26
Unit price
/
Select Option
The Blue Ox™ Cable Puller | Hydraulic Boom & Outriggers | 8,500 lb Line Pull Capacity — Product Overview
Powerful, stable, and adaptable for demanding utility cable-pulling applications.

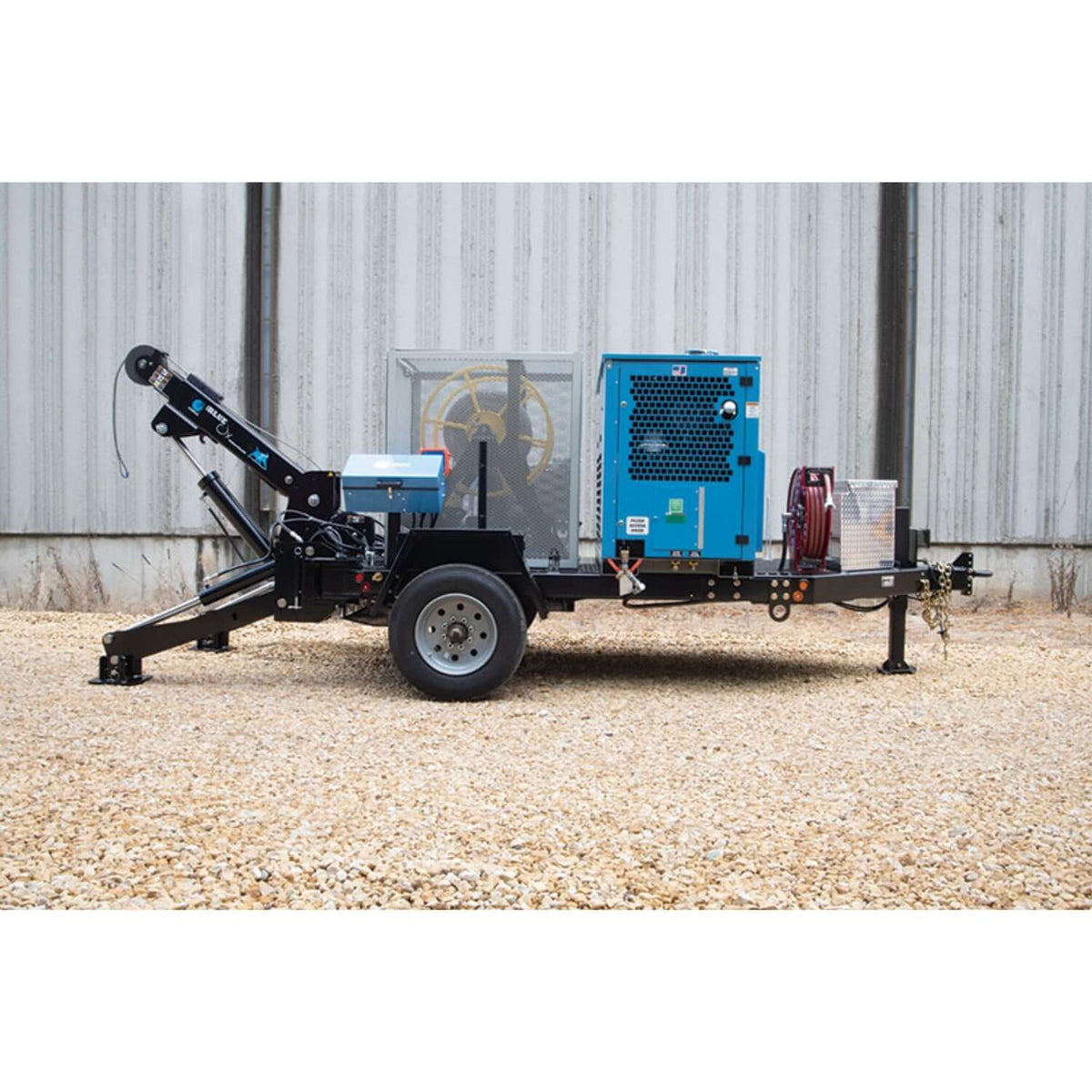

Developed using field research and end-user feedback, The Blue Ox™ Cable Puller combines an 8,500 lb continuous pulling capacity with a heavy-duty steel frame, hydraulically controlled boom, and adjustable outriggers. Its self-supported design eliminates the need to brace the boom arm during pulling operations, while the extendable boom provides flexible positioning in confined and challenging jobsite conditions.
Key Features
- 8,500 lb Pulling Capacity – Delivers continuous pulling force for demanding underground utility and cable-installation projects.
- Hydraulic Boom & Outriggers – The hydraulically controlled boom and heavy-duty outriggers provide stable, self-supported operation without requiring external arm support.
- Extendable Boom – Extends up to 90 in. and provides 150° of lateral movement for improved positioning and access in confined jobsites.
- Multi-Angle Pulling – The boom supports pulls up to 85° from the manhole and 75° to the right or left of center, reducing the need for an A-frame.
- Built-In Level Wind – The rope reel includes 3,000 ft of 3/8-in. anti-twist rope and an integrated level-wind system for controlled rope management.

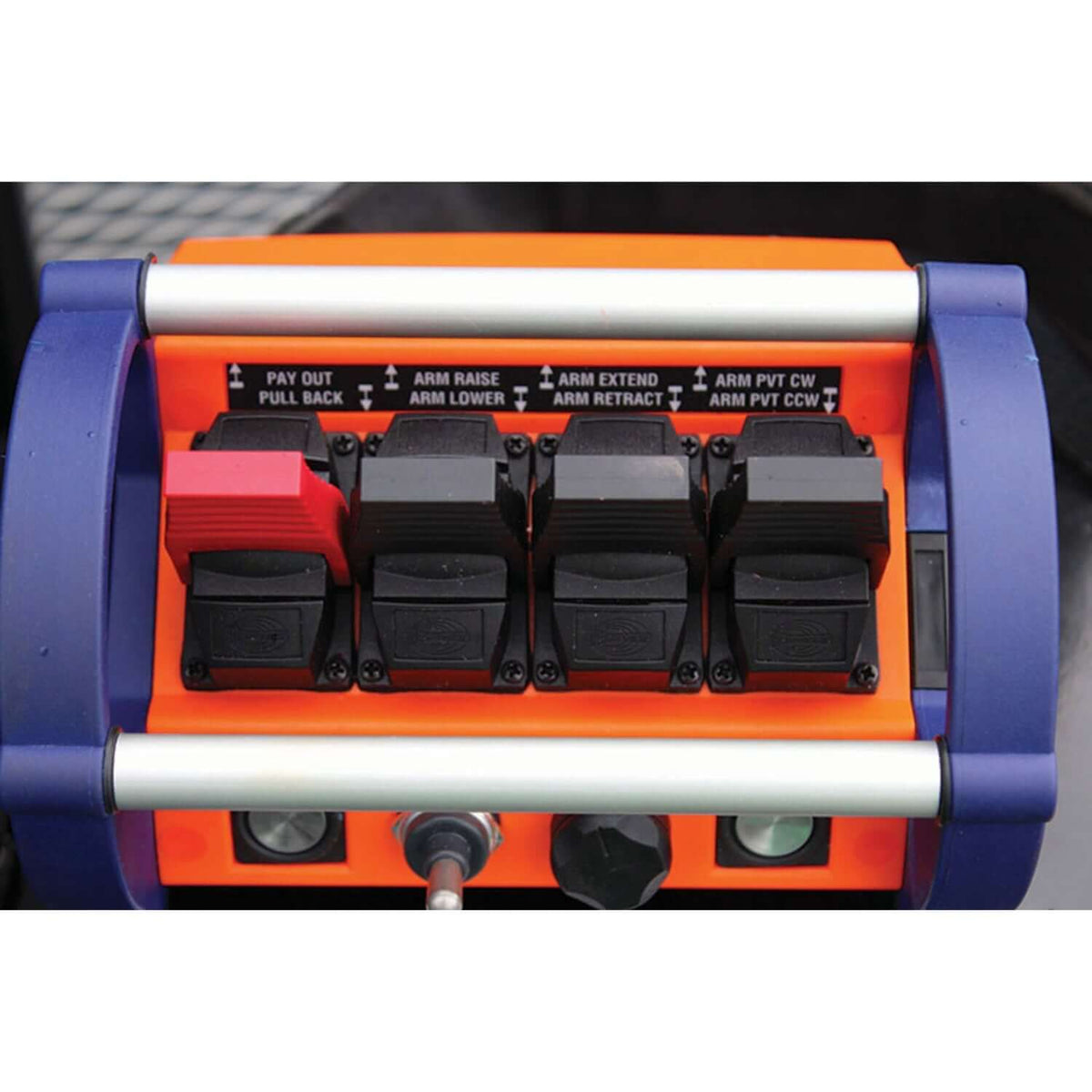

- Wireless Control – A wireless/Bluetooth remote provides a 50 ft operating range for flexible control of pulling operations.

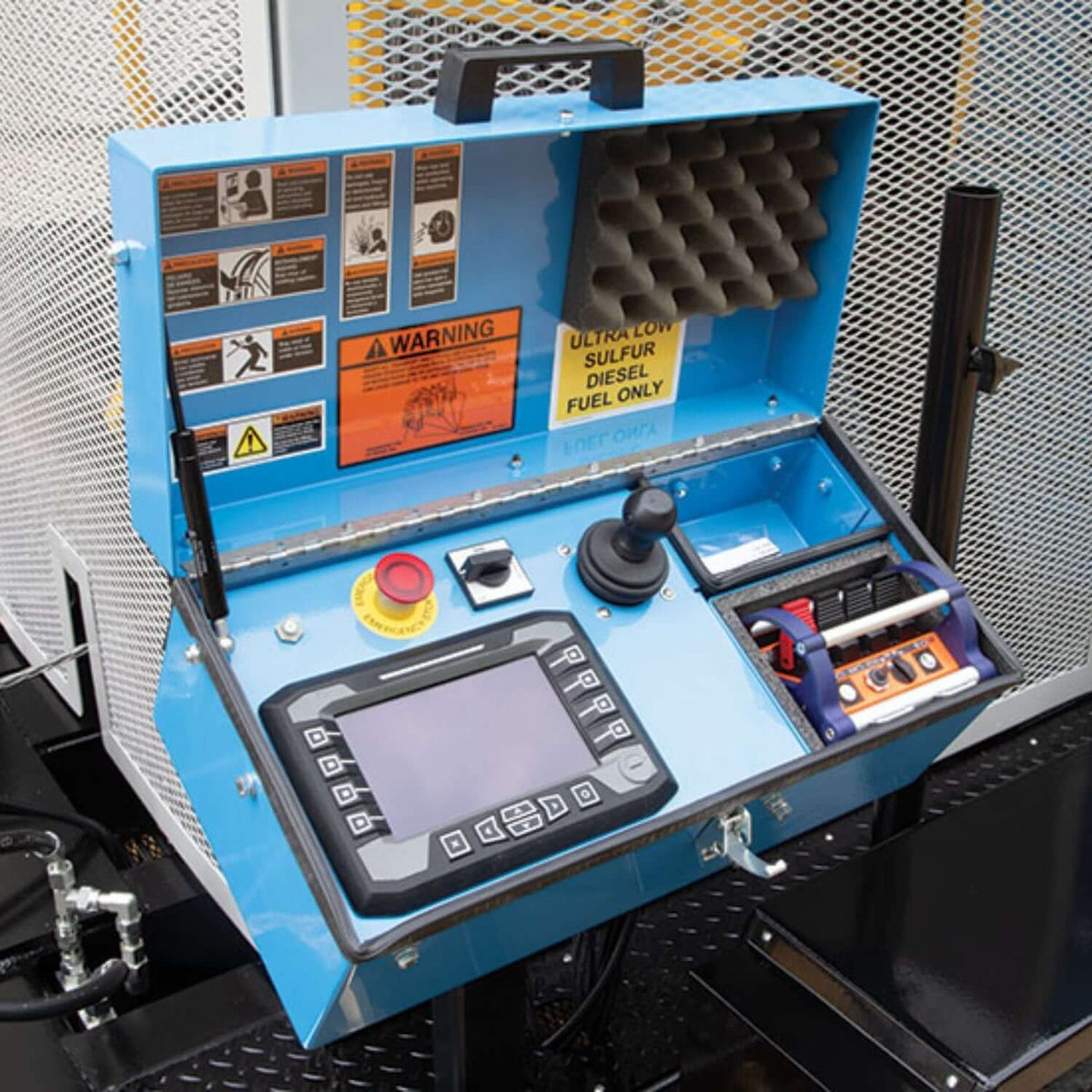

- Real-Time Feedback – The 7-in. color display provides live tension monitoring and downloadable pull data for job documentation.
- Durable Nylatron Rollers – Super-hard roller surfaces are designed to provide longer service life than conventional cast rollers.
Built for Demanding Jobsites
- Heavy-duty steel frame and rugged components support operation in harsh jobsite conditions.
- Accessible component layout simplifies routine maintenance and service.
- Factory service and support are available, with instructional resources, service documentation, and on-site training provided when necessary.
Specifications

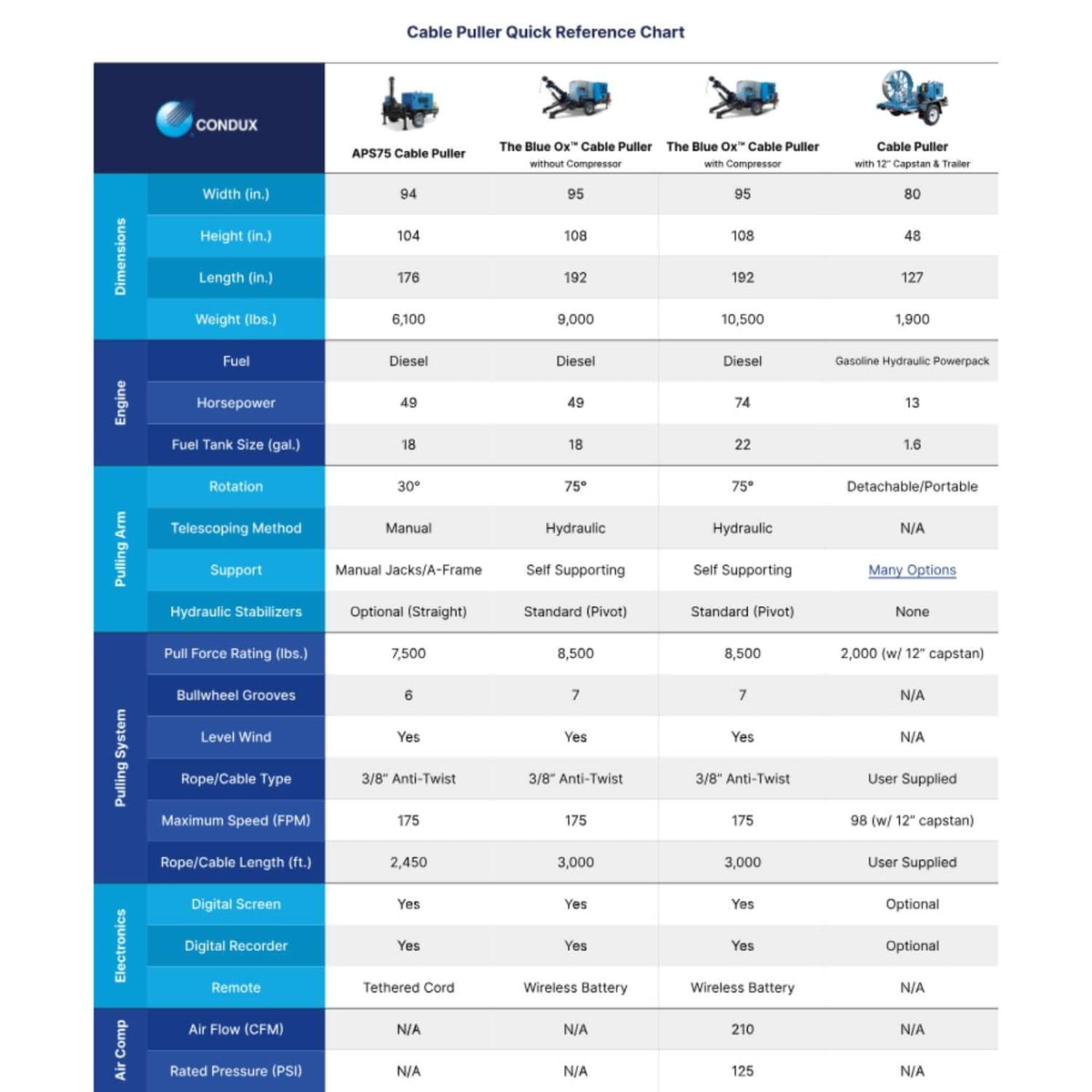

| The Blue Ox™ Cable Puller Specifications | |
|---|---|
| Maximum Line Pull | 8,500 lb |
| Maximum Speed | 175 fpm |
| Engine | 49 HP diesel, 12V electrical system |
| Fuel Tank | 18 gal |
| Bullwheel | 8-in. diameter with 7 grooves |
| Rope Capacity | 3,000 ft of 3/8-in. anti-twist rope |
| Hydraulic Tool Circuit | 7 gpm at 2,000 psi |
| Dimensions (W × H × L) | 95 × 108 × 192 in. |
| Weight | 9,000 lb wet |
| Axle | Single |
| Optional Air Compressor | 210 cfm at 125 psi |
| Compressor Hose | 3/4 in. × 50 ft air hose reel with couplings |
Ordering Information
| Part Number | Description |
|---|---|
| 08773001 | The Blue Ox™ Cable Puller without Compressor |
| 08775500 | The Blue Ox™ Cable Puller with Compressor |
