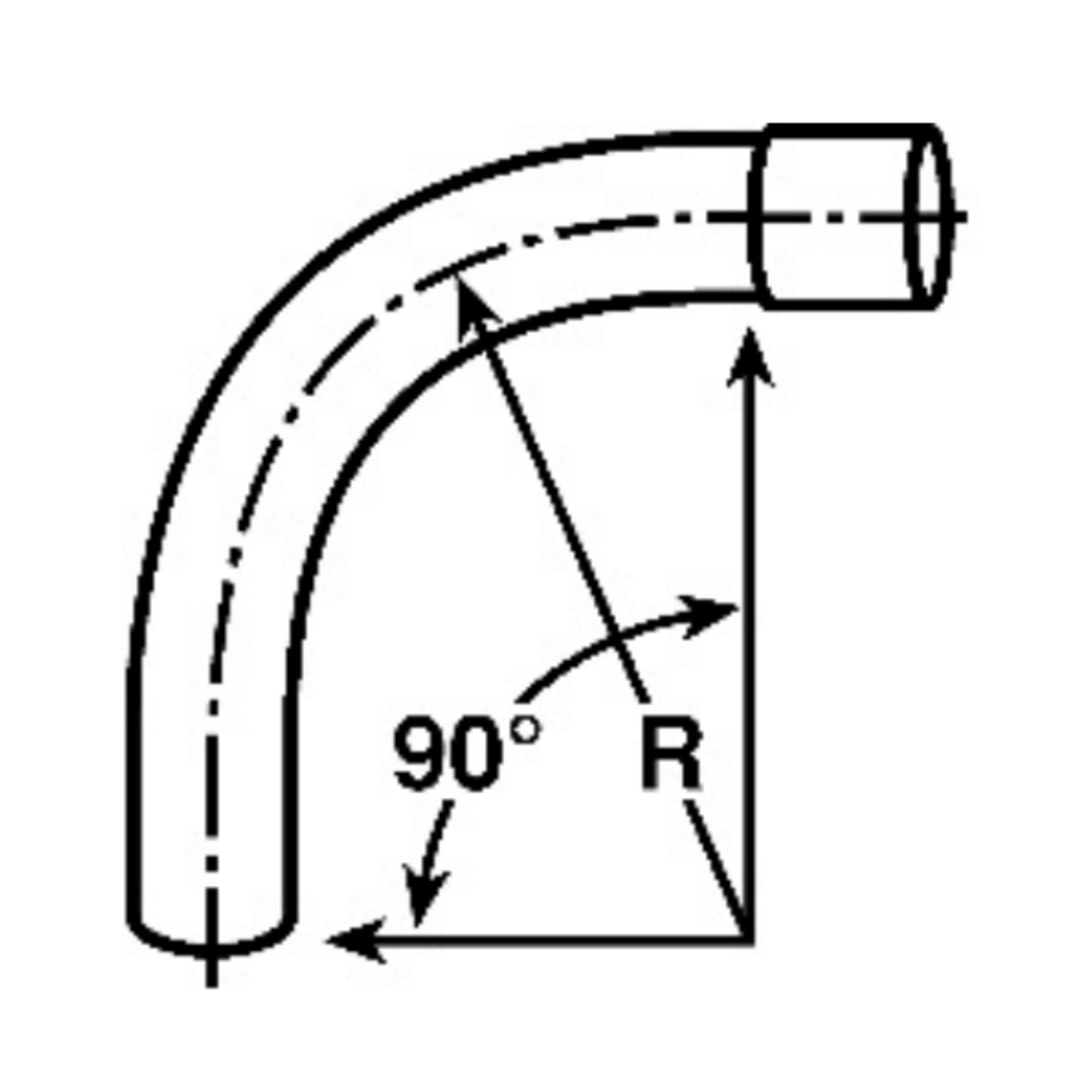

VC Elbows | Schedule 80 | 90° Sweep | Bell End
$2,004.26
Unit price
/
Select Option
VC Elbows | Schedule 80 | 90° Sweep | Bell End — Product Overview
Schedule 80 PVC 90° Sweep Elbows provide a durable solution for heavy-wall conduit systems requiring right-angle directional changes. Constructed from rigid PVC with integral bell ends, these elbows deliver superior impact resistance and are ideal for underground, encased, or exposed applications. UL 651 listed and compliant with NEC and NEMA TC-2 standards, they ensure safe, code-compliant installations for commercial, industrial, and utility projects.
Key Features:
- 90° sweep bend: Provides smooth directional changes with reduced cable strain
- Schedule 80 heavy-wall PVC: Thick walls withstand demanding environments and physical impact
- Bell-end connection: Integral belled ends allow secure, fast solvent-weld assembly
- UL 651 listed and NEC compliant: Meets NEMA TC-2 standards for reliable electrical installations
- Available in 1-1/2" to 5": Full range of trade sizes for versatile conduit system layouts
Available Configurations & Part Numbers:
| Part Number | Trade Size | Angle | Radius | Connection |
|---|---|---|---|---|
| UB9DHB | 1-1/2" | 90° | 24" | Bell End |
| UB9DJB | 2" | 90° | 24" | Bell End |
| UB9FJB | 2" | 90° | 36" | Bell End |
| UB9FKB | 2-1/2" | 90° | 36" | Bell End |
| UB9DLB | 3" | 90° | 24" | Bell End |
| UB9FLB | 3" | 90° | 36" | Bell End |
| UB9DNB | 4" | 90° | 24" | Bell End |
| UB9FNB | 4" | 90° | 36" | Bell End |
| UB9HNB | 4" | 90° | 48" | Bell End |
| UB9APB | 5" | 90° | Standard Radius | Bell End |
