8" Quadplex Entry Seals
$199.00
Unit price
/
Select Option

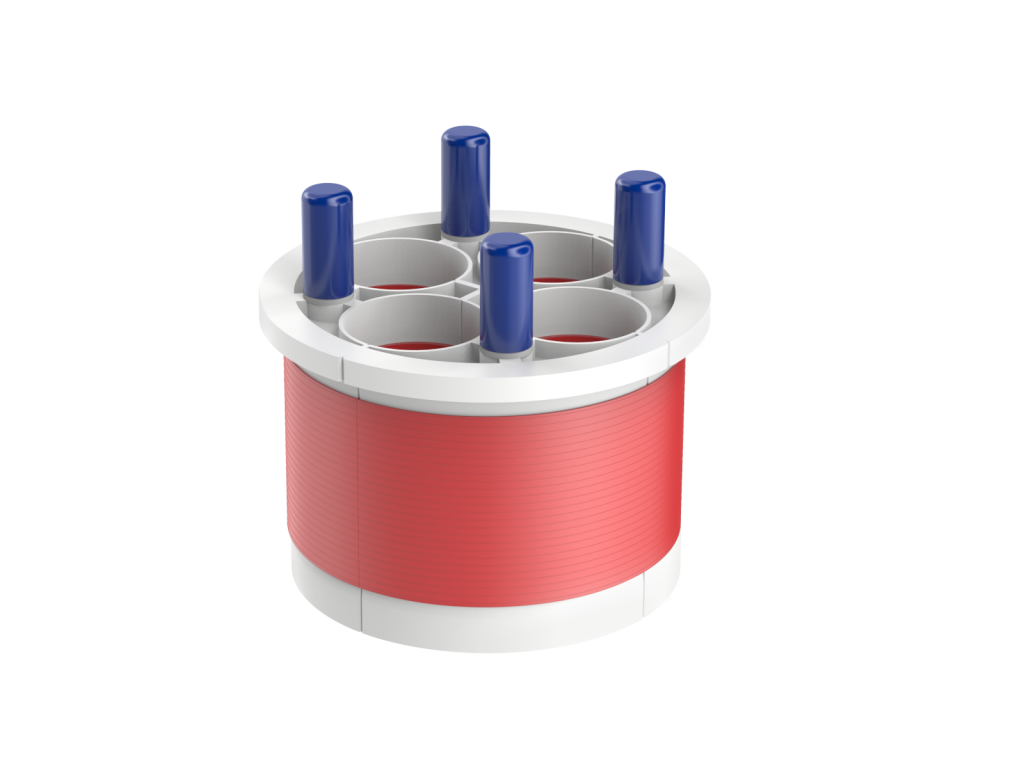

8″ Quadplex Entry Seals | Cal Am Wedge Seal System
Cal Am 8″ (200 mm) Quadplex Entry Seals deliver reliable, professional-grade sealing for fiber, conduit, and innerduct systems in datacenters, telecom networks, and electrical manholes. Designed to withstand harsh field conditions, these seals provide superior protection against water, sediment, and hazardous vapors while maintaining a tight, organized seal for up to four cables or ducts.
Constructed from a rugged combination of polyvinyl chloride (PVC) and thermoplastic elastomer, each seal is equipped with stainless steel fasteners for dependable installation. The split-body design allows quick setup anywhere along the conduit path, ideal for both new construction and retrofit applications.
Product Configurations
- Single-Port (Simplex)
- Three-Port (Triplex)
- Four-Port (Quadplex)
- Specialized 2″ (50 mm) version for smaller innerduct and fiber optic cables
Key Features & Benefits
- Quadplex Port Design – Seals up to four conduits or fiber pathways within one 8″ entry.
- Water, Air & Corrosion Resistant – Protects against moisture, sediment, and vapors in harsh environments.
- Split Design for Easy Installation – Enables retrofit or mid-line installation with basic hand tools.
- Durable PVC + Thermoplastic Build – Combines long-lasting performance with cost-efficiency.
- Professional Appearance – Provides a clean, finished seal without messy foams or putties.
- Environmentally Friendly – Made from recyclable materials for sustainable system design.
Download Cut Sheet
Ordering Information
| Product Number | Data Sheet | Trade Size (in) | Trade Size (mm) | Conduit I.D. (in) | Conduit I.D. (mm) | Port Diam Range (in) | Port Diam Range (mm) | JackMoon Ref# |
|---|---|---|---|---|---|---|---|---|
| 7480-190 | 8.00 | 200 | 7.74–7.94 | 196.60–201.68 | 1.88–1.92 | 47.75–48.77 | – | |
| 7480-195 | 8.00 | 200 | 7.74–7.94 | 196.60–201.68 | 1.93–1.97 | 49.02–50.04 | – | |
| 7480-200 | 8.00 | 200 | 7.74–7.94 | 196.60–201.68 | 1.98–2.02 | 50.30–51.05 | – | |
| 7480-205 | 8.00 | 200 | 7.74–7.94 | 196.60–201.68 | 2.03–2.07 | 51.56–52.58 | – | |
| 7480-210 | 8.00 | 200 | 7.74–7.94 | 196.60–201.68 | 2.08–2.12 | 52.83–53.85 | – | |
| 7480-215 | 8.00 | 200 | 7.74–7.94 | 196.60–201.68 | 2.13–2.17 | 54.10–55.12 | JM-QUA-80Q238SG* | |
| 7480-220 | 8.00 | 200 | 7.74–7.94 | 196.60–201.68 | 2.18–2.22 | 55.37–56.39 | JM-QUA-80Q238SG* | |
| 7480-XXX | 8.00 | 200 | 7.74–7.94 | 196.60–201.68 | CUSTOM | CUSTOM | – |
