Molded Electrofusion Equal Tee | IPS | SDR 11 & SDR 17 | 1-1/4"–8″
Molded Electrofusion Equal Tee | IPS | SDR 11 & SDR 17 — Product Overview

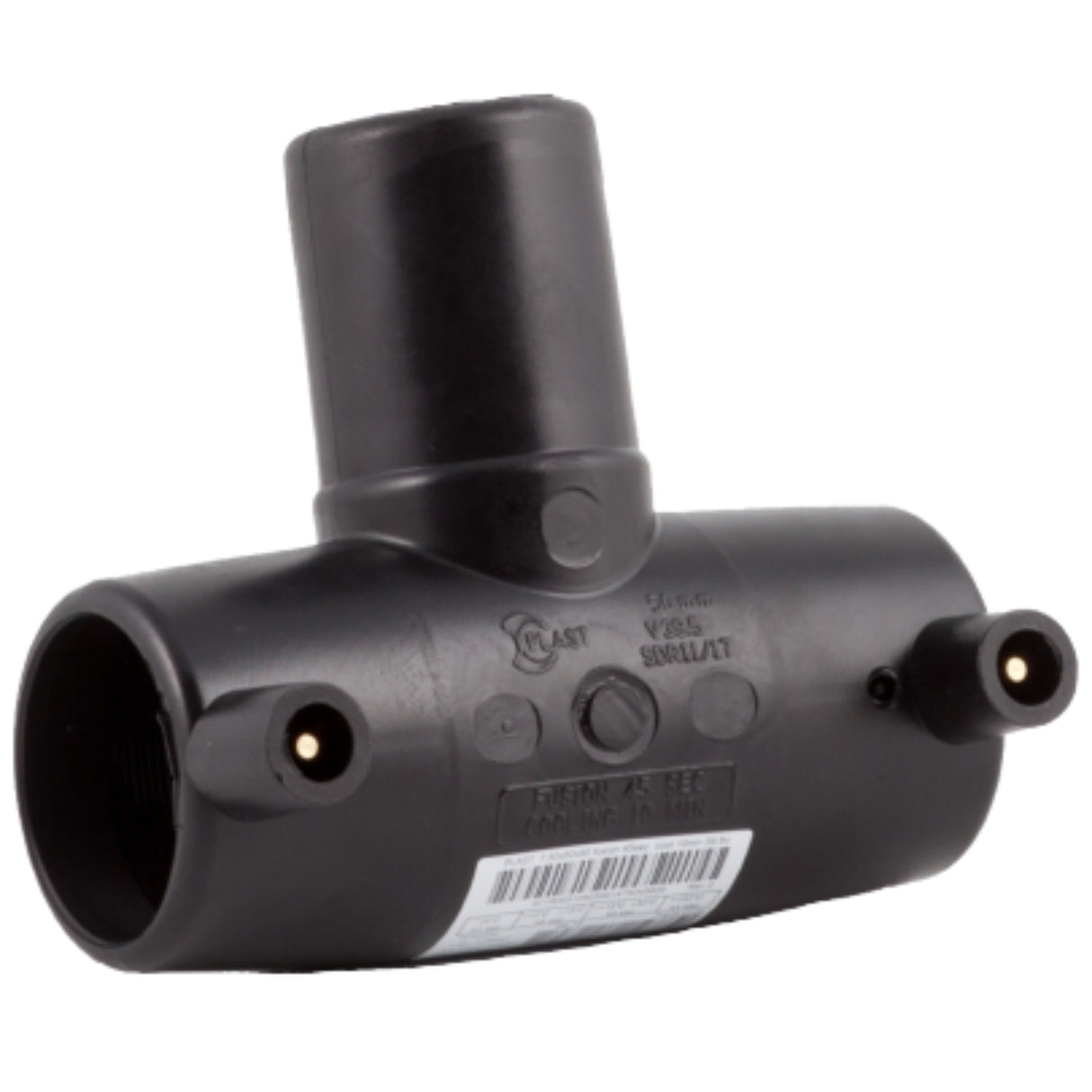

Integrity Fusion Molded Electrofusion Equal Tees provide a fully pressure-rated HDPE branch connection for IPS-sized pipelines from 1-1/4″ through 8″. Each fitting is injection molded using high-quality PE4710/PE100 bi-modal resin for superior consistency, reliable fusion performance, and long-term durability.
All molded tees meet stringent industry standards including ASTM F1055, ASTM D2513, ASTM D3261, ANSI/AWWA C901/C906, FM 1613, and NSF 61. Available in SDR 11 and SDR 17, these fittings are designed for use in municipal water, industrial piping, gas distribution (SDR-appropriate), and general underground utility applications.
Key Features & Benefits
- Injection-Molded Construction – Ensures precise geometry, consistent melt flow, and smooth interior transitions.
- PE4710/PE100 Resin – High-strength bi-modal resin provides excellent pressure performance and long service life.
- Wider Fusion & Cold Zones – Designed to improve stab depth flexibility and ensure optimal melt expansion.
- Melt-Flow Indicators – Offer visual verification of proper material expansion during fusion.
- Dual SDR Compatibility – Available in SDR 11 and SDR 17 for a wide range of HDPE system designs.
- IPS Sizing – Full molded range from 3/4″–8″ for common distribution system requirements.
Applications
- Municipal water & wastewater systems
- Industrial fluid conveyance
- Underground utility distribution
- Potable water service lines
- Gas distribution (per pressure rating and SDR)
Dimensions, Weights & Item Codes

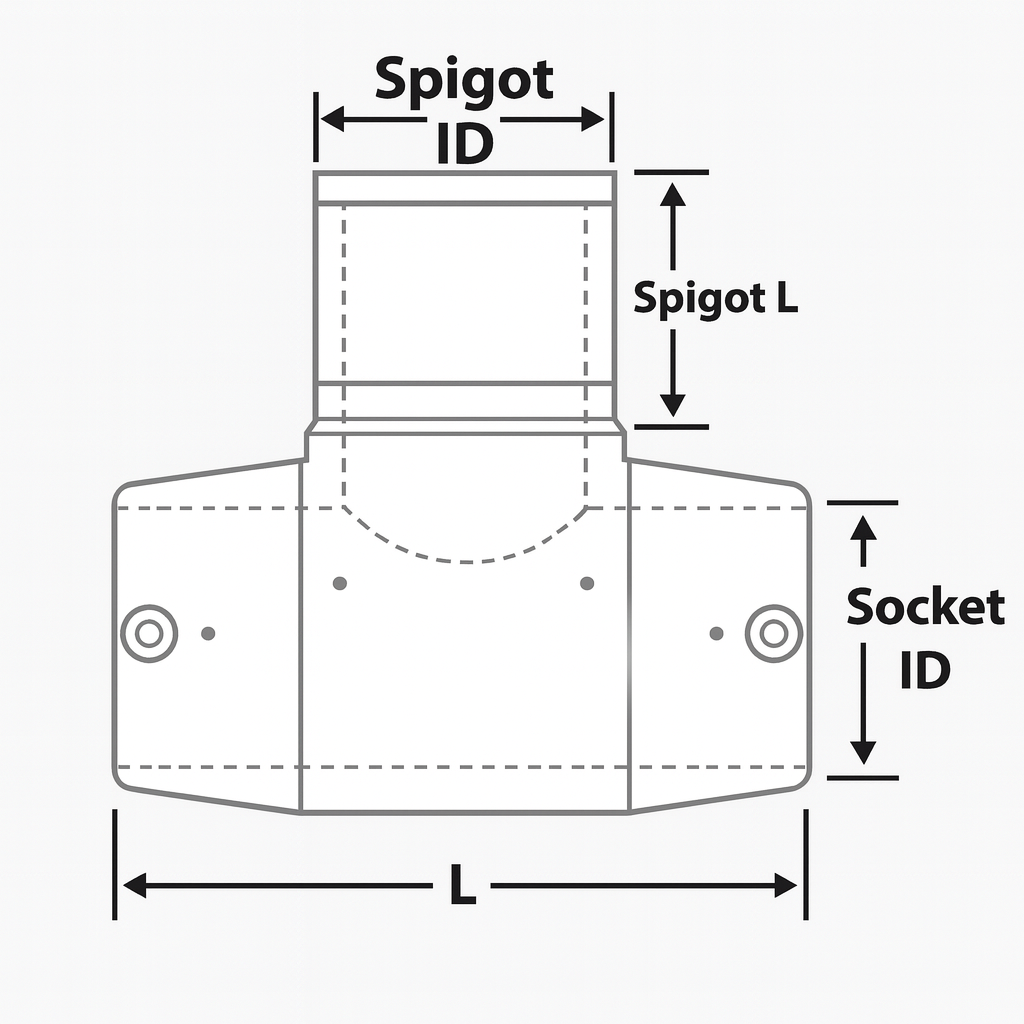

See tables below for complete dimensional and item code information for SDR 11 & SDR 17 molded equal tees.
IPS Electrofusion Equal Tee — SDR 11/17 Specifications
| Nominal Size (IPS) | Socket ID (in.) | L (in.) | Spigot OD (in.) | Spigot L (in.) | Weight (lbs.) | Item Code | FM Class |
|---|---|---|---|---|---|---|---|
| 1-1/4" | 1.660 | 5.50 | 1.660 | 1.9 | 0.40 | 200652 | — |
| 1-1/2" | 1.900 | 6.40 | 1.900 | 1.9 | 0.70 | 200653 | — |
| 2" | 2.375 | 6.90 | 2.375 | 2.7 | 1.30 | 200654 | FM 150 |
| 3" | 3.500 | 8.20 | 3.500 | 3.2 | 3.30 | 200655 | FM 150 |
| 4" | 4.500 | 10.4 | 4.500 | 3.5 | 5.90 | 200656 | FM 150 |
| 6" | 6.625 | 13.2 | 6.625 | 4.0 | 17.9 | 200657 | FM 150 |
| 8" | 8.625 | 15.5 | 8.625 | 4.4 | 43.9 | 200658 | FM 150 |
Note: Stab depths are based on current fitting design and may be subject to change.
