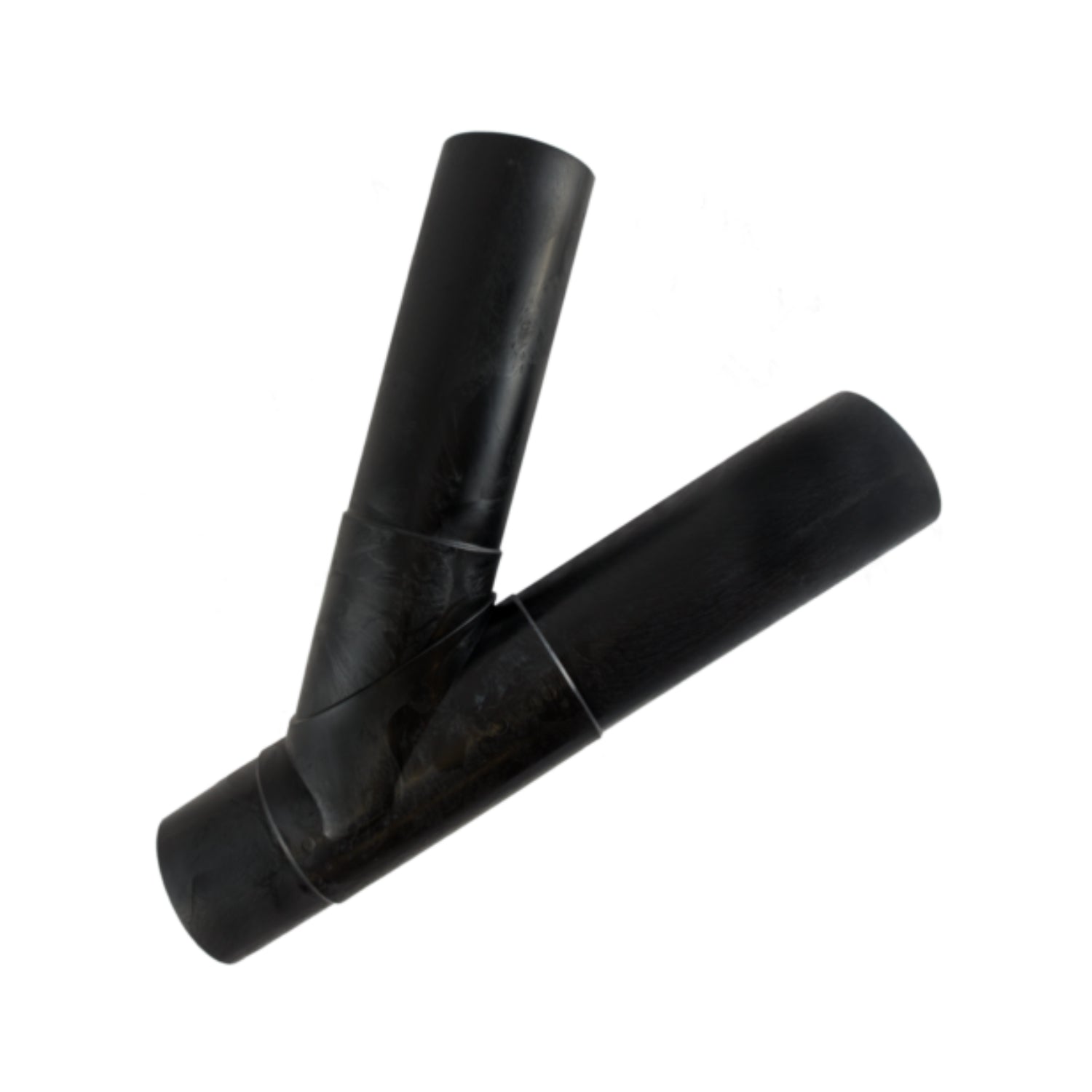

Molded Butt Fusion Lateral Wye | IPS | SDR 11 & SDR 17 | 2"–8"

Molded Butt Fusion Lateral Wye | IPS | SDR 11 & SDR 17 — Product Overview

Molded Butt Fusion Lateral Wyes provide a reliable 45° branch connection for IPS-sized HDPE pipelines. Manufactured using high-quality PE4710/PE100 bi-modal resin, these molded fittings deliver consistent pressure-rated performance across municipal, industrial, and underground utility applications.

All lateral wyes are injection-molded for superior dimensional accuracy and long-term durability, meeting the requirements of ASTM D2513, ASTM D3261, AWWA C901/C906, FM 1613, and NSF 61. Available in SDR 11 and SDR 17 from 2″–8″ IPS, the design ensures smooth internal flow transition and reduced turbulence at the branch connection.

Key Features & Benefits

• Injection-Molded Accuracy – Provides a smooth, consistent 45° branch connection with precise geometry.
• PE4710/PE100 Resin – High-strength bi-modal resin ensures pressure-rated performance and long-term durability.
• Low Turbulence Flow – Interior sweep design minimizes friction loss and improves hydraulic efficiency.
• Two SDR Options – Available in SDR 11 and SDR 17 for a wide range of pressure applications.
• IPS Sized – Offered in IPS 2″, 3″, 4″, 6″, and 8″ for compatibility with common HDPE systems.

Applications

• Municipal water & wastewater systems
• Industrial fluid conveyance
• Underground utility distribution
• Potable water service lines
• Agricultural and rural water systems

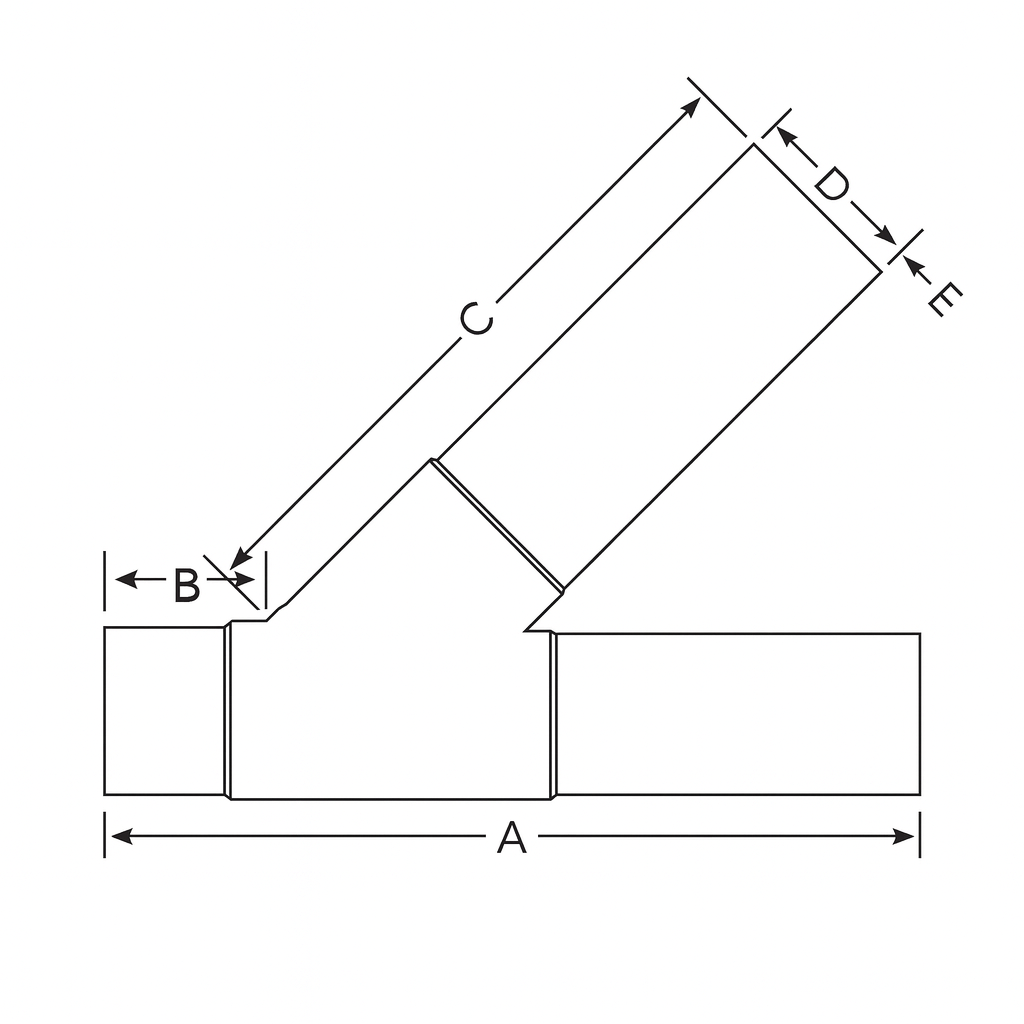

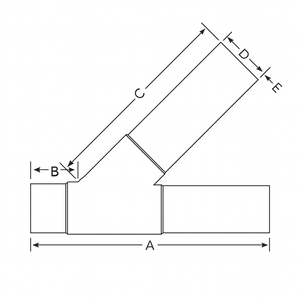

Dimensions & Item Codes

Full dimensional data and item codes for each size and SDR are provided in the tables below.

IPS SDR 17 — Dimensions, Weights & Item Codes

IPS SDR 11 — Dimensions, Weights & Item Codes
