POLY-CAM | SKU: 30085958 | MPN: 412-0200BZ0207N

412 Series Transition Fitting | 2.00" Female NPT Thread | DR 7

Name: 412 Series Transition Fitting | 2.00" Female NPT Thread | DR 7
Brand: POLY-CAM
SKU: 30085958
Price: 2004.26 USD
Availability: InStock

$2,004.26

NPT SIZE

2.00"

MAIN SIZE

2" Main 3" Main 4" Main

MATERIAL

C954 Bronze 304 Stainless Steel 316 Stainless Steel PVC

Product variants

2.00" Female NPT thread ensures a secure, high-capacity connection
High-flow 0.75" NPT port allows 50% more flow than standard 0.50" fittings
DR 7 rated for high-pressure, thin-wall HDPE systems up to 250+ PSI
Choose from C954 Bronze (marine), 316 SS (chemical), 304 SS (economical), or PVC (non-conductive)
Permanent hydraulic fusion provides a molecular bond with HDPE conduit (2"–24")
See All 412 Series Fittings >LINK

📄 Download Spec Sheet

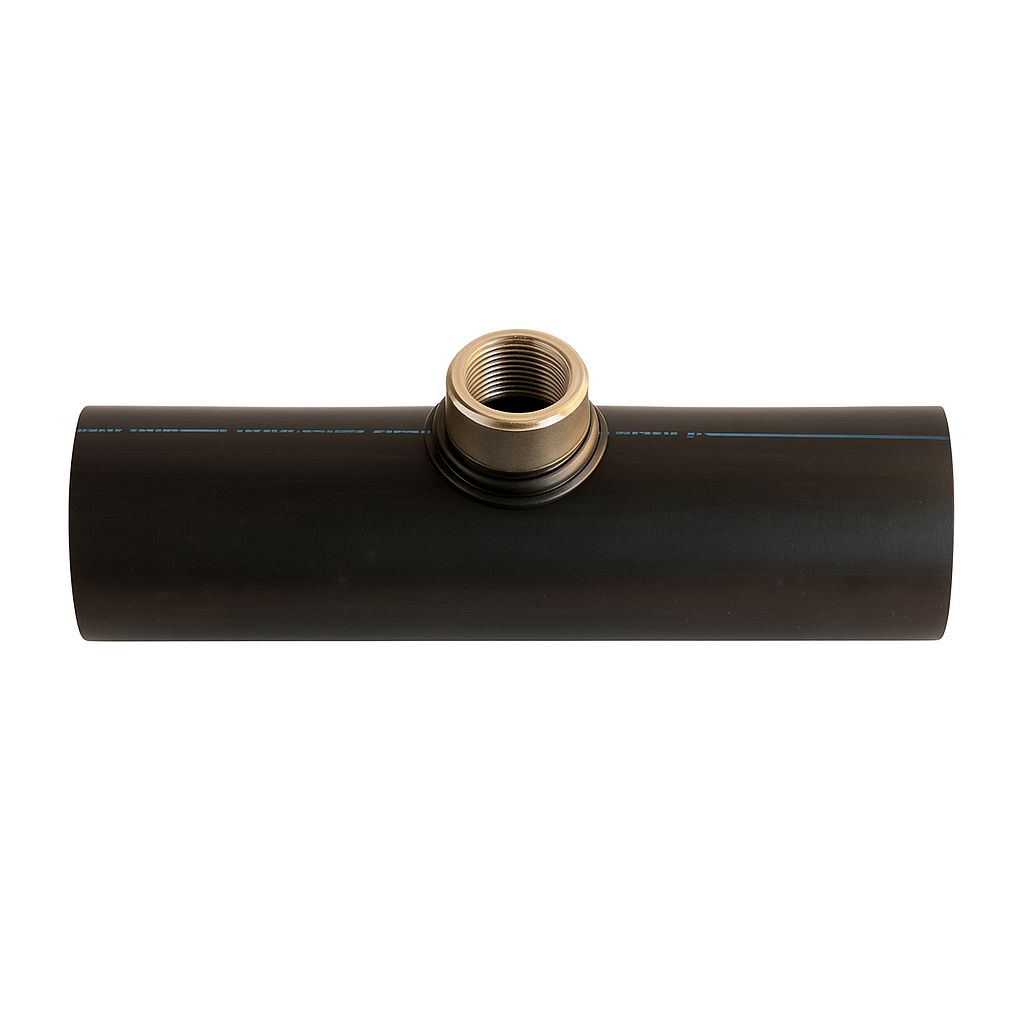

412 Series Transition Fitting | 2.00" Female NPT Thread | DR 7 — Product Overview

Series 412 Female NPT Thread Transition Fittings provide a secure, leak-proof connection between HDPE conduit and NPT-threaded equipment. This listing covers all options for 2.00" Female NPT Thread with a DR 7 pressure rating. Made from durable C954 Aluminum Bronze, 304 Stainless Steel, 316 Stainless Steel, or PVC, the barbed, low-profile design fuses hydraulically to the HDPE pipe wall, forming a permanent, maintenance-free seal. Ideal for underground utility, industrial, and telecom installations.

Key Features & Benefits

✅ Leak-Proof Fusion Seal – Barbed design bonds permanently to HDPE (2"–24" diameters)
✅ Multiple Materials Available – C954 Bronze, 304 SS, 316 SS, or PVC options
✅ Standard 2.00" NPT Thread – Complies with ANSI/ASME B1.20.1 – 2013 standards
✅ Pressure Rated DR 7 – Suitable for high-pressure conduit systems
✅ Cap-Ready Design – Compatible with end cap installation for test ports or control access
✅ Low-Profile Configuration – Allows probe or meter insertion without bulky fittings

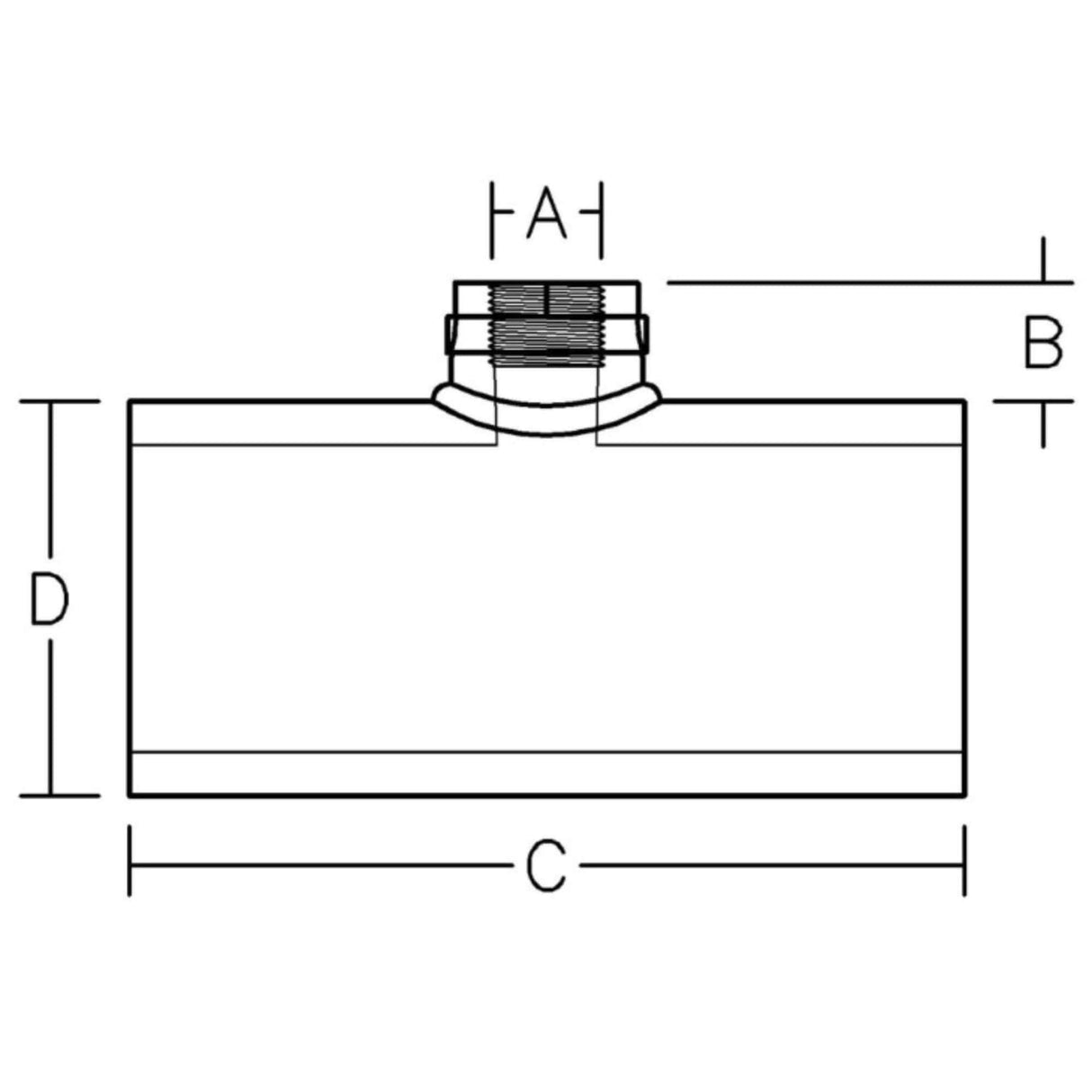

Technical Specifications

Series: 412
Outlet Thread Size: 2.00" Female NPT
Available DR Ratings: DR 7
Main Size Compatibility: 2" to 4" HDPE conduit
Fusion Type: Barbed mechanical design with hydraulic compression
Installation Method: Hydraulic fusion per PPI butt fusion guidelines
Materials: C954 Aluminum Bronze, 304 SS, 316 SS, or PVC
Standards: ASTM D3035, D1599, D1598, D3350; ARRA compliant
See all Series 412 Female NPT Transition Fittings »

Common Applications

Utility Metering Stations
Industrial Process Monitoring
Municipal and Industrial Water Systems
Chemical and Petroleum Transfer Lines
Geothermal System Connections

Available Configurations

Main Size	DR Rating	Material Options	Outlet Thread
2"	DR 7	C954 Bronze, 304 SS, 316 SS, PVC	2.00" Female NPT
3"	DR 7	C954 Bronze, 304 SS, 316 SS, PVC	2.00"Female NPT
4"	DR 7	C954 Bronze, 304 SS, 316 SS, PVC	2.00" Female NPT

Note: All fittings include machine-finished threads and precision-machined barbs to ensure optimal fusion and long-term field reliability.

Note #2: This listing is for 2.00" Female NPT Thread outlet fittings only. Be sure to select the correct main pipe size from the dropdown menu above.

DR Compatibility Matrix

Main Size	DR 7	DR 9	DR 11	DR 17
2"	✅	✅	✅	✅
3"	✅	✅	✅	✅
4"	✅	✅	✅	✅
6"	❌	❌	✅	✅
8"	❌	❌	✅	✅
10"	❌	❌	✅	✅
12"	❌	❌	✅	✅
16"	❌	❌	✅	✅
20"	❌	❌	✅	✅
24"	❌	❌	✅	✅
