POLY-CAM | SKU: 30085866 | MPN: 412-0200BZ0209N

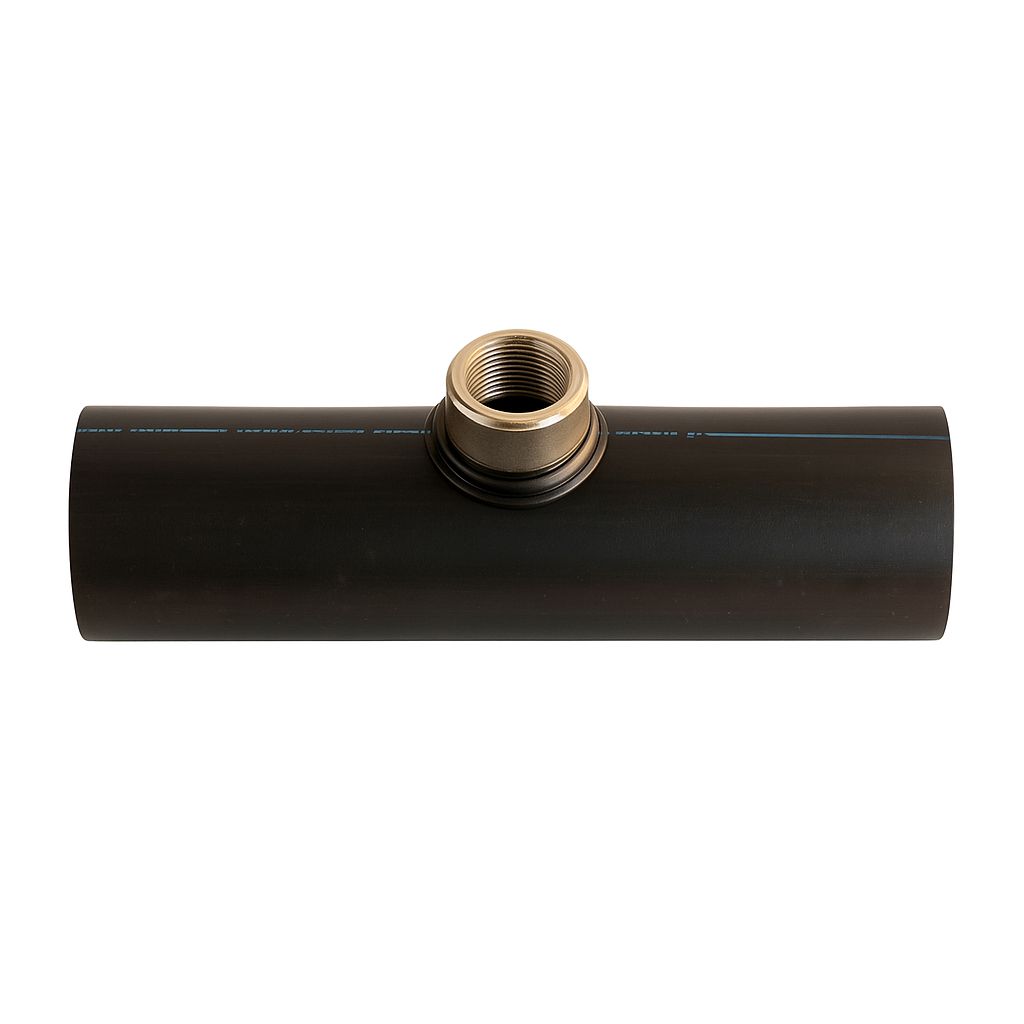

412 Series Transition Fitting | 2.00" Female NPT Thread | DR 9

Name: 412 Series Transition Fitting | 2.00" Female NPT Thread | DR 9
Brand: POLY-CAM
SKU: 30085866
Price: 2004.26 USD
Availability: InStock

$2,004.26

NPT SIZE

2.00"

MAIN SIZE

2" Main 3" Main 4" Main

MATERIAL

C954 Bronze 304 Stainless Steel 316 Stainless Steel PVC

Product variants

High-Flow 0.75" NPT Port – Provides 50% greater flow capacity over standard 0.50" fittings
DR 9 Rated Construction – Built for moderate-pressure systems requiring strength and reliability
Material-Matched Options – Available in C954 Bronze (marine), 316 SS (chemical), 304 SS (cost-effective), or PVC (non-conductive)
Hydraulic Fusion Bonding – Forms permanent, molecular-level seals with HDPE conduit (2"–24")
See All 412 Series Fittings >LINK

📄 Download Spec Sheet

412 Series Transition Fitting | 2.00" Female NPT Thread | DR 9 — Product Overview

Series 412 Female NPT Thread Transition Fittings create secure, leak-proof connections between HDPE conduit and NPT-threaded equipment. This listing covers all options for 2.00" Female NPT Thread in a range of main sizes with a DR 9 pressure rating. Manufactured from rugged C954 Aluminum Bronze, 304 Stainless Steel, 316 Stainless Steel, or PVC, the barbed low-profile design hydraulically fuses to the pipe wall for a permanent, maintenance-free seal. Trusted for underground utility, industrial, and telecom applications.

Key Features & Benefits

✅ Leak-Proof Fusion Seal – Barbed design permanently bonds to HDPE (2"–24" diameters)
✅ Multiple Materials Available – Choose from C954 Bronze, 304 SS, 316 SS, or PVC
✅ Standard 2.00" NPT Thread – Complies with ANSI/ASME B1.20.1 – 2013 standards
✅ Pressure Rated DR 9 – Suitable for medium-pressure conduit systems
✅ Cap-Ready Design – Install in end caps for flow control or test ports
✅ Low-Profile Configuration – Allows probe or meter insertion without extended arm fittings

Technical Specifications

Series: 412
Outlet Thread Size: 2.00" Female NPT
Available DR Ratings: DR 9
Main Size Compatibility: 2" to 4" HDPE conduit
Fusion Type: Barbed mechanical design with hydraulic compression
Installation Method: Hydraulic fusion per PPI butt fusion guidelines
Materials: C954 Aluminum Bronze, 304 SS, 316 SS, or PVC
Standards: ASTM D3035, D1599, D1598, D3350; ARRA compliant

See all Series 412 Female NPT Transition Fittings »

Common Applications

Utility Metering Stations
Industrial Process Monitoring
Municipal and Industrial Water Systems
Chemical and Petroleum Transfer Lines
Geothermal System Connections

Available Configurations

Main Size	DR Rating	Material Options	Outlet Thread
2"	DR 9	C954 Bronze, 304 SS, 316 SS, PVC	2.00" Female NPT
3"	DR 9	C954 Bronze, 304 SS, 316 SS, PVC	2.00" Female NPT
4"	DR 9	C954 Bronze, 304 SS, 316 SS, PVC	2.00" Female NPT

Note: All fittings include machine-finished threads and precision-machined barbs for optimal fusion and field reliability.

Note #2: This listing is for 2.00" Female NPT Thread outlet fittings only. Be sure to select the correct main pipe size from the dropdown menu above.

DR Compatibility Matrix

Main Size	DR 7	DR 9	DR 11	DR 17
2"	✅	✅	✅	✅
3"	✅	✅	✅	✅
4"	✅	✅	✅	✅
6"	❌	❌	✅	✅
8"	❌	❌	✅	✅
10"	❌	❌	✅	✅
12"	❌	❌	✅	✅
16"	❌	❌	✅	✅
20"	❌	❌	✅	✅
24"	❌	❌	✅	✅
