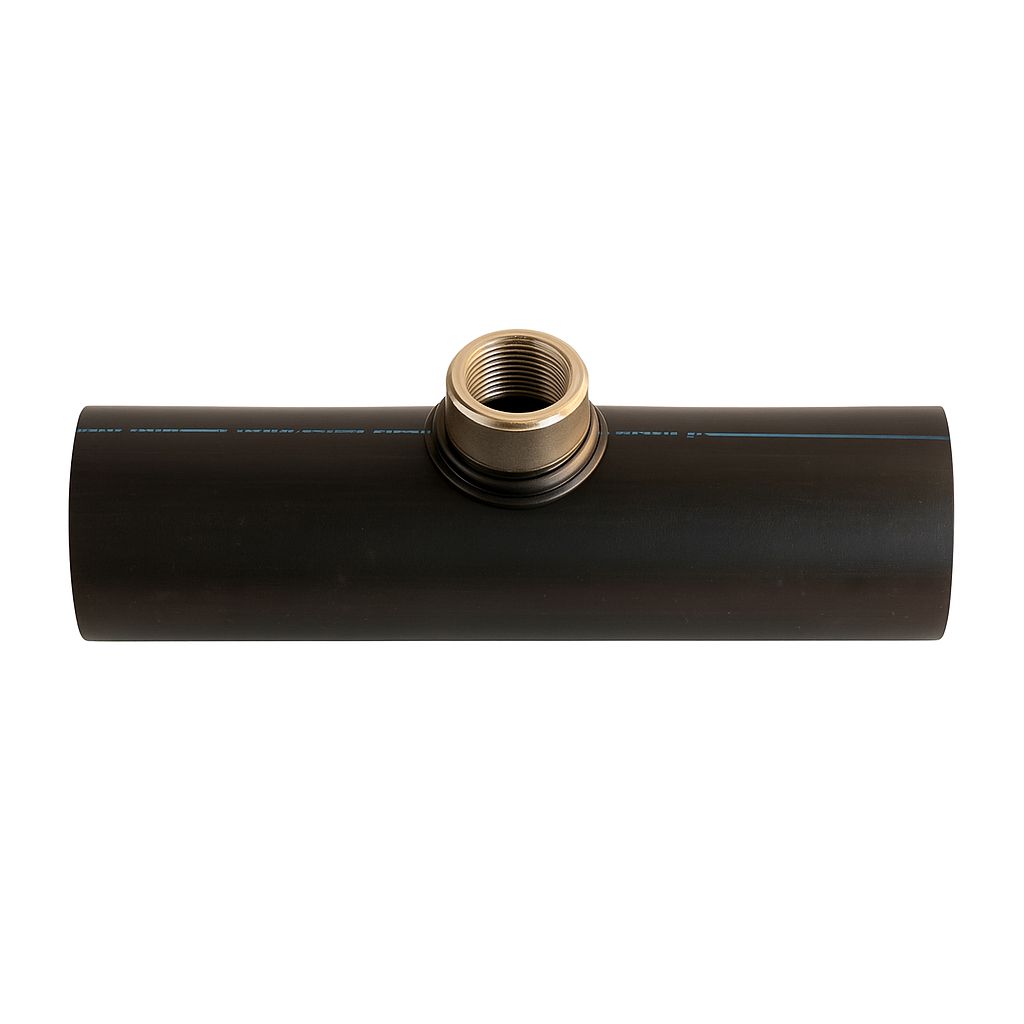

412 Series Transition Fitting | 2.00" Female NPT Thread | DR 11

412 Series Transition Fitting | 2.00" Female NPT Thread | DR 11 — Product Overview

Key Features & Benefits

Leak-Proof Fusion Seal – Barbed design permanently bonds to HDPE (2"–24" diameters)
✅ Multiple Materials Available – C954 Bronze, 304 SS, 316 SS, or PVC
✅ Standard 2.00" NPT Thread – Complies with ANSI/ASME B1.20.1 – 2013
✅ Pressure Rated DR 11 – Suitable for medium-pressure conduit systems
✅ Cap-Ready Design – Ideal for end caps with test ports or flow controls
✅ Low-Profile Configuration – Accommodates meter or probe access without extended fittings

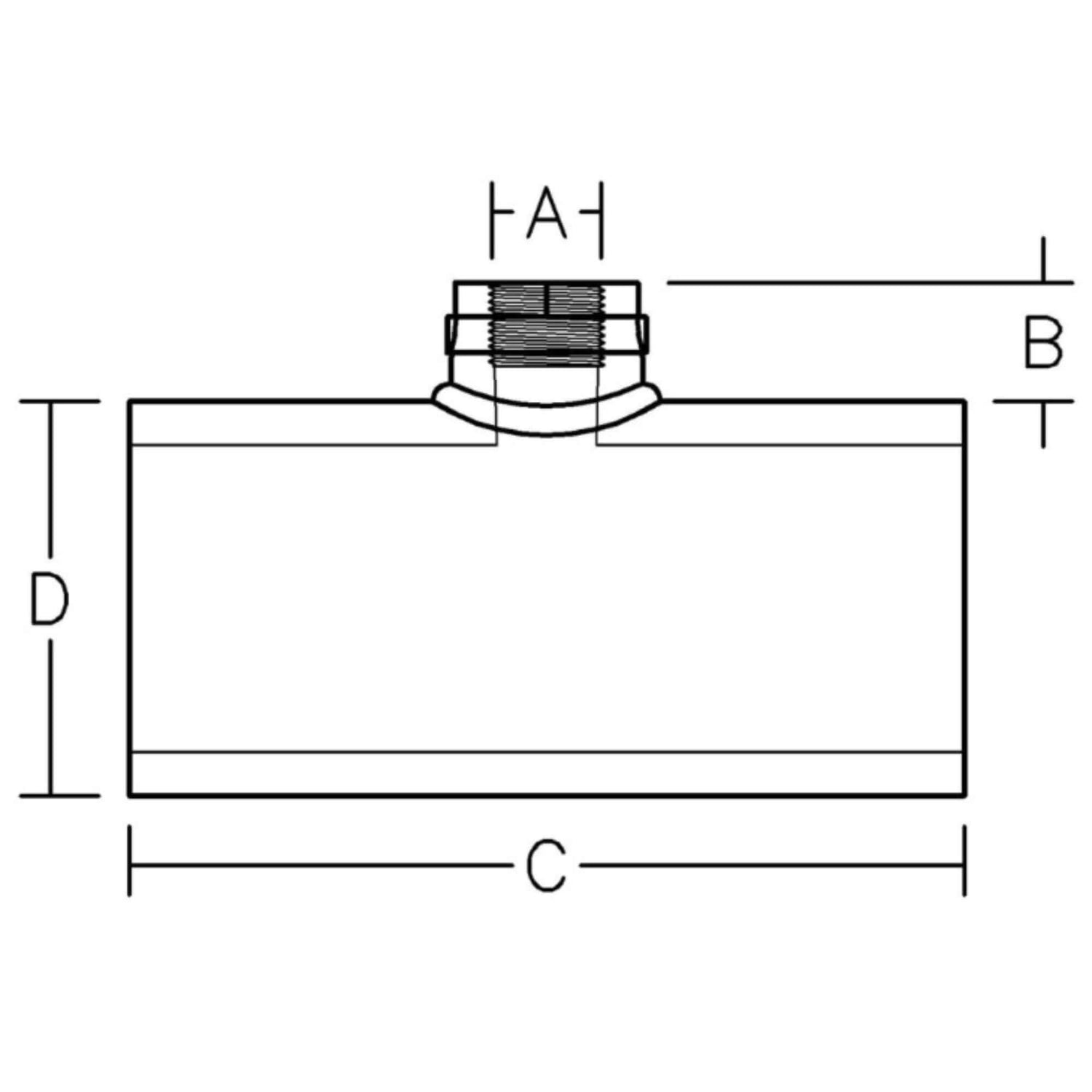

Technical Specifications

• Series: 412
• Outlet Thread Size: 2.00" Female NPT
• Available DR Ratings: DR 11
• Main Size Compatibility: 2" to 4" HDPE conduit
• Fusion Type: Barbed mechanical design with hydraulic compression
• Installation Method: Hydraulic fusion per PPI butt fusion guidelines
• Materials: C954 Aluminum Bronze, 304 SS, 316 SS, or PVC
• Standards: ASTM D3035, D1599, D1598, D3350; ARRA compliant
• See all Series 412 Female NPT Transition Fittings »


Common Applications

• Utility Metering Stations
• Industrial Process Monitoring
• Municipal and Industrial Water Systems
• Chemical and Petroleum Transfer Lines
• Geothermal System Connections

Available Configurations

Note: All fittings feature machine-finished threads and precision-machined barbs for optimal fusion performance and field reliability.

Note #2: This listing is for 2.00" Female NPT Thread outlet fittings only. Be sure to select the appropriate main pipe size from the dropdown menu above.

DR Compatibility Matrix
