523 SERIES STANDARD TEE WITH REDUCING TRANSITION | HDPE × THREADED REDUCER

523 SERIES STANDARD TEE WITH REDUCING TRANSITION | HDPE × THREADED REDUCER — Product Overview

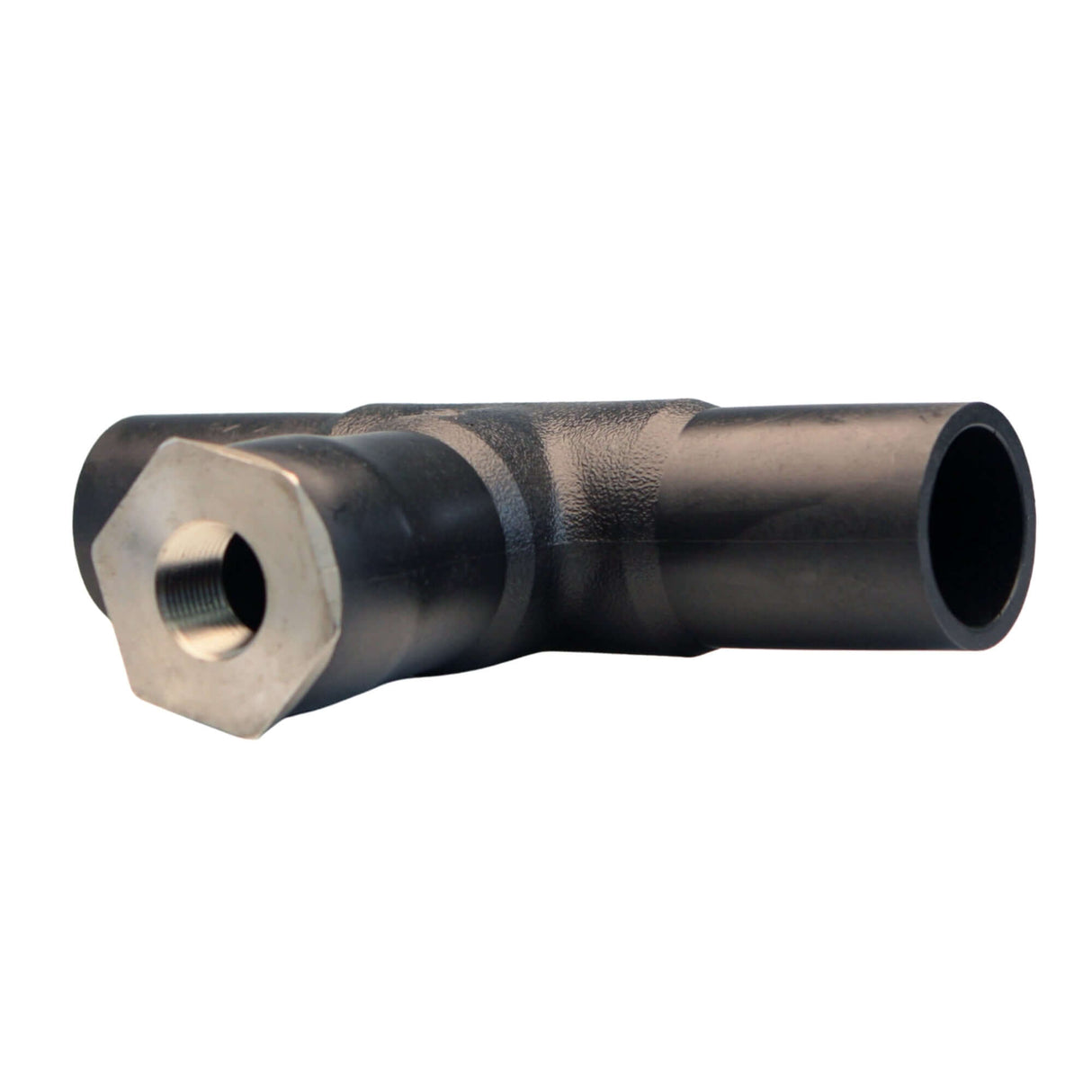

The Poly-Cam 523 Series Standard Tee with Reducing Transition is engineered for seamless integration between high-density polyethylene (HDPE) and threaded piping systems. This robust fitting features a precision-machined, barbed mechanical insert that is hydraulically compressed into the HDPE or pipe-grade copolymer material, reinforced with a stainless steel or aluminum bronze compression ring for added durability and sealing power.

This tee fitting is designed to accommodate directional flow while offering a secure, leak-resistant threaded reducer branch connection—ideal for service installations in water, gas, and utility infrastructure.

Key Features:

• Reliable Tee Configuration: Reducing branch connection with HDPE × Female NPT threads.
• Secure Barbed Mechanical Design: Multi-level barbs create a self-strengthening seal that tightens as internal pressure increases.
• Threaded Branch Sizes: Available in National Pipe Thread sizes from ½” to 2”, manufactured to ANSI/ASME B1.20.1 – 2013 standards.
• Built to Perform: Designed for use with HDPE systems rated for a 2:1 safety factor at 73.4°F, with a 50-year minimum design life.

Materials & Compliance:

• HDPE Pipe End:
• PE 3408 or PE 4710
• Meets ASTM D3350, F714, and 3035 standards
• Minimum density of 0.955 g/cm³ (ASTM D1505)
• Melt Index ≤ 0.15 g/10 min (ASTM D1238)
• Tensile Strength at Yield: 3,200–3,500 psi (ASTM D638)
• ESCR > 5,000 hours with zero failures (ASTM D1693)
• Threaded End:
• Made from lead-free C954 Aluminum Bronze or Stainless Steel (Type 304 or 316)

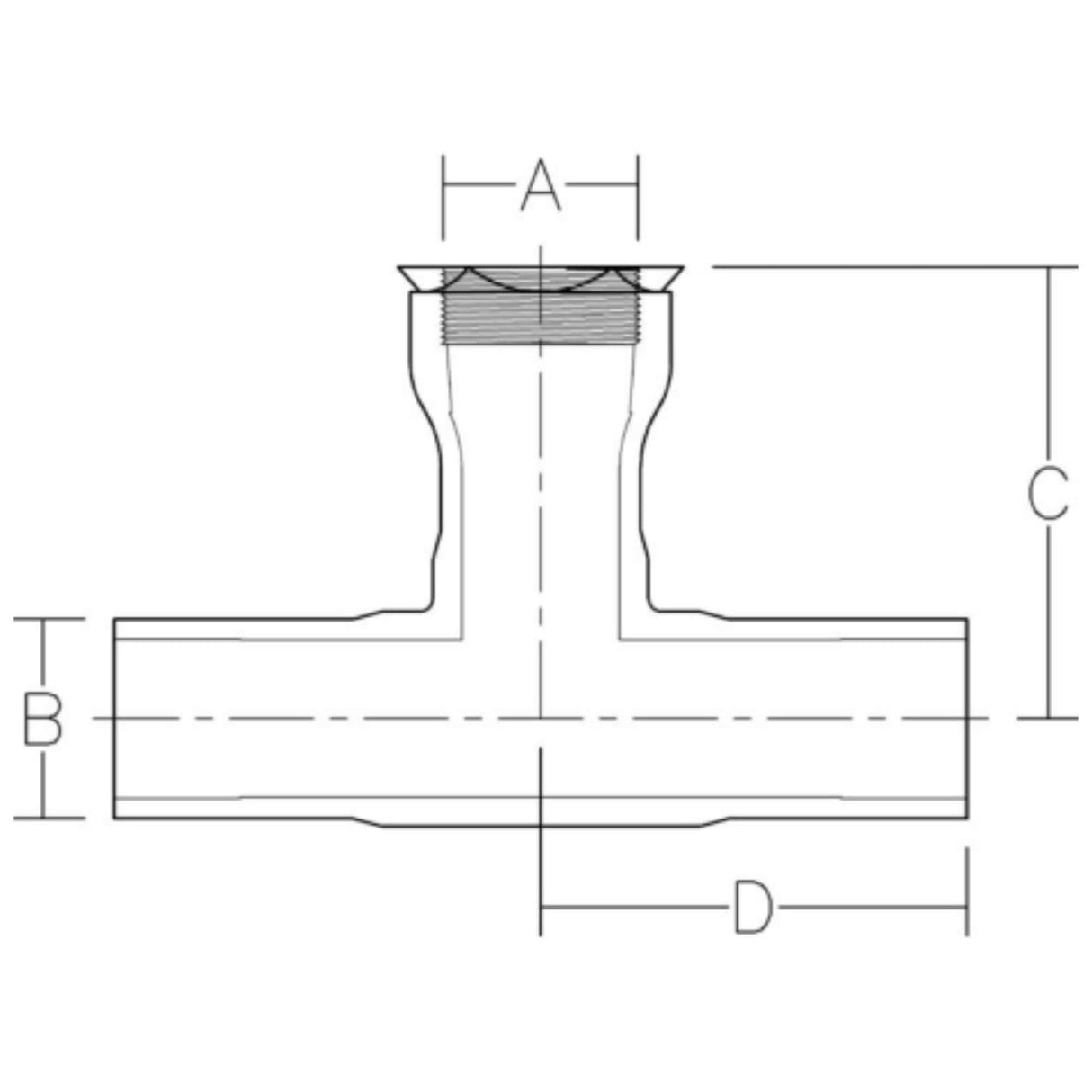

Comprehensive Size and Material Configuration Chart
