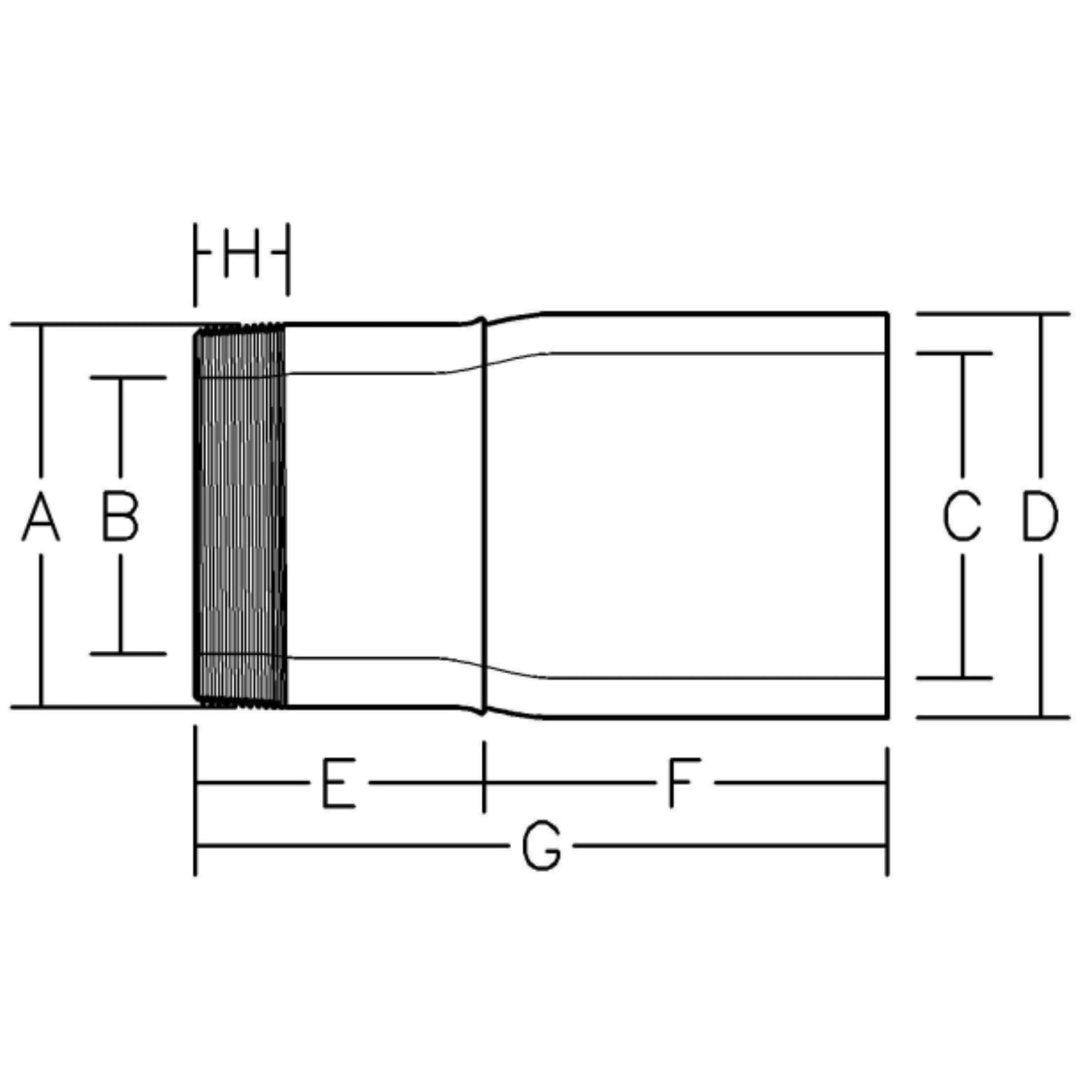

710 Series HDPE Transition Fitting | Male NPT Thread | DR 11 DIPS

710 Series HDPE Transition Fitting | Male NPT Thread | DR 11 DIPS — Product Overview

The Series 710 fitting from Poly-Cam provides a robust, long-lasting transition between HDPE and Male NPT Threads in sizes ranging from 0.5” to 12”. Engineered with high-strength materials like Carbon Steel, 304 Stainless Steel, 316 Stainless Steel, C954 Aluminum Bronze, or ERW pipe, this fitting uses a multi-level barb compression design to form a leak-proof connection with DR 11 HDPE conduit. Built to meet stringent industry standards, the fitting ensures dependable performance across a wide range of high-demand applications, offering a minimum 50-year service life.

Key Features & Benefits

✅ Leak-Proof Fusion Seal – Barb-style design permanently bonds to HDPE (DR 11 DIPS)
✅ Multiple Material Options – Choose from Carbon Steel, 304/316 SS, C954 Bronze, or ERW
✅ Standard NPT Threads – Built to ANSI/ASME B1.20.1 – 2013 standards
✅ Pressure Rated DR 11 – Suitable for medium- to high-pressure conduit systems
✅ NSF-Certified Materials – Meets NSF 61 and key ASTM standards
✅ Heavy-Duty Epoxy Coating – Carbon steel option includes corrosion-resistant coating
✅ Low-Profile Design – Ideal for compact or limited-space installations
✅ ARRA-Compliant – Meets Buy American requirements for federally funded projects

Technical Specifications

• Series: 710
• Outlet Thread Size: 0.5"–12" Male NPT
• Available DR Rating: DR 11 (DIPS)
• Main Size Compatibility: DR 11 HDPE conduit
• Thread Type: Tapered, ANSI/ASME B1.20.1
• Installation Method: Hydraulic fusion per PPI butt fusion standards
• Material: Carbon Steel, C954 Bronze, 304/316 SS, ERW
• Standards: ASTM 1598, ASTM 1599, NSF 61 certified, ARRA compliant
• Warranty: 1-year limited warranty from installation date
• See all Series 710 Male NPT Transition Fittings »

Common Applications

• Utility Metering Stations
• Industrial Process Piping
• Municipal Water Infrastructure
• Chemical and Industrial Transfer Lines
• Geothermal System Connections

Available Configurations:

Note: All fittings are machined for precise thread and barb performance.
This fitting does not meet ASTM D2513 – Not for use in natural gas systems.
Be sure to select the correct HDPE size with the appropriate DR 11 classification.

DR Compatibility Matrix:
