Double E-LOC Transition Fittings | Male Pipe Thread
DOUBLE E-LOC TRANSITION FITTINGS | MALE PIPE THREAD — Product Overview

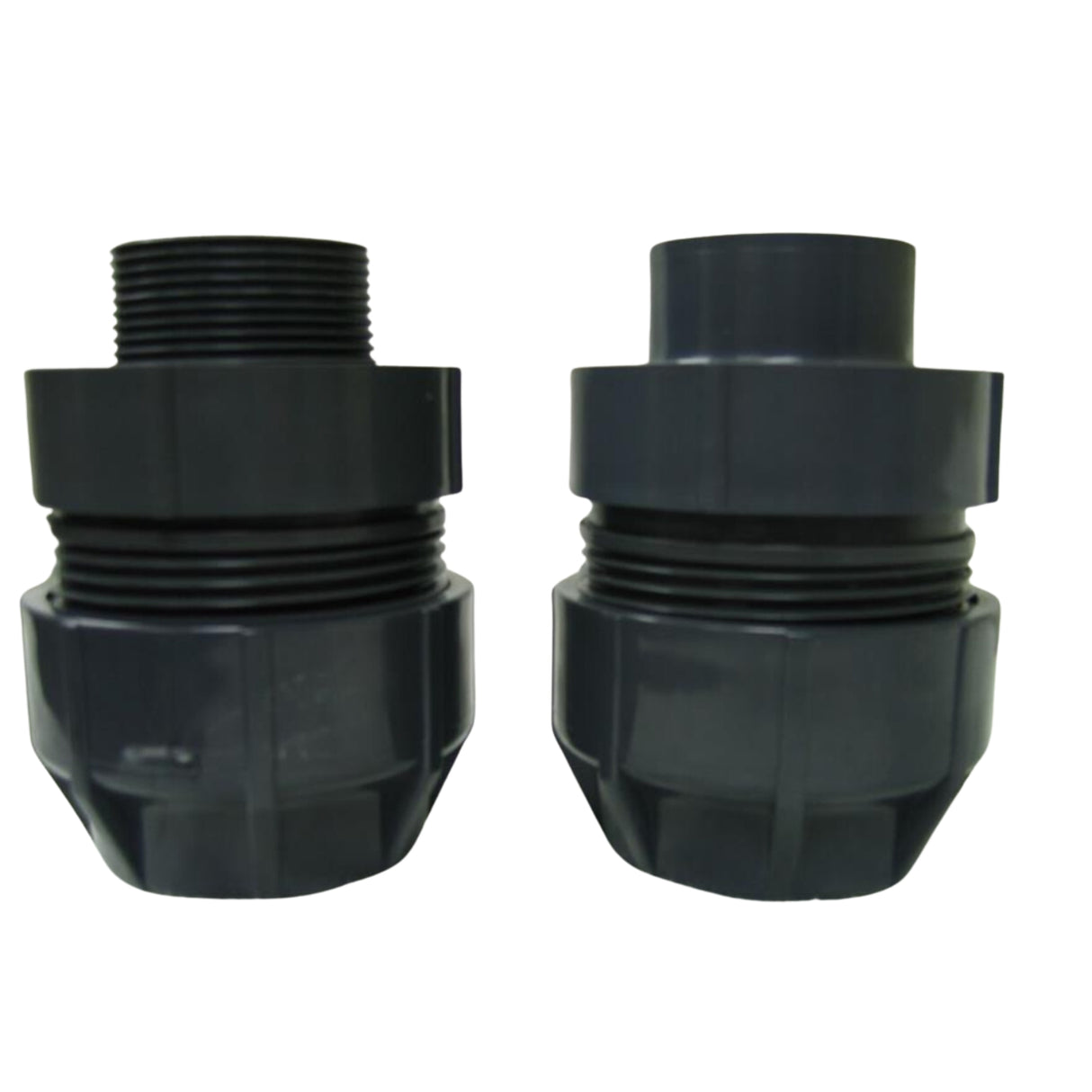

Double E-LOC Transition Fittings take HDPE duct on one end and finish in a male pipe thread (MPT) on the other. The HDPE end grips the duct with ETCO's Double E-LOC locking system, and the threaded end connects into any female-threaded fitting, so you can transition from HDPE to PVC, fiberglass or metal pipe and conduit.
Choose the Double E-LOC style when you are blowing fiber. The second locking ring gives the extra pulling strength needed to hold an air-tight, water-tight seal under blowing pressure. If you are not blowing fiber, the single E-LOC style is the lower-cost option.
Key Features:
- HDPE to MPT: Grips IPS-sized HDPE duct and ends in a standard male pipe thread
- Built for fiber blowing: Double E-LOC grip holds an air-tight, water-tight seal under pressure
- No special tools: Push the duct in to lock, then thread into the mating fitting
- Underground or exposed: Suitable for direct-bury, vault and above-ground transitions
Sizes
| Size | HDPE Duct (IPS) | Thread | Part # |
|---|---|---|---|
| 1" | 1" IPS (1.315" O.D.) | 1" MPT | DEL-131-1.00MPT |
| 1.25" | 1.25" IPS (1.660" O.D.) | 1.25" MPT | DEL-166-1.25MPT |
| 1.5" | 1.5" IPS (1.900" O.D.) | 1.5" MPT | DEL-190-1.50MPT |
| 2" | 2" IPS (2.375" O.D.) | 2" MPT | DEL-237-2.00MPT |
The number after DEL- is the duct outside diameter in thousandths of an inch. Minimum order quantities apply by size. Need .5" or .75", or a male solvent weld end? Call (815) 337-8845 for a quote.
