VARIOUS  |  SKU: 30050029

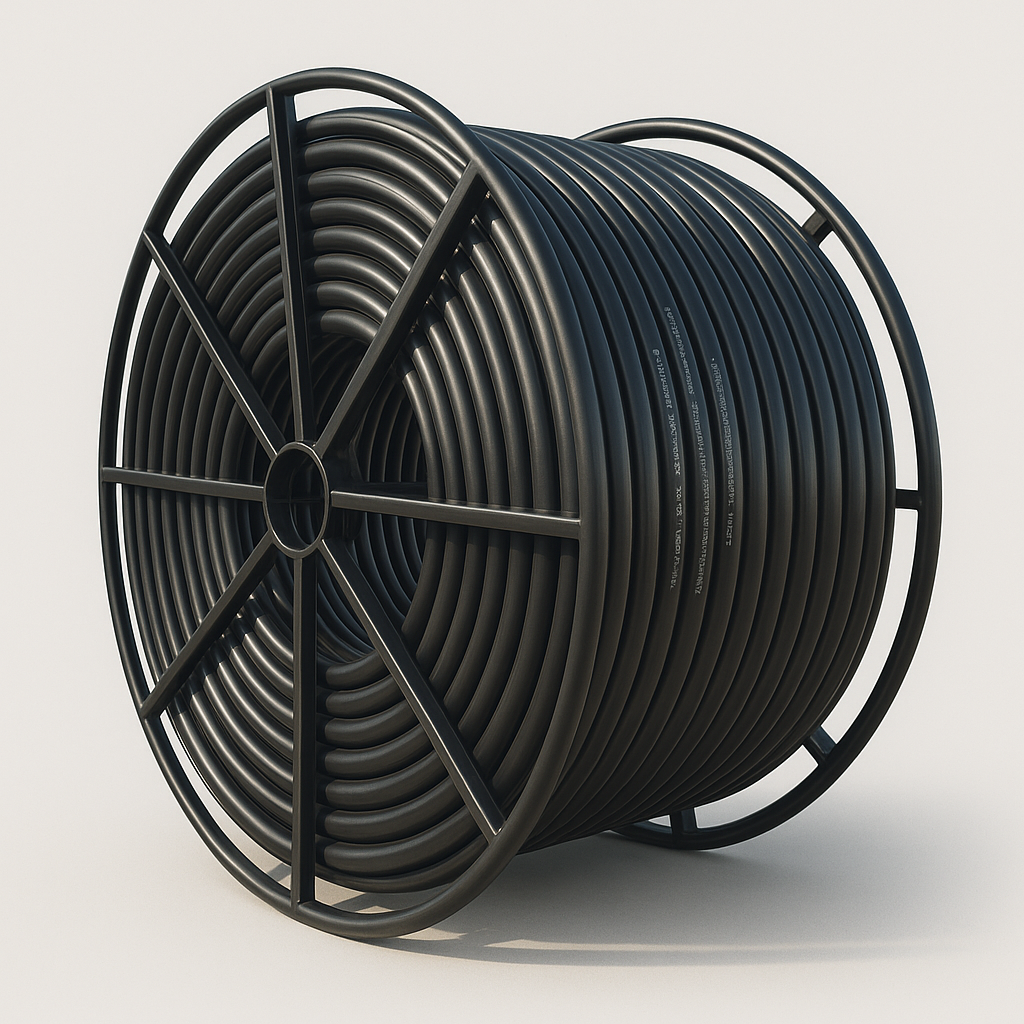

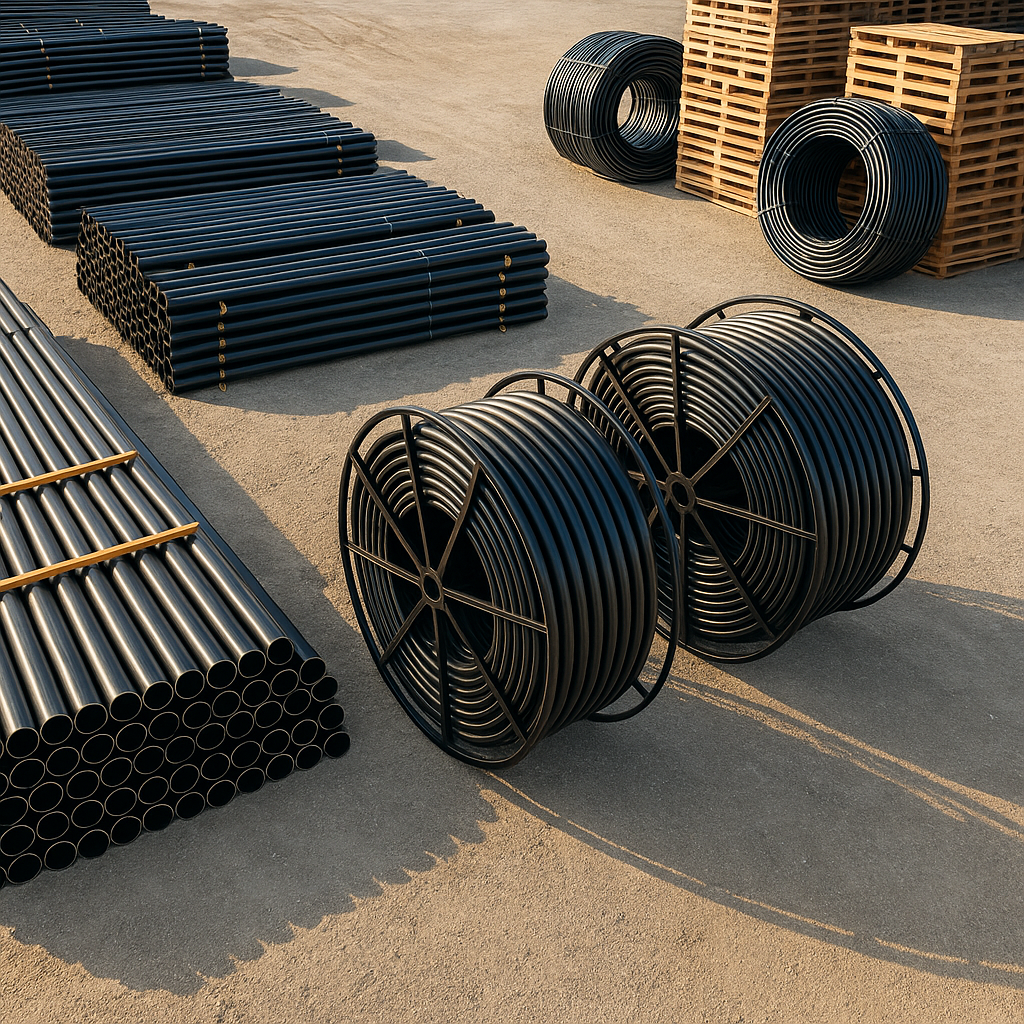

HDPE Conduit | SDR 13.5 | Power & Telco | Smoothwall | Black | Reels

$0.00
Size
  • Durable HDPE Construction – SDR 13.5 rated for flexibility and long-term strength
  • Black Smoothwall Design – For direct burial, aerial, trench, plow, or bore installs
  • Pull Tape Included ≤4″ – Factory-installed for faster, easier cable placement
  • Industry-Compliant – Meets ASTM F2160, NEMA TC-7, UL 651A, CSA standards
  • Proven Field Performance – Resists shifting soil, rock impact, and root intrusion
📄 Download Spec Sheet

HDPE Conduit | SDR 13.5 | Power & Telco | Smoothwall | Black | Reels

HDPE Smoothwall Conduit (SDR 13.5) provides a flexible, durable pathway for power and telco applications. Designed for direct burial, plow, trench, directional bore, tray, or aerial installs, it delivers long-term cable protection and efficient pulls.

This listing reflects our stocked black Smoothwall SDR 13.5 reels, including factory pull tape (W/T) on ≤4″ sizes and empty (E) reels for 5″–6″. Dimensions and weights align with Duraline Smoothwall specifications.

Available Sizes & Reel Lengths (SDR 13.5)

Nominal Size (IPS) Min. Wall (in) Average ID (in) Weight (lb/ft) Reel Length Pull Tape
1.25″ 0.123 1.394 0.263 5000′ Yes
1.50″ 0.141 1.598 0.342 5000′ Yes
2″ 0.176 2.002 0.528 4000′ Yes
3″ 0.259 2.951 1.146 1000′ Yes
4″ 0.333 3.794 1.895 550′, 766′, 1000′ Yes
5″ 0.412 4.690 2.896 500′ No (Empty)
6″ 0.491 5.584 4.122 450′ No (Empty)

Standards & Certifications: ASTM F2160, ASTM D3350, ASTM D3485, NEMA TC-7, UL 651A, UL 1990, Bellcore GR-356, CSA C22.2 No. 327-18

Color: Black | Form: Smoothwall Reels | Options: W/T (≤4″) or Empty (5″–6″)
