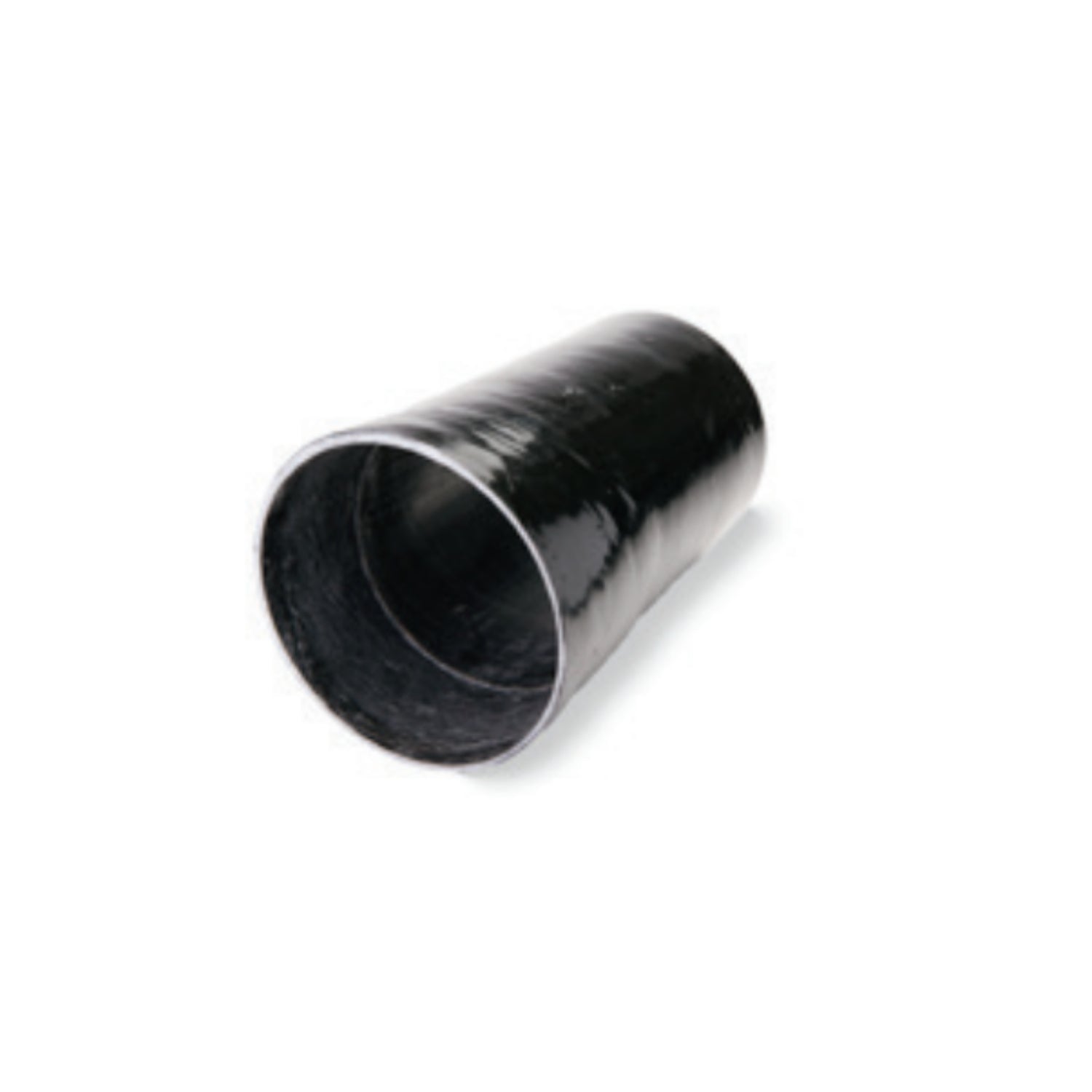

Fiberglass ID Telecom Conduit - HW HEAVY WALL, Multiple Joints
$2,004.26
Unit price
/
Select Option
Introducing our Fiberglass ID Telecom HW Heavy Wall Conduit, specifically designed for Canadian telecom applications. Engineered for durability and reliable performance, this fiberglass conduit features a smaller Outside Diameter (OD) compared to standard IPS conduit, making it compatible with standard pipe clamps for easy installation. Available in sizes from 2" to 6", this conduit offers customizable joint options, with either straight socket or interference joint connections, ensuring flexibility for various telecom installation needs.
Key Features:
- Optimized for Telecom Use: Specifically designed for Canadian telecom applications, providing reliable and durable performance in critical installations.
- Smaller Outside Diameter (OD): The fiberglass ID type conduit offers a reduced OD compared to traditional IPS conduit, ensuring compatibility with standard pipe clamps for quick and easy installation.
- Customizable Joint Options: Available with either straight socket (suffix "-S") or interference joint (suffix "-I") connections, allowing for versatility in your project’s installation needs.
- Flexible Lengths: Offered in standard 20 ft (6.1 m) lengths, with optional 10 ft (3.05 m) lengths, available with a mix of interference and straight socket joints for enhanced flexibility.
- Durable Wall Thickness: Constructed with optimal wall thickness for maximum protection. Custom thicknesses are also available upon special request.
- UL Certification: The 5" and 6" sizes carry the UL Champion Fiberglass MW designation, ensuring compliance with industry standards and quality assurance.
- Versatile Applications: Ideal for above-ground telecom installations that require dependable conduit protection in demanding environments.
Ordering Information:
- For straight socket joints, add "-S" to the part number.
- For interference joints, add "-I" to the part number.
Our Fiberglass ID Telecom HW Heavy Wall Conduit provides a durable, flexible, and reliable solution for protecting telecom infrastructure, offering seamless installation and long-term performance.

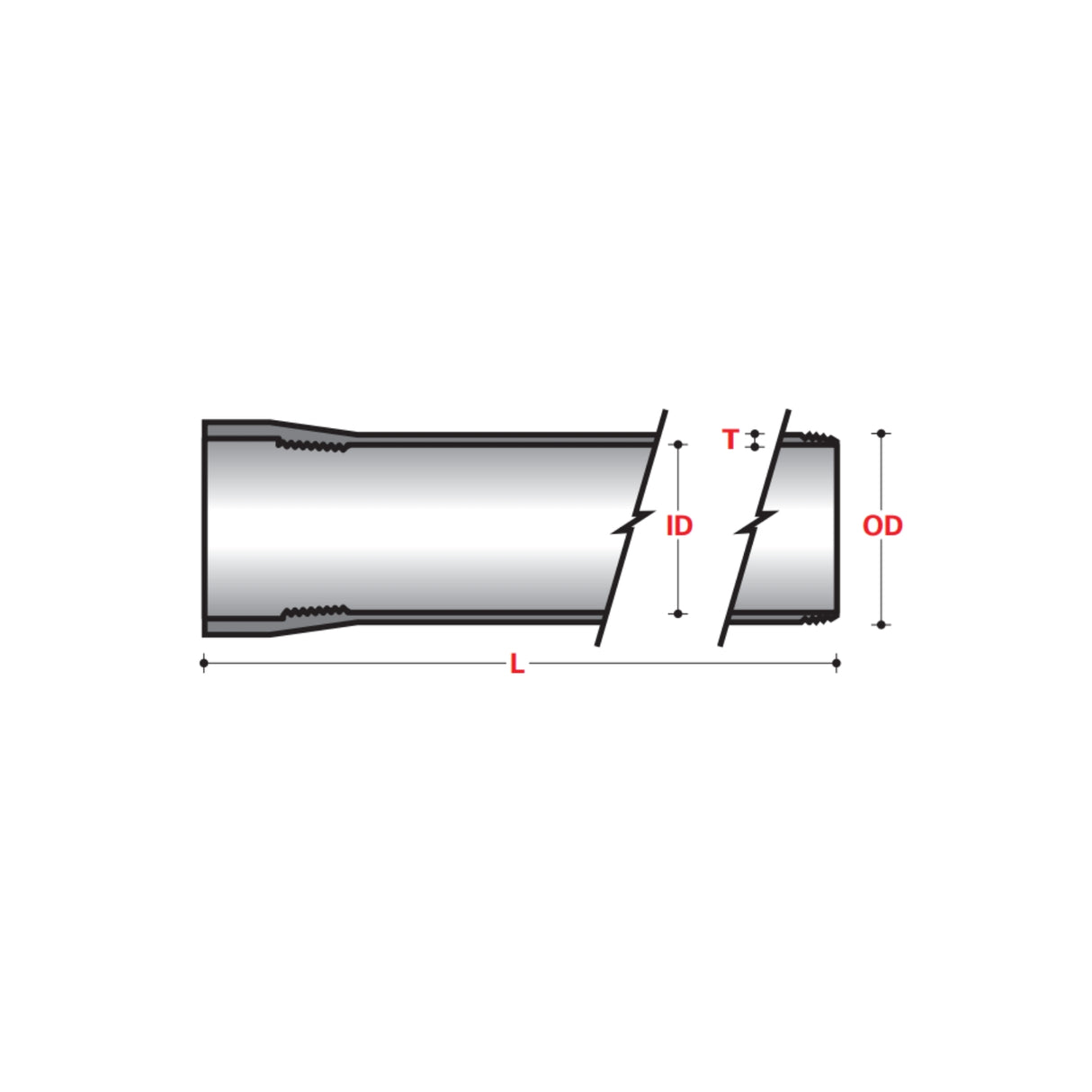

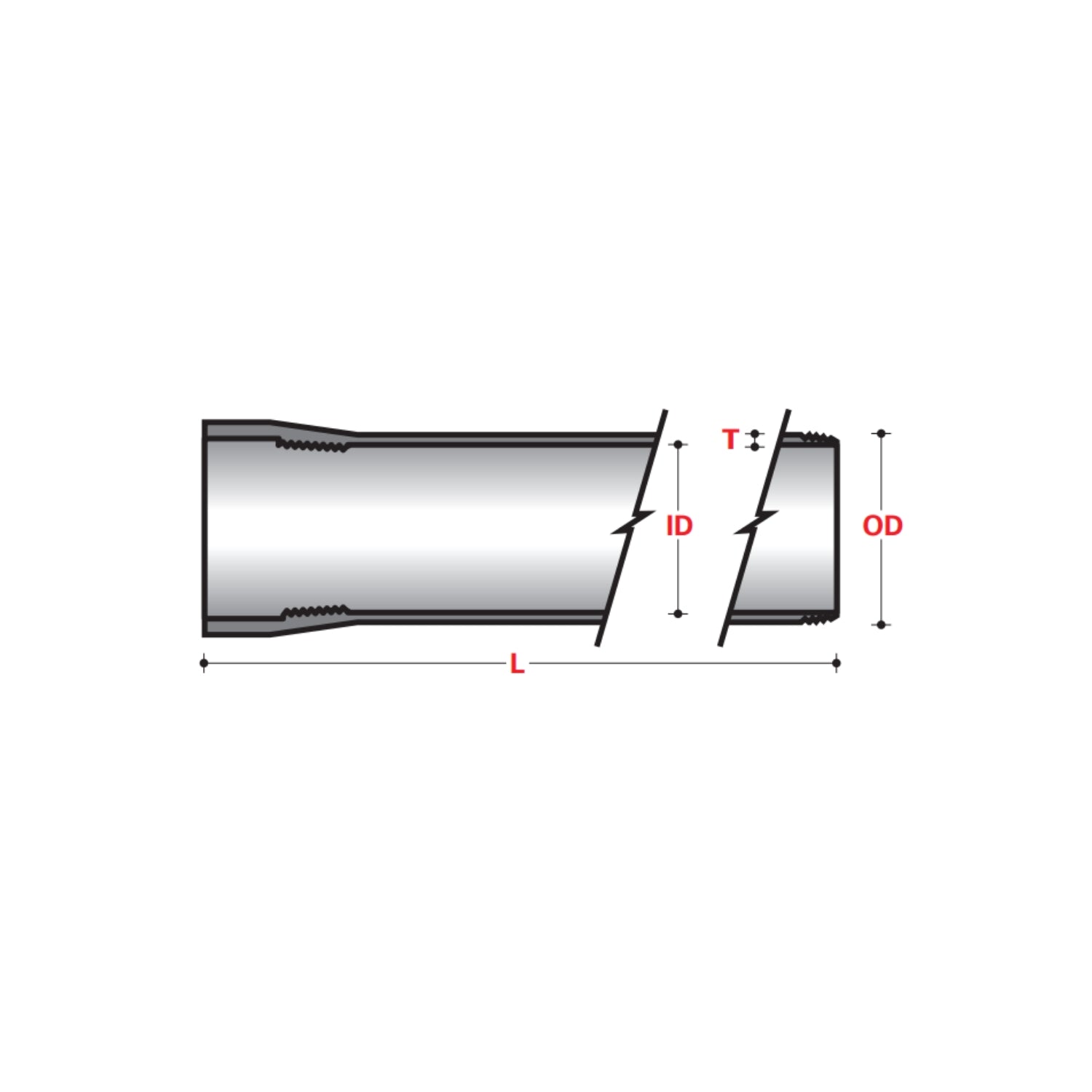

| Nominal Size | ID Item No (Above Ground) | UL/CSA Listed | Outside Diameter Average | Outside Diameter Tolerance | Min. Inside Diameter | Nominal Wall Thickness (T) | Length (L) | Weight Lbs/Ft | Weight Kg/M |
|---|---|---|---|---|---|---|---|---|---|
| 4" (102) | 40D-HW-20-I | Yes | 4.192" (106) | +0.028" -0.022" (0.7 - 0.6) | 4.000" (101) | .096" (2) | 20 ft (6.1 m) | 0.92 | (1.37) |
| 4-1/2" (114) | 45D-HW-20-I | Yes | 4.692" (119) | +0.028" -0.022" (0.7 - 0.6) | 4.500" (114) | .110" (3) | 20 ft (6.1 m) | 1.04 | (1.55) |
| 5" (127) | 50D-HW-20-I | Yes | 5.220" (132) | +0.034" -0.028" (0.9 - 0.7) | 5.000" (127) | .110" (3) | 20 ft (6.1 m) | 1.30 | (1.92) |
| 6" (152) | 60D-HW-20-I | Yes | 6.220" (158) | +0.034" -0.028" (0.9 - 0.7) | 6.000" (152) | .125" (3) | 20 ft (6.1 m) | 1.58 | (2.35) |
| 8" (203) | 80D-HW-20-S | — | 8.250" (210) | +0.028" -0.018" (0.7 - 0.5) | 8.000" (203) | .125" (3) | 20 ft (6.1 m) | 2.42 | (3.60) |
| 10" (254) | 100D-HW-20-S | — | 10.376" (264) | +0.034" -0.028" (0.9 - 0.7) | 10.000" (254) | .188" (5) | 20 ft (6.1 m) | 4.50 | (6.70) |
| 12" (305) | 120D-HW-20-S | — | 12.376" (314) | +0.034" -0.028" (0.9 - 0.7) | 12.000" (305) | .188" (5) | 20 ft (6.1 m) | 5.38 | (8.01) |
