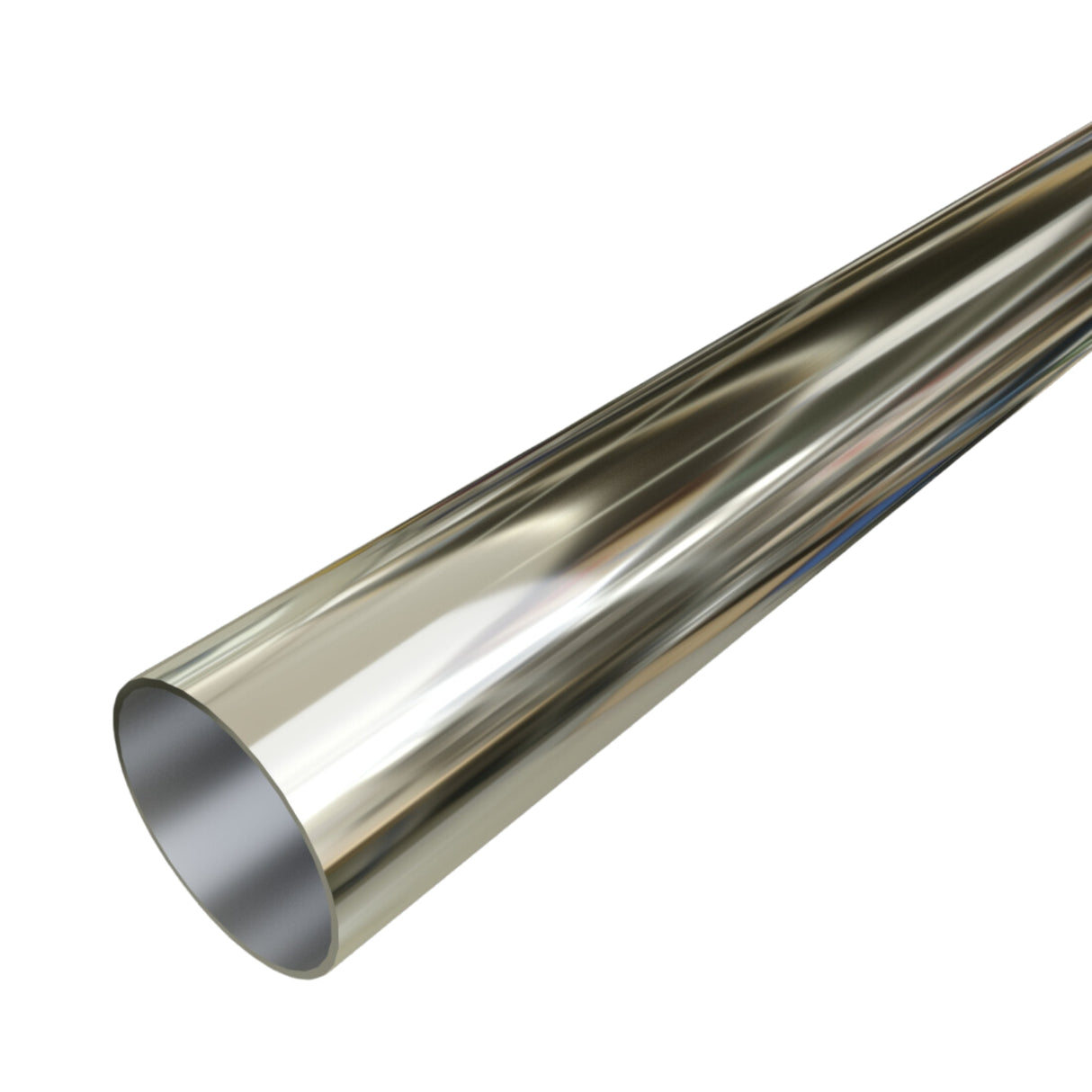

Stainless Steel EMT – Type 316 | UL 797A Listed | Corrosion-Resistant Electrical Conduit
Stainless Steel EMT – Type 316 | UL 797A Listed | Corrosion-Resistant Electrical Conduit
Stainless Steel EMT – Type 316 is engineered for exceptional strength, durability, and corrosion resistance in the most challenging environments. Constructed from premium Type 316 stainless steel, this conduit is ideal for applications exposed to moisture, chemicals, and salt air—such as food processing, marine, and pharmaceutical installations. The polished brite finish enhances both appearance and performance, offering long-term protection and an attractive surface finish for visible installations.
Designed for ease of use, the conduit’s lightweight construction enables faster handling and installation without the need for specialized tools, reducing labor and freight costs. It meets all UL and NEC standards for safety and reliability while supporting environmentally responsible projects through its Environmental Product Declaration (EPD).
Key Features and Benefits
- Corrosion-Resistant Construction: Type 316 stainless steel with a polished brite finish provides outstanding protection against rust, salt, and chemicals.
- Lightweight and Durable: Combines high strength with easy handling for quick installation and long service life.
- Simple Installation: No special tools required—saves time and improves installation efficiency.
- Certified Performance: UL 797A listed, NSF/ANSI 169 certified, and NEC compliant for safe use in sanitary and industrial environments.
- Environmentally Sustainable: Includes Environmental Product Declaration (EPD) for LEED and green building compliance.
Certifications and Compliance
- UL 797A Listed – UL File E315441
- NSF/ANSI 169 Certified – Suitable for sanitary applications
- NEC Article 358 Compliant – Approved for use under ANSI/NFPA 70
- Environmental Product Declaration (EPD) – Supports sustainable design
Specifications – 10 ft Standard Length

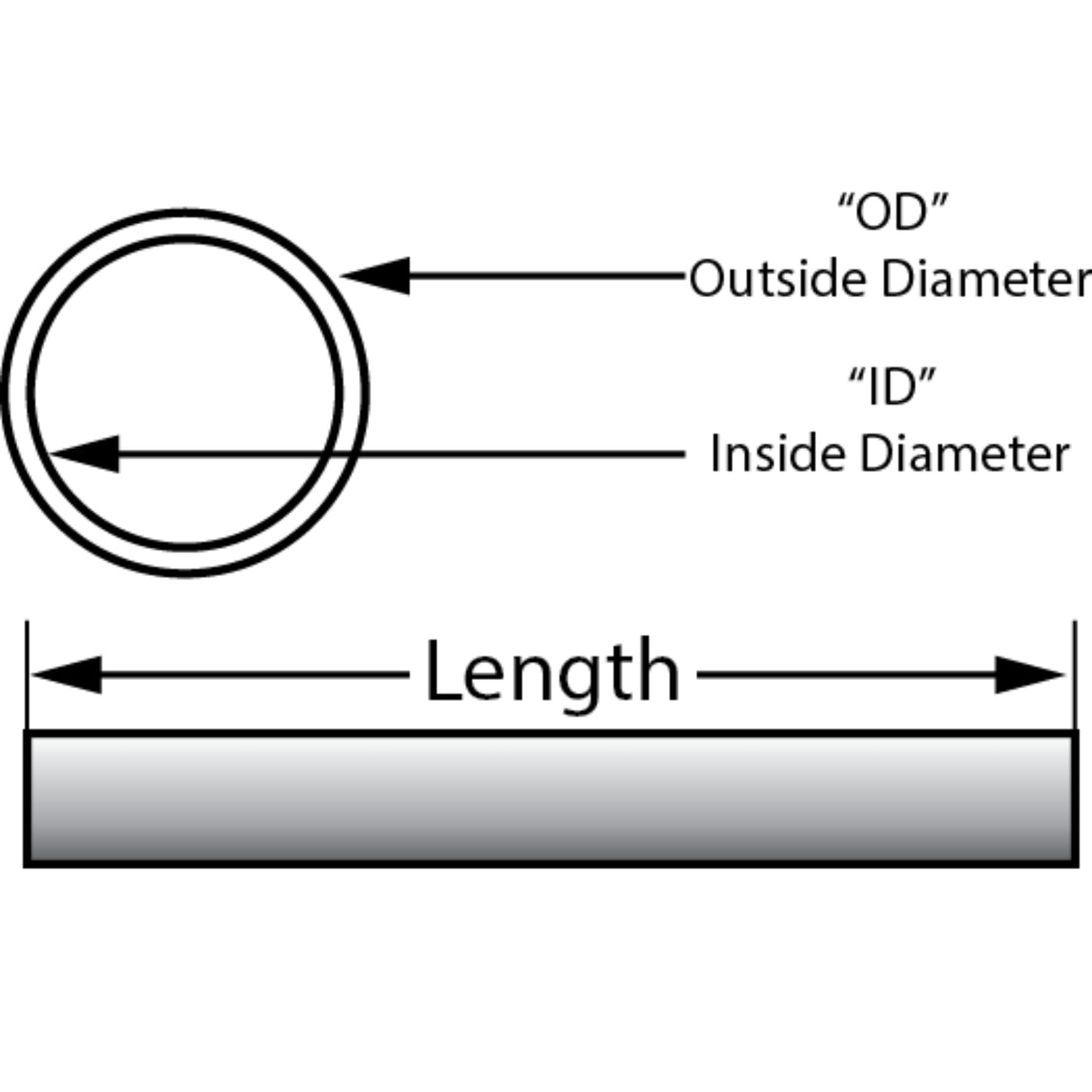

| Part Number | Trade Size (in) | Outside Diameter (in) | Inside Diameter (in) | Wall Thickness (in) | Weight per Ft (lb) | Standard Package Qty (ft) | Standard Package Weight (lb) |
|---|---|---|---|---|---|---|---|
| S20510CT00 | ½ | 0.710 | 0.580 | 0.065 | 0.30 | 2,000 | 600 |
| S20710CT00 | ¾ | 0.920 | 0.800 | 0.060 | 0.50 | 1,000 | 500 |
| S21010CT00 | 1 | 1.160 | 1.000 | 0.080 | 0.90 | 750 | 675 |
| S21210CT00 | 1¼ | 1.510 | 1.350 | 0.080 | 1.00 | 500 | 500 |
| S21510CT00 | 1½ | 1.740 | 1.570 | 0.085 | 1.40 | 350 | 490 |
| S22010CT00 | 2 | 2.200 | 2.000 | 0.100 | 2.40 | 200 | 480 |
| S22510CT00 | 2½ | 2.880 | 2.710 | 0.085 | 2.50 | 150 | 375 |
| S23010CT00 | 3 | 3.500 | 3.330 | 0.085 | 2.80 | 100 | 280 |
| S24010CT00 | 4 | 4.500 | 4.330 | 0.085 | 3.50 | 50 | 175 |
Brand Availability
- Calbrite
