Calbrite Stainless Steel Rigid Conduit – Type 316 is built to outperform in the harshest industrial, marine, and sanitary environments. Engineered for applications where traditional aluminum, PVC-coated, or rigid steel conduit cannot endure, this UL-listed conduit provides long-term corrosion resistance, superior strength, and a professional polished appearance. Ideal for food processing, chemical plants, and coastal or outdoor installations where hygiene and durability are critical.

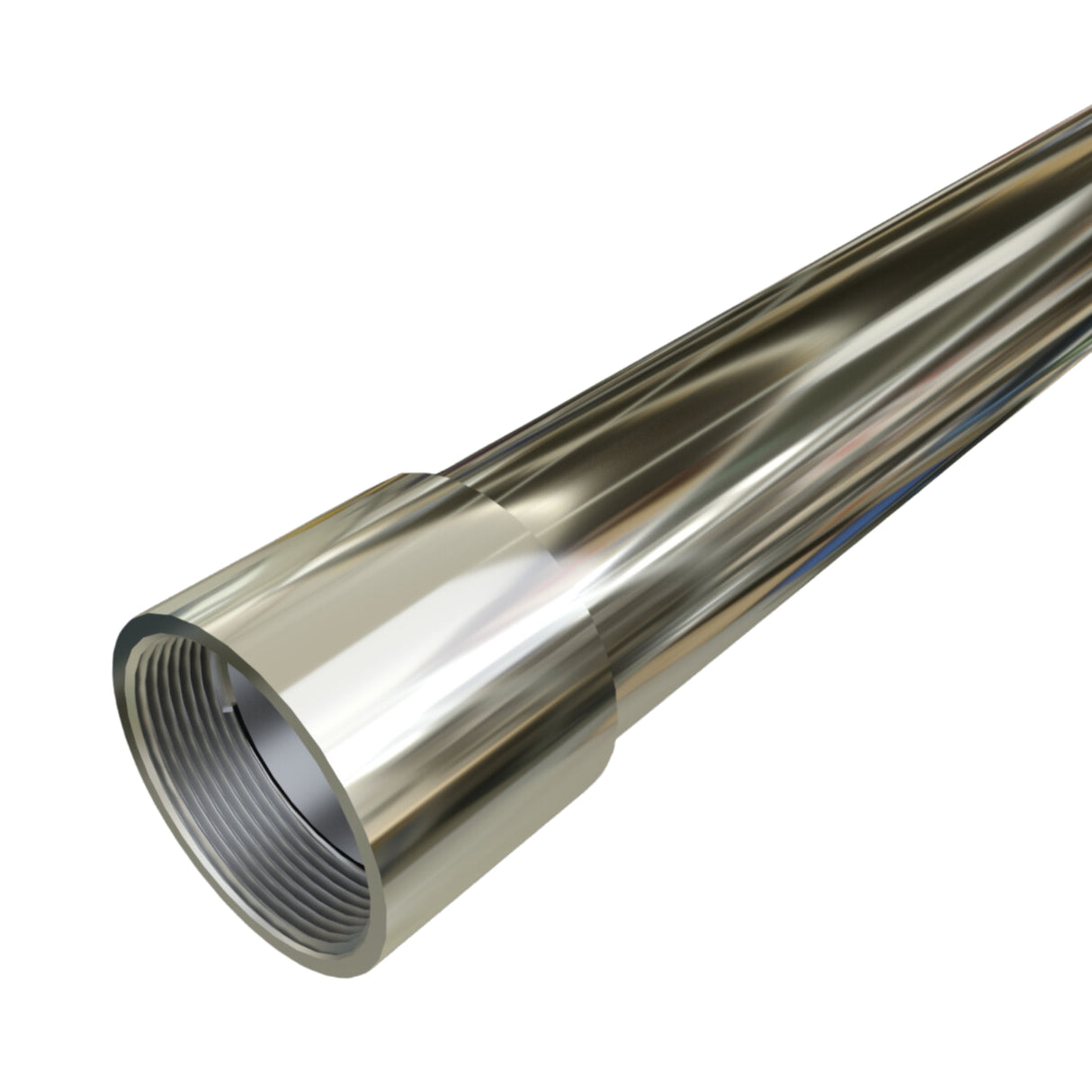

Manufactured from Type 316 stainless steel and finished with a smooth polished “brite” surface, this conduit combines outstanding corrosion protection with an attractive, easy-to-clean exterior. Each length is NPT-threaded and includes a coupling for seamless, tool-free assembly. An available Environmental Product Declaration (EPD) supports sustainable project documentation.
Key Features & Benefits
- Superior Durability – Type 316 stainless steel provides exceptional corrosion resistance in the most demanding environments.
- Polished “Brite” Finish – Enhances appearance and further resists oxidation for long-lasting performance.
- Easy Installation – Standard NPT threads and an included coupling allow quick, reliable setup with no special tools required.
- Regulatory Compliant – UL Listed, NSF/ANSI 169 approved, and EPD available for environmentally responsible projects.
Applications
- Food & Beverage Facilities – Meets strict sanitary requirements for washdown and cleanroom use.
- Chemical & Pharmaceutical Plants – Resists corrosive agents and maintains structural integrity.
- Marine & Outdoor Installations – Performs reliably in saltwater, humidity, and extreme weather exposure.
Ordering Information

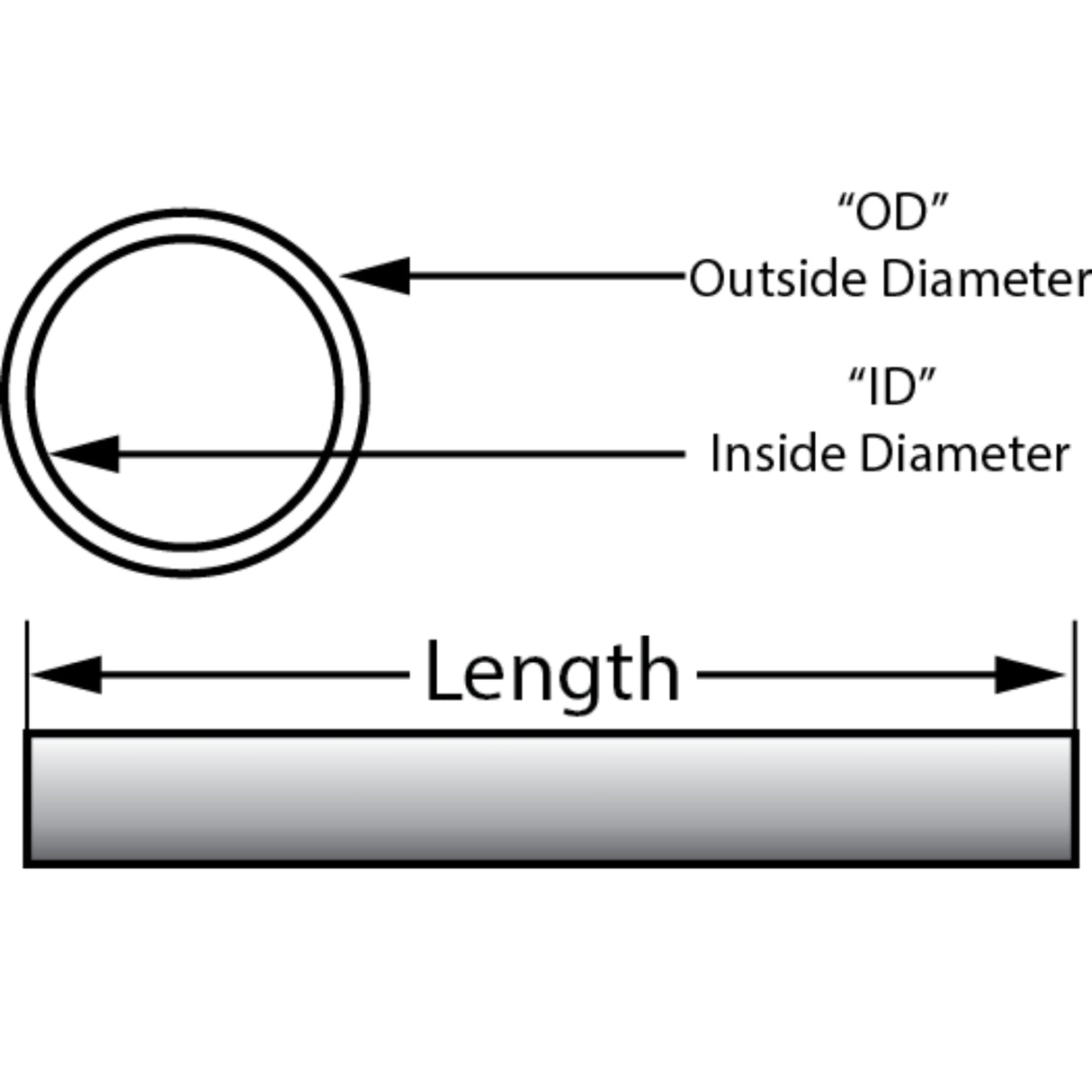

| Catalog Number | Trade Size (in) | Outside Diameter (in) | Length (ft) | Inside Diameter (in) | Wall Thickness (in) | Weight (lb/ft) | Package Qty (ft) | Package Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| S60510CT00 | ½ | 0.840 | 10 | 0.620 | 0.110 | 0.82 | 1000 | 820 |
| S60710CT00 | ¾ | 1.050 | 10 | 0.820 | 0.115 | 1.09 | 750 | 818 |
| S61010CT00 | 1 | 1.315 | 10 | 1.050 | 0.132 | 1.61 | 500 | 805 |
| S61210CT00 | 1¼ | 1.660 | 10 | 1.380 | 0.140 | 2.18 | 400 | 872 |
| S61510CT00 | 1½ | 1.900 | 10 | 1.610 | 0.145 | 2.63 | 300 | 789 |
| S62010CT00 | 2 | 2.375 | 10 | 2.070 | 0.153 | 3.50 | 200 | 700 |
| S62510CT00 | 2½ | 2.875 | 10 | 2.470 | 0.202 | 5.59 | 100 | 559 |
| S63010CT00 | 3 | 3.500 | 10 | 3.070 | 0.215 | 7.27 | 100 | 727 |
| S64010CT00 | 4 | 4.500 | 10 | 4.030 | 0.235 | 10.08 | 50 | 504 |
Standards & Certifications
- CULUS 6A – UL/cUL Listed (File E230584)
- NSF/ANSI 169 – Approved for food-grade and sanitary applications
- CSA C22.1 & CEC Part 1 – Compliant with Canadian Electrical Code
- PROP 65 – Safe handling advised during cutting or hot work
