High-Performance Foam Carrier | Duct Blower Pulling — Product Overview

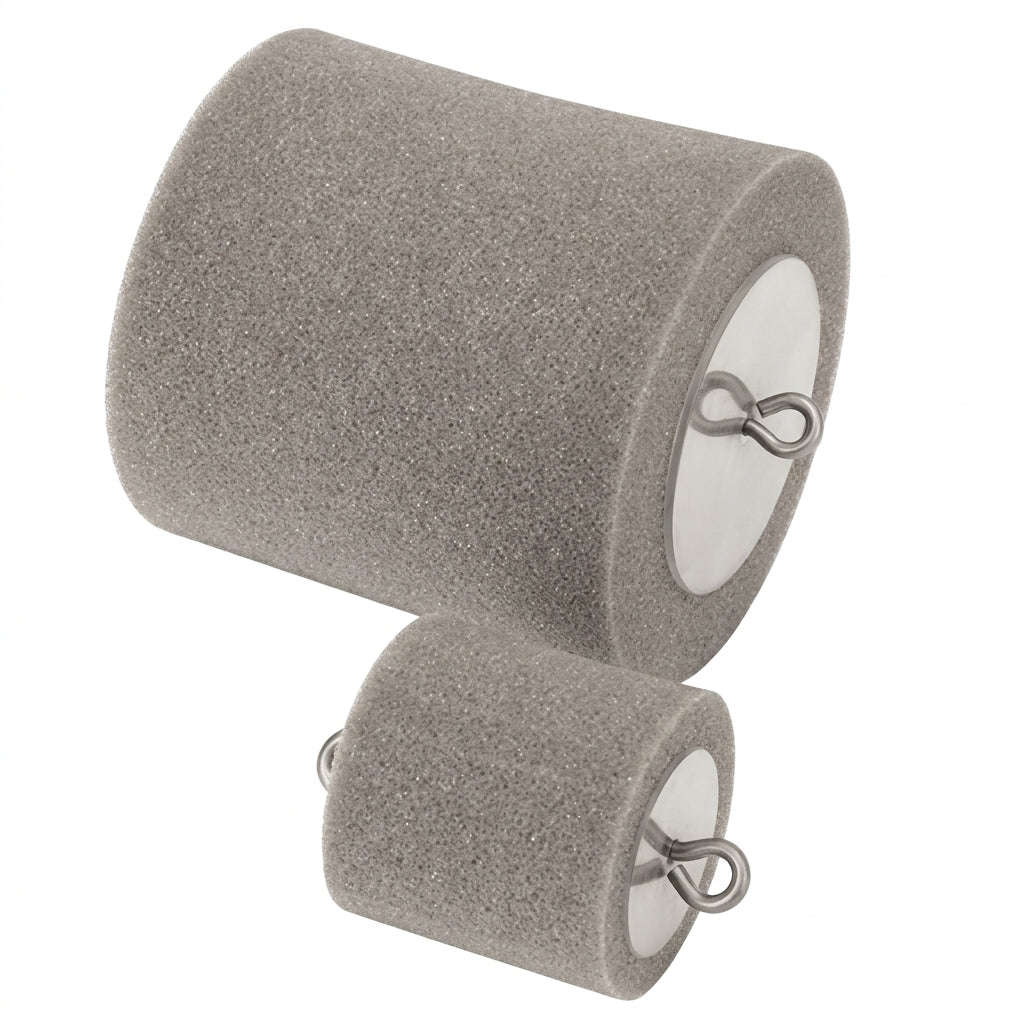

Foam Carriers are lightweight conduit carriers designed to be propelled through duct using a compatible blower. Condux identifies these carriers as particularly suited for short duct runs and runs containing multiple bends.
The foam carrier travels through the intended duct as part of a conduit line installation process. Each model is identified by its nominal duct size, maximum outside diameter, and manufacturer part number.
This listing offers eleven Foam Carrier sizes, ranging from .5" to 6". Select the appropriate carrier according to the duct dimensions and the equipment being used.
Product Features
- Lightweight Foam Construction: Foam carrier design for use in conduit blowing applications.
- Blower-Propelled Operation: Designed to travel through duct using a suitable blower system.
- Short-Run Applications: Manufacturer identifies foam carriers as particularly suited for short duct runs.
- Multiple-Bend Applications: Suitable for duct runs containing multiple bends, as described by Condux.
- Multiple Size Options: Eleven carrier sizes are offered, from .5" through 6", with manufacturer-specified maximum outside diameters.
How to Select
- Duct Size: Identify the nominal duct size for the intended installation.
- Maximum Outside Diameter: Compare the carrier's published maximum O.D. with the duct dimensions.
- Manufacturer Part Number: Select the matching Condux MPN from the Ordering Information table.
Ordering Information
The following table lists all eleven Foam Carrier configurations currently available in this listing. Sizes and maximum outside diameters follow Condux's published specifications.
| Part Number | Duct Size (in) | Duct Size (mm) | Max O.D. (in) | Max O.D. (mm) |
|---|---|---|---|---|
| 08078200 | .5" | 13 | .50" | 13 |
| 08078300 | .75" | 19 | .75" | 19 |
| 08032200 | 1" | 25 | 1.00" | 25 |
| 08032300 | 1.25" | 32 | 1.25" | 32 |
| 08039800 | 1.5" | 38 | 1.50" | 38 |
| 08032400 | 2" | 51 | 2.00" | 51 |
| 08078400 | 2.5" | 64 | 2.50" | 64 |
| 08032500 | 3" | 76 | 3.00" | 76 |
| 08032600 | 4" | 102 | 4.00" | 102 |
| 08059100 | 5" | 127 | 5.00" | 127 |
| 08059200 | 6" | 152 | 6.00" | 152 |
Ordering Note: Confirm the duct size and published maximum outside diameter before selecting a Foam Carrier. Refer to Condux's applicable blower instructions for equipment setup and use.
