Huskie SLA 6 Ton Inline Crimping & Cutting Tool | Interchangeable Heads
$2,569.50
Unit price
/
Select Option
Huskie SLA 6 Ton Inline Crimping & Cutting Tool | Interchangeable Heads — Product Overview

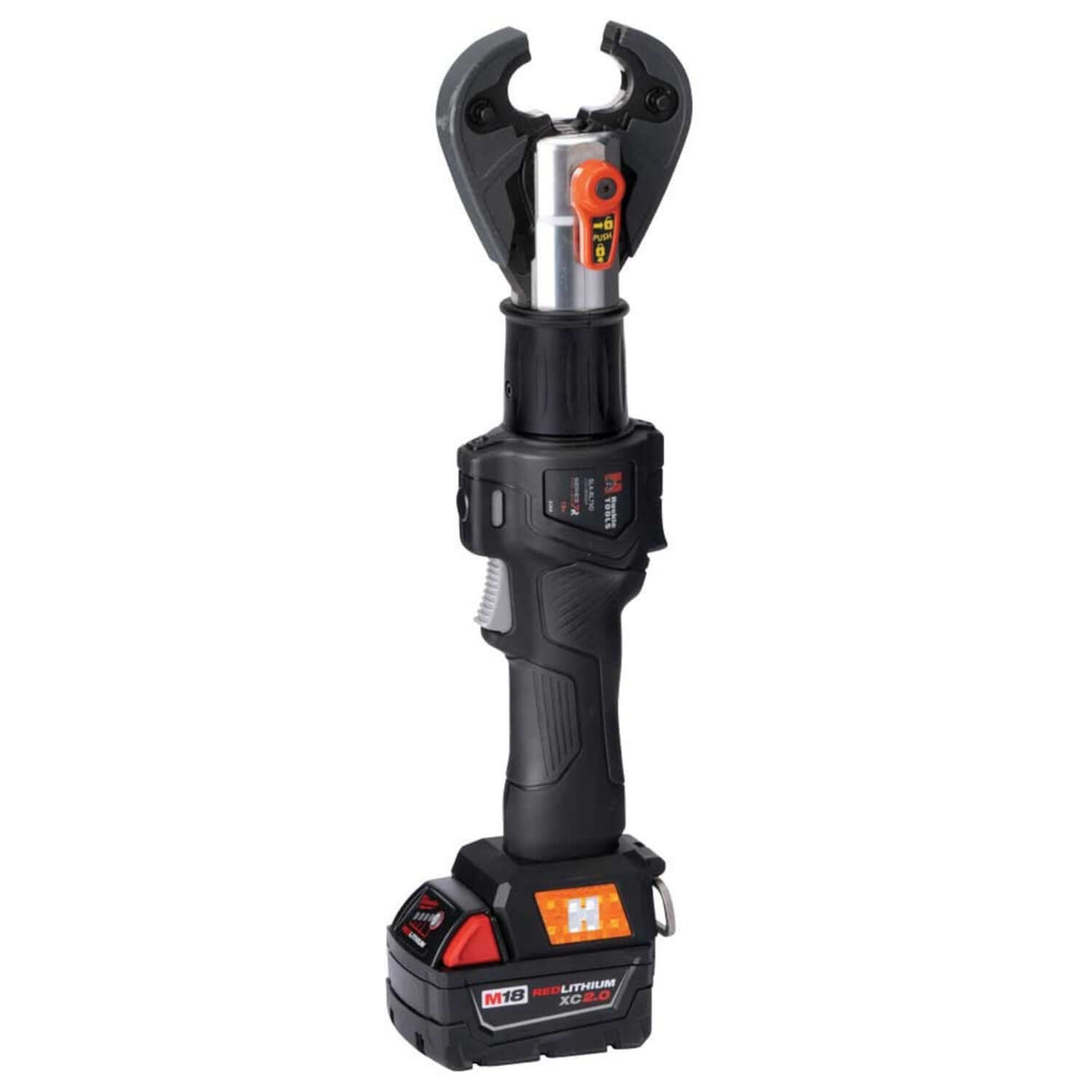

The Huskie SLA 6 Ton Inline Crimping & Cutting Tool is a compact, field-ready “one tool” platform built for crimping, cutting, and cable bending using a quick-change pull-pin jaw system. Select your battery platform (Milwaukee M18 or Makita LXT) and choose the jaw/head that matches your application. There are 8 interchangeable jaws available.
Key Features & Benefits
- Interchangeable Head System – Pull-pin design allows fast jaw swaps for crimping, cutting, or bending.

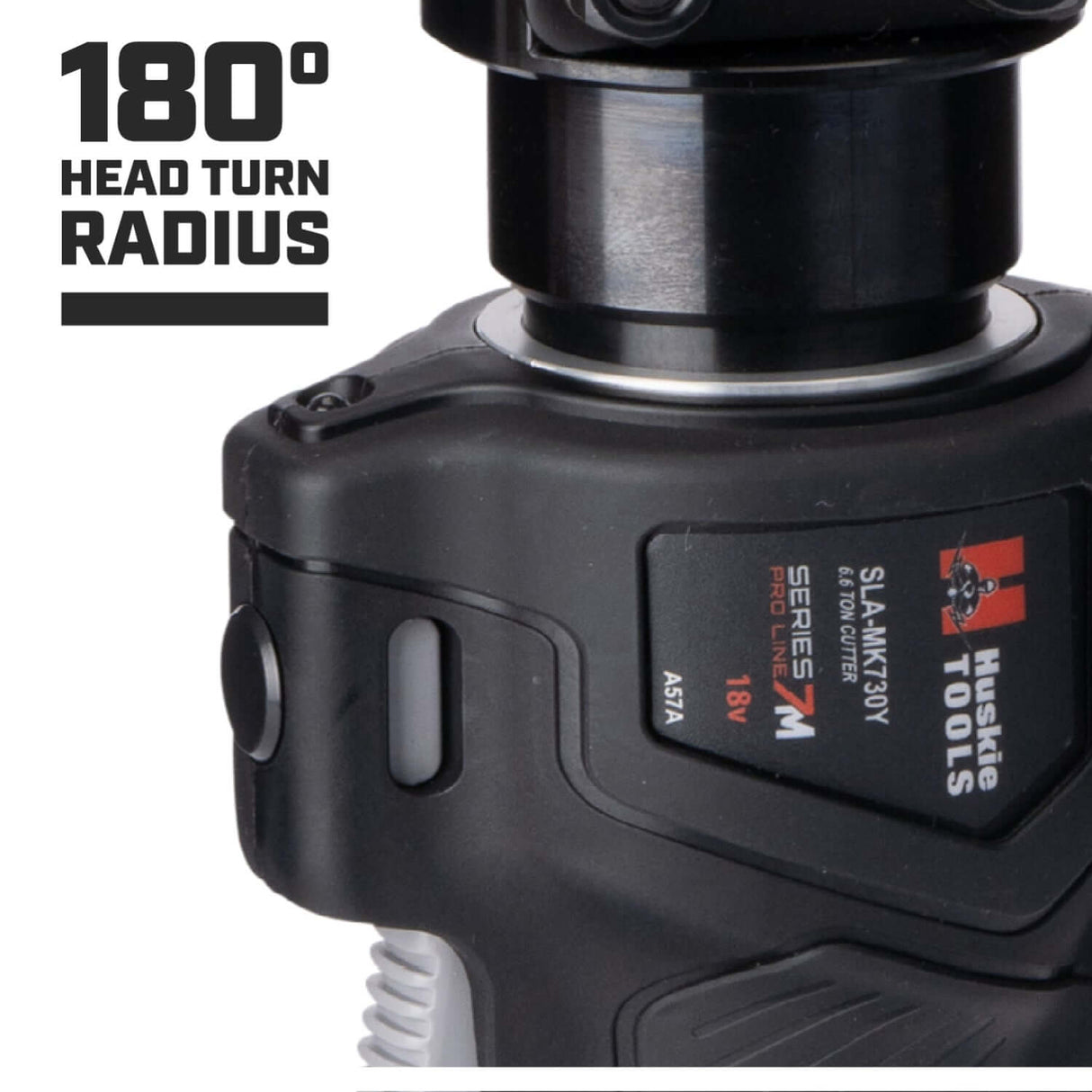

- 180° Rotating Head + LED Light – Better access and visibility in tight spaces and overhead work.
- Selectable Auto-Retract – Choose automatic ram return or manual return using the release trigger.
- Incomplete Cycle Indicator – LED work light flashes rapidly if a compression cycle is not completed.
- Steel Hydraulic Body – Built for durability and longer service life in tough environments.
- Die Compatibility – Accepts “W”, “X”, and “O” type dies (depending on jaw selected).
- Compact & Balanced – Lightweight design improves handling and portability on the job.
Jaw Compatibility Use Cases
| Jaw Type | Compatible Die Style | Common Use Cases | Notes |
|---|---|---|---|

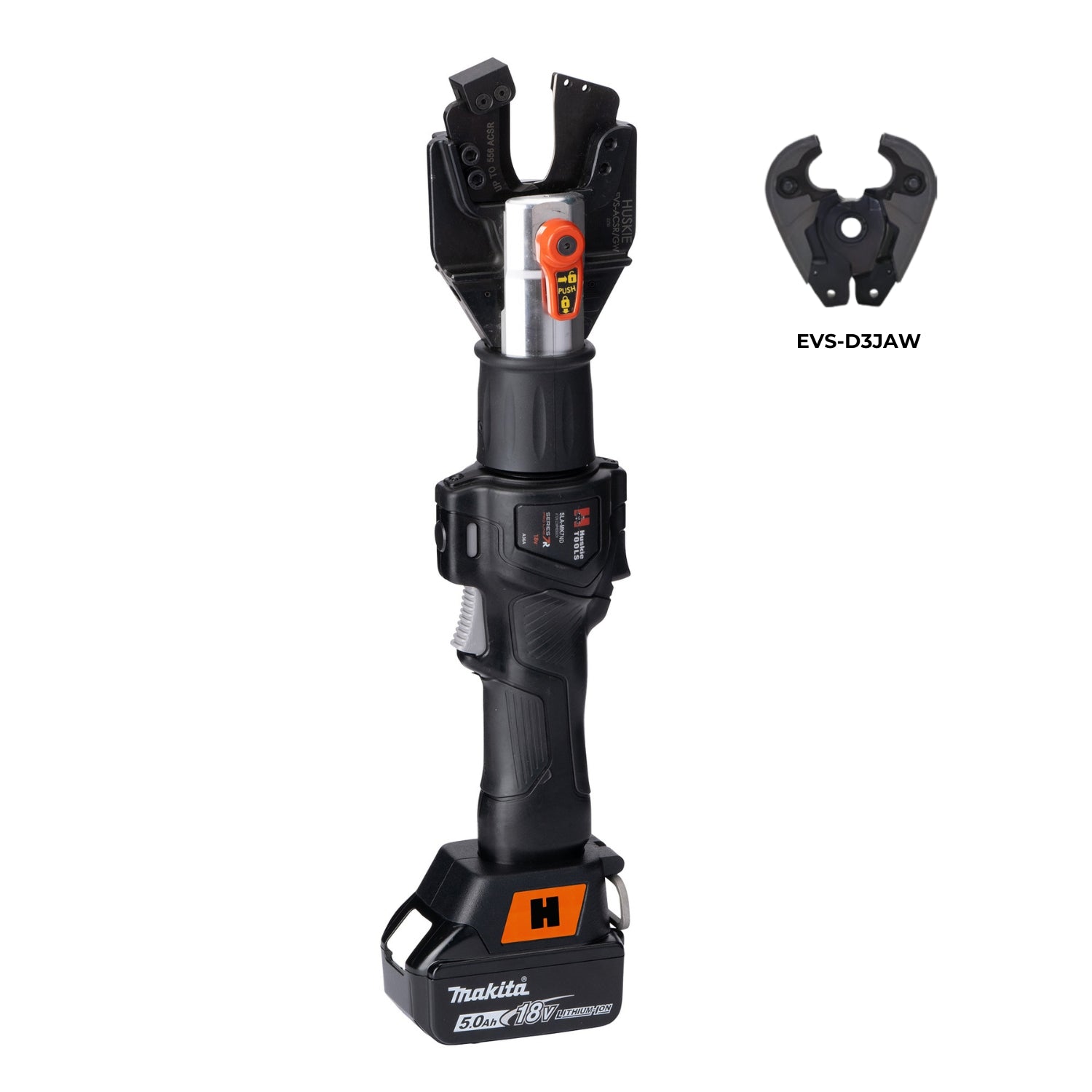

| D3 / W Jaw | W-style dies | Standard crimping of larger lugs and splices (Al/Cu) | Most popular for utility and general-purpose crimping |

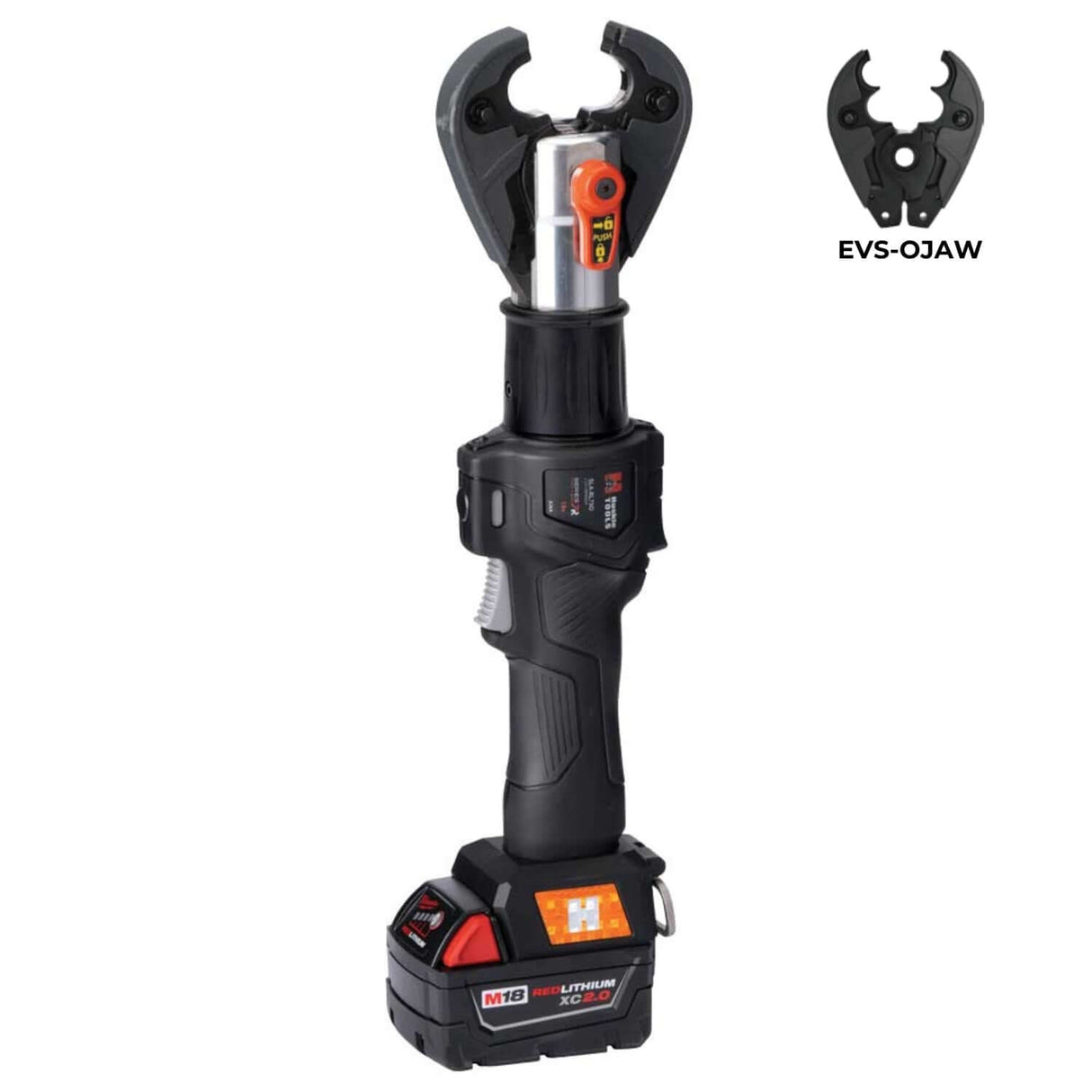

| O Jaw | O-style dies | Overhead line work and aerial cables | Optimized for tighter spaces and overhead applications |

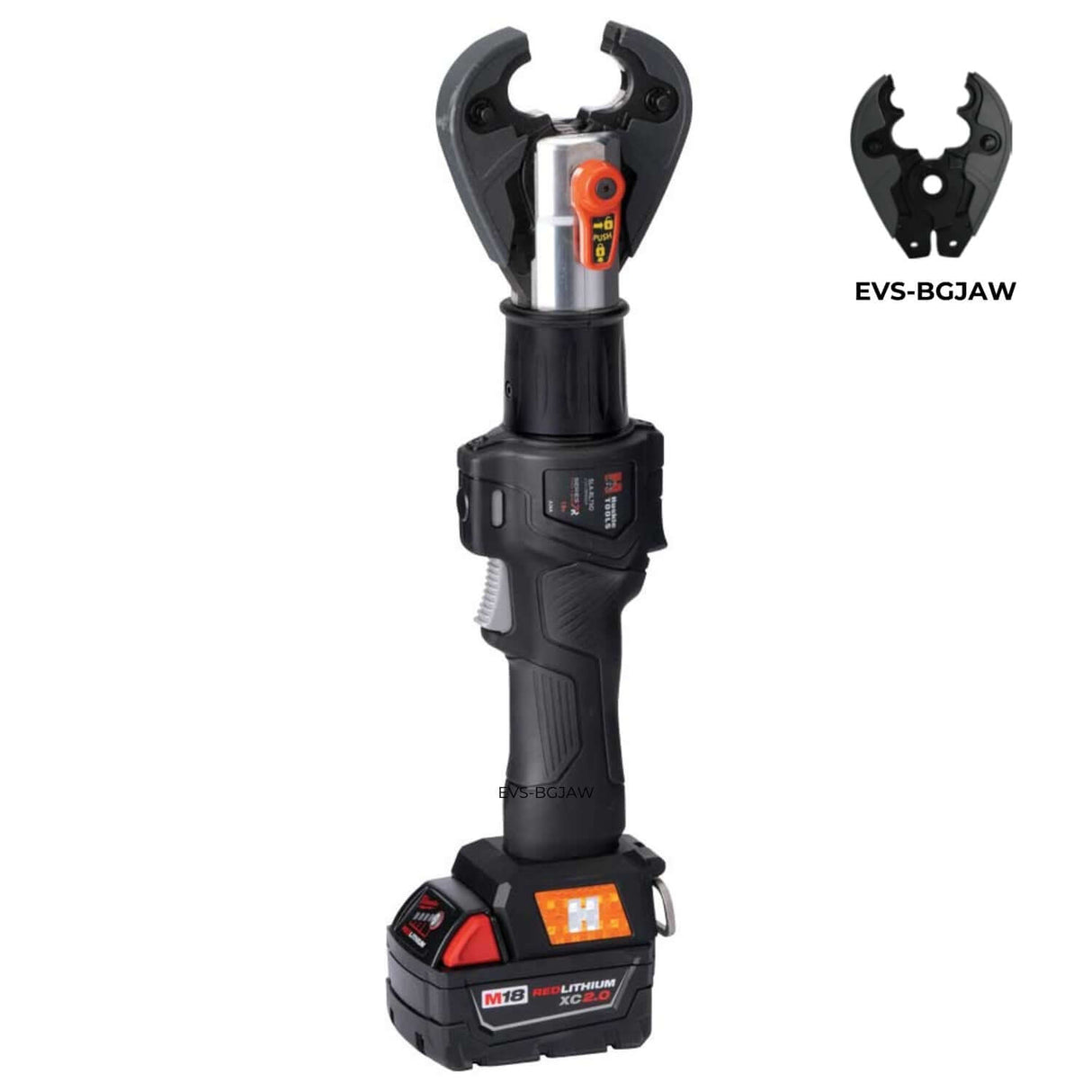

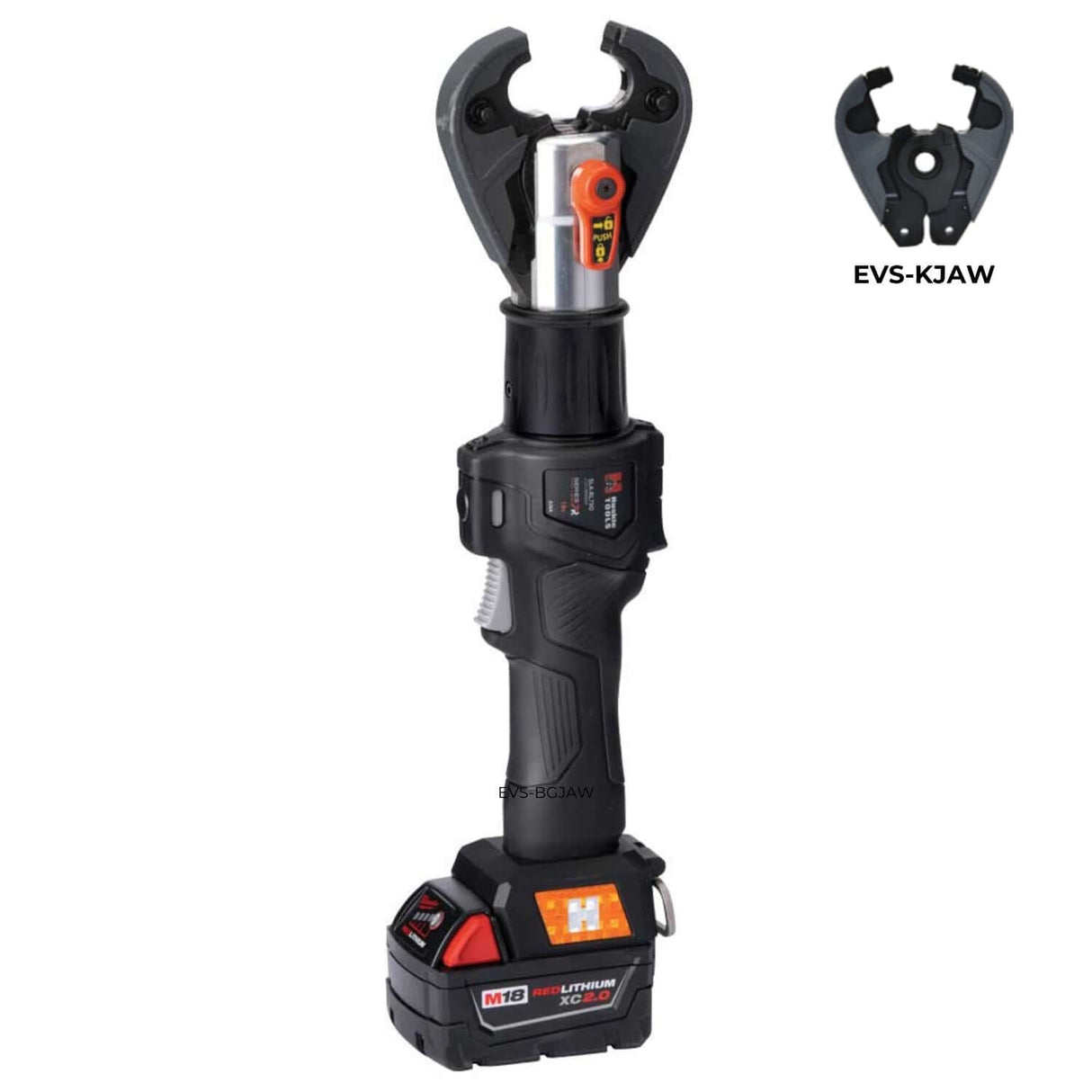

| BG / K Jaw | BG or K-style dies | Substation work, grounding applications | Common for grounding lugs and select H-tap work (verify jaw/die) |

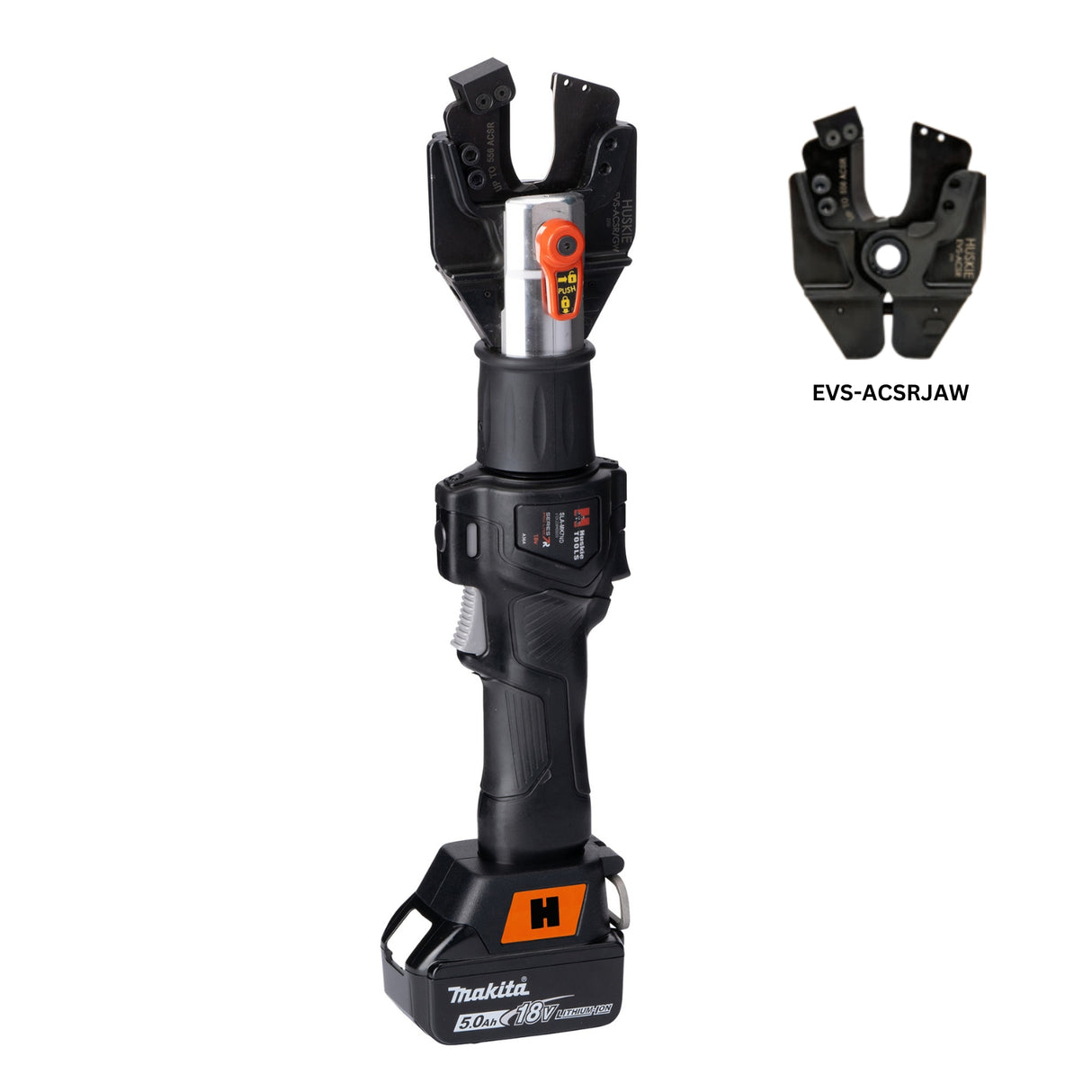

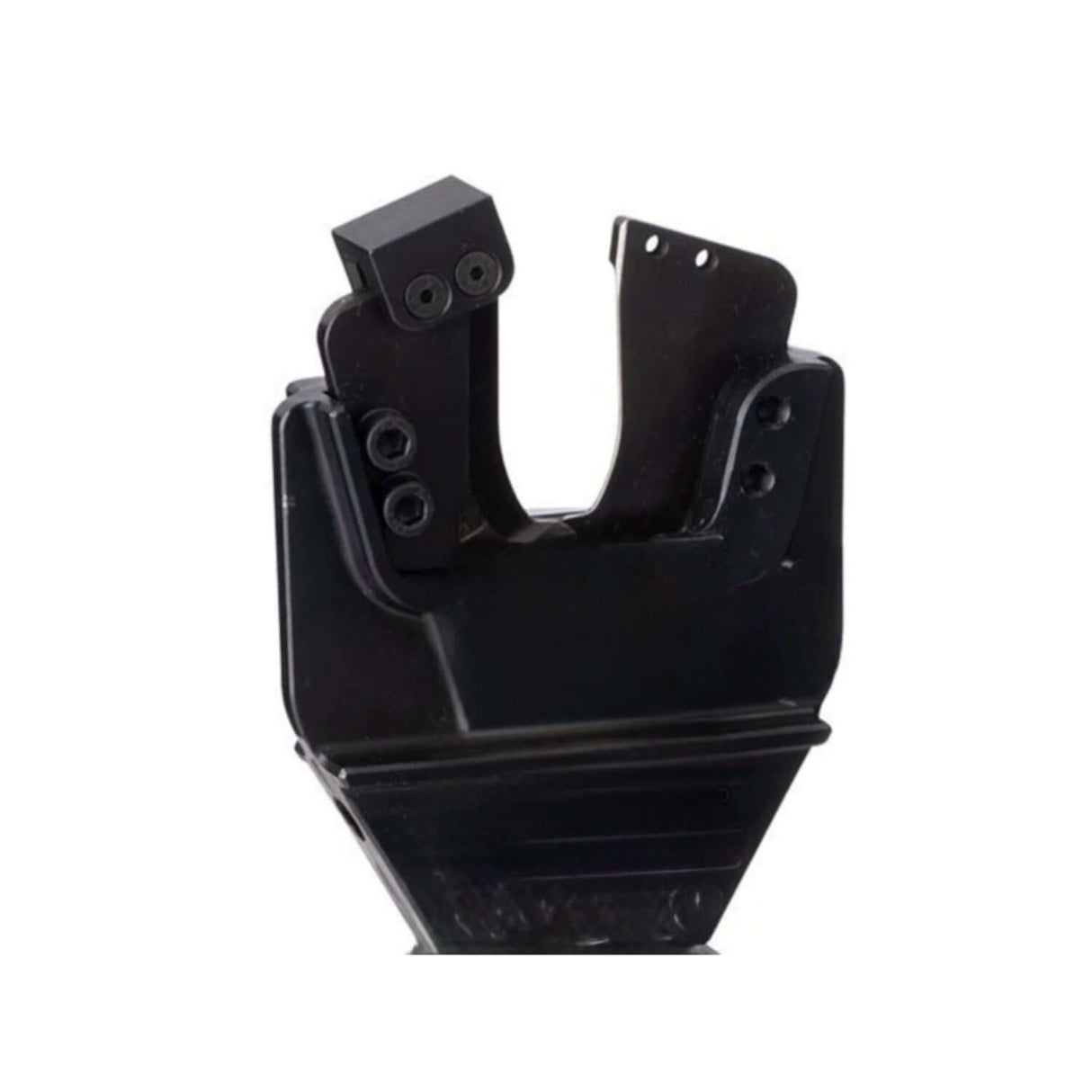

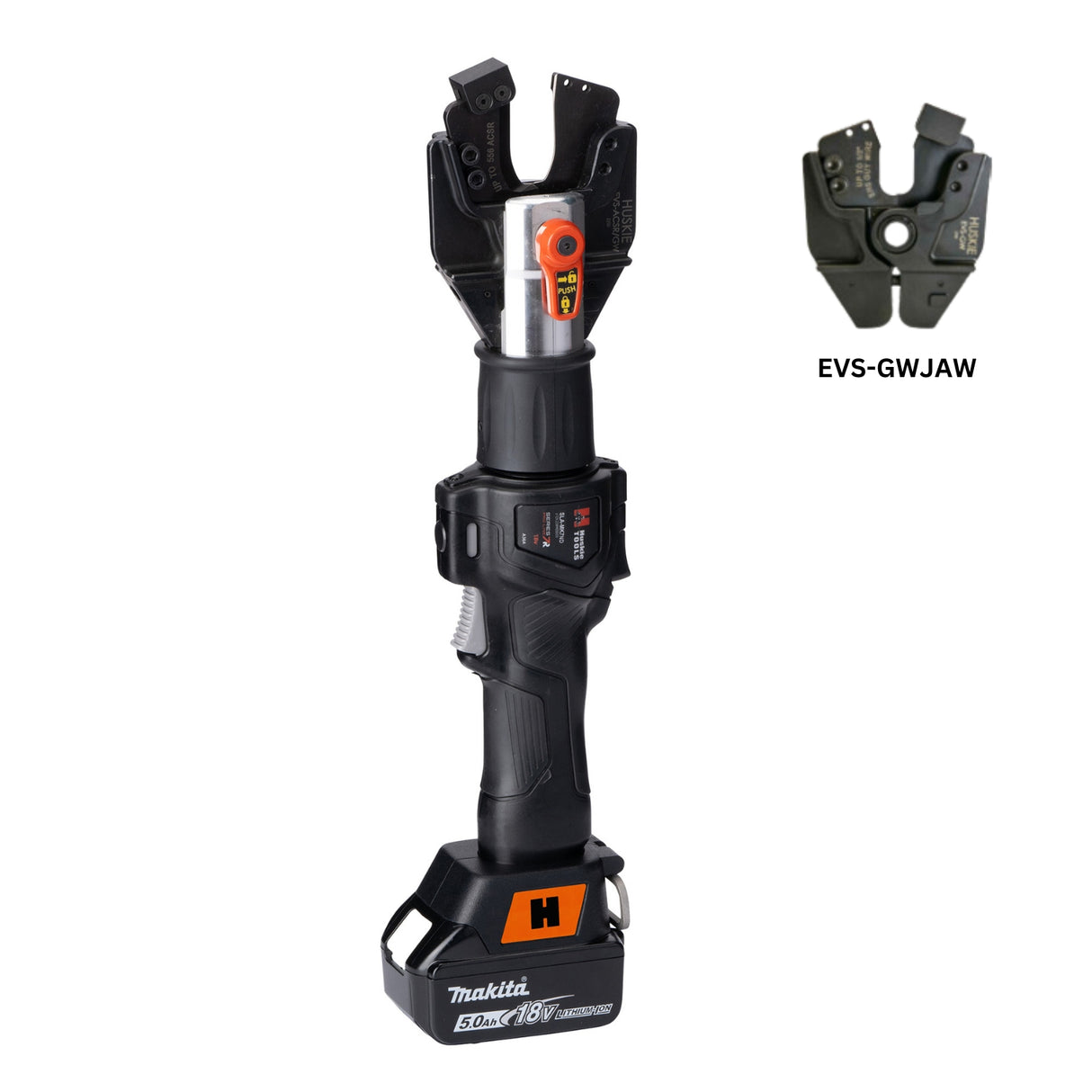

| Cutting Jaws (ACSR, CU/AL, GW) | N/A (cutting jaws) | Cutting copper, aluminum, guy wire, ACSR, and more | Choose the correct jaw per material — see cutting chart below |

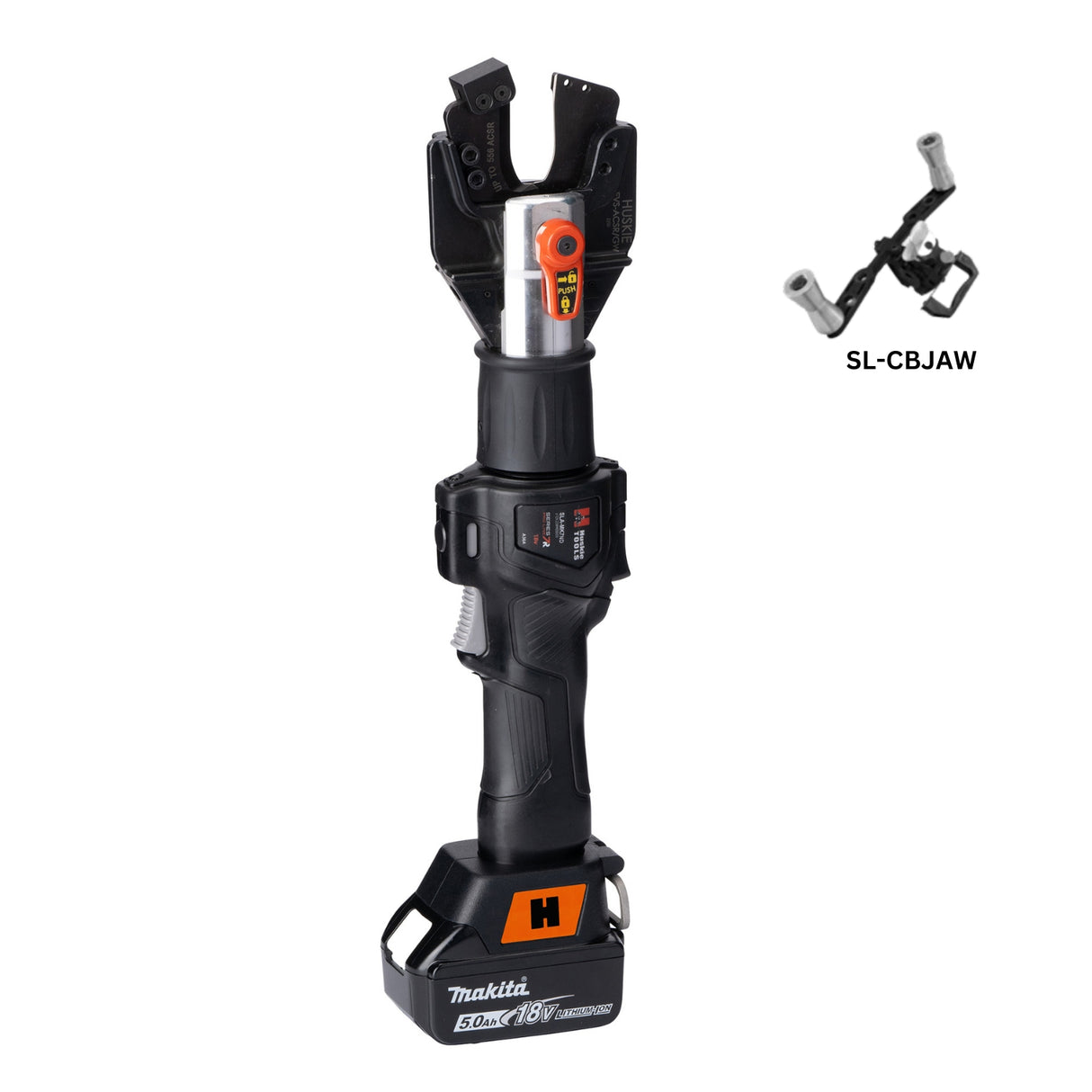

| Cable Bending Jaw | N/A | Bending stiff copper/aluminum wire for routing | Non-crimping; used for shaping wire during install |
Common Applications
- Utility line construction and maintenance
- Crimping lugs, splices, and select H-taps (verify jaw/die selection)
- Cutting copper, aluminum, ACSR, and guy wire (by jaw type)
- Cable bending and wire shaping during installation
Technical Specifications
| SPECIFICATIONS | |
|---|---|
| CRIMP FORCE | 6 Ton |
| WEIGHT | 6.9 lbs. w/o battery |
| DIMENSIONS (H X L X W) | 17.5" x 3.75" x 2.75" |
| CONNECTOR RANGE | |
|---|---|
| LUGS & SPLICES | #8 to 500 MCM Cu #8 to 350 MCM Al |
| H-TAPS | Up to 4/0-4/0 |
| Cutting Capacities | EVS-ACSRJAW | EVS-CUALJAW | EVS-GWJAW |
|---|---|---|---|
| Copper | 350 MCM | 750 MCM | Up to 4/0 |
| Aluminum | 350 MCM | 1" O.D. | Up to 4/0 |
| ACSR | 556 MCM | Do Not Cut | Up to 4/0 |
| EHS Guy Wire / Soft Locks / Soft Steel Bolts | Do Not Cut | Do Not Cut | Up to 3/8" |
Battery Note: Use supplied batteries or battery packs up to 5.0Ah (per manufacturer guidance).
What’s Included
- Bare Tool: Tool + Installed Jaw + Heavy-Duty Tool Bag (No Battery or Charger)
- AC Kit: Tool + Installed Jaw + (2) Batteries + AC Charger + Tool Bag
- DC Kit: Tool + Installed Jaw + (2) Batteries + DC Charger + Tool Bag
Documentation
Choosing the Right Variant
Select your battery platform first (Milwaukee M18 or Makita LXT), then choose the jaw/head that matches your work. If you’re unsure which jaw or die style you need, send us a photo of the connector and we can help match it.
