Galvanized RMC - 90° Galvanized Rigid Steel Elbows
$3,549.95
Unit price
/
Select Option
Galvanized RMC - 90° Galvanized Rigid Steel Elbows — Product Overview

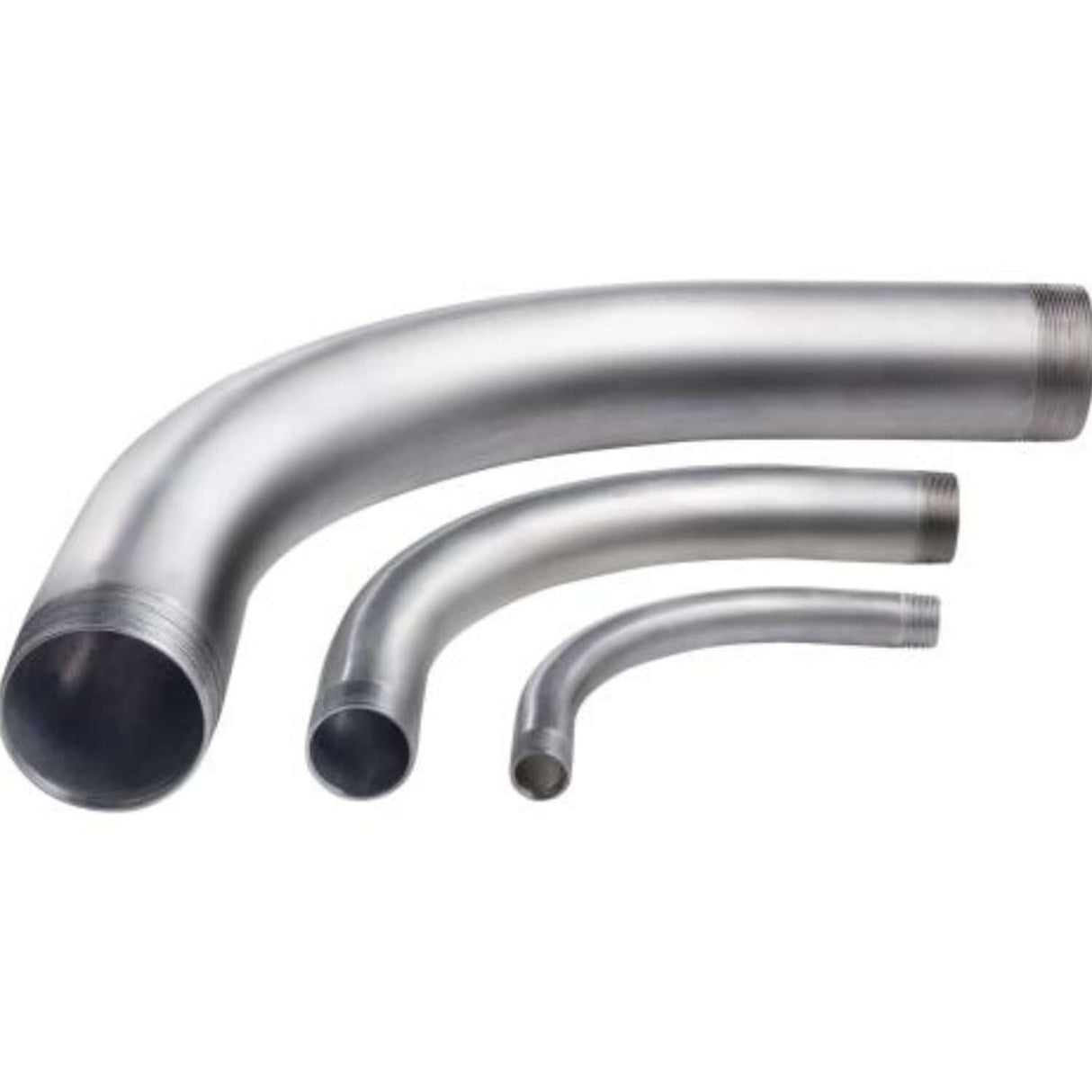

Galvanized Rigid Steel Elbows provide a durable and corrosion-resistant solution for changing conduit direction in electrical installations. Designed for use with Galvanized Rigid Conduit (GRC) or Intermediate Metal Conduit (IMC), these elbows allow for seamless 90° bends to fit specific locations. Manufactured from high-quality steel with a galvanized finish, these elbows ensure strength, longevity, and protection against harsh environments.
Applications:
- Used with rigid couplings to create 90° bends between two lengths of threaded GRC or IMC conduit.
- Ideal for indoor and outdoor electrical installations requiring precise directional changes.
- Protects and guides wiring through bends without compromising conduit integrity.
Key Features & Benefits:
✔Corrosion-resistant galvanized steel construction for durability.
✔ Provides smooth directional changes without disrupting wiring.
✔ NPT threaded ends for secure connections.
✔ Suitable for a wide range of electrical applications.
✔ Available in multiple sizes to fit various conduit requirements.
Compliance & Standards:
- UL Listed (UL 6)
- CSA C22.2 No. 45.1
- ANSI/NFPA 70 NEC 344
- CAN/CSA C22.1 NOM-001-SEDE

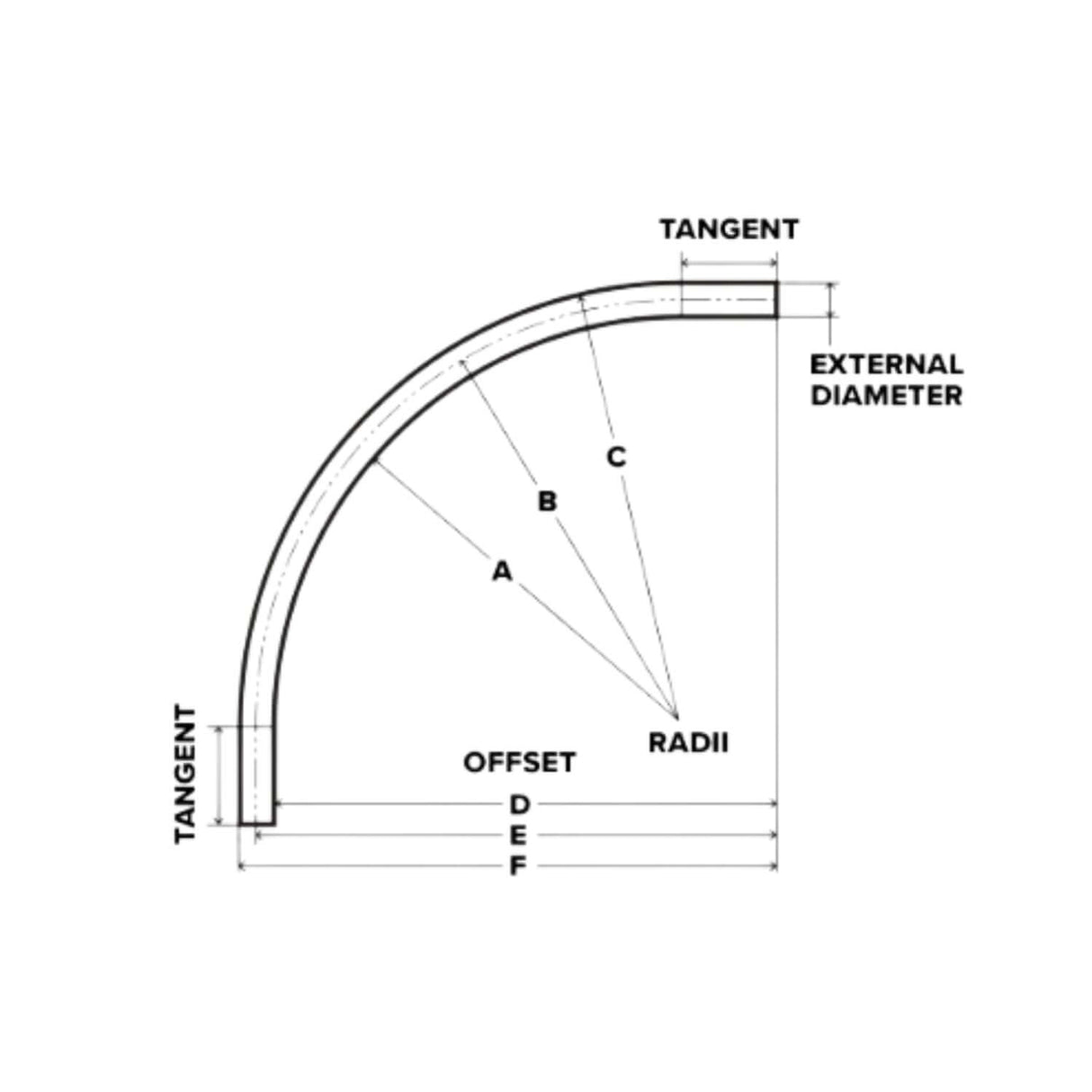

| Trade Size | External Diameter (Inches) | Internal Diameter (Inches) | Unbent Length (Inches) | Radius A | Radius B | Radius C | Offset D | Offset E | Offset F |
|---|---|---|---|---|---|---|---|---|---|
| 2-1/2" | 2.875 | 2.469 | 28 | 9.06 | 10.50 | 11.94 | 14.81 | 16.25 | 17.69 |
| 3" | 3.500 | 3.068 | 32 | 11.25 | 13.00 | 14.75 | 17.0 | 18.75 | 20.50 |
| 3-1/2" | 4.000 | 3.548 | 39.5 | 13.00 | 15.00 | 17.00 | 20.97 | 22.97 | 24.97 |
| 4" | 4.000 | 3.548 | 39.5 | 13.00 | 15.00 | 17.00 | 20.97 | 22.97 | 24.97 |
| 5" | 5.563 | 5.047 | 59.5 | 21.22 | 24.00 | 26.78 | 32.12 | 34.9 | 37.68 |
| 6" | 6.625 | 6.065 | 76 | 26.68 | 30.00 | 33.31 | 40.13 | 43.44 | 46.75 |
| 1/2" | 0.840 | 0.622 | 11.25 | 3.83 | 4.25 | 4.67 | 6.08 | 6.5 | 6.92 |
| 3/4" | 1.050 | 0.824 | 12.5 | 3.98 | 4.50 | 5.03 | 6.73 | 7.25 | 7.78 |
| 1" | 1.315 | 1.049 | 14.75 | 5.09 | 5.75 | 6.41 | 8.0 | 8.625 | 9.285 |
| 1-1/4" | 1.660 | 1.380 | 17.75 | 6.42 | 7.25 | 8.08 | 9.61 | 10.44 | 11.27 |
| 1-1/2" | 1.900 | 1.610 | 19.75 | 7.30 | 8.25 | 9.20 | 10.68 | 11.63 | 12.58 |
| CATALOG # | PRODUCT NAME | UPC | TRADE SIZE | CATEGORY | MATERIAL |
|---|---|---|---|---|---|
| GALELB1-1/2X90 | 1-1/2X90 Galvanized Elbow | 784011001651 | 1-1/2 | Galvanized RMC | Steel |
| GALELB1-1/4X90 | 1-1/4X90 Galvanized Elbow | 784011001644 | 1-1/4 | Galvanized RMC | Steel |
| GALELB1/2X90 | 1/2X90 Galvanized Elbow | 784011001613 | 1/2 | Galvanized RMC | Steel |
| GALELB1X90 | 1X90 Galvanized Elbow | 784011001637 | 1 | Galvanized RMC | Steel |
| GALELB2-1/2X90 | 2-1/2X90 Galvanized Elbow | 784011001675 | 2-1/2 | Galvanized RMC | Steel |
| GALELB2X90 | 2X90 Galvanized Elbow | 784011001668 | 2 | Galvanized RMC | Steel |
| GALELB3-1/2X90 | 3-1/2X90 Galvanized Elbow | 784011001699 | 3-1/2 | Galvanized RMC | Steel |
| GALELB3/4X90 | 3/4X90 Galvanized Elbow | 784011001620 | 3/4 | Galvanized RMC | Steel |
| GALELB3X90 | 3X90 Galvanized Elbow | 784011001682 | 3 | Galvanized RMC | Steel |
| GALELB4X90 | 4X90 Galvanized Elbow | 784011001705 | 4 | Galvanized RMC | Steel |
| GALELB5X90 | 5X90 Galvanized Elbow | 784011001729 | 5 | Galvanized RMC | Steel |
| GALELB6X90 | 6X90 Galvanized Elbow | 784011001743 | 6 | Galvanized RMC | Steel |
