Individual Double Seal-Offs | 2"-8" Nominal Sizes | Low-Pressure Air Blowing — Product Overview

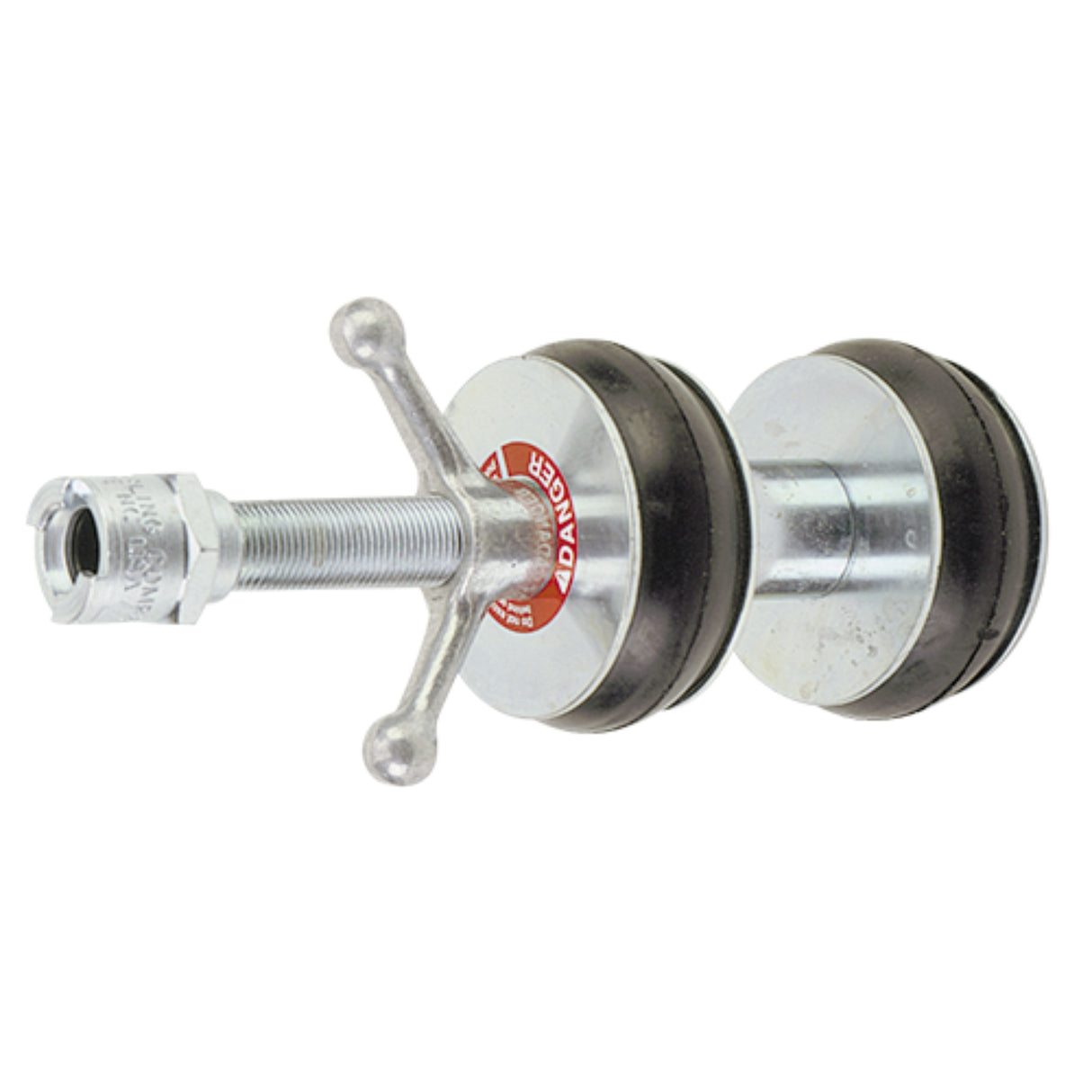

The Individual Double Seal-Offs are components used with the Condux Seal-Off Control Body in low-pressure air-blowing applications. The manufacturer lists eight double seal-off sizes for larger conduit, with nominal sizes ranging from 2" to 8".
Select the appropriate seal-off using the manufacturer's duct inside diameter (ID) range and nominal size. The seal-off assembly is used with compressed air to move a line carrier and pull string through conduit.
Important: The Condux low-pressure seal-off application has a 15 PSI maximum pressure. Confirm the complete seal-off assembly configuration before use.
Key Features
- Product Type: Individual double seal-off for low-pressure conduit air-blowing applications.
- Control Body Connection: Fits the Condux Seal-Off Control Body.
- Available Sizes: Eight nominal sizes from 2" to 8".
- Duct ID Selection: Manufacturer-listed inside diameter ranges for each part number.
- Maximum Pressure: 15 PSI for the low-pressure seal-off application.
- Size Selection: The 3.5" and 4" duct ID ranges overlap; confirm the intended nominal size before ordering.
- Pair With: Universal Seal-Off Control Valve LINK
Ordering Information
| Part Number | Description | Nominal Duct Size (in) | Duct ID Range (in) | Duct ID Range (mm) |
|---|---|---|---|---|
| 08032940 | 2" Double Seal-Off | 2" | 1.93"-2.36" | 49-60 |
| 08032945 | 2.5" Double Seal-Off | 2.5" | 2.40"-2.76" | 61-70 |
| 08032950 | 3" Double Seal-Off | 3" | 2.87"-3.31" | 73-84 |
| 08032955 | 3.5" Double Seal-Off | 3.5" | 3.50"-3.75" | 89-95 |
| 08032960 | 4" Double Seal-Off | 4" | 3.54"-4.25" | 90-108 |
| 08032965 | 5" Double Seal-Off | 5" | 4.72"-5.37" | 120-136 |
| 08032970 | 6" Double Seal-Off | 6" | 5.50"-6.29" | 140-160 |
| 08032975 | 8" Double Seal-Off | 8" | 7.83"-8.27" | 199-210 |
