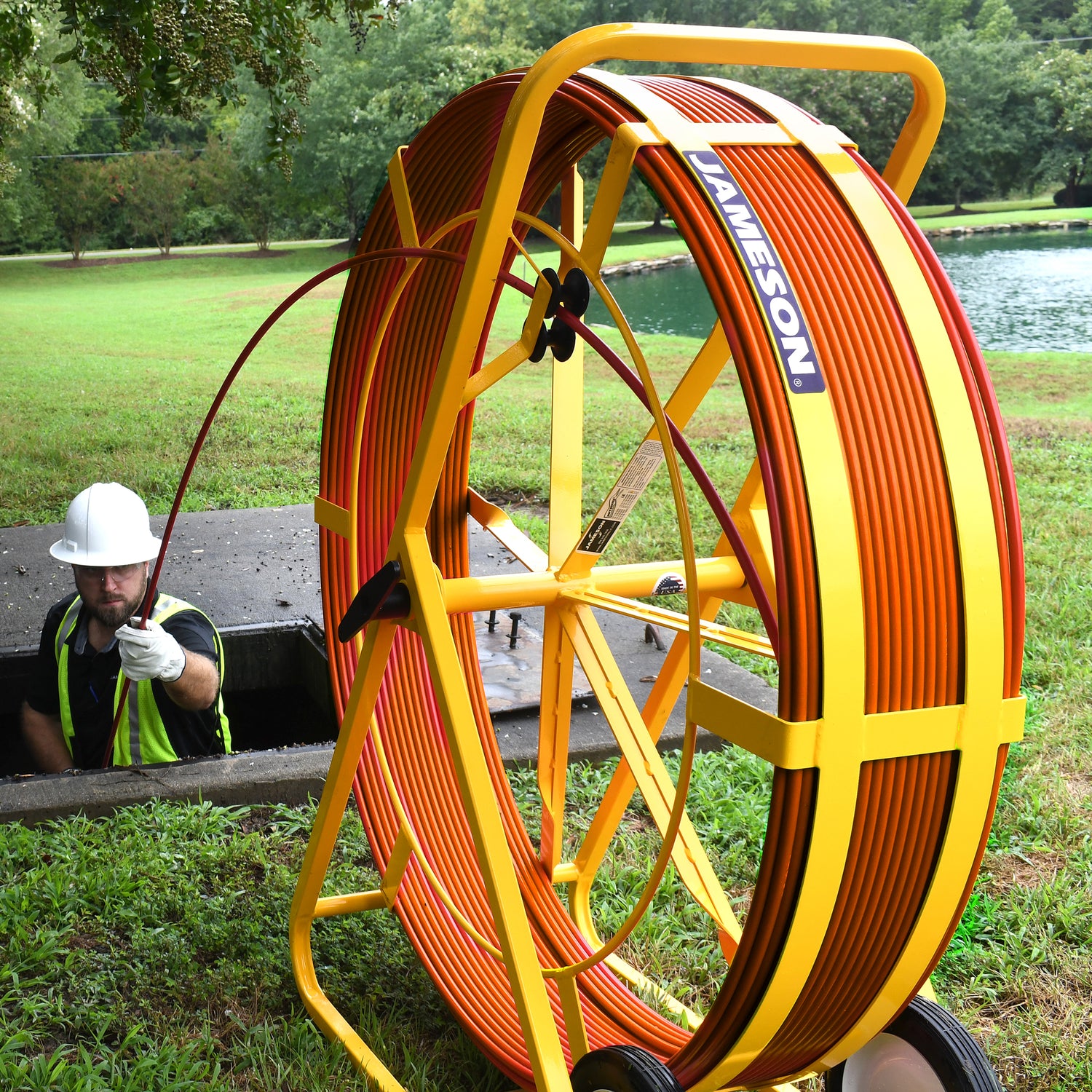

Jameson Big Buddy® and Mega Buddy® duct rodders (1/2") are heavy-duty conduit rodders designed for long underground runs and manhole-to-manhole pulls in 4" conduit and larger. The non-conductive round rod features a solid fiberglass core with a protective polymer jacket to help resist abrasion and reduce friction. A durable steel frame supports vertical or horizontal operation with a drag brake and safety feed eye for controlled payout and rewind.
- 1/2" Fiberglass Rod — Built for 4" conduit and larger with a solid core and protective jacket.
- 1,000 lb Rated Capacity — Built for long manhole-to-manhole runs and heavy-duty rodding.

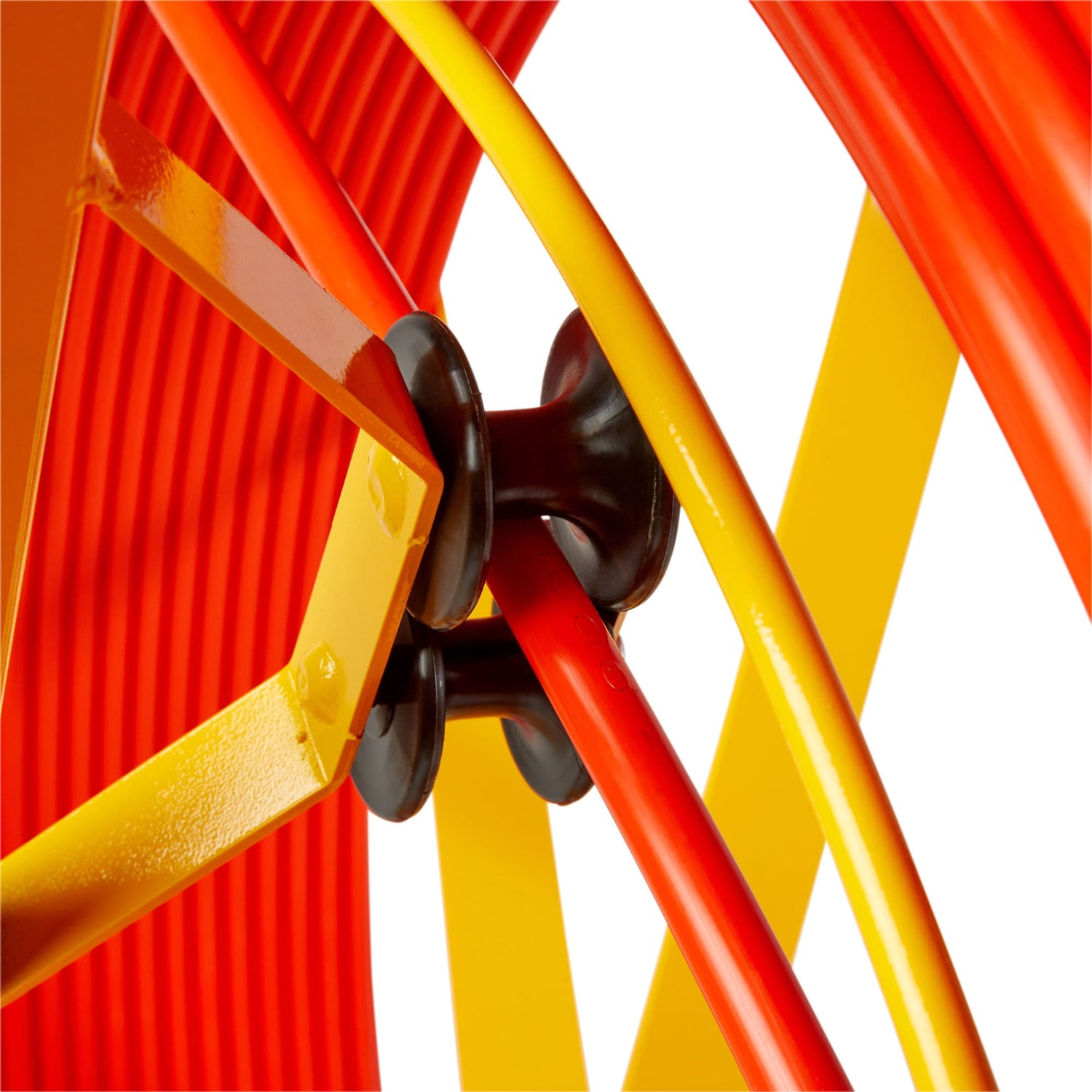

- Drag Brake & Safety Feed Eye — Helps keep payout and rewind controlled on the jobsite.

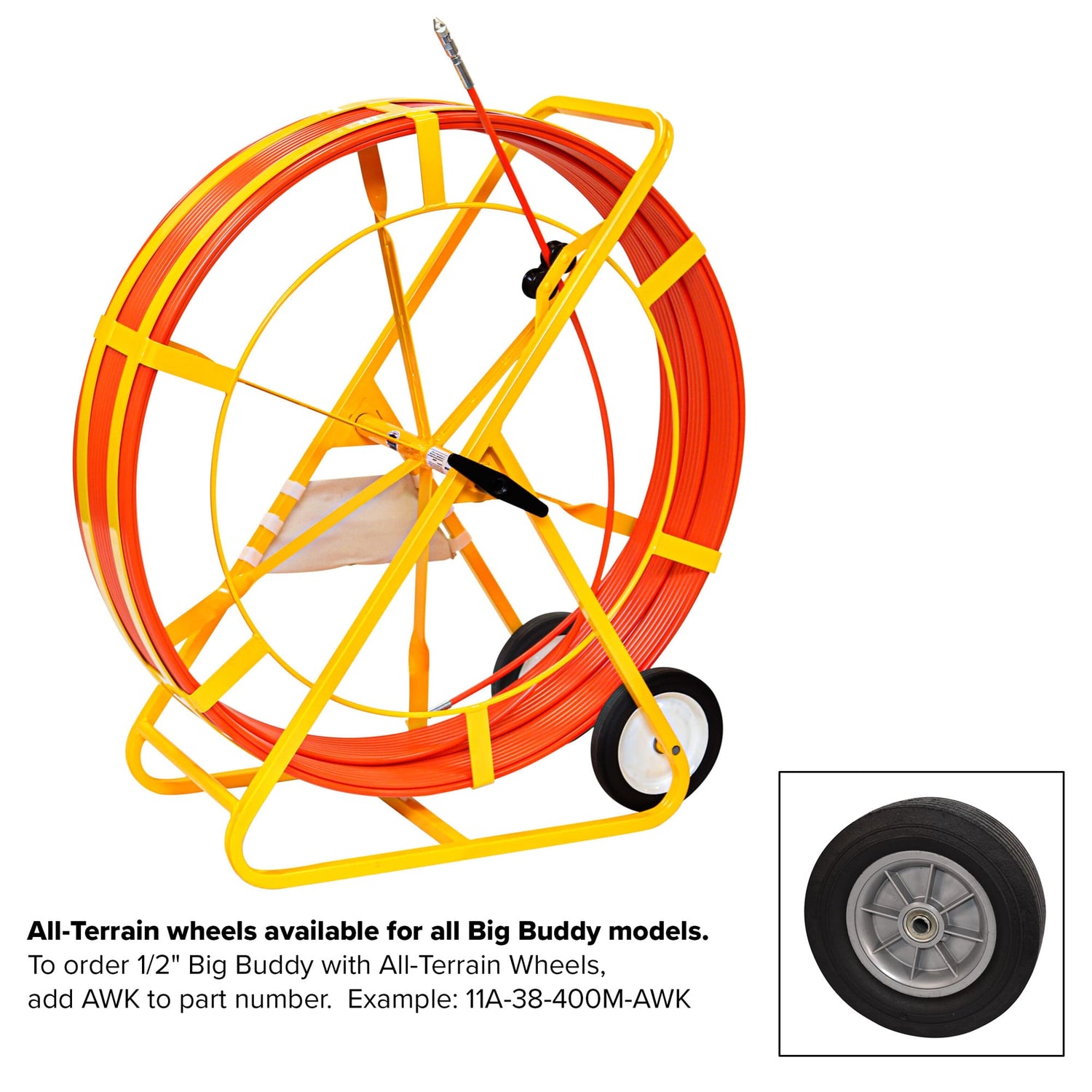

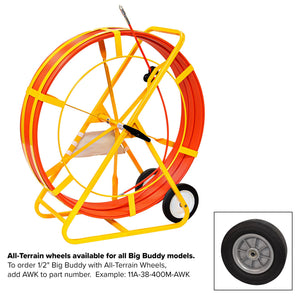

- Vertical or Horizontal Operation — Run upright or flat; All-Terrain wheels offered on select lengths.
- Marked Every 5' — Sequential footage markings help verify distance during pulls.

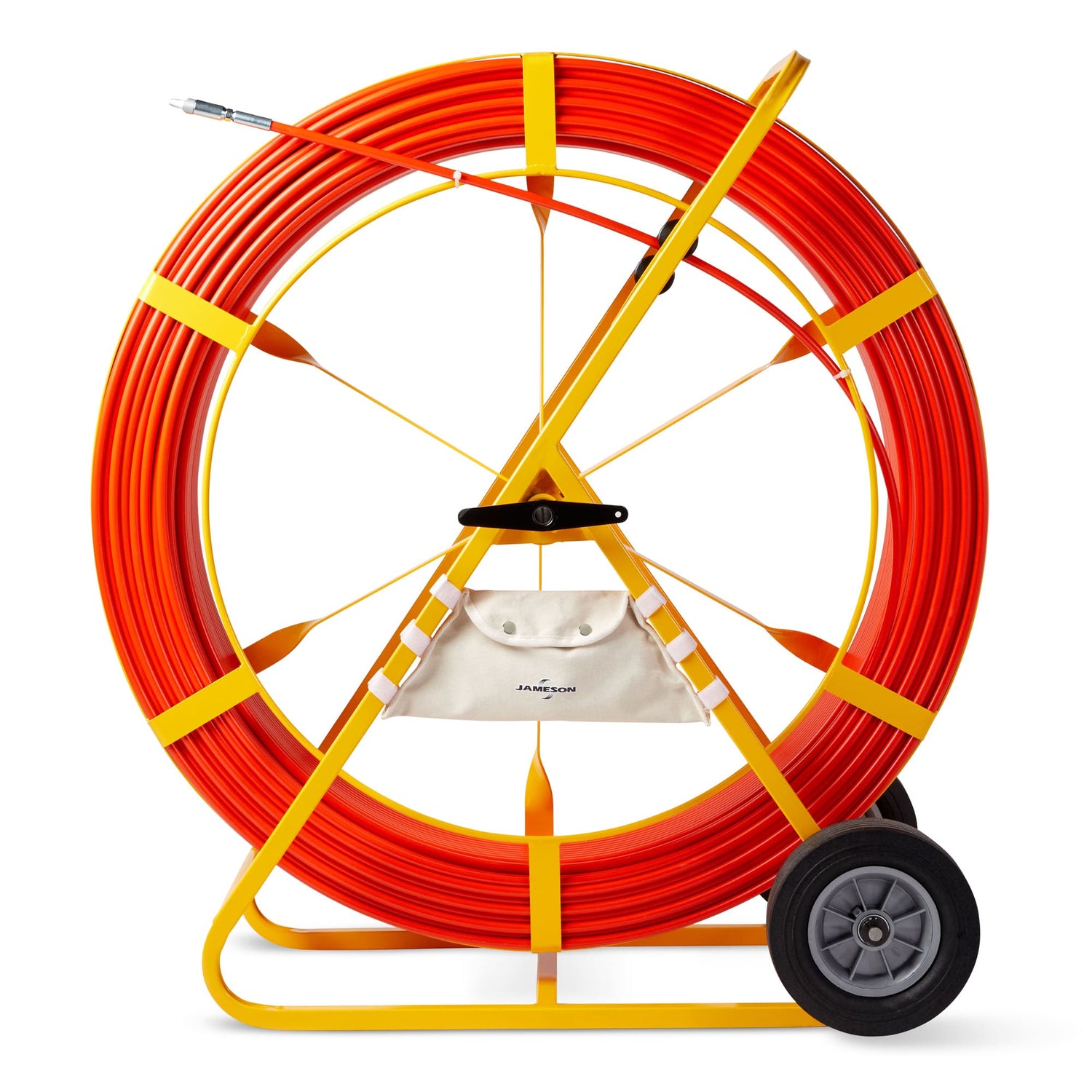

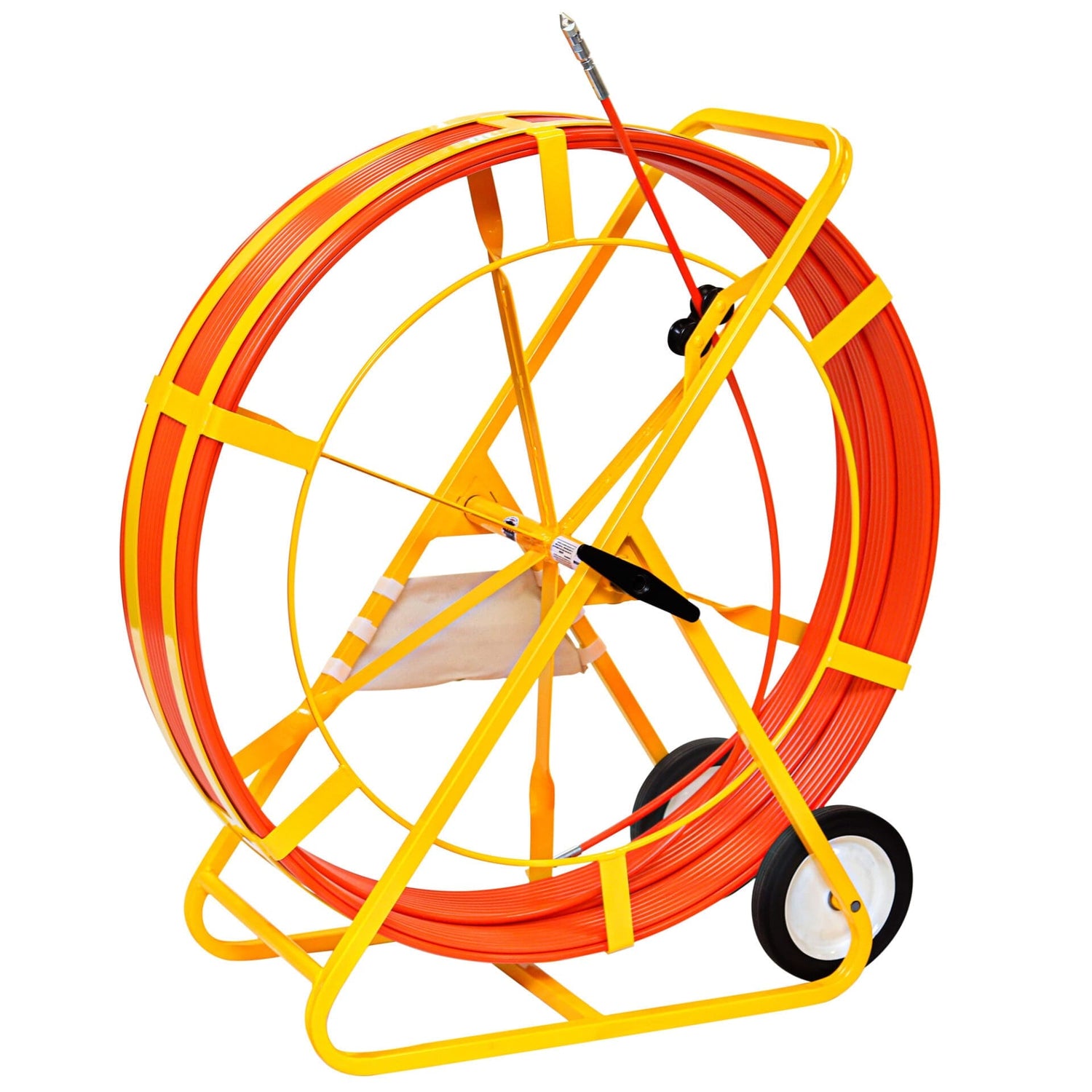

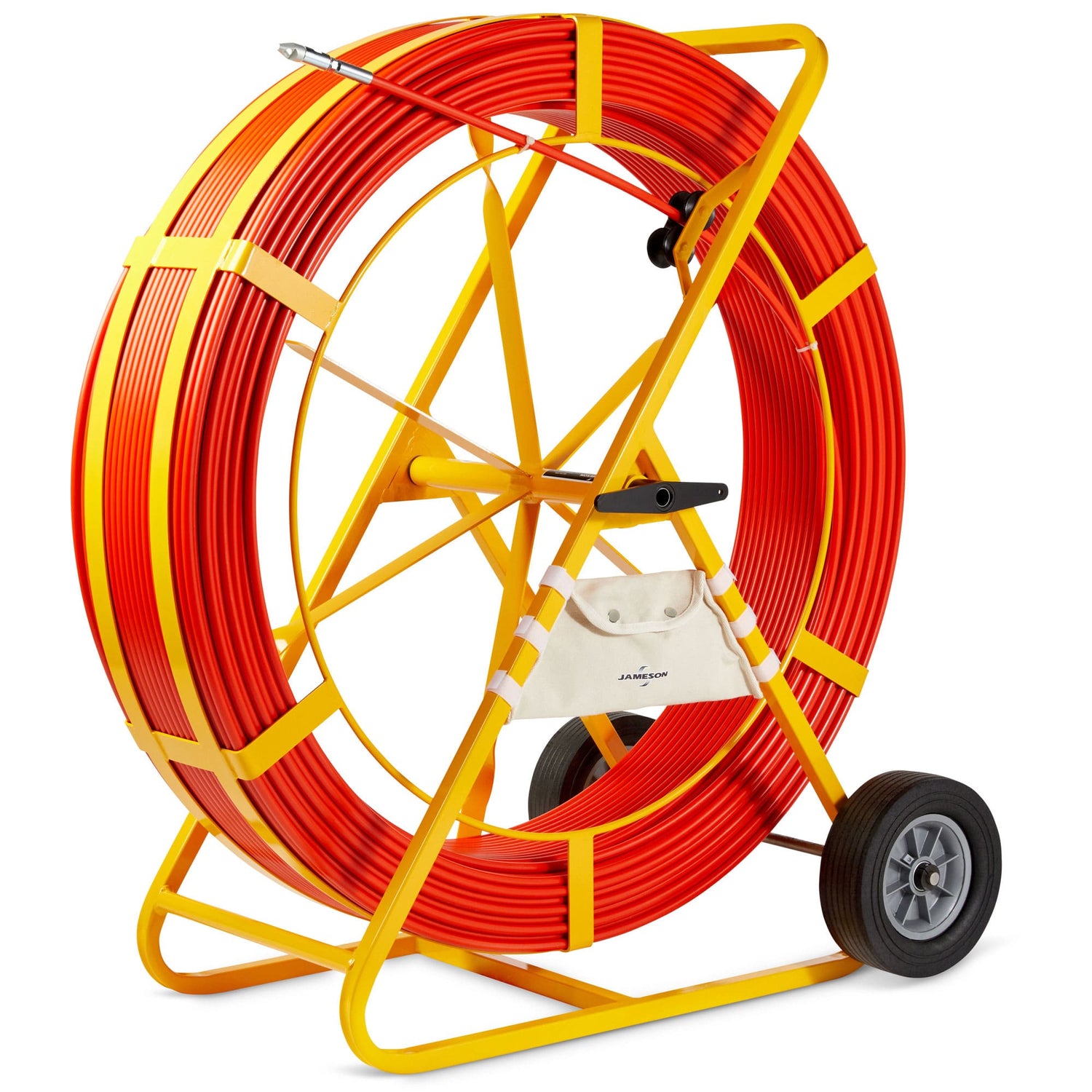

Big Buddy models are available in 300'–1000' lengths. Mega Buddy is available in 1500' with All-Terrain wheels standard.
Specifications
| Specification | Value |
|---|---|
| Rod Diameter | 1/2" fiberglass rod |
| Recommended Conduit Size | 4" conduit and larger |
| Minimum Bend Radius | 10" |
| Pull / Tensile Strength | 1,000 lb |
| Control Features | Drag brake and safety feed eye |
| Rod Markings | Marked in 5' increments |
| Included | Splice ferrule(s), pulling eye, end ferrule, adhesive, emery cloth (kit varies by configuration) |
| Frame Dimensions | Dimensions vary by length (see spec sheet for details) |
| Weight | Varies by length. Mega Buddy 1500' approximately 260 lb. |
Choose the Right Jameson Duct Rodder
| Rod Size | Best For | Typical Conduit | Pull Strength | Length Range |
|---|---|---|---|---|
| 1/4" Easy Buddy | Tight bends & short runs | 1"–2" | 400 lb | 300'–600' |
| 3/8" Good Buddy | General-purpose rodding | 2"–4" | 1,000 lb | 300'–1000' |
| 1/2" Big Buddy / Mega Buddy | Long pulls & manhole-to-manhole | 4"+ | 1,000 lb | 300'–1500' |
Shop the Jameson lineup: 1/4" Easy Buddy | 3/8" Good Buddy | 1/2" Big Buddy / Mega Buddy | View All Fiberglass Duct Rodders
Available Variants (MPNs)
Select your Length and Wheel Type. Big Buddy models are available in 300'–1000'. Mega Buddy is available in 1500' with All-Terrain wheels standard.
| Length | Wheel Type | MPN |
|---|---|---|
| 300' | Standard Wheels | 11-38-300M |
| 400' | Standard Wheels | 11-38-400M |
| 400' | All-Terrain Wheels | 11-38-400M-AWK |
| 500' | Standard Wheels | 11-38-500M |
| 500' | All-Terrain Wheels | 11-38-500M-AWK |
| 600' | Standard Wheels | 11-38-600M |
| 600' | All-Terrain Wheels | 11-38-600M-AWK |
| 800' | Standard Wheels | 11-38-800M |
| 800' | All-Terrain Wheels | 11-38-800M-AWK |
| 1000' | Standard Wheels | 11-38-1000M |
| 1000' | All-Terrain Wheels | 11-38-1000M-AWK |
| 1500' | All-Terrain Wheels (Standard) | 11-38-1500M |
Compatible Accessories (Sold Separately)
| Accessory | Use | MPN |
|---|---|---|
| Accessory / Repair Kit | Canvas pouch kit with ferrules, adhesive, emery cloth | 11-38-RK |

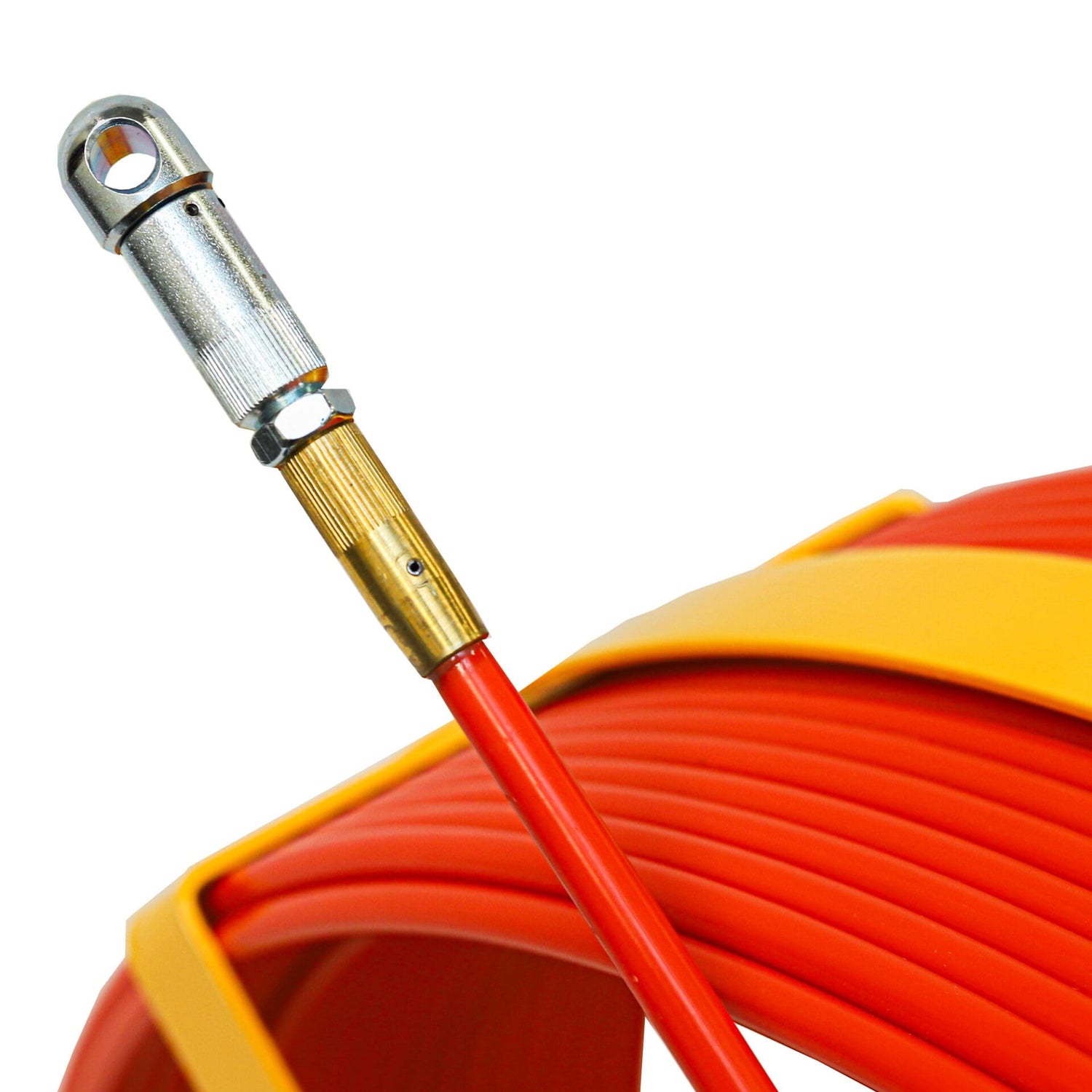

| Swivel Pulling Eye | Attach pull line or pulling grip to rod | 11-139 |
| Shackle Fitting | Use with pulling eye for a larger pulling loop | 11-142 |
| Roller Guide | Guide rod through bends, sweeps, and misalignments | 11-141 |
| Flexible Fiberglass Stinger Tip (6') | Guide rod through bends and sweeps | 11-25-6ST |
| Flexible Fiberglass Stinger Tip (8') | Guide rod through bends and sweeps | 11-25-8ST |
| Swivel Coupling | Connect two rods for added length; provides rotation when pulling | 11-143 |
| Rod Grapples | Connect two rodders from opposite directions | 11-148 |

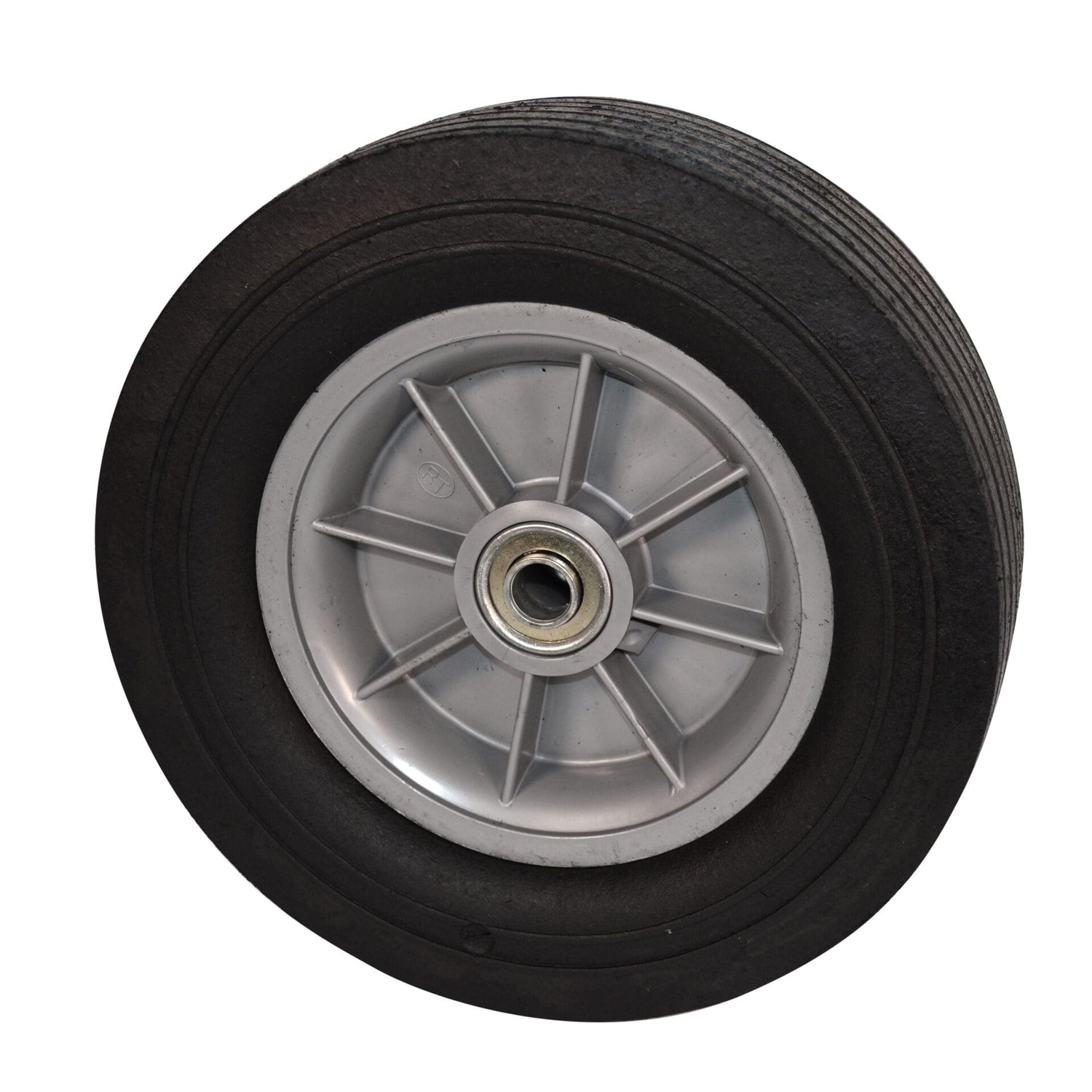

| All-Terrain Wheel Kit | Replacement All-Terrain wheel kit (2 wheels/axle) | 11-AWK |
Safety note: Do not use on live circuits. Wear safety glasses and gloves. Keep rod controlled during payout/rewind and follow the manufacturer manual for operation and repair guidance.
