Jameson Duct Hunter Traceable Rodder | 1/4" Fiberglass | 300'–600'
Duct Hunter 1/4" Traceable Rodder Overview

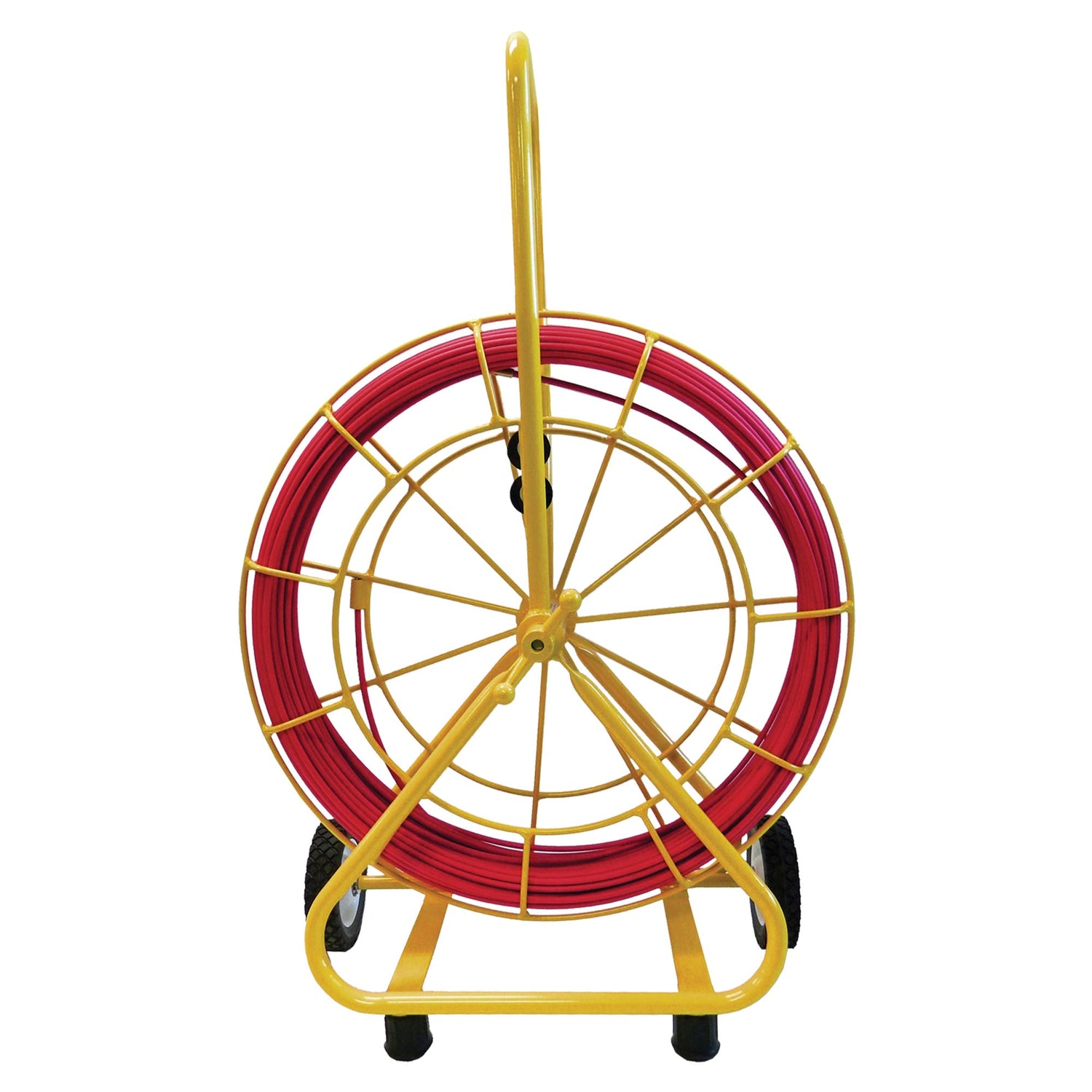

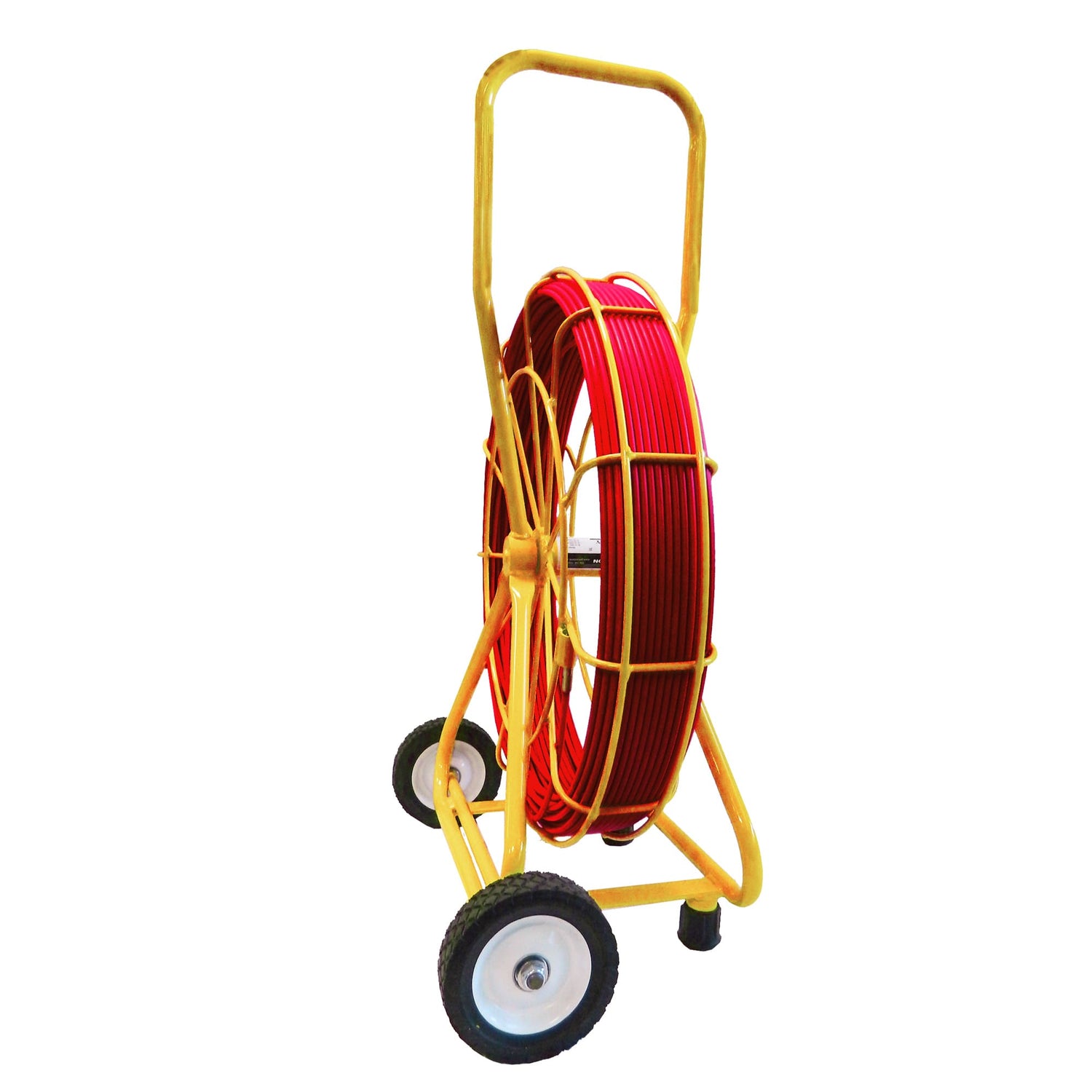

The Jameson Duct Hunter Traceable Rodder is a continuous fiberglass duct rodder with a copper wire embedded in the rod core. When connected to a signal transmitter, the rod energizes and allows contractors to trace the continuous path of underground pipe using a receiver, helping reduce excavation, pavement breakage, and jobsite disruption.
This listing includes 1/4" fiberglass rodder systems in 300' to 600' lengths, built for locating non-conductive pipe such as PVC, PE, concrete, clay, and tile.
- Traceable Rod Design — Copper wire embedded in fiberglass rod core for underground locating.
- 1/4" Rod for 1"–2" Pipe — Built for duct and pipe runs with a 4" minimum bend radius.
- 300'–600' Lengths — Multiple reel options under one listing.
- Marked for Field Use — 5' increment markings with 1m metric marked available.
- Accessory Kit Included — Includes repair kit and pulling hardware.
Compatible with standard underground locating transmitters and receivers.
| Specification | Details |
|---|---|
| Brand | Jameson |
| Product Line | Duct Hunter |
| Product Type | Traceable Rodder |
| Available Lengths | 300 ft, 400 ft, 500 ft, 600 ft |
| Rod Diameter | 1/4" |
| Rod Type | Traceable fiberglass rodder |
| Trace Wire | Copper wire embedded in rod core |
| Rod Jacket | Red polymer jacket |
| Recommended Conduit / Pipe ID | 1" to 2" |
| Minimum Bend Radius | 4" |
| Pull Strength | 400 lb |
| Male End Ferrule Thread | 1/4" - 20 |
| Rod Markings | Marked every 5 ft; metric every 1 m |
| Accessory Kit | 16-14-AK included |
| Dimensions | 36.25" x 24" x 13" |
| Weight | 28.0 to 39.0 lb |
Variant Options
| Part Number | Length | Rod Diameter |
|---|---|---|
| 16-14-300M | 300 ft | 1/4" |
| 16-14-400M | 400 ft | 1/4" |
| 16-14-500M | 500 ft | 1/4" |
| 16-14-600M | 600 ft | 1/4" |
EZ-Reel Replacement Reel Options
| Original Rodder Length | Replacement Reel Part Number | Rod Diameter |
|---|---|---|
| 300 ft | 16-300RRM | 1/4" |
| 400 ft | 16-400RRM | 1/4" |
| 500 ft | 16-500RRM | 1/4" |
| 600 ft | 16-600RRM | 1/4" |
Typical Applications
- Trace conduit and pipe before excavation
- Locate sewer laterals and help confirm no cross bore
- Trace plastic, clay, tile, or concrete pipe
- Underground utility and sewer locating
What’s Included
- Duct Hunter traceable rodder (selected length)
- Pulling eye or roller guide
- Accessory kit (16-14-AK)
Safety Note: Always verify locator compatibility and follow standard utility locating and excavation safety practices before tracing or exposing underground lines.
