Jameson Mini Duct Hunter Traceable Rodder | 3/16" | 100'–325'
Mini Duct Hunter 3/16" Traceable Rodder Overview
The Jameson Mini Duct Hunter Traceable Rodder is a compact fiberglass rodder system built for locating and mapping small conduit and pipe. When connected to a signal transmitter, the traceable rod can be located with a receiver, making it ideal for fiber installs, micro-duct, plumbing applications, and sewer lateral tracing.

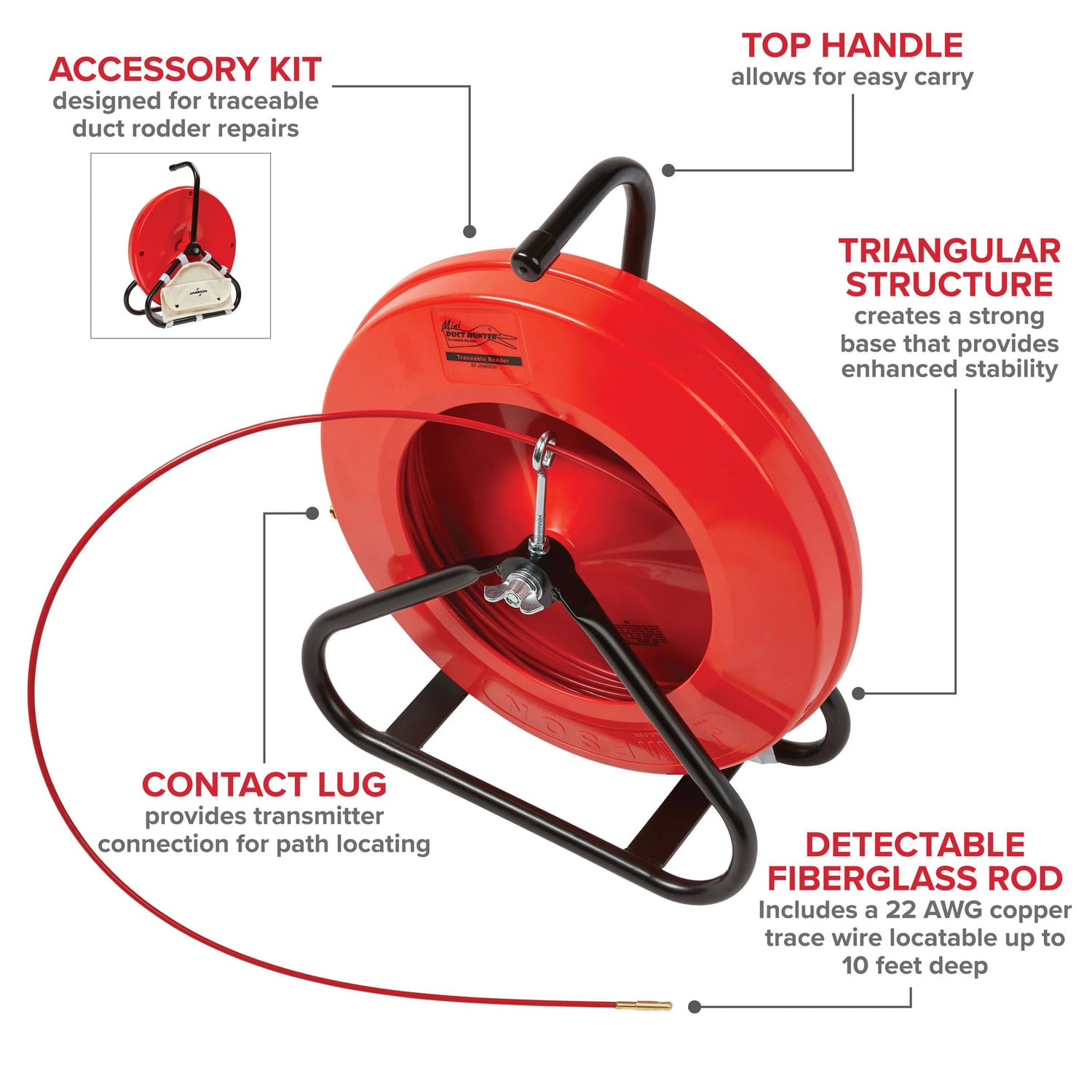

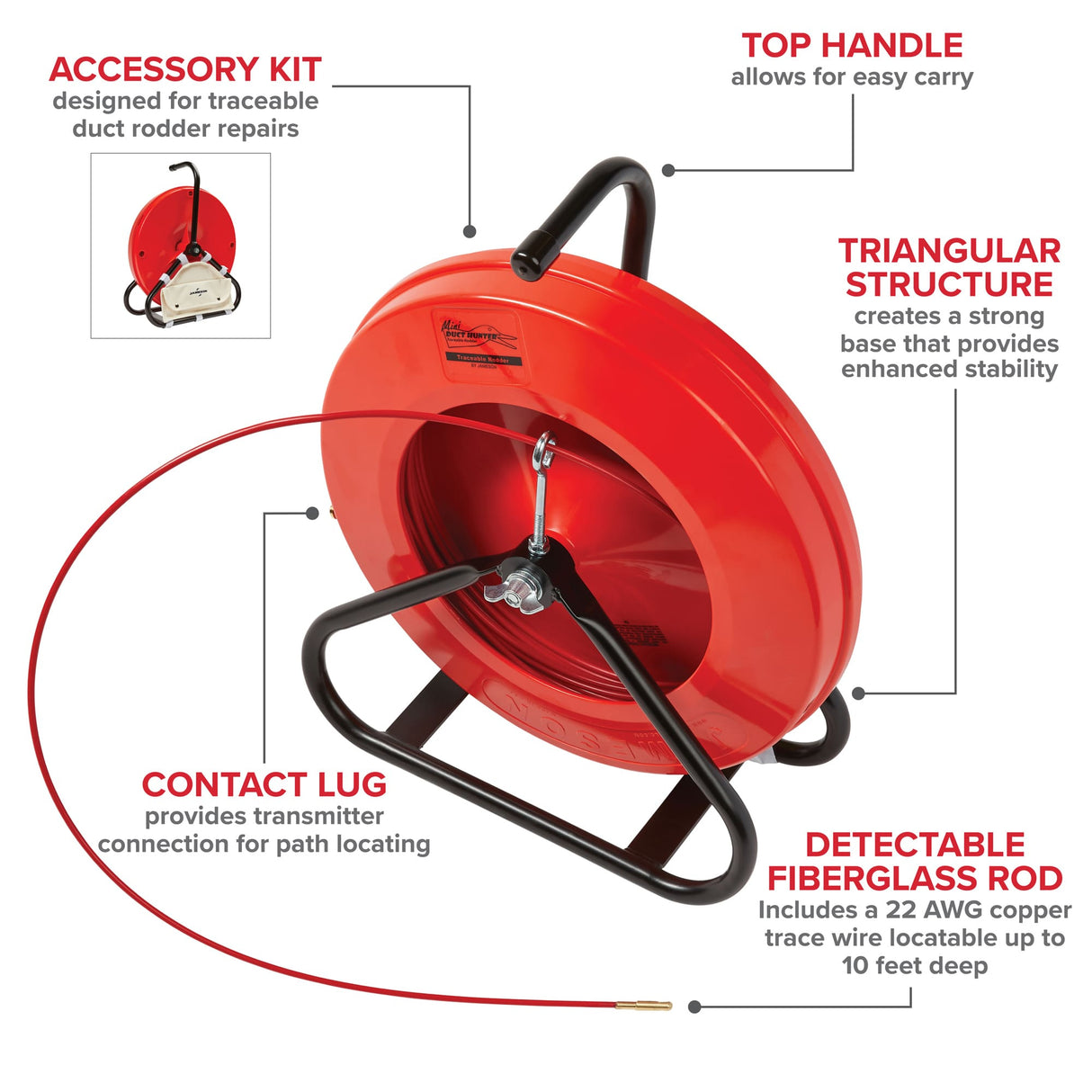

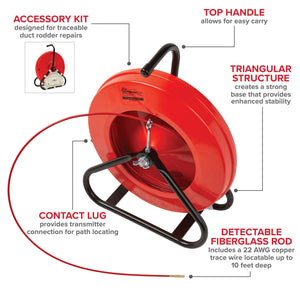

This complete rodder assembly includes the reel, frame, and 3/16" traceable fiberglass rod, giving contractors a lightweight, field-ready setup for tight conduit runs and smaller jobs.
- Complete Rodder — Reel, frame, and rod ready to go.
- 3/16" Traceable Rod — Built for underground locating.
- For Small Conduit — Ideal for 1/2" to 1-1/2" pipe.
- Handles Tight Bends — 2.5" bend radius for short runs.
- Includes Accessory Kit — Fittings and repair parts included.
Compatible with standard underground locating transmitters and receivers.
| Specification | Details |
|---|---|
| Brand | Jameson |
| Product Line | Mini Duct Hunter |
| Product Type | Traceable Rodder Assembly |
| Available Lengths | 100 ft, 150 ft, 200 ft, 250 ft, 300 ft, 325 ft |
| Rod Diameter | 3/16" |
| Recommended Conduit Size | 1/2" to 1-1/2" |
| Trace Wire | Copper wire embedded in rod core |
| Minimum Bend Radius | 2.5" |
| End Ferrule Thread | 1/4"-20 |
| Accessory Kit | 15-316-AK included |
| Dimensions | 22" x 17" x 7" |
Available Assembly Options
| Part Number | Length | Rod Diameter |
|---|---|---|
| 15-316-100 | 100 ft | 3/16" |
| 15-316-150 | 150 ft | 3/16" |
| 15-316-200 | 200 ft | 3/16" |
| 15-316-250 | 250 ft | 3/16" |
| 15-316-300 | 300 ft | 3/16" |
| 15-316-325 | 325 ft | 3/16" |
Typical Applications
- Locate fiber optic cable in PVC pipe without tracer wire
- Trace fiber optic mini-duct in FTTX and home-run applications
- Trace sewer laterals up to 4" diameter and help avoid cross bores
- Handle plumbing and small pipe locating applications

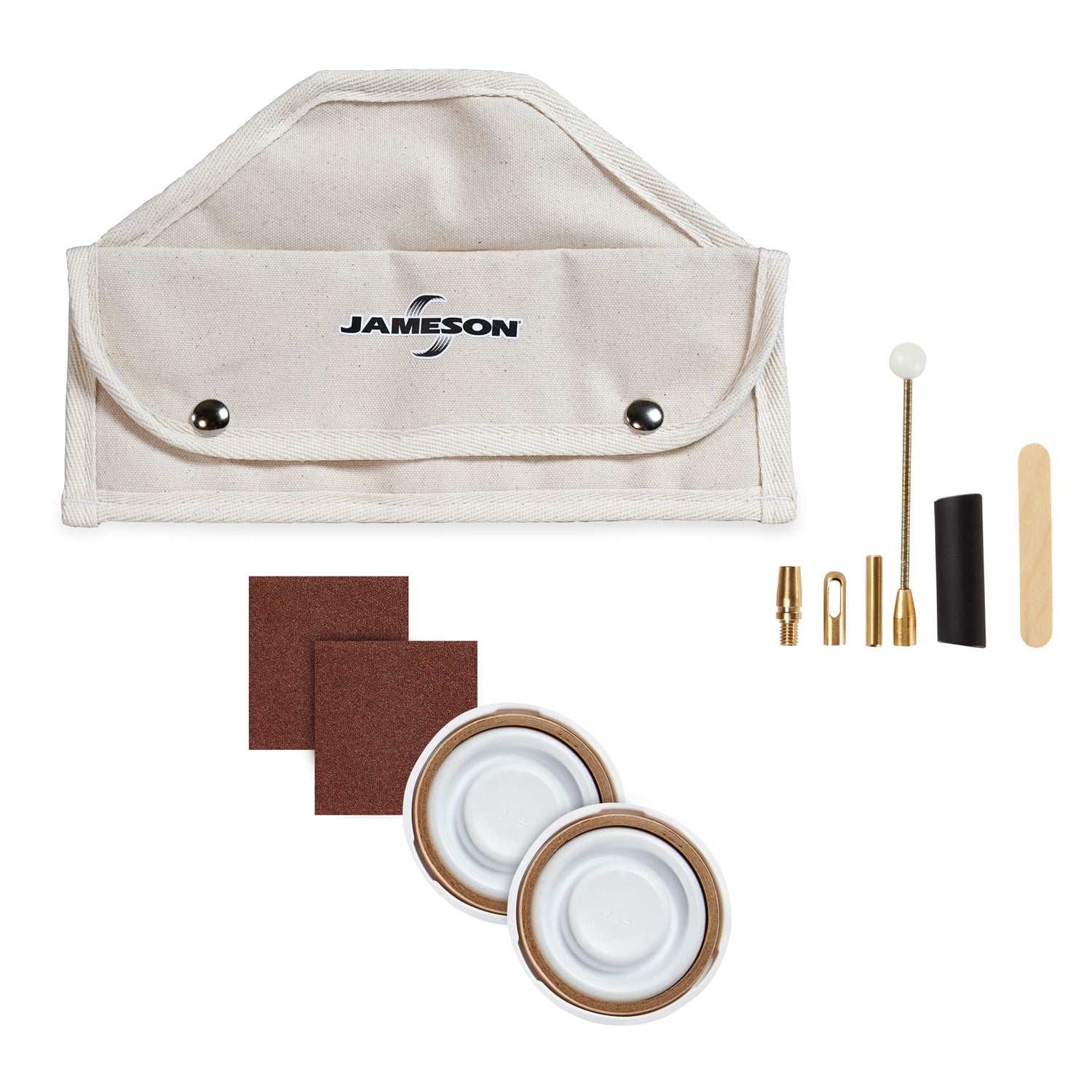

What’s Included
- Mini Duct Hunter reel and frame
- 3/16" traceable fiberglass rod
- Accessory kit (15-316-AK)
- Canvas pouch
- Flexible leader tip
- End ferrule
- Splice ferrule
- Pulling eye
- Adhesive
- Emery cloth
Safety Note: Do not use on live circuits. Disconnect power before use. Always wear proper eye and hand protection, inspect the rod before use, and follow manufacturer safety and operating instructions.
