Kaeser Mobilair M17 Air Compressor | 35 CFM @ 205 PSI | Honda GX630
$25,689.10
Unit price
/
Select Option
Each
Lead Time:

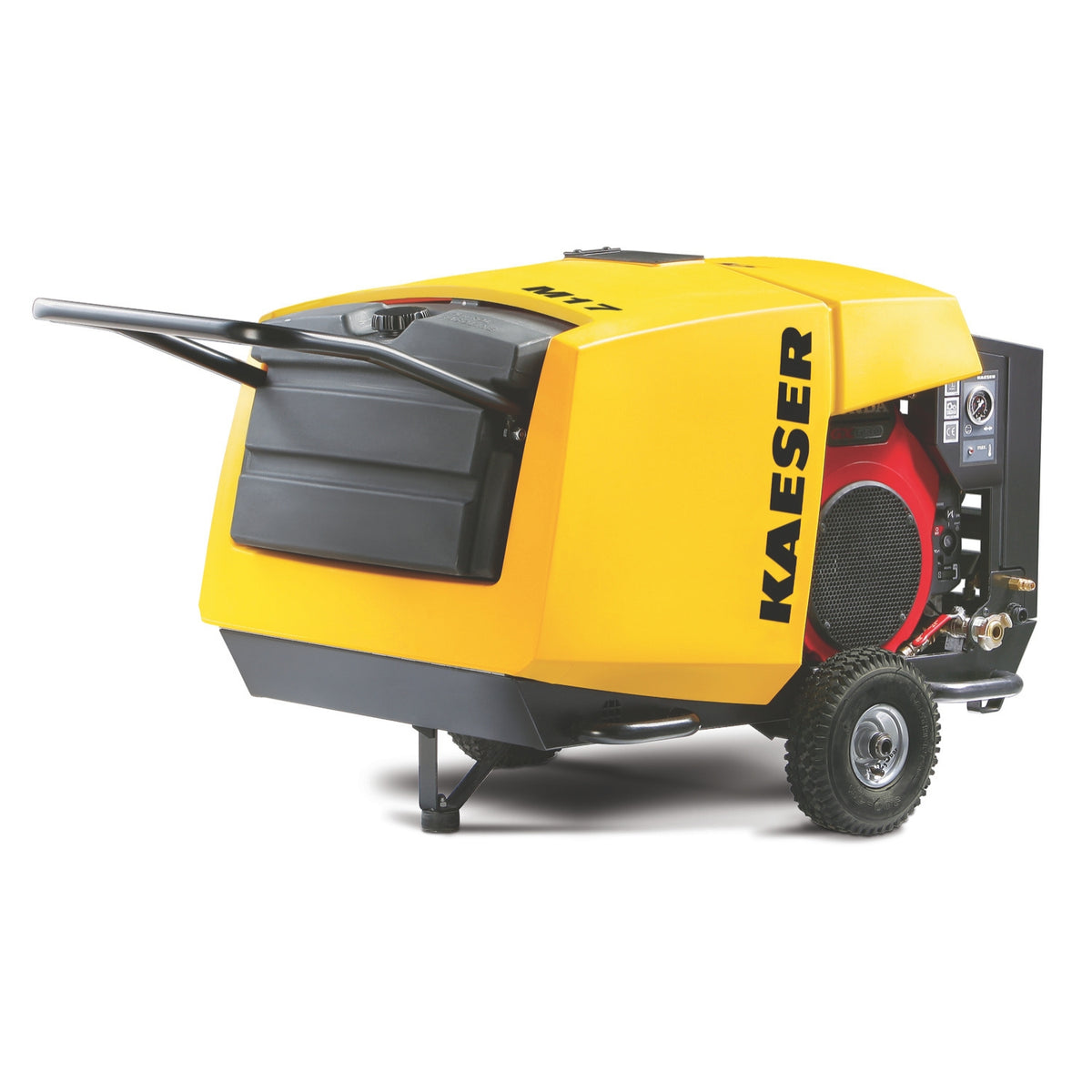

Kaeser Mobilair M17 Air Compressor with Air Cooler — Product Overview
The Mobilair M17 is a compact air compressor with a folding handle, oversized pneumatic tires, and a portable design for movement around the job site.
The M17 uses Kaeser’s Sigma Profile™ airend and a Honda GX630 gasoline engine with modulation control. It provides 35 CFM @ 205 PSI (1 m³/min @ 14 bar) and includes an air cooler.
The compressor also features electric start with keyed ignition, an easy-to-read control panel, a rotomolded polyethylene shell, and 4-micron inlet filtration rated at 99.9% efficiency.
Key Features
- 35 CFM @ 205 PSI: Custom 35 CFM configuration rated at 205 PSI (14 bar).
- Honda GX630 Engine: Gasoline engine with modulation control and electric start.
- Sigma Profile™ Airend: Kaeser airend designed to maintain steady pressure and match air output to load demand.
- Jobsite Mobility: Folding handle, oversized pneumatic tires, and compact design.
- Protective Housing: Rotomolded polyethylene shell designed to resist scratches, dents, and impacts.
- Air Filtration: 4-micron inlet filters rated at 99.9% efficiency.
- Air Cooler: This M17 configuration includes an air cooler.
Ordering Information
| Part Number | Description |
|---|---|
| 08785000 | 35 CFM @ 205 PSI (1 m³/min @ 14 bar) - Domestic Fittings |
| 08785050 | 3/8" 50 ft (9.5 mm 15 m) Hose with QDS (Domestic) |
Specifications
| Specification | Details |
|---|---|
| Model | M17 |
| Free Air Delivery | 35 CFM (1 m³/min) @ 205 PSI (14 bar) |
| Engine | Honda GX630 |
| Power @ Full Load | 20.8 HP (15.51 kW) |
| Full Load Speed | 3300 rpm |
| Off Load Running Speed | 2200 rpm |
| Fuel Tank Capacity | 5 gal (18.93 L) |
| Dry Weight | 445 lb (201.85 kg) |
| Dimensions (L × W × H) | 42" × 31" × 31" (108 cm × 80 cm × 78 cm) |
Application
Recommended for the Condux Gulfstream™ 150, 250, and 300.
