Jameson Mini Duct Hunter Traceable Rodder | 1/8" & 3/16" | 100'–325'
Jameson Mini Duct Hunter Traceable Rodder | 1/8" & 3/16" | 100'–325'

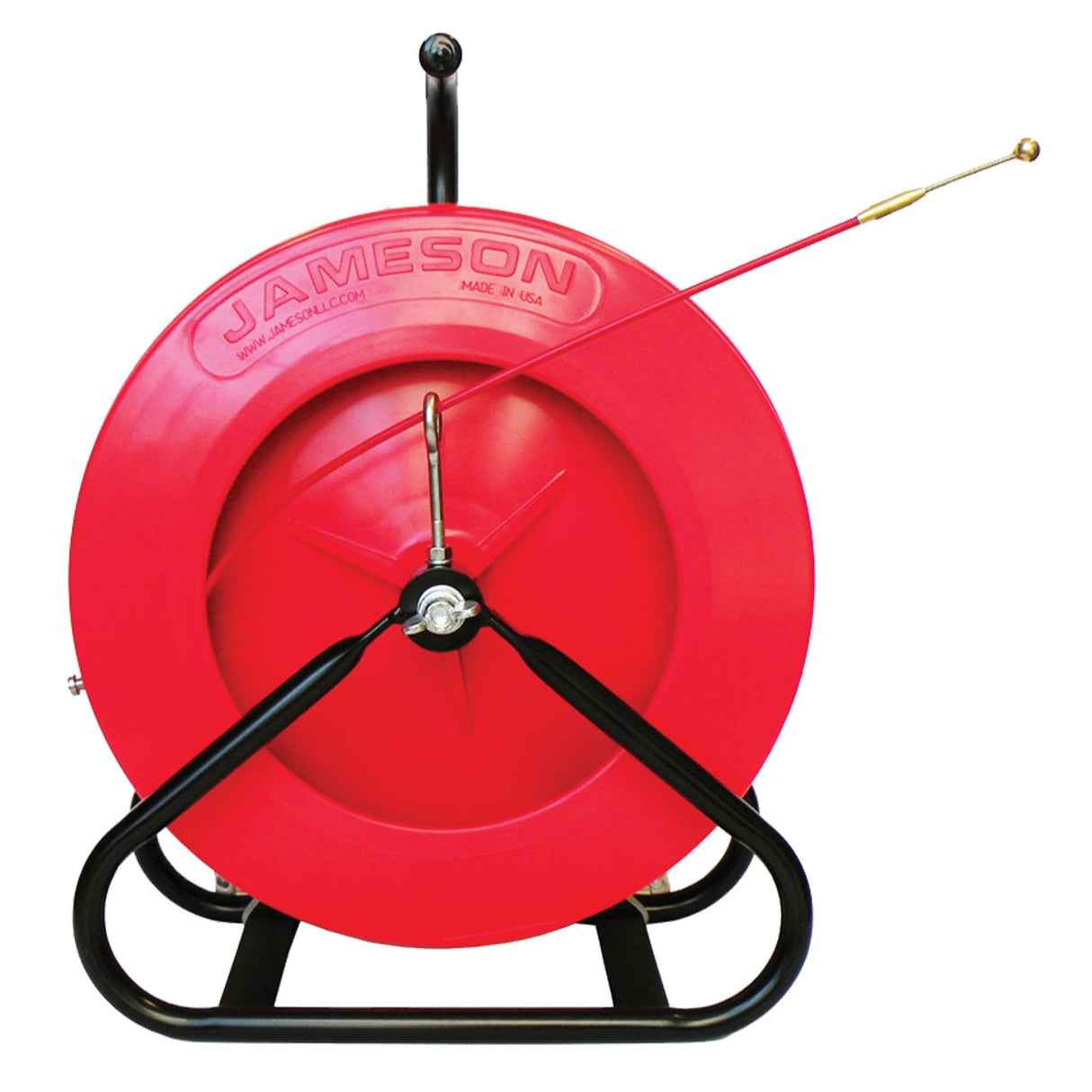

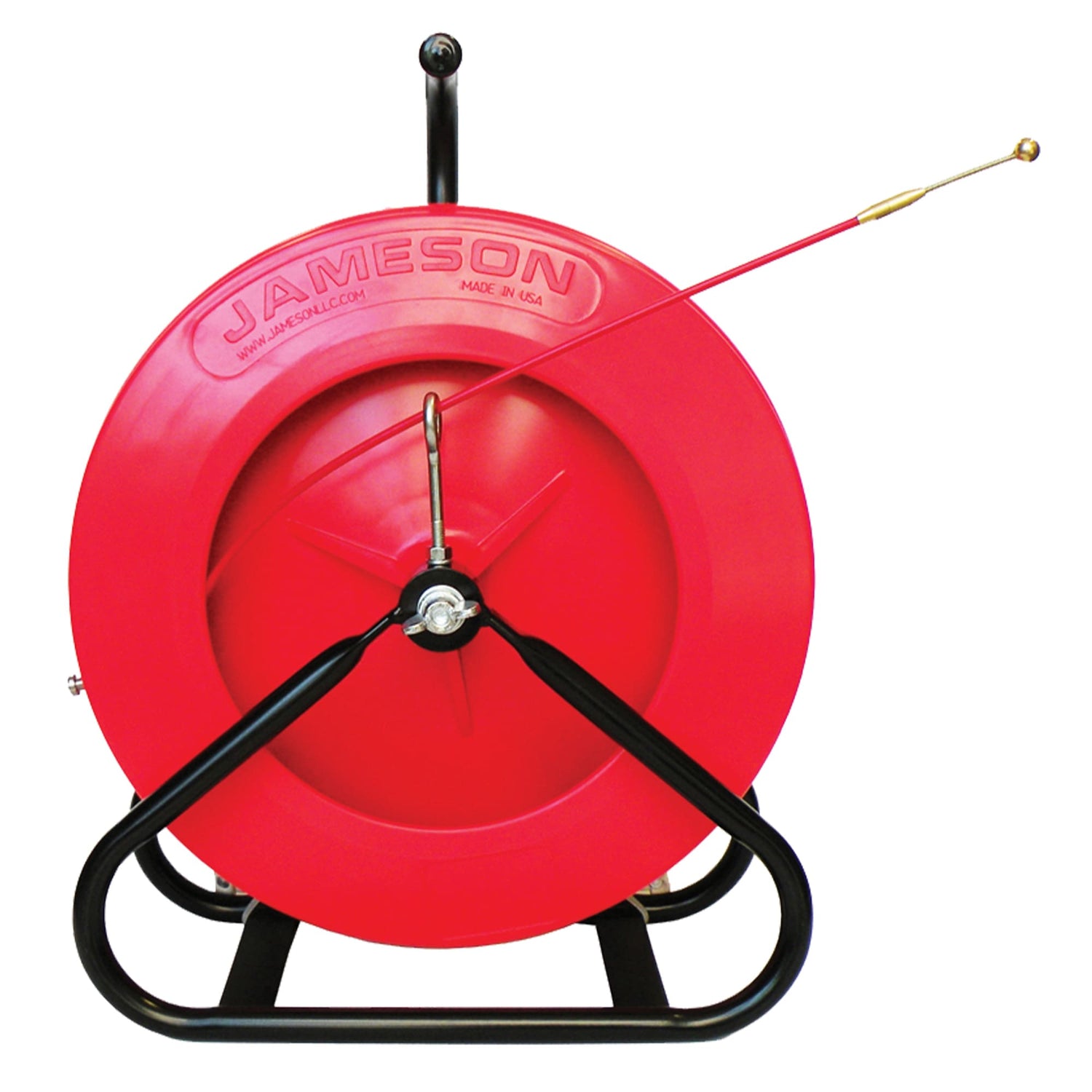

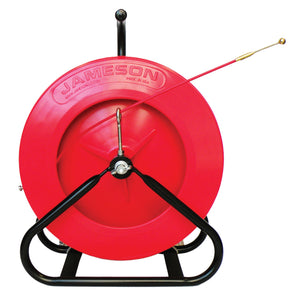

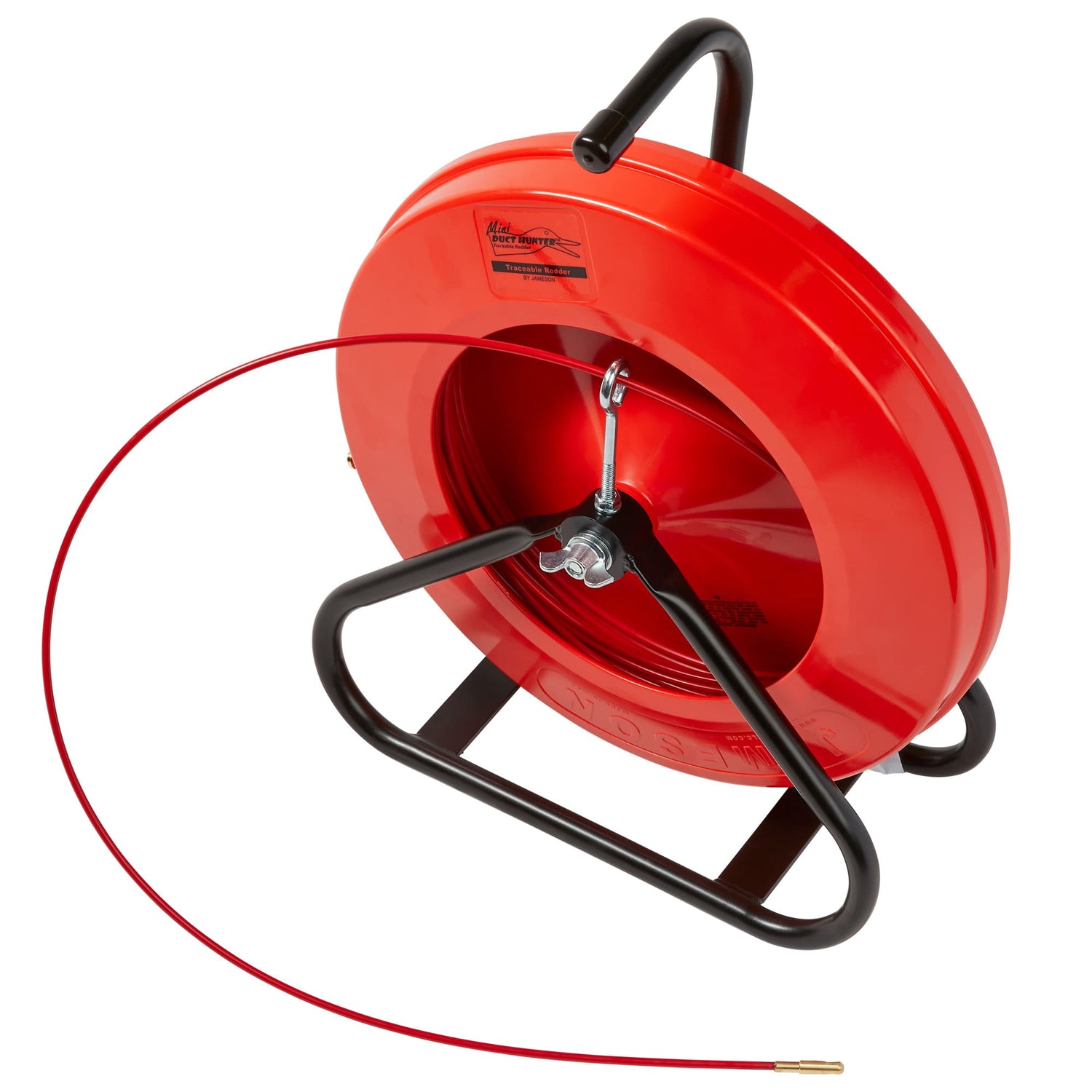

Jameson Mini Duct Hunter Traceable Rodders are built to trace small conduit or pipe by energizing the rod with a compatible signal transmitter and locating it with a receiver. These continuous fiberglass rodders are a practical choice for locating fiber optic cable in PVC pipe without tracer wire, tracing fiber optic mini-duct, and tracing sewer laterals to help avoid cross bores.
Available in 1/8" and 3/16" rod sizes, Mini Duct Hunter units offer lightweight handling, compact transport, and the correct accessory kit for the selected rod size. The 1/8" rod is suited for tighter bends and smaller conduit, while the 3/16" rod offers added stiffness for longer or straighter runs.

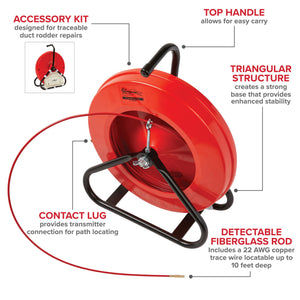

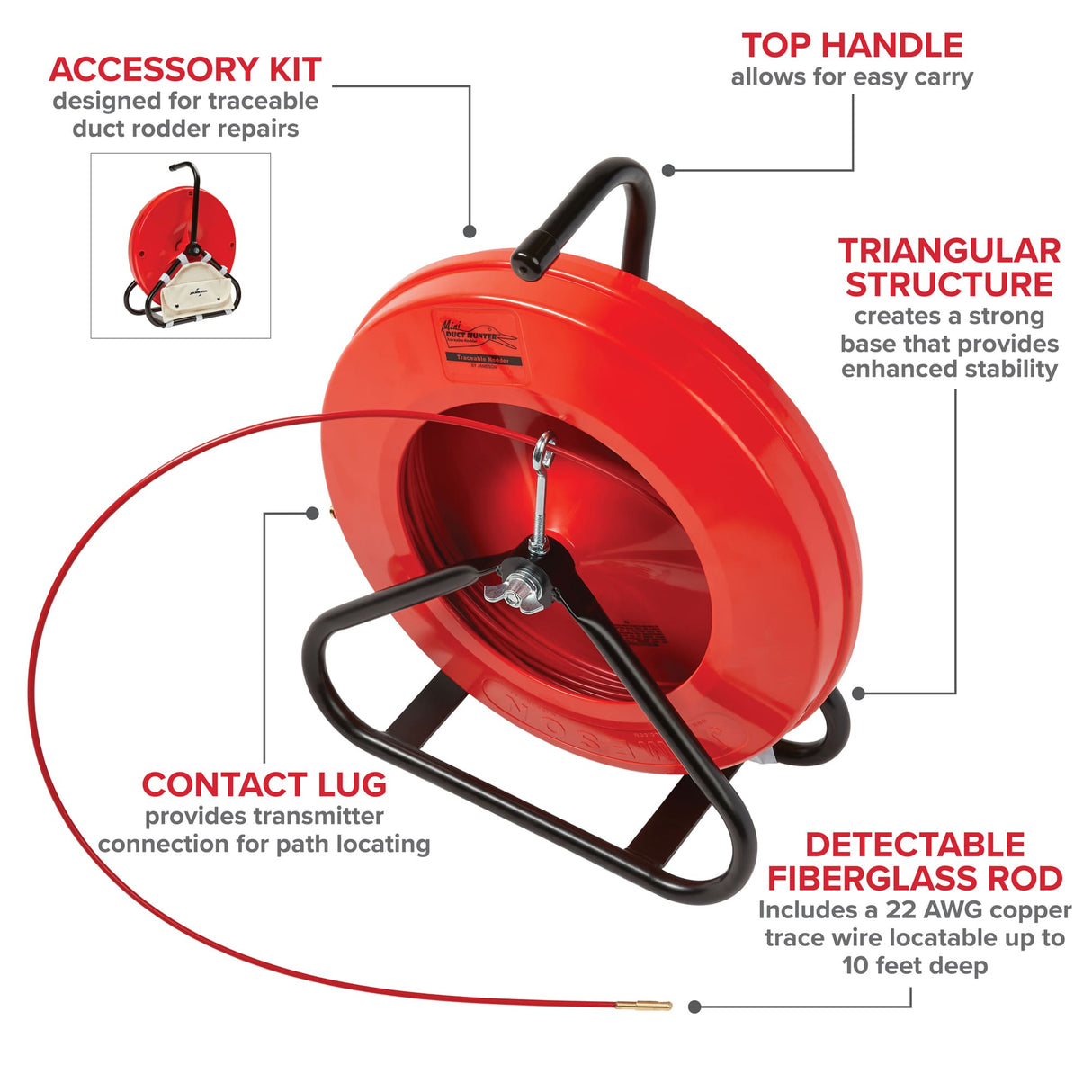

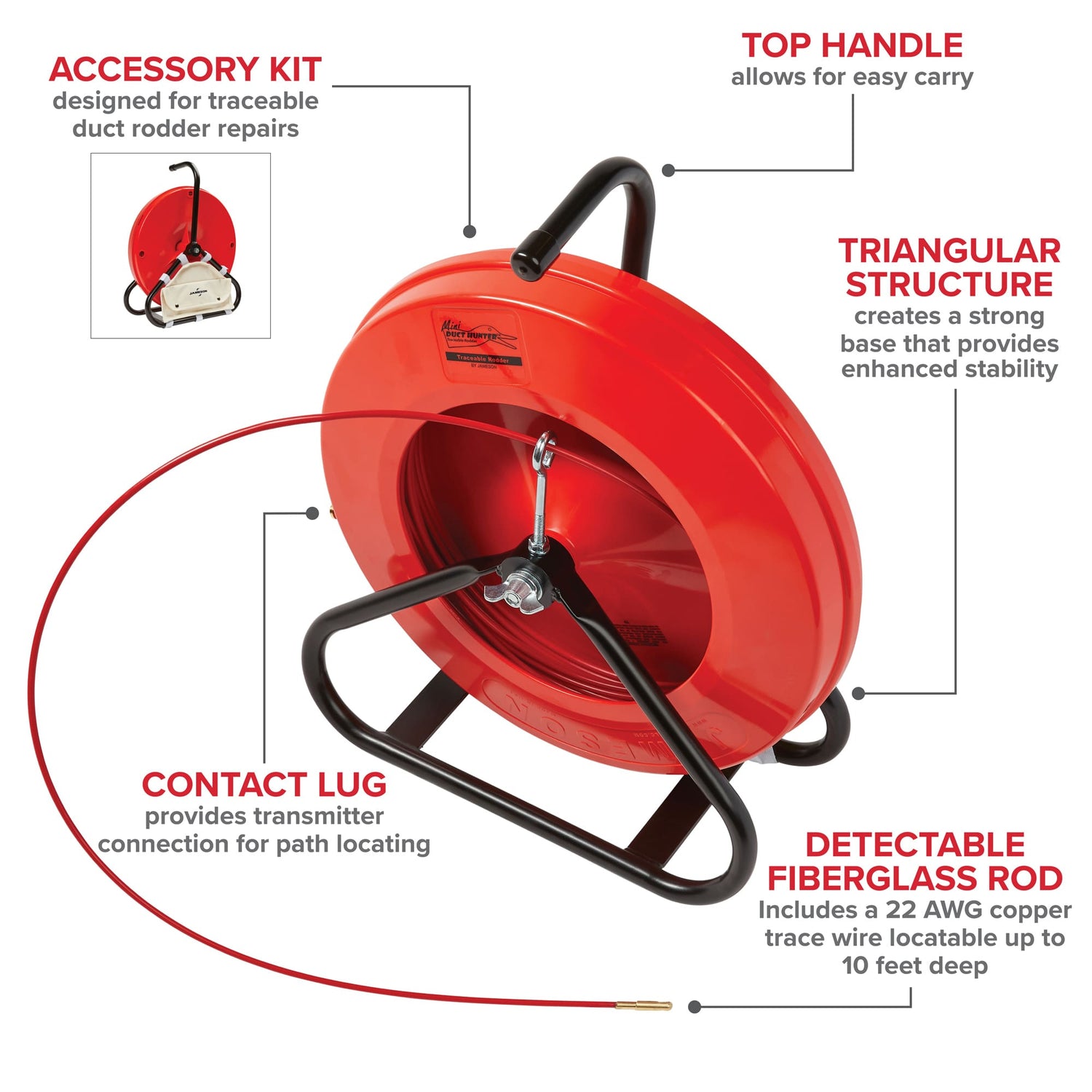

- Trace Small Conduit or Pipe — Designed for locating energized rod paths inside walls, floors, or underground.
- Two Rod Sizes — Choose 1/8" for smaller conduit and tighter bends or 3/16" for added stiffness and larger conduit.
- Accessory Kit Included — Each complete unit includes the matching accessory kit for the selected rod size.

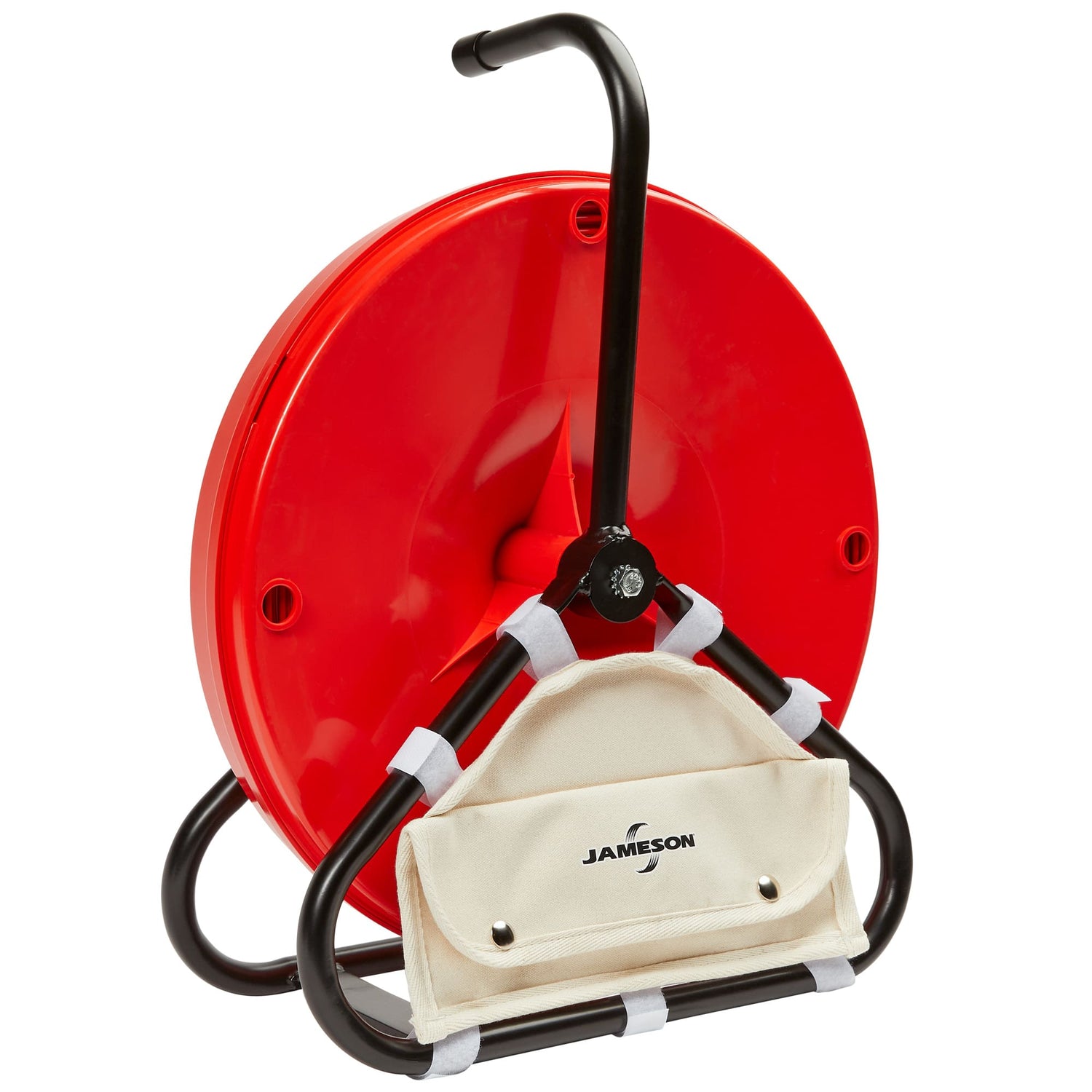

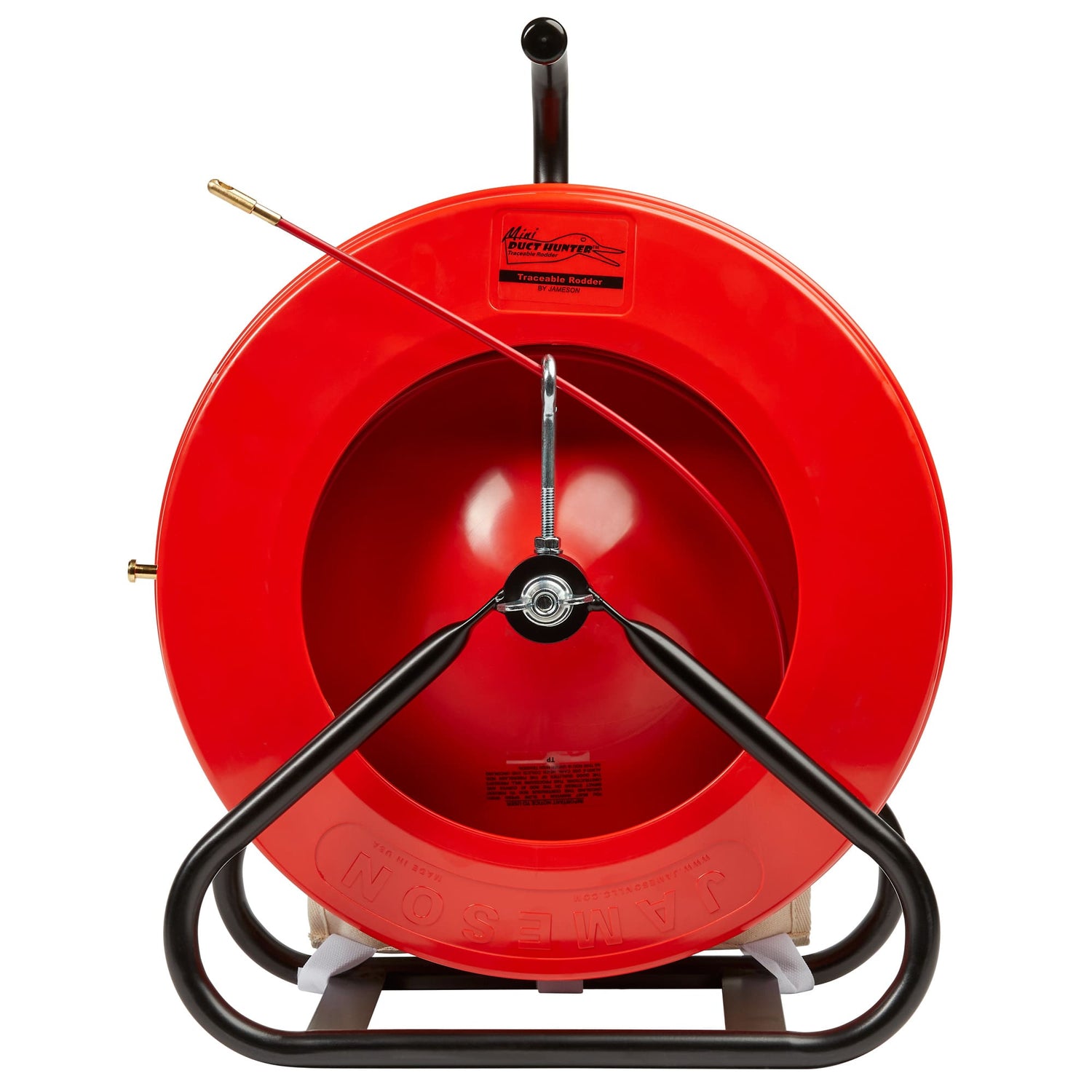

- Lightweight Portable Frame — Handle and compact frame design help with transport and jobsite use.

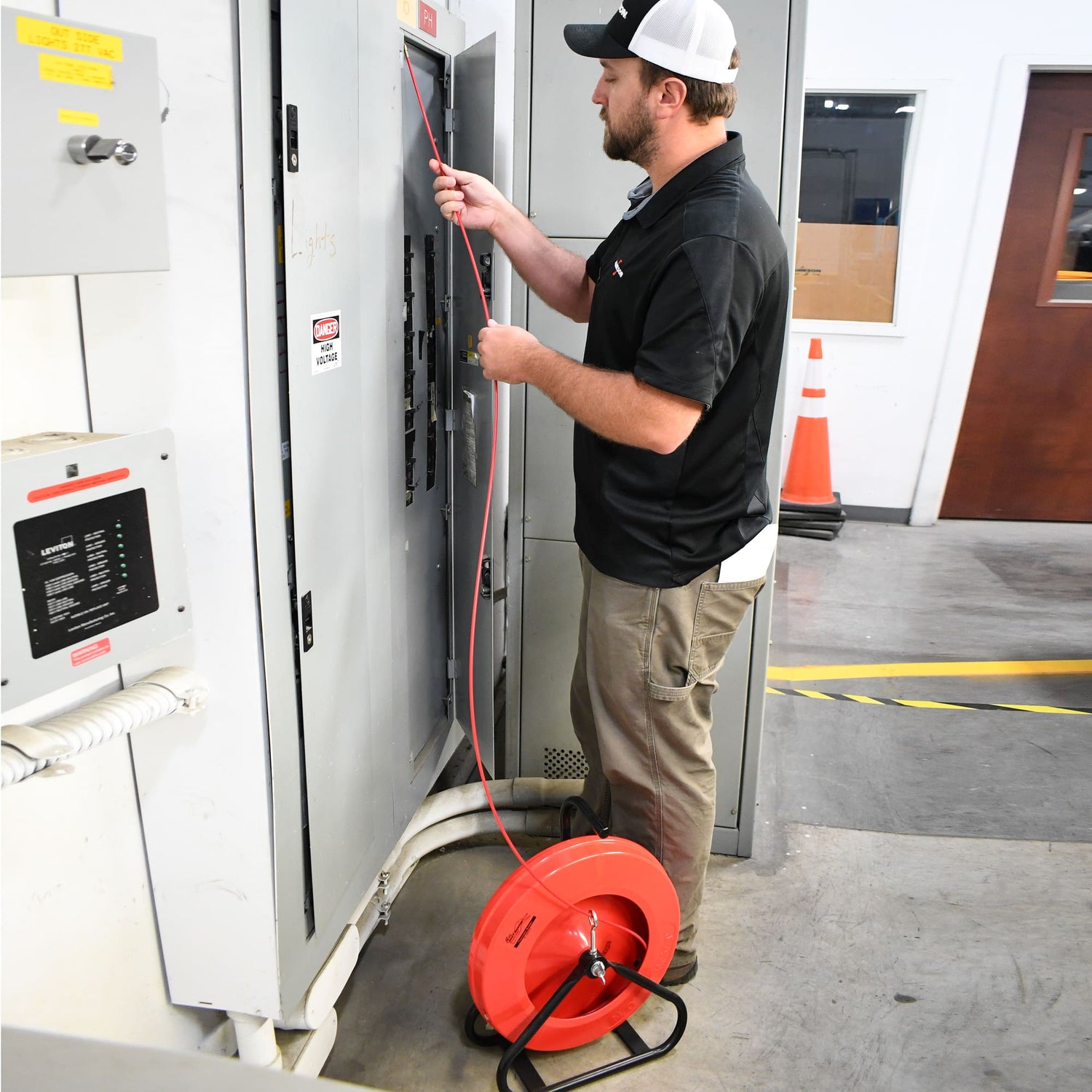

- Jobsite Applications — Useful for fiber optic cable in PVC pipe, mini-duct locating, plumbing, and sewer lateral tracing.
Mini Duct Hunter Options
| Rod Size | Best For | Recommended Conduit | Length Range | Pull Strength | Minimum Bend Radius |
|---|---|---|---|---|---|
| 1/8" | Smaller conduit and tighter bends | 1/2"–1" | 100'–200' | 150 lb | 1.75" |
| 3/16" | Greater stiffness and longer runs | 1/2"–1-1/2" | 100'–325' | 300 lb | 2.5" |
Specifications by Rod Size
| Specification | 1/8" | 3/16" |
|---|---|---|
| Rod Diameter | 1/8" | 3/16" |
| Recommended Conduit | 1/2"–1" | 1/2"–1-1/2" |
| Minimum Bend Radius | 1.75" | 2.5" |
| Pull Strength | 150 lb | 300 lb |

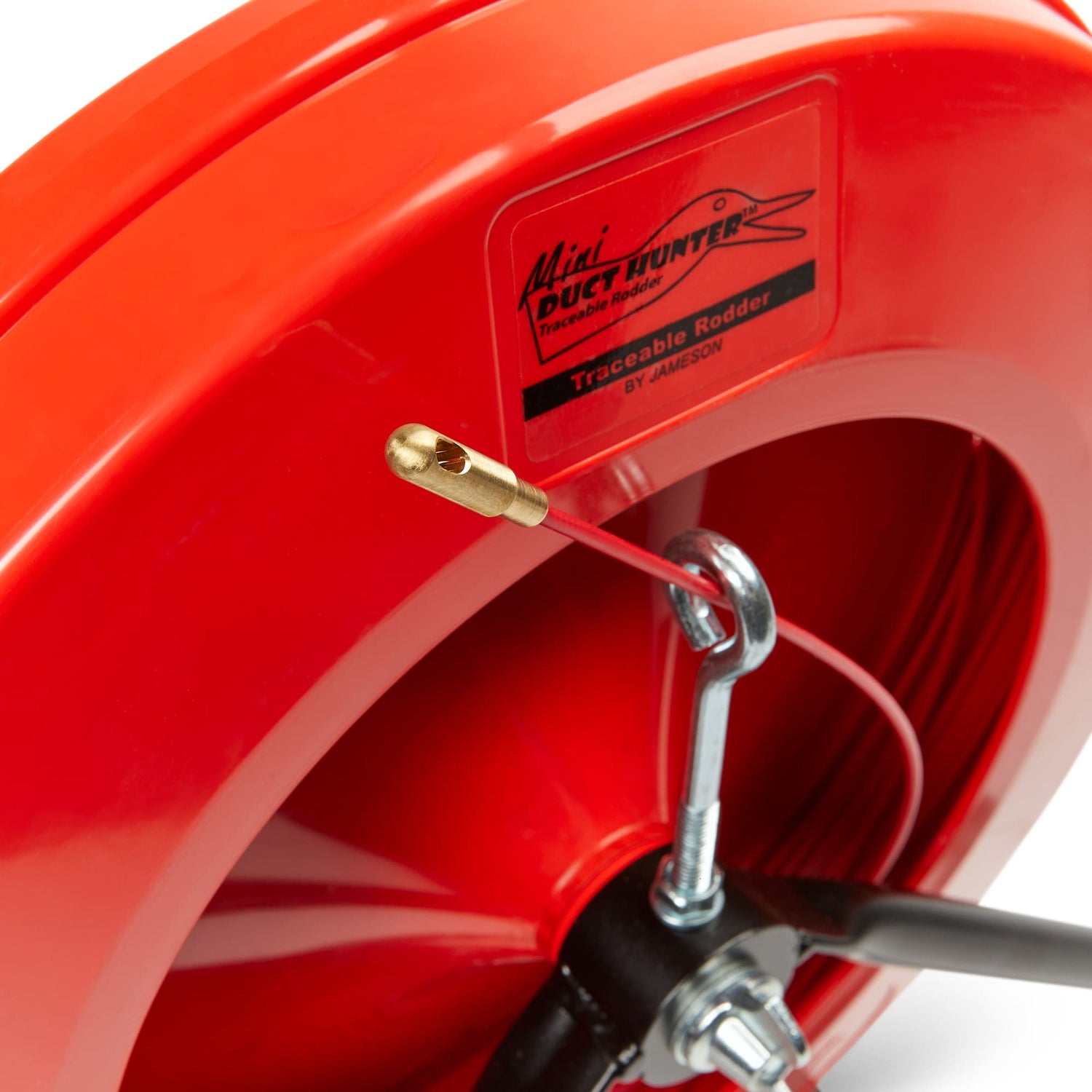

| End Ferrule Thread | 1/4"-20 | 1/4"-20 |
| Included Accessory Kit | 15-18-AK | 15-316-AK |
| Frame Dimensions | 22" x 17" x 7" | 22" x 17" x 7" |
Available Variants
Select your Rod Size and Length.
| Rod Size | Length | MPN |
|---|---|---|
| 1/8" | 100' | 15-18-100 |
| 1/8" | 150' | 15-18-150 |
| 1/8" | 200' | 15-18-200 |
| 3/16" | 100' | 15-316-100 |
| 3/16" | 150' | 15-316-150 |
| 3/16" | 200' | 15-316-200 |
| 3/16" | 250' | 15-316-250 |
| 3/16" | 300' | 15-316-300 |
| 3/16" | 325' | 15-316-325 |
Compatible Accessories (Sold Separately)
| Accessory | Use | MPN |
|---|---|---|
| Flexible Leader with Ball Tip | Guides rod around bends, sweeps, misalignments, and wires | 15-163 |
| Pulling Eye | Attaches pull line to end fitting of rod | 15-160 |
| Sonde Adapter | Adapter for compatible sonde applications | 15-168 |
| End Ferrule Repair Kit (1/8") | End ferrule, adhesive, and emery cloth for 1/8" rod repair | 15-18-146 |
| End Ferrule Repair Kit (3/16") | End ferrule, adhesive, and emery cloth for 3/16" rod repair | 15-146 |
| Splice Repair Kit (1/8") | Splice ferrule, adhesive, shrink tube, and emery cloth for 1/8" rod repair | 15-18-140 |
| Splice Repair Kit (3/16") | Splice ferrule, adhesive, shrink tube, and emery cloth for 3/16" rod repair | 15-140 |

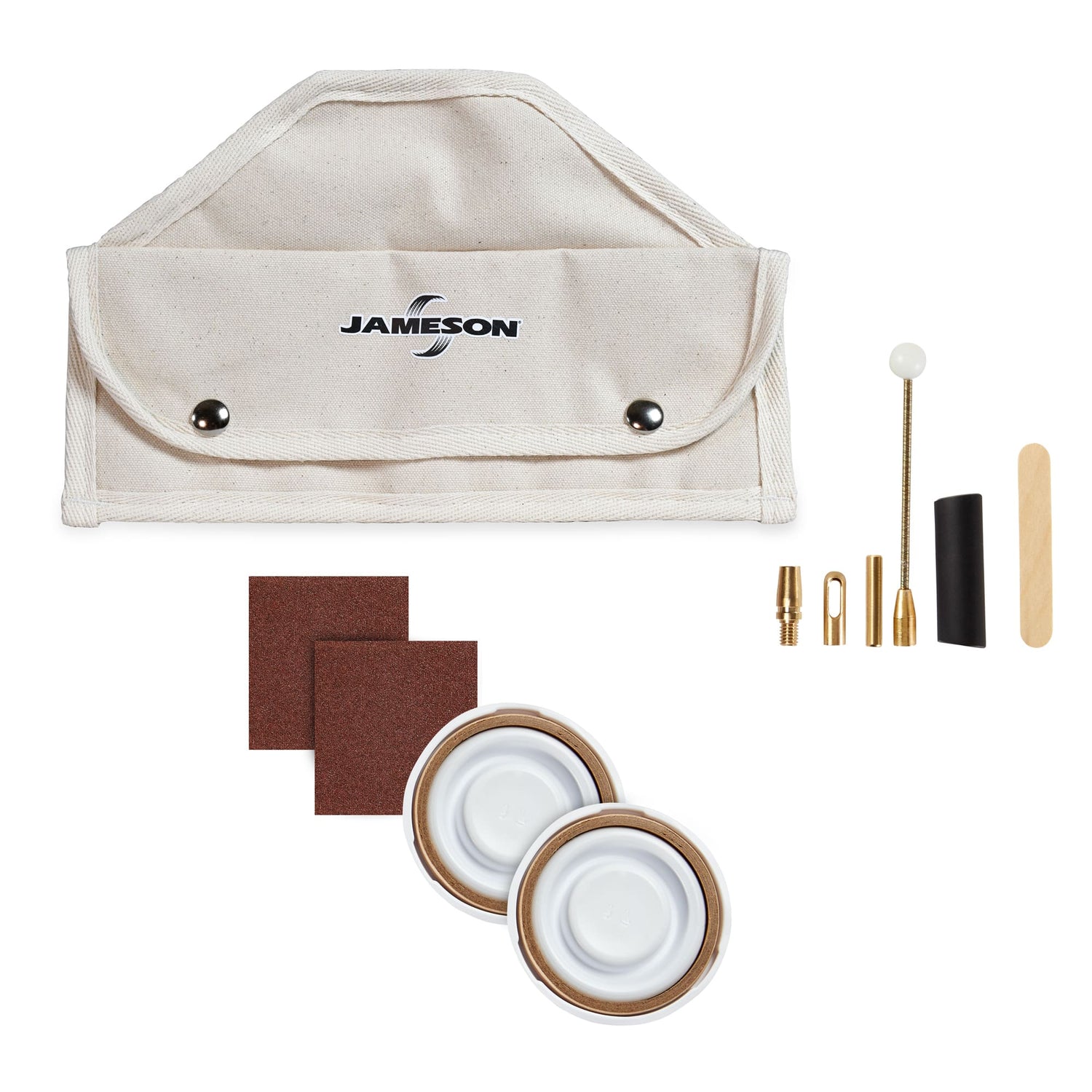

| Accessory Kit (1/8") | Flexible spring leader tip, end ferrule, splice ferrule, pulling eye, adhesive, emery cloth, and canvas pouch | 15-18-AK |
| Accessory Kit (3/16") | Flexible spring leader tip, end ferrule, splice ferrule, pulling eye, adhesive, emery cloth, and canvas pouch | 15-316-AK |
Note: Mini Duct Hunter rodders are intended for locating applications with compatible transmitters and receivers. Follow normal jobsite safety procedures and keep the rod controlled during payout and rewind.
